Toyota Hiace GDH320 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
HIACE
GDH320R-EDFDYQ (2019)
4708 - BRAKE TUBE & CLAMP

GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 1GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

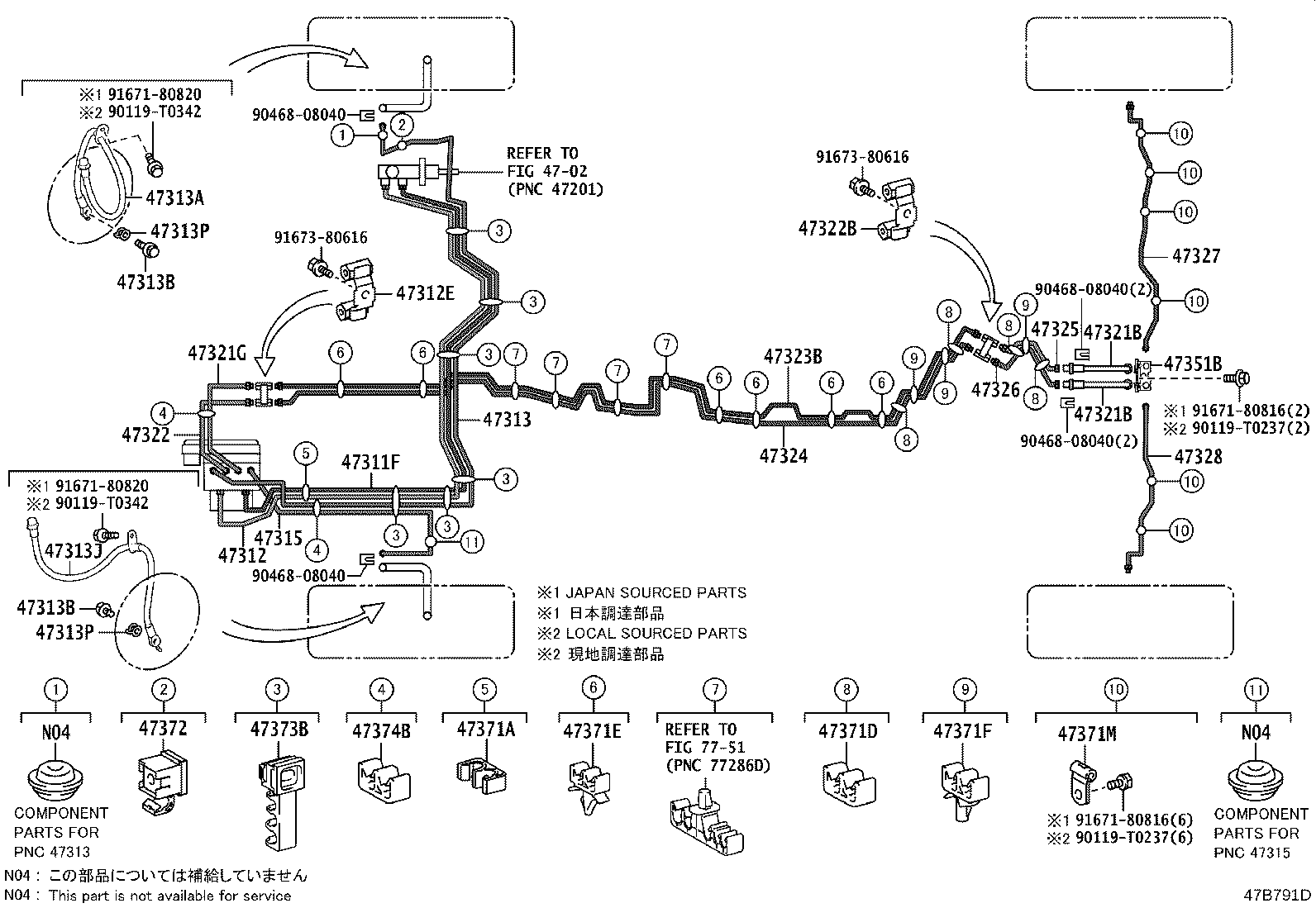

ILLUST NO. 1 OF 2(1903- )GDH320..RHD..6F ; (1903- )GRH320..6F..ARL ; (1903- )GRH320..RHD..G

Click highlighted areas on diagram

BRAKE TUBE(REAR DRUM BRAKE)

Part #	Description	Period	Qty
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-26A90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26400	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10285	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26410	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H88	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H89	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-26370	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-26840	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26450	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10285	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47323B - TUBE, REAR BRAKE, NO.3
47323-26450	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26600	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26450	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26570	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26420	GRH300..5D..GEN;GDH300..4D..6F..ARL;GDH320,GRH300,320..6F..ARL	02/2019 - 06/2021	1
47327-26410	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26230	GRH300..5D..GEN;GDH300..4D..6F..ARL;GDH320,GRH300,320..6F..ARL	02/2019 - 06/2021	1
47328-26220	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26240	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00920	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47371D - CLAMP, BRAKE TUBE, NO.8
90464-00903	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	4
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07019	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	6
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E02	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	3
47371M - CLAMP, BRAKE TUBE, NO.13
90461-08639	GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL	02/2019 - 06/2021	6
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D20	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E47	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	6
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00903	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
Common parts
90119-T0237
90119-T0342
90468-08040
91671-80816
91671-80820
91673-80616
Linked diagrams
4702
7751

ILLUST NO. 1 OF 2(1903- )GDH320,321,322,GRH32#..RHD

Click highlighted areas on diagram

BRAKE TUBE(REAR DISC BRAKE)

Part #	Description	Period	Qty
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-26A90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26400	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10285	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26410	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H88	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H89	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-26370	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H23	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H23	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-26840	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26450	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10285	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47323B - TUBE, REAR BRAKE, NO.3
47323-26450	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26600	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26450	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26570	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26420	GRH300..5D..GEN;GDH300..4D..6F..ARL;GDH320,GRH300,320..6F..ARL	02/2019 - 06/2021	1
47327-26410	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26230	GRH300..5D..GEN;GDH300..4D..6F..ARL;GDH320,GRH300,320..6F..ARL	02/2019 - 06/2021	1
47328-26220	GDH320,GRH320..6F..ARL REAR WHEEL BRAKE-DISC	03/2019 - 06/2021	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26240	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00920	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47371D - CLAMP, BRAKE TUBE, NO.8
90464-00903	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	4
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07019	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	6
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E02	GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL	03/2019 - 06/2021	3
47371M - CLAMP, BRAKE TUBE, NO.13
90461-08639	GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL	02/2019 - 06/2021	6
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D20	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E47	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	6
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00903	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
Common parts
90119-T0237
90119-T0342
90468-08040
91671-80816
91671-80820
91673-80616
Linked diagrams
4702
7751

GDH320R-EDFDYQ (2019)

ILLUST NO. 1 OF 2(1903- )GDH320..RHD..6F ; (1903- )GRH320..6F..ARL ; (1903- )GRH320..RHD..G

ILLUST NO. 1 OF 2(1903- )GDH320,321,322,GRH32#..RHD
