GDH320L-HBTDY (2019)
Toyota Hiace
(1903- )1GDFTV..GDH322..LHD..6F..P..GEN ; (1903- )1GDFTV..GDH320..LHD..SP..6F
12V 3.0KW

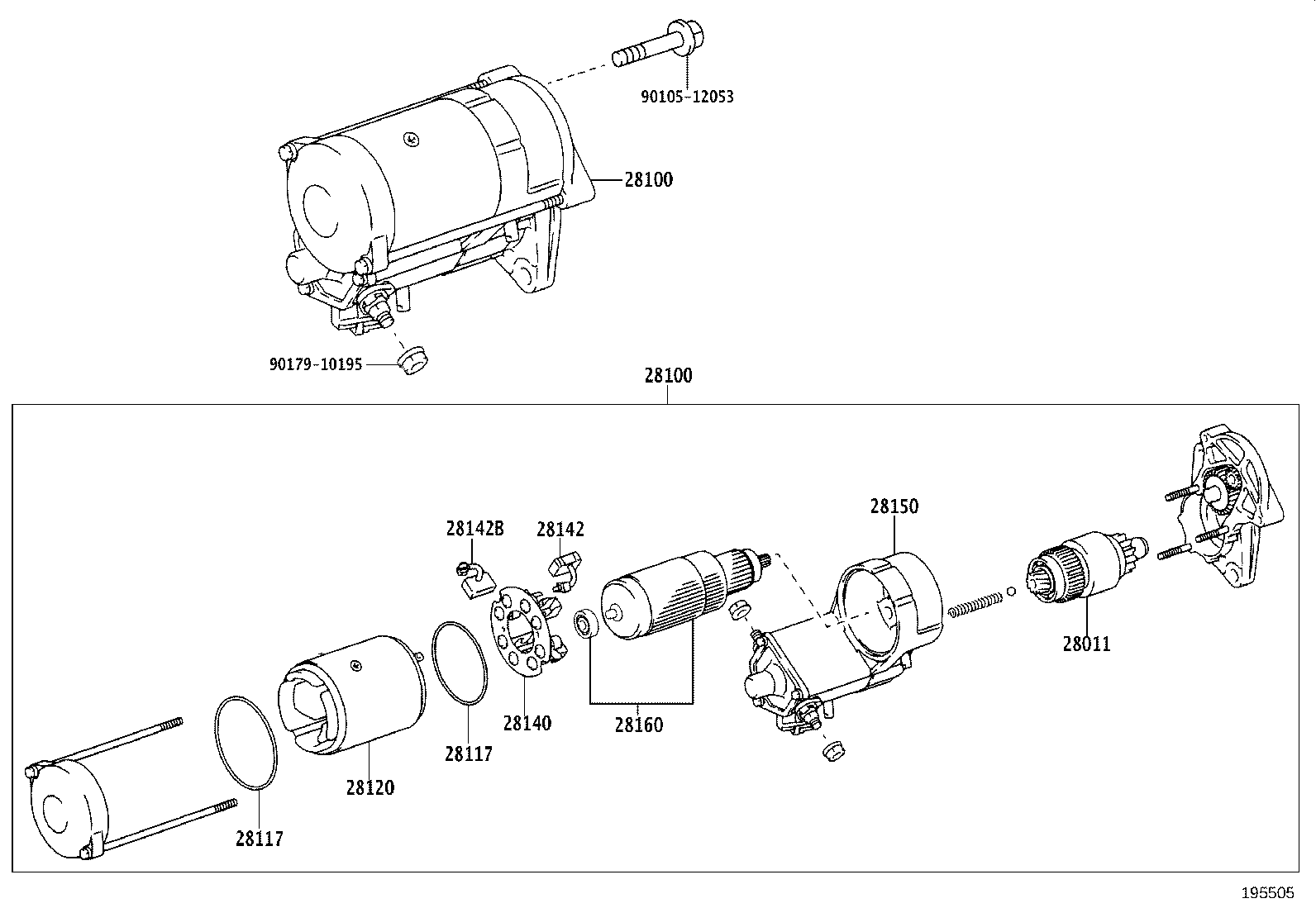

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-30050 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
1 | ||
| 28011-30050 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-11210 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) 12V 2.0KW |
1 | ||
| 28100-11200 |
1GDFTV..GDH320..LHD..SP..6F..GEN 12V 3.0KW,UKRAINE SPEC |
1 | ||
| 28100-11200 |
1GDFTV..GDH320..LHD..SP..6F..GEN 12V 3.0KW,GEORGIA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-11210 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) 12V 2.0KW |
1 | ||
| 28100-11200 |
1GDFTV..GDH320..LHD..SP..6F..GEN 12V 3.0KW,UKRAINE SPEC |
1 | ||
| 28100-11200 |
1GDFTV..GDH320..LHD..SP..6F..GEN 12V 3.0KW,GEORGIA SPEC |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
2 | ||
| 28117-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
2 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
2 | ||
| 28117-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
2 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
1 | ||
| 28120-0L180 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 28120-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0L180 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 28140-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
1 | ||
| 28140-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
2 | ||
| 28142-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
2 | ||
| 28142B - BRUSH, STARTER, NO.2 | ||||
| 28142-67100 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
2 | ||
| 28142-67100 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
2 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-30070 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
1 | ||
| 28150-30070 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
1 | ||
| 28150-40090 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-33150 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 28160-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC |
1 | ||
| 28160-67090 |
1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC |
1 | ||
| Common parts | ||||
| 90105-12053 | ||||
| 90179-10195 | ||||
