Toyota Hiace GDH320 ENGINE OVERHAUL GASKET KIT

Manufacturers Home
Toyota
GR
HIACE
GDH320L-HBTDY (2019)
1103 - ENGINE OVERHAUL GASKET KIT

GDH320L-HBTDY (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 1GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

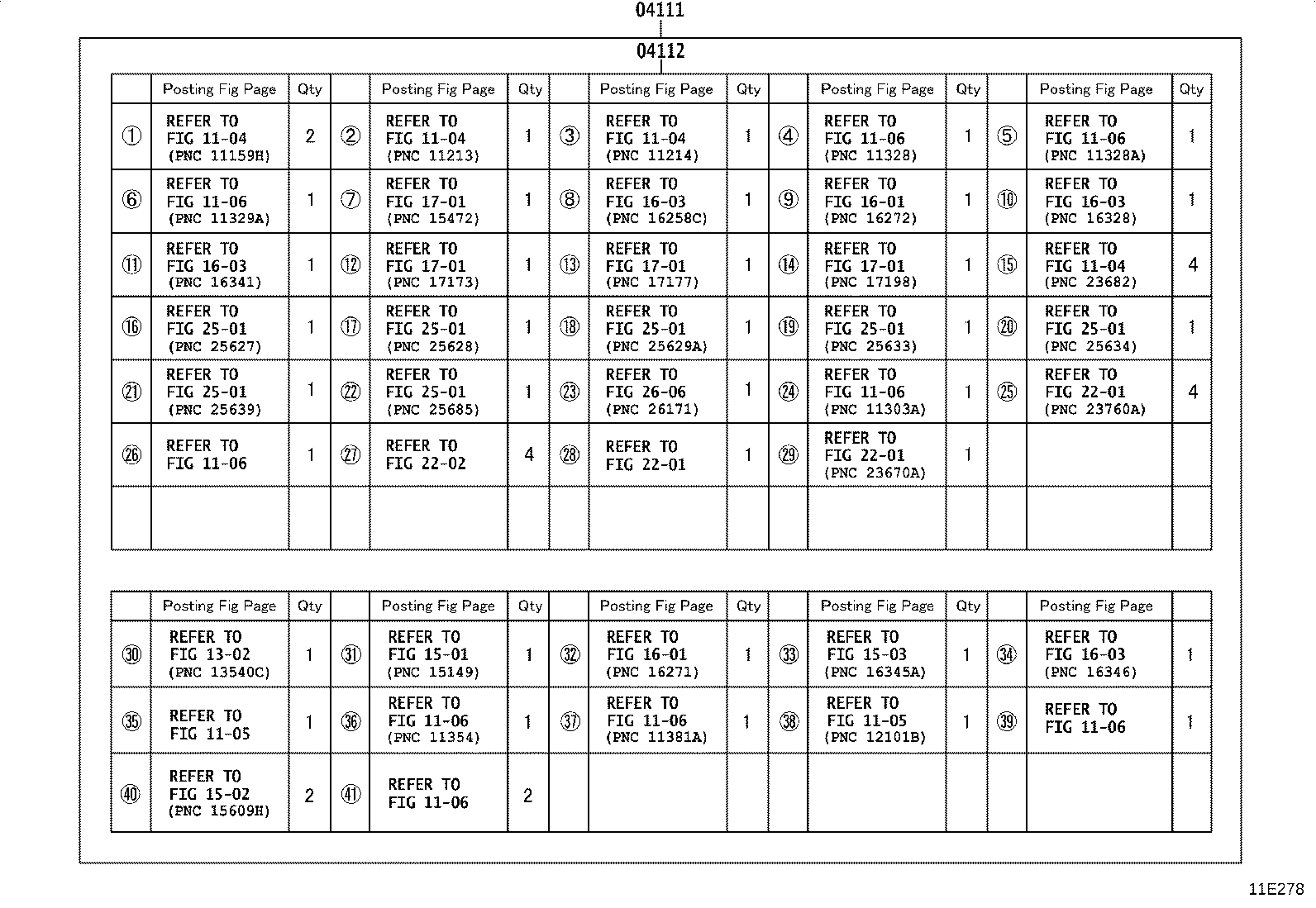

ILLUST NO. 1 OF 2(1912- )1GDFTV..GDH320..LHD..SP..6F..GEN

Click highlighted areas on diagram

TYPE E

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-11260	1GDFTV..GDH300,301,320..LHD..6F..GEN COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	02/2019 - 06/2020	1
04111-11260	1GDFTV..GDH300,320..LHD..SP..6FC..GEN ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH300,301,320..LHD..6FC..D COSTA RICA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	06/2020 - 07/2021	1
04111-11260	1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN PERU SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH320..LHD..SP..6F..GEN MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO3/4,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	03/2019 - 12/2999	1
04111-11270	1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN) TYPE B:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN CHILE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11280	1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC&COLD AREA SPEC(-10C AREA),TYPE C:REFER ILLUST.	03/2019 - 12/2999	1
04111-11290	1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),W/O(S&S),W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.	08/2020 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-11210	1GDFTV..GDH300,301,320..LHD..6F..GEN COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	02/2019 - 06/2020	1
04112-11210	1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN CHILE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11210	1GDFTV..GDH300,301,320..LHD..6FC..D COSTA RICA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	06/2020 - 07/2021	1
04112-11210	1GDFTV..GDH300,320..LHD..SP..6FC..GEN ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11210	1GDFTV..GDH320..LHD..SP..6F..GEN MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO3/4,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	03/2019 - 12/2999	1
04112-11210	1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN PERU SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11220	1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN) TYPE B:REFER ILLUST.	02/2019 - 12/2999	1
04112-11230	1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC&COLD AREA SPEC(-10C AREA),TYPE C:REFER ILLUST.	03/2019 - 12/2999	1
04112-11240	1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),W/O(S&S),W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.	08/2020 - 12/2999	1

ILLUST NO. 2 OF 2(1912- )1GDFTV..GDH320..LHD..SP..6F..GEN

Click highlighted areas on diagram

TYPE E

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-11260	1GDFTV..GDH300,301,320..LHD..6F..GEN COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	02/2019 - 06/2020	1
04111-11260	1GDFTV..GDH300,320..LHD..SP..6FC..GEN ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH300,301,320..LHD..6FC..D COSTA RICA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	06/2020 - 07/2021	1
04111-11260	1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN PERU SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH320..LHD..SP..6F..GEN MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO3/4,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	03/2019 - 12/2999	1
04111-11270	1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN) TYPE B:REFER ILLUST.	02/2019 - 12/2999	1
04111-11260	1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN CHILE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04111-11280	1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC&COLD AREA SPEC(-10C AREA),TYPE C:REFER ILLUST.	03/2019 - 12/2999	1
04111-11290	1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),W/O(S&S),W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.	08/2020 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-11210	1GDFTV..GDH300,301,320..LHD..6F..GEN COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	02/2019 - 06/2020	1
04112-11210	1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN CHILE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11210	1GDFTV..GDH300,301,320..LHD..6FC..D COSTA RICA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S)&FRONT HEATER-WITH,TYPE A:REFER ILLUST.	06/2020 - 07/2021	1
04112-11210	1GDFTV..GDH300,320..LHD..SP..6FC..GEN ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11210	1GDFTV..GDH320..LHD..SP..6F..GEN MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO3/4,WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.	03/2019 - 12/2999	1
04112-11210	1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN PERU SPEC&EXHAUST EMISSION CONTROL-EURO3/4,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
04112-11220	1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN) TYPE B:REFER ILLUST.	02/2019 - 12/2999	1
04112-11230	1GDFTV..GDH320..LHD..SP..6F..GEN GEORGIA SPEC&COLD AREA SPEC(-10C AREA),TYPE C:REFER ILLUST.	03/2019 - 12/2999	1
04112-11240	1GDFTV..GDH320..LHD..SP..6F..GEN UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),W/O(S&S),W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.	08/2020 - 12/2999	1
