GDH303R-RDTJYQ (2019)
Toyota Hiace
ILLUST NO. 3 OF 3(1907- )GDH303..RHD ; (1907- )GDH303..LHD..G,J ; (1907- )GDH304,306,GRH303
SILENCER SHEET & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26120 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 62621L - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26120 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62621-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62622G - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26120 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-26020 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62623-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62623-26010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62939-33020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62939E - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67813A - SHEET, QUARTER PANEL SILENCER, RH | ||||
| 67813-26130 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 67813F - SHEET, QUARTER PANEL SILENCER | ||||
| 67813-26140 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 67814B - SHEET, QUARTER PANEL SILENCER, LH | ||||
| 67813-26130 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||

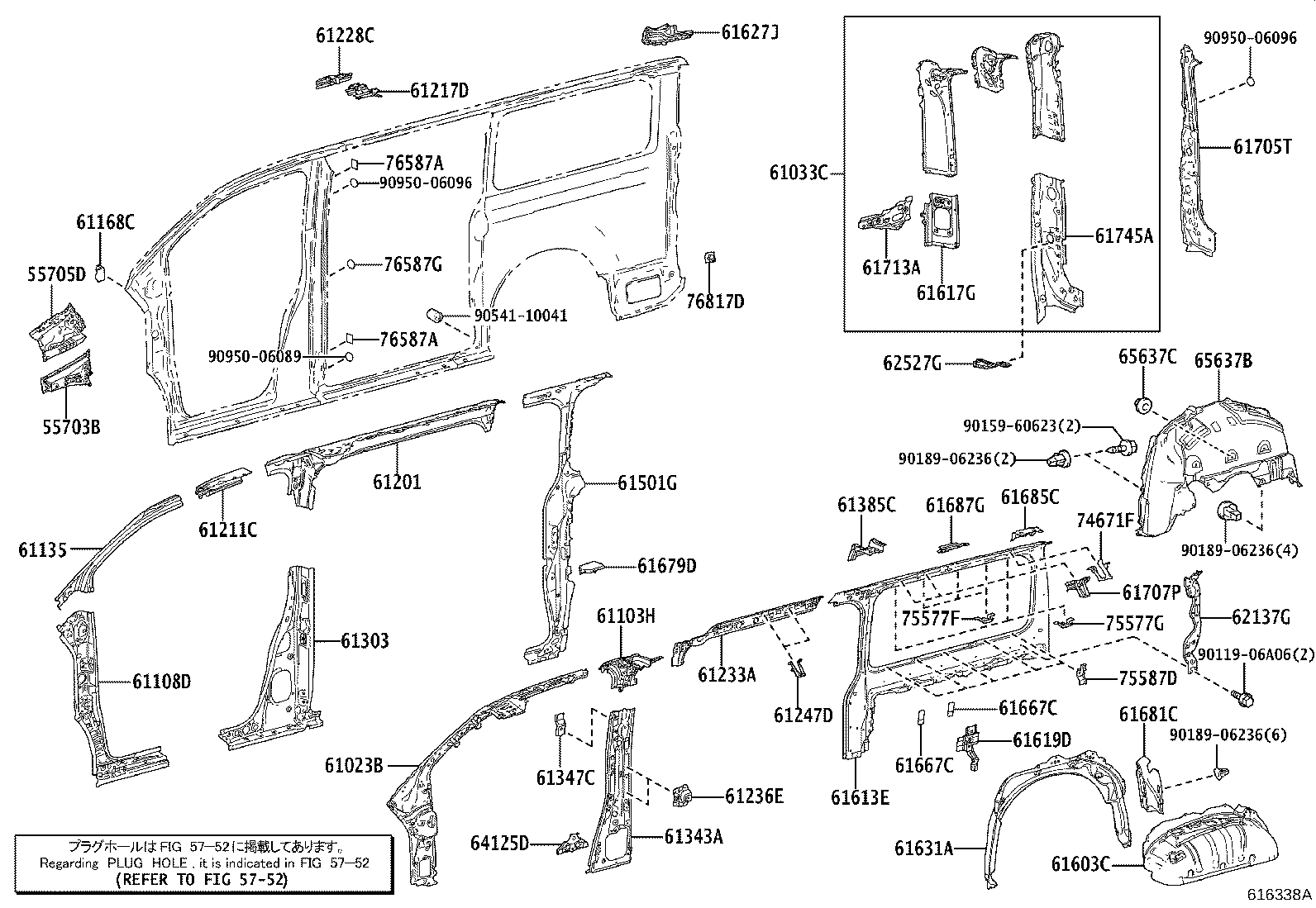

ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61023-26210 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26560 |
GDH303..LHD..G;GDH303..RHD..(G,H);GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61033-26550 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26090 |
GRH300,303..5D..ARL |
1 | ||
| 61103-26090 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61103-26090 |
GDH304..GEN;GDH300,303..5D..ARL |
1 | ||
| 61103-26090 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61108-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61135-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-26040 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61211-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-26020 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH | ||||
| 61228-26010 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26410 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61233-26410 |
GDH303..ARL;GDH304..GEN;GDH300..SHP..ARL |
1 | ||
| 61233-26410 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61236E - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN |
2 | ||
| 61247D - BRACKET, ASSIST GRIP, RH | ||||
| 61245-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26590 |
GDH320..SP..6F..ARL;GRH300,303,320..5D..ARL |
1 | ||
| 61343-26590 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61343-26590 |
GDH304..GEN;GDH300,303..5D..ARL;GDH320..SP..6FC..ARL |
1 | ||
| 61343-26590 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26050 |
GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26330 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26120 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26L40 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..RHD..H BRUNEI SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..ARL;GDH304..GEN |
1 | ||
| 61613-26L40 |
GDH303..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..RHD..H LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61619-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26160 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61627-26160 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26110 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-26050 |
GDH303..LHD..G;GDH303..RHD..(G,H);GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61679D - SEAL, QUARTER WHEEL HOUSE | ||||
| 61679-26040 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61685-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61687-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26380 |
GDH303..RHD..H LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 61705-26380 |
GDH303..ARL |
1 | ||
| 61707P - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 61707-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61745-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62137G - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26100 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62527-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-26030 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) BLACK |
11 | ||
| 74671F - SUPPORT,ASSIST GRIP, NO.1 | ||||
| 74671-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75577F - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26060 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD..(G,J,N) |
3 | ||
| 75577G - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26050 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303..RHD;GDH304,306..LHD;GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH303..LHD..(G,J)..GEN PREMIUM PACKAGE |
2 | ||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 75577-26050 |
GDH303,GRH304..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75587D - BRACKET, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75587-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
5 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||

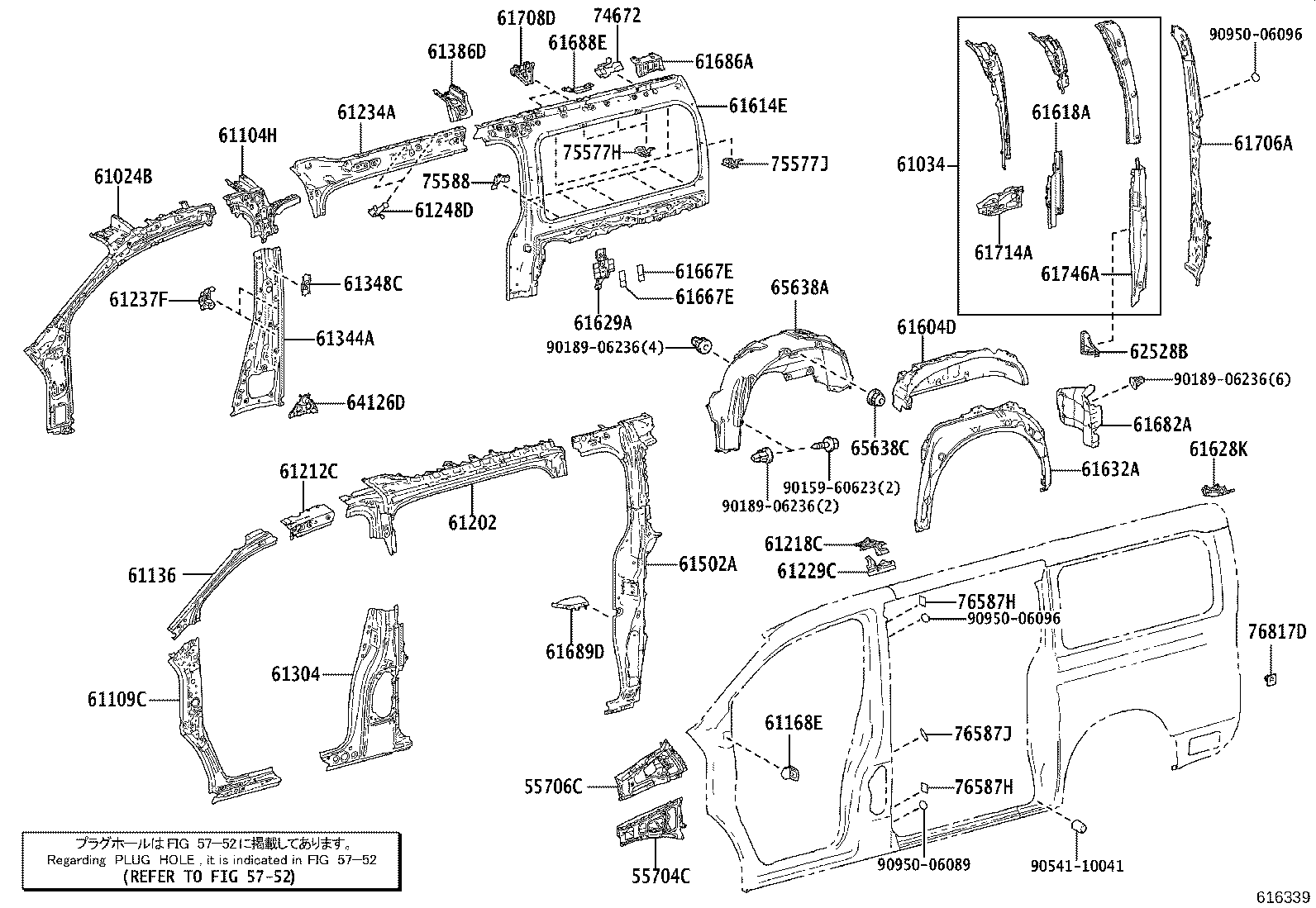

ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26200 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61024-26200 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26570 |
GDH303..LHD..G;GDH303..RHD..(G,H);GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61034-26640 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26090 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61104-26090 |
GRH300,303..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61104-26090 |
GDH304..GEN;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 61104-26090 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61136-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26070 |
GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH301,GRH301,303,304..RHD..(GEN,NZ,TH) |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61212-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61218-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26450 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61234-26450 |
GDH303..ARL;GDH304..GEN;GDH300..SHP..ARL |
1 | ||
| 61234-26450 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61237F - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GDH306..LHD;GDH322..ARL;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301..RHD..N;GDH301,321..D..(IDN,NZ,TH);GDH322,GRH303,322..RHD..(D,G,J,N)..(GEN,TH) |
2 | ||
| 61248D - BRACKET, ASSIST GRIP, LH | ||||
| 61245-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61304-26060 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26490 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61344-26490 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL |
1 | ||
| 61344-26490 |
GDH304..GEN;GDH320..6FC..ARL;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 61344-26490 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26050 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61386-26050 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26330 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61502-26330 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26130 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K60 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..RHD..H BRUNEI SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..ARL;GDH304..GEN |
1 | ||
| 61614-26K60 |
GDH303..RHD..H LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26080 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26120 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61628-26120 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-26030 |
GDH303..LHD..G;GDH303..RHD..(G,H);GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61686-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61688-26050 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688-26050 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61689-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26370 |
GDH303..RHD..H LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 61706-26370 |
GDH303..ARL |
1 | ||
| 61708D - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 61707-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61714-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH320..6F..ARL;GDH306,GRH321..RHD;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) BLACK |
11 | ||
| 74672 - SUPPORT,ASSIST GRIP, NO.2 | ||||
| 74671-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75577H - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301,303..RHD..(G,J,N)..GEN |
3 | ||
| 75577J - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26050 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303,GRH304..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303..RHD;GDH304,306..LHD;GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH303..LHD..(G,J)..GEN PREMIUM PACKAGE |
2 | ||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 75588 - BRACKET, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75588-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
5 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 76587-26070 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1907- )J..ARL,GEN
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61023-26210 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26560 |
GDH303..LHD..G;GDH303..RHD..(G,H);GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61033-26550 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26090 |
GRH300,303..5D..ARL |
1 | ||
| 61103-26090 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61103-26090 |
GDH304..GEN;GDH300,303..5D..ARL |
1 | ||
| 61103-26090 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61108-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61135-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-26040 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61211-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-26020 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH | ||||
| 61228-26010 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26410 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61233-26410 |
GDH303..ARL;GDH304..GEN;GDH300..SHP..ARL |
1 | ||
| 61233-26410 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61236E - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN |
2 | ||
| 61247D - BRACKET, ASSIST GRIP, RH | ||||
| 61245-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26590 |
GDH320..SP..6F..ARL;GRH300,303,320..5D..ARL |
1 | ||
| 61343-26590 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61343-26590 |
GDH304..GEN;GDH300,303..5D..ARL;GDH320..SP..6FC..ARL |
1 | ||
| 61343-26590 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26050 |
GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26330 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26120 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26L40 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..RHD..H BRUNEI SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..ARL;GDH304..GEN |
1 | ||
| 61613-26L40 |
GDH303..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61613-26L40 |
GDH303..RHD..H LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61619-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26160 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61627-26160 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26110 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61679D - SEAL, QUARTER WHEEL HOUSE | ||||
| 61679-26040 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61685-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61687-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26380 |
GDH303..RHD..H LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 61705-26380 |
GDH303..ARL |
1 | ||
| 61707P - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 61707-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61745-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62137G - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26100 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62527-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-26030 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) BLACK |
11 | ||
| 74671F - SUPPORT,ASSIST GRIP, NO.1 | ||||
| 74671-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75577F - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26060 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD..(G,J,N) |
3 | ||
| 75577G - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26050 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303..RHD;GDH304,306..LHD;GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH303..LHD..(G,J)..GEN PREMIUM PACKAGE |
2 | ||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 75577-26050 |
GDH303,GRH304..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75587D - BRACKET, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75587-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
5 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1907- )J..ARL,GEN
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26200 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61024-26200 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26570 |
GDH303..LHD..G;GDH303..RHD..(G,H);GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 61034-26640 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26090 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61104-26090 |
GRH300,303..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61104-26090 |
GDH304..GEN;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 61104-26090 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61136-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26070 |
GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH301,GRH301,303,304..RHD..(GEN,NZ,TH) |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61212-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61218-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229-26010 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26450 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61234-26450 |
GDH303..ARL;GDH304..GEN;GDH300..SHP..ARL |
1 | ||
| 61234-26450 |
GDH303,GRH304..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61237F - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GDH306..LHD;GDH322..ARL;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301..RHD..N;GDH301,321..D..(IDN,NZ,TH);GDH322,GRH303,322..RHD..(D,G,J,N)..(GEN,TH) |
2 | ||
| 61248D - BRACKET, ASSIST GRIP, LH | ||||
| 61245-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61304-26060 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26490 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61344-26490 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL |
1 | ||
| 61344-26490 |
GDH304..GEN;GDH320..6FC..ARL;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 61344-26490 |
GDH303..RHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26050 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61386-26050 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26330 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61502-26330 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26130 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K60 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..RHD..H BRUNEI SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..ARL;GDH304..GEN |
1 | ||
| 61614-26K60 |
GDH303..RHD..H LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61614-26K60 |
GDH303..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26080 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26120 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61628-26120 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61686-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61688-26050 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688-26050 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26020 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61689-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26370 |
GDH303..RHD..H LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 61706-26370 |
GDH303..ARL |
1 | ||
| 61708D - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 61707-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61714-26030 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH320..6F..ARL;GDH306,GRH321..RHD;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) BLACK |
11 | ||
| 74672 - SUPPORT,ASSIST GRIP, NO.2 | ||||
| 74671-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75577H - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301,303..RHD..(G,J,N)..GEN |
3 | ||
| 75577J - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-26050 |
GDH303..RHD..H BRUNEI SPEC&PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303,GRH304..RHD..H PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
2 | ||
| 75577-26050 |
GDH303..RHD;GDH304,306..LHD;GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH303..LHD..(G,J)..GEN PREMIUM PACKAGE |
2 | ||
| 75577-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 75588 - BRACKET, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75588-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
5 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 76587-26070 |
GDH306..RHD;GRH300,303..ARL;GDH300..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
