GDH301R-GDTDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV..GDH300,301,320,321,328..6F..GCC,GEN,IDN,PH,TH,VN

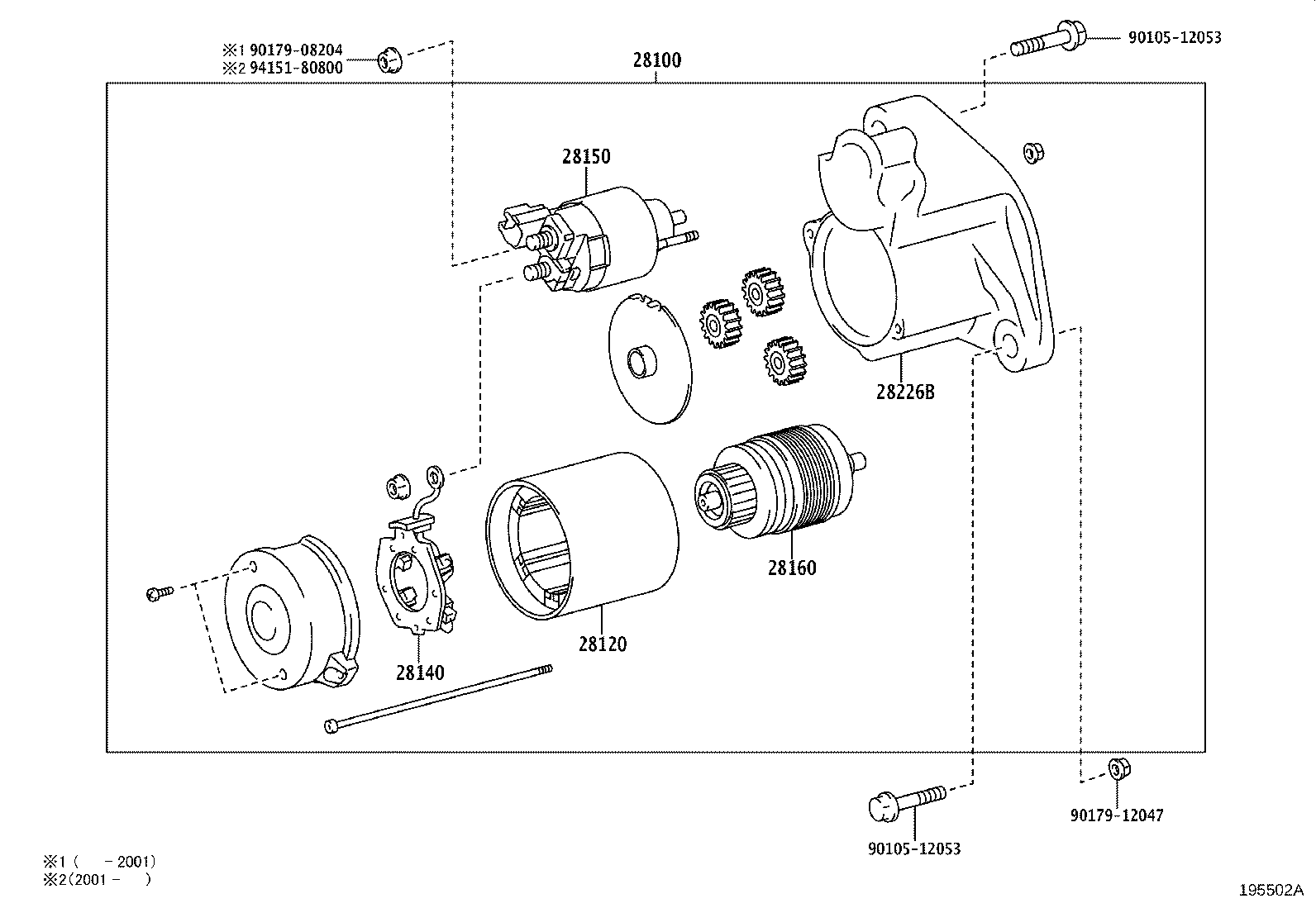

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 90105T0081 9017908204 90182T0011 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-11210

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

12V 2.0KW

 1
28100-11210

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28120-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28140-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28150-40090

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28160 - ARMATURE ASSY, STARTER
28160-33150

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28160-33150

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0L190

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28226-0L190

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
Common parts
90105-12053
90105-T0081
90179-08204
90182-T0011
94151-80800

(1902- )1GDFTV..GDH322..RHD..6F ; (1902- )1GDFTV..GDH322..6F..GCC ; (1902-

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 90105T0081 9017908204 90182T0011 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-11210

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

12V 2.0KW

 1
28100-11210

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28120-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28140-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28150-40090

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28160 - ARMATURE ASSY, STARTER
28160-33150

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28160-33150

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0L190

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28226-0L190

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
Common parts
90105-12053
90105-T0081
90179-08204
90182-T0011
94151-80800

(1902- )1GDFTV..GDH322..6FC..GCC,GEN ; (1902-)1GDFTV..GDH30#,320..6FC..GCC,G

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 9010512053 9017908204 9017912047 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-11210

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L180

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28160 - ARMATURE ASSY, STARTER
28160-33150

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0L190

1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)

 1
Common parts
90105-12053
90179-08204
90179-12047
94151-80800
