GDH301R-GDFNY (2019)
Toyota Hiace

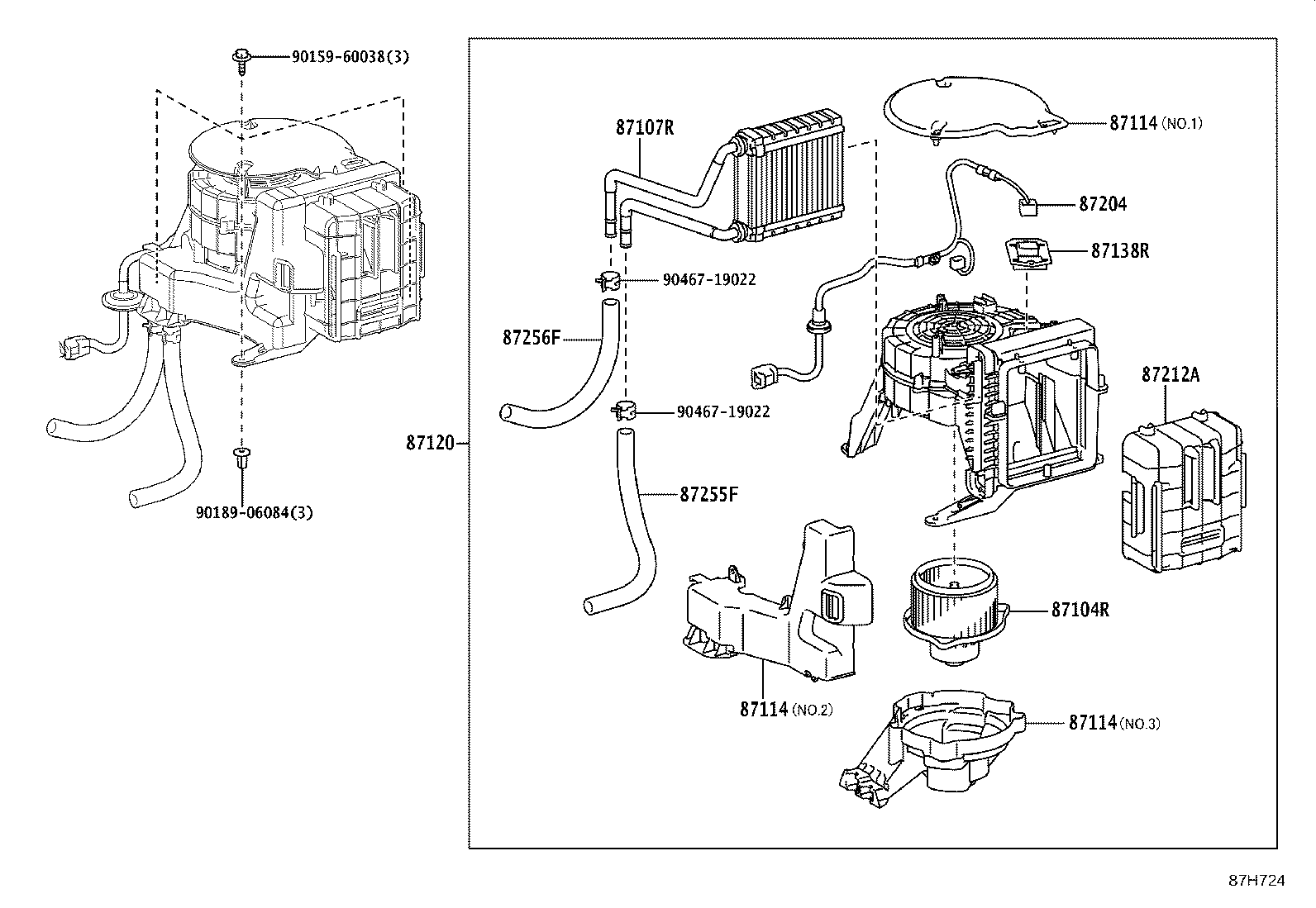

ILLUST NO. 2 OF 2(1902- )GDH322..ARL,NZ ; (1902- )GDH322..RHD..D,N..GEN ; (1902- )GDH301,32
REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-26090 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-26150 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-26050 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET),NO.1 |
1 | ||
| 87114-26072 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.2 |
1 | ||
| 87114-26090 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.3 |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-26050 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET),NO.1 |
1 | ||
| 87114-26072 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.2 |
1 | ||
| 87114-26090 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.3 |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-26050 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET),NO.1 |
1 | ||
| 87114-26072 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.2 |
1 | ||
| 87114-26090 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET),NO.3 |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-26422 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-52010 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87204 - WIRE & PIPING SUB-ASSY, HEATER PARTS | ||||
| 87204-26041 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87212A - DUCT, AIR, REAR NO.1 | ||||
| 87211-26170 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT) | ||||
| 87245-26A80 |
GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH301,321,328,GRH301,321,322..GCC,GEN,NZ,PH,VN L=310,REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT) | ||||
| 87245-26A70 |
GDH322..ARL,NZ;GDH301,321,322,GRH301,322..RHD..(D,N)..(GEN,NZ) L=260,REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90189-06084 | ||||
| 90467-19022 | ||||
