GDH301L-GDTDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV

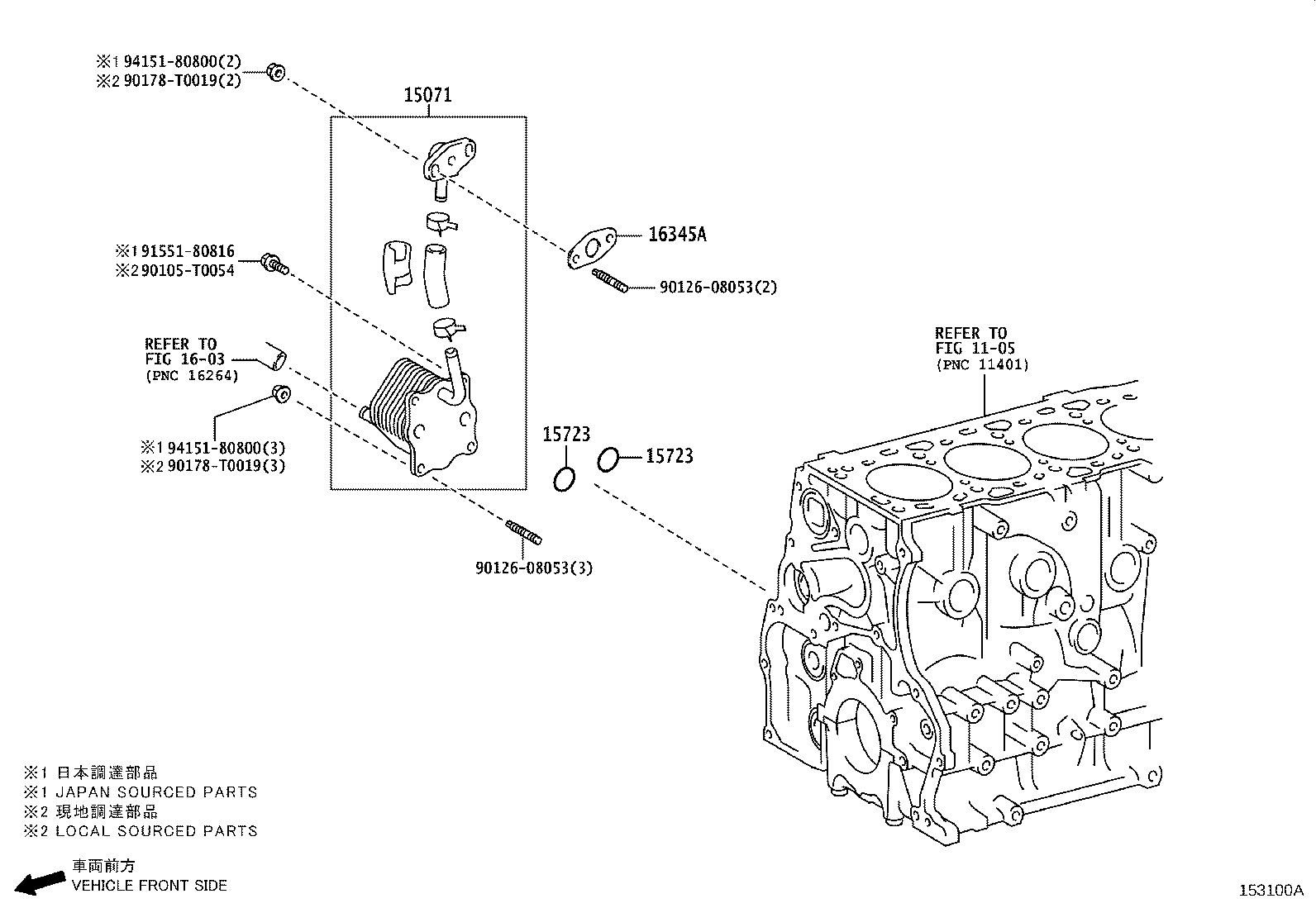

Click highlighted areas on diagram

diagram 1105 15071 15723 15723 1603 16345A 90105T0054 9012608053 9012608053 90178T0019 90178T0019 9155180816 9415180800 9415180800
Part # Description Qty Price
15071 - COOLER SET, ENGINE OIL
15071-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
15723 - RING, O
90301-22007

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
15723 - RING, O
90301-22007

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
16345A - GASKET, WATER OUTLET PIPE
16345-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
Common parts
90105-T0054
90126-08053
90178-T0019
91551-80816
94151-80800
Linked diagrams
1105
1603
