GDH300R-RCTDYQ (2019)
Toyota Hiace
ILLUST NO. 8 OF13(1902- )RHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-26140C0 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ) BLACK,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11020 |
GDH320..6FC..ARL;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11020 |
GDH320..6FC..ARL;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12120 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 84329-26050 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 84329-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH301,321..D..(IDN,NZ,TH);GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH320,322,GRH300,320,322..RHD..D..GEN GL PACKAGE |
1 | ||
| 84329-33030 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH301,321..D..(IDN,NZ,TH);GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH320,322,GRH300,320,322..RHD..D..GEN GL PACKAGE&LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 84329-33100 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,GRH322..RHD..(SG,SHP)..6FC..GEN;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ) GL PACKAGE&LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB |
1 | ||
| 84329-33130 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,GRH322..RHD..(SG,SHP)..6FC..GEN;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12B50 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) REAR WINDOW WIPER-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST) |
1 | ||
| 84652-12B40 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) REAR WINDOW WIPER-WITH |
1 | ||
| 84652-26730 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 84652-12B40 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 84652-33590 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 84652-12A80 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST) |
1 | ||
| 84652-26740 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 84652-12B50 |
GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) REAR WINDOW WIPER-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-33040 |
GDH322..RHD..P;GDH322..P..GCC;GDH30#,320,GRH300,32#..(D,P)..(ARL,GCC,NZ,TH) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 8924B-42010 |
GDH321..D;GDH300..TH;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH301,320,GRH300,320,322..(D,P)..(GCC,NZ,TH) |
1 | ||
| 8924B-50050 |
GDH321..D;GDH300..TH;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH301,320,GRH300,320,322..(D,P)..(GCC,NZ,TH) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF13(1902- )
SEAT 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||
ILLUST NO.11 OF13(1902- )GDH30#,GRH30#
DOOR & ROOF 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300,303,304,GRH304..5D |
2 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300,303,304,GRH304..5D |
2 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47040 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..ARL,NZ,TH;GDH301,322,GRH301,322..RHD..N;GDH300,301,321..4D..6FC..(ARL,NZ) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47040 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..ARL,NZ,TH;GDH301,322,GRH301,322..RHD..N;GDH300,301,321..4D..6FC..(ARL,NZ) |
1 | ||
| 89747A - BUZZER, POWER SLIDE DOOR WARNING, RH | ||||
| 89747-30040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 89747B - BUZZER, POWER SLIDE DOOR WARNING, LH | ||||
| 89747-30040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90467-09075 | ||||
| 90901-48003 | ||||
| 91553-A0620 | ||||
| Linked diagrams | ||||
| 6758 | ||||
ILLUST NO.13 OF13(1902- )GDH30#,GRH30#
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-26490 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 85976 - RELAY, BACK DOOR CLOSER | ||||
| 85976-26050 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-26010 |
GDH306..RHD;GDH300,301,303,320,322,GRH300,303,320,321..ARL,NZ |
1 | ||
| 88162-26011 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-26010 |
GDH306..RHD;GDH300,301,303,320,322,GRH300,303,320,321..ARL,NZ |
1 | ||
| 88162-26011 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90119-06A06 | ||||
| 90153-50015 | ||||
| 90159-60498 | ||||
| 90178-06012 | ||||
| 90189-06197 | ||||
| 90467-07215 | ||||
ILLUST NO. 6 OF13(1902- )RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-60220 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-26040 |
GDH300,GRH300..SHP;GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 84963-26041 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 84963A - SWITCH, POWER SLIDE DOOR CONTROL, NO.2 | ||||
| 84963-26031 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 84963-26030 |
GDH300,GRH300..SHP;GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 3 OF13(1902- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-11030 |
1GDFTV..GDH300..RHD..5D;1GDFTV..GDH300..RHD..4D..6FC;1GDFTV..GDH320,322..6FC..(ARL,NZ);1GDFTV..GDH300..RHD..4D..6F..(GEN,TH);1GDFTV..GDH320,321..RHD..D..(GEN,IDN,NZ);1GDFTV..GDH301,303,304,322..RHD..(D,G,H,J,N) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-11030 |
1GDFTV..GDH300..RHD..5D;1GDFTV..GDH300..RHD..4D..6FC;1GDFTV..GDH320,322..6FC..(ARL,NZ);1GDFTV..GDH300..RHD..4D..6F..(GEN,TH);1GDFTV..GDH320,321..RHD..D..(GEN,IDN,NZ);1GDFTV..GDH301,303,304,322..RHD..(D,G,H,J,N) |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-11040 |
1GDFTV..GDH300..RHD..5D;1GDFTV..GDH300..RHD..4D..6FC;1GDFTV..GDH320,322..6FC..(ARL,NZ);1GDFTV..GDH300..RHD..4D..6F..(GEN,TH);1GDFTV..GDH320,321..RHD..D..(GEN,IDN,NZ);1GDFTV..GDH301,303,304,322..RHD..(D,G,H,J,N) |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-11040 |
1GDFTV..GDH300..RHD..5D;1GDFTV..GDH300..RHD..4D..6FC;1GDFTV..GDH320,322..6FC..(ARL,NZ);1GDFTV..GDH300..RHD..4D..6F..(GEN,TH);1GDFTV..GDH320,321..RHD..D..(GEN,IDN,NZ);1GDFTV..GDH301,303,304,322..RHD..(D,G,H,J,N) |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25020 |
1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26520 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90153-50015 | ||||
| 90178-T0018 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||

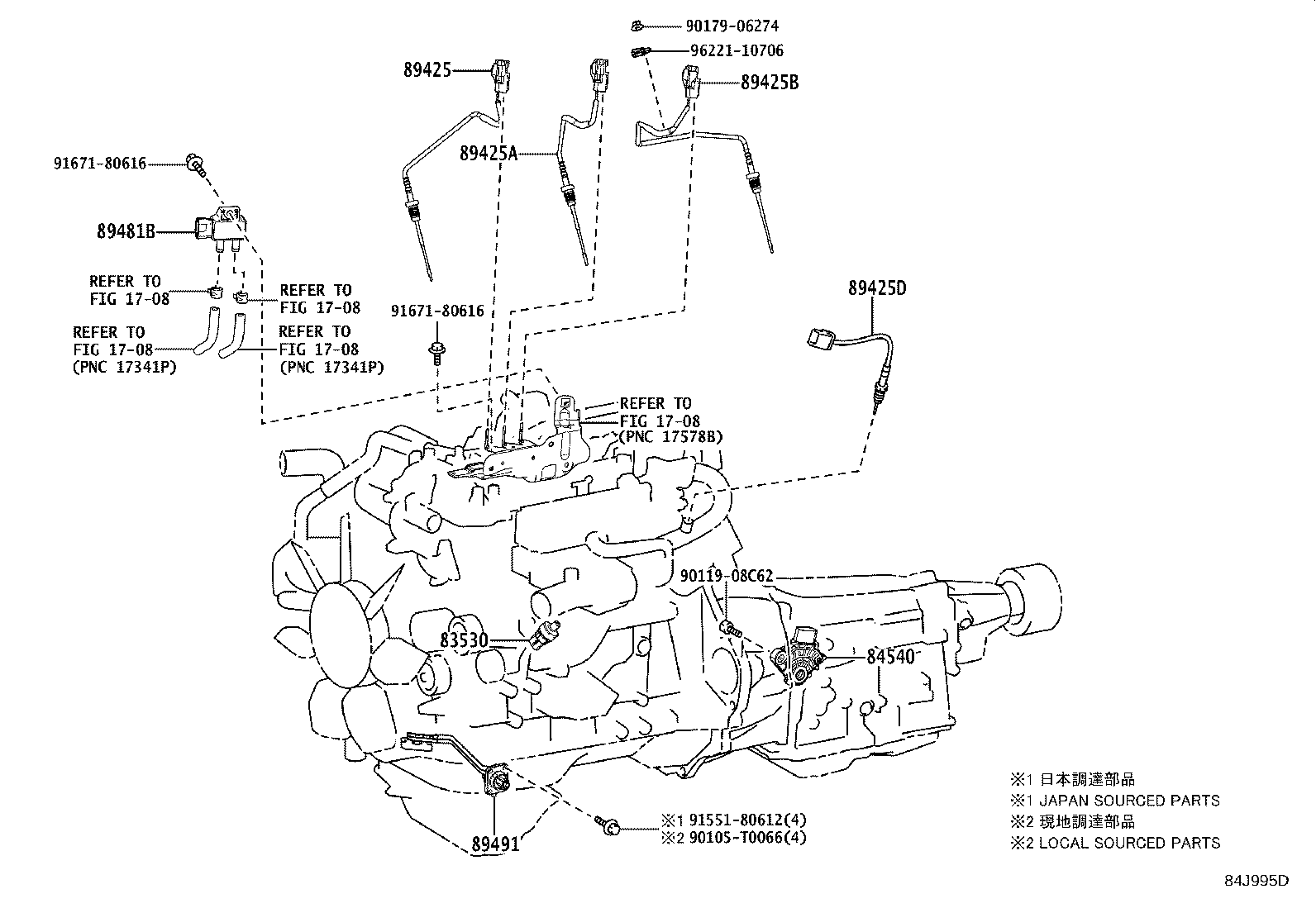

ILLUST NO. 1 OF13(1902- )GDH30#,320,321,322..6FC
ENGINE & TRANSMISSION 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) YAZAKI |
1 | ||
| 83530-28010 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-71070 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-71080 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-71090 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26190 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90119-08C62 | ||||
| 90179-06274 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 4 OF13(1902- )GDH30#,32#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-02025 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 90987-T2002 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 90987-02025 |
1GDFTV..GDH30#,32# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26570 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26580 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-26070 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26450 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26460 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26470 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26470 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26480 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-26490 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-26500 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH304,306,GRH321..LHD;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH301,303,320,321..6FC..(ARL,NZ) |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-26200 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-26210 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-26220 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82661J - COVER, RELAY BLOCK, NO.4 | ||||
| 82661-26170 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82661K - COVER, RELAY BLOCK, NO.5 | ||||
| 82661-26190 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26331 |
GDH322..ARL,GCC,NZ;GDH30#,32#..D,G,H,J,N;GDH322..LHD..(P,Q)..GEN |
1 | ||
| 82662-26330 |
GDH30#,32# |
1 | ||
| 82662-26460 |
GDH300..5D;GDH320..GCC,GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26480 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH304,306,GRH321..LHD;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH301,303,320,321..6FC..(ARL,NZ) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26240 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26250 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH304,306,GRH321..LHD;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH301,303,320,321..6FC..(ARL,NZ) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..ARL,GCC,NZ,TH;GDH300..5D..(ARL,GCC);GDH303,304,328,GRH304;GDH322..LHD..(P,Q)..GEN;GDH301,GRH301,322..N,P,Q;GDH301,320,321,GRH300,320..GCC,NZ;GDH306,321,GRH321..LHD..(G,J,N,Q) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) GL PACKAGE |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-04004 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-04004 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
2 | ||
| 85916T - RELAY, SPOT LAMP | ||||
| 90987-04004 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 90987-02028 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02024 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
GDH321..N..GEN;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,328,GRH300,301,321,322..4D..(GCC,GEN,NZ,PH,TH) |
1 | ||
| 90987-04010 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH304,306,GRH321..LHD;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH301,303,320,321..6FC..(ARL,NZ) |
3 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02025 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
GDH322..N;GDH322..LHD..Q;GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..ARL,NZ,TH;GDH301,GRH301,322..N,Q;GDH300,301..4D..6FC..(ARL,NZ);GDH321,328,GRH321..GEN,NZ,PH,VN |
1 | ||
ILLUST NO. 5 OF13(1902- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26120 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-26130 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-26R50 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26100 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) TOKAI RIKA,MATSUSHITA |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-26730 |
GDH300,320,GRH300,320..ARL LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 89220-26740 |
GDH300,320,GRH300,320..ARL |
1 | ||
| 89220-26720 |
GDH300,320,GRH300,320..ARL LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB |
1 | ||
| 89220-V3680 |
GDH300,320,GRH300,320..ARL |
1 | ||
| 89220-V3670 |
GDH300,320,GRH300,320..ARL LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 89220-V3660 |
GDH300,320,GRH300,320..ARL LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-26020 |
GDH300..5D..ARL;GDH300,301..4D..6FC..(ARL,NZ) JTEKT |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF13(1902- )GDH30#,32#
ENGINE & TRANSMISSION 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-26K10 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60150 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 82711-2C250 | ||||
| 82711-41090 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
ILLUST NO.12 OF13(1902- )GDH30#,GRH30#
DOOR & ROOF 2/2
| Part # | Description | Qty | Price |
|---|
ILLUST NO.10 OF13(1907- )
SEAT 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94185-60600 | ||||
ILLUST NO. 1 OF13(1902- )GDH300,301,32#..6F
ENGINE & TRANSMISSION 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K040 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-26030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) YAZAKI |
1 | ||
| 83530-28010 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-71010 |
GDH300..5D..6F..ARL |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-71070 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-71080 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-71090 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
GDH321..GEN,NZ;GDH304,306..LHD;GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH301,303,320..6FC..(ARL,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26190 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0070 | ||||
| 90179-06274 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 7 OF13(1902- )RHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83150C - INDICATOR ASSY | ||||
| 83150-26010 |
GDH300..SHP..ARL |
1 | ||
| 83150C - INDICATOR ASSY | ||||
| 83150-26010 |
GDH300..SHP..ARL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26140 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26050 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321..6FC..(ARL,NZ);GDH304,322..6FC..(H,P,Q)..(ARL,GEN,NZ) |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-33060 |
GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
GDH300..TH;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..ARL,GCC,NZ,TH;GDH300..5D..(ARL,GCC);GDH301,322,GRH322..RHD..6F..N;GDH303,304,321,GRH304..D,G,H,J;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH301,320,GRH300,320,322..GCC,NZ,TH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-26070C0 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK |
1 | ||
| 85539C - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
