GDH300R-RCTDYQ (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO.21 OF38(1902- )GDH30#,320,321,322..RHD..6FC

Click highlighted areas on diagram

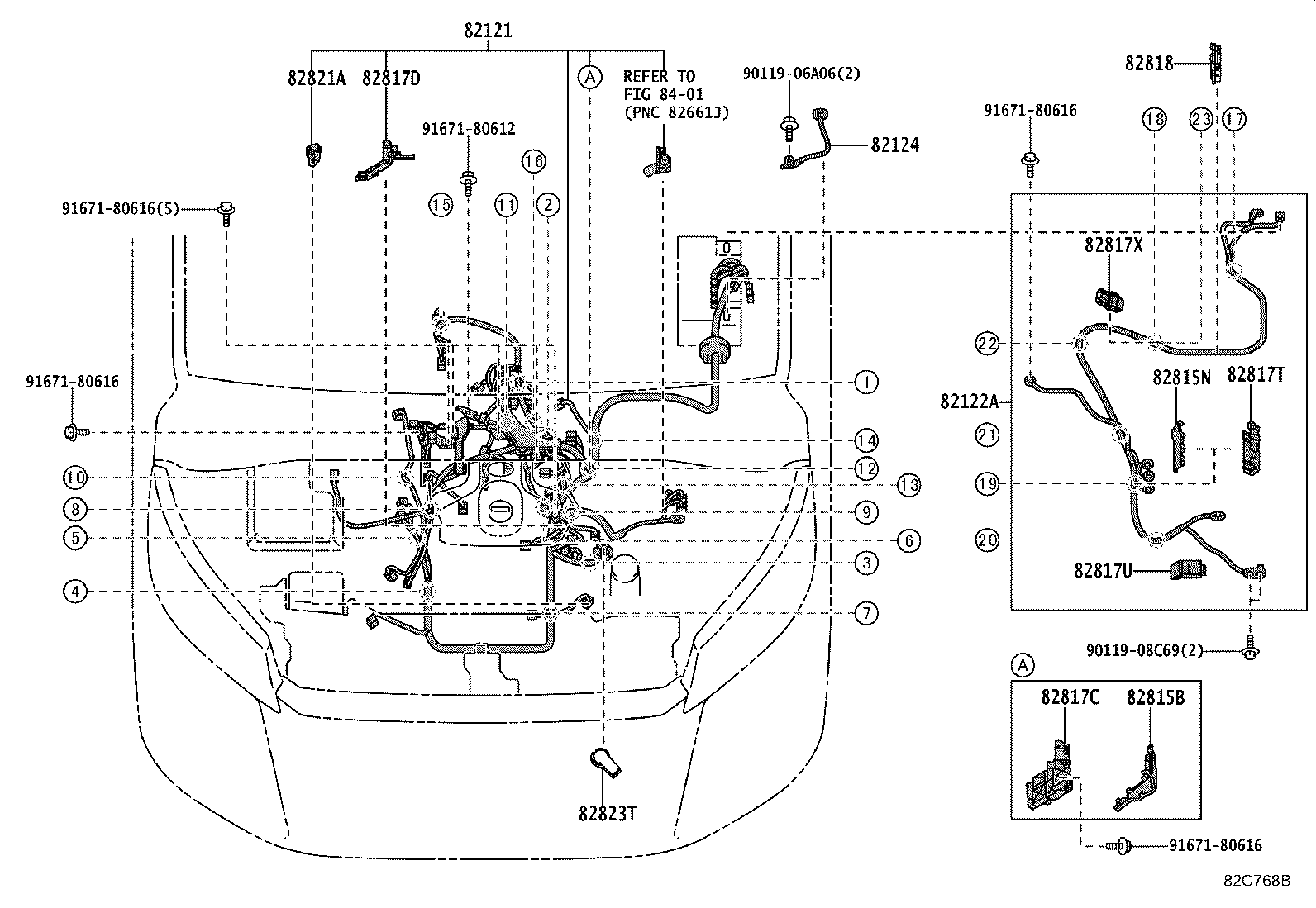

ENGINE 1/2

diagram 82121 82122A 82124 82815B 82815N 82817C 82817D 82817T 82817U 82817X 82818 82821A 82823T 8401 9011906A06 9011908C69 9167180612 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-26R90

GDH300..5D..6F..ARL

 1
82121-26R70

GDH300,301,303,320,321..6FC..(ARL,NZ)

 1
82122A - WIRE, ENGINE, NO.2
82122-26A90

GDH300,301,303,320,321,322..6FC..(ARL,NZ)

 1
82122-26B30

GDH300..5D..6F..ARL

 1
82124 - WIRE, ENGINE, NO.4
82124-26220

GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-26C10

GDH300..RHD..5D;GDH301,303,304..RHD;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH320,321..RHD..D..(GEN,IDN,NZ)

 1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-26K00

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-26Q70

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-26Q80

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-2F760

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-26R00

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-26X30

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-26M40

GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ)

 1
82821A - COVER, CONNECTOR
82821-12360

GDH300..5D;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH320,322..(D,N)..(GCC,GEN);GDH300,321..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06A06
90119-08C69
91671-80612
91671-80616
Linked diagrams
8401

ILLUST NO.22 OF38(1902- )GDH30#,320,321,322..RHD..6FC

Click highlighted areas on diagram

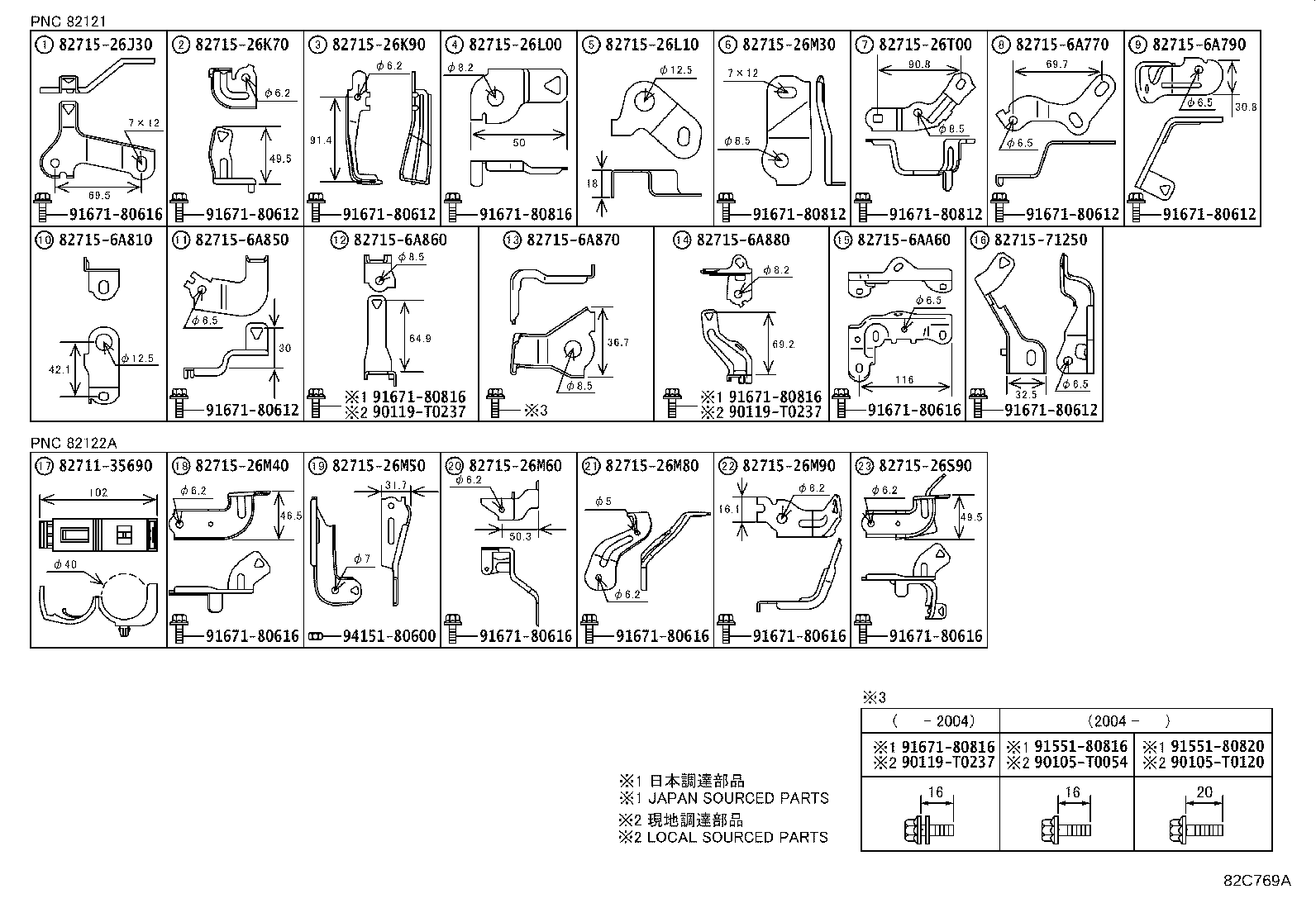

ENGINE 2/2

diagram 8271135690 8271526J30 8271526K70 8271526K90 8271526L00 8271526L10 8271526M30 8271526M40 8271526M50 8271526M60 8271526M80 8271526M90 8271526S90 8271526T00 827156A770 827156A790 827156A810 827156A850 827156A860 827156A870 827156A880 827156AA60 8271571250 90105T0054 90105T0120 90119T0237 90119T0237 90119T0237 9155180816 9155180820 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180812 9167180812 9167180816 9167180816 9167180816 9167180816 9415180600
Part # Description Qty Price
Common parts
82711-35690
82715-26J30
82715-26K70
82715-26K90
82715-26L00
82715-26L10
82715-26M30
82715-26M40
82715-26M50
82715-26M60
82715-26M80
82715-26M90
82715-26S90
82715-26T00
82715-6A770
82715-6A790
82715-6A810
82715-6A850
82715-6A860
82715-6A870
82715-6A880
82715-6AA60
82715-71250
90105-T0054
90105-T0120
90119-T0237
91551-80816
91551-80820
91671-80612
91671-80616
91671-80812
91671-80816
94151-80600

ILLUST NO.23 OF38(1902- )GDH300,301,320,321,322..RHD..6F

Click highlighted areas on diagram

ENGINE 1/2

diagram 82121 82122A 82124 82815B 82815N 82817C 82817D 82817T 82817U 82817X 82818 82821A 82823T 8401 9011906A06 9011908C69 9167180612 9167180616 9167180616 9167180616 9167180616 9167180816
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-26R90

GDH300..5D..6F..ARL

 1
82121-26R70

GDH300,301,303,320,321..6FC..(ARL,NZ)

 1
82122A - WIRE, ENGINE, NO.2
82122-26A90

GDH300,301,303,320,321,322..6FC..(ARL,NZ)

 1
82122-26B30

GDH300..5D..6F..ARL

 1
82124 - WIRE, ENGINE, NO.4
82124-26220

GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-26C10

GDH300..RHD..5D;GDH301,303,304..RHD;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH320,321..RHD..D..(GEN,IDN,NZ)

 1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-26K00

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-26Q70

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-26Q80

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-2F760

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-26R00

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-26X30

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-26M40

GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ)

 1
82821A - COVER, CONNECTOR
82821-12360

GDH300..5D;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH320,322..(D,N)..(GCC,GEN);GDH300,321..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06A06
90119-08C69
91671-80612
91671-80616
91671-80816
Linked diagrams
8401

ILLUST NO.24 OF38(1902- )GDH300,301,320,321,322..RHD..6F

Click highlighted areas on diagram

ENGINE 2/2

diagram 8271135690 8271526K70 8271526K90 8271526L00 8271526L10 8271526L70 8271526L80 8271526L90 8271526M00 8271526M10 8271526M20 8271526M30 8271526M40 8271526M50 8271526M60 8271526N00 8271526S90 8271526T00 827156A770 827156A790 827156A810 827156A850 827156A860 827156A870 827156A880 8271571250 82715KK190 82715KK230 82715KK680 82715KK720 90105T0054 90105T0120 90119T0134 90119T0237 90119T0237 90119T0237 90119T0237 90119T0237 90119T0237 90178T0020 9017908241 9155180816 9155180820 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180812 9167180812 9167180816 9167180816 9167180816 9167180816 9167180816 9415180600
Part # Description Qty Price
Common parts
82711-35690
82715-26K70
82715-26K90
82715-26L00
82715-26L10
82715-26L70
82715-26L80
82715-26L90
82715-26M00
82715-26M10
82715-26M20
82715-26M30
82715-26M40
82715-26M50
82715-26M60
82715-26N00
82715-26S90
82715-26T00
82715-6A770
82715-6A790
82715-6A810
82715-6A850
82715-6A860
82715-6A870
82715-6A880
82715-71250
82715-KK190
82715-KK230
82715-KK680
82715-KK720
90105-T0054
90105-T0120
90119-T0134
90119-T0237
90178-T0020
90179-08241
91551-80816
91551-80820
91671-80612
91671-80616
91671-80812
91671-80816
94151-80600

ILLUST NO. 3 OF38(1902- )RHD

Click highlighted areas on diagram

ENGINE ROOM 1/2

diagram 82111 82113 82114 82114 82119C 82817 82817B 82824 82824A 9011906952 9011906A06 9011906A06 9011906A06
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2NC50

GDH300,301,320,322..ARL,NZ

 1
82111-V3220

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ)

 1
82113 - WIRE, ENGINE ROOM, NO.3
82113-26100

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ)

 1
82113-26120

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ)

GL PACKAGE

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-26190

GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..6F..D..GEN;GDH321..D..(GEN,NZ);GDH322..LHD..6FC..D;GRH320..RHD..SP..GEN;GDH300,320..(SHP,SP)..6F..GEN;GDH301,320,GRH301..LHD..SG..6F..D;GDH300,GRH322..RHD..(SG,SHP)..6FC..GEN;GDH300,301,322..4D..6FC..(D,P)..(ARL,NZ)

DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB

 2
82114-26180

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

 2
82114 - WIRE, ENGINE ROOM, NO.4
82114-26190

GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..6F..D..GEN;GDH321..D..(GEN,NZ);GDH322..LHD..6FC..D;GRH320..RHD..SP..GEN;GDH300,320..(SHP,SP)..6F..GEN;GDH301,320,GRH301..LHD..SG..6F..D;GDH300,GRH322..RHD..(SG,SHP)..6FC..GEN;GDH300,301,322..4D..6FC..(D,P)..(ARL,NZ)

DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB

 2
82114-26180

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-26Y40

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2F750

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82824 - CONNECTOR, WIRING HARNESS
82824-26270

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ)

 1
Common parts
90119-06952
90119-06A06

ILLUST NO. 4 OF38(1902- )RHD

Click highlighted areas on diagram

ENGINE ROOM 2/2

diagram 827113F230 8271526V60 82815A 82817A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906952
Part # Description Qty Price
82815A - COVER, WIRING HARNESS PROTECTOR
82815-26G00

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26Y50

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
82711-3F230
82715-26V60
90119-06952
Linked diagrams
8401

ILLUST NO.26 OF38(1902- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82136 82141 82142A 82143 82144 82149A 82666C 82666D 82666E 82666F 82666G 82666L 82666N 82667L 82667M 8271126510 8271526V40 82818C 82824F 9011906A06 9011906A06 9015950327 9415180600 9415180600
Part # Description Qty Price
82136 - WIRE, DASH
82136-26030

GDH300,301,320,321..6FC..(ARL,NZ);GDH301,322,GRH301..RHD..6FC..(N,P,Q)

 1
82136-26080

GDH300..5D..6F..ARL

 1
82141 - WIRE, INSTRUMENT PANEL
82141-26F10

GDH300,320..ARL

 1
82141-V3150

GDH300,320..ARL

 1
82141-V3210

GDH300..SHP..ARL

WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD & BACK DOOR)

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-26620

GDH300,301,303,320,322,GRH300,303,320,321..ARL,NZ

 1
82142-V3010

GDH300,303,320,322,GRH300,303,320,321..ARL

 1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-26010

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ)

 1
82144-26040

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(D,P)..(ARL,NZ)

LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)

 1
82666C - HOLDER, CONNECTOR NO.4
82666-26620

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666D - HOLDER, CONNECTOR NO.5
82666-26610

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666E - HOLDER, CONNECTOR NO.6
82666-26650

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666F - HOLDER, CONNECTOR NO.7
82666-26660

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666G - HOLDER, CONNECTOR NO.8
82666-26700

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666L - HOLDER, CONNECTOR NO.9
82666-26690

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82667L - HOLDER, CONNECTOR, NO.26
82666-26A30

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
82667M - HOLDER, CONNECTOR, NO.27
82666-26A40

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-26M60

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
Common parts
82711-26510
82715-26V40
90119-06A06
90159-50327
94151-80600

ILLUST NO.27 OF38(1902- )GDH300,301,GRH300,301

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153A 82154A 82157C 82158C 82181 82182 82186 82666P 82666Q 82666S 82666T 82712A 82712B 82712C 82712D 82712F 8271526S60 8271526S70 82818D 82818F 8417 8417 89348Y 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A24 9011906A24 9011906A24 9011906A24 9046709075 9046709075 9155380616 9155380616 9155380620 9155380620
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-26640

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1
82152 - WIRE, FRONT DOOR, LH
82152-26590

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1
82153A - WIRE, REAR DOOR, RH
82053-26080

GDH300..SHP..ARL

*POSD & *ECS(*SD & BACK DOOR)

 1
82053-26030

GDH300..SHP..ARL

 1
82053-26080

GDH300..SHP..ARL

REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN)&*POSD & *ECS(*SD & BACK DOOR)

 1
82154A - WIRE, REAR DOOR, LH
82054-26070

GDH300..SHP..ARL

*POSD & *ECS(*SD & BACK DOOR)

 1
82054-26030

GDH300..SHP..ARL

 1
82054-26070

GDH300..SHP..ARL

REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN)&*POSD & *ECS(*SD & BACK DOOR)

 1
82157C - WIRE, REAR DOOR, RH NO.2
82157-26040

GDH300..SHP..ARL;GDH301,GRH301..LHD..N

 1
82157-26070

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR)

 1
82158C - WIRE, REAR DOOR, LH NO.2
82158-26040

GDH300..SHP..ARL

 1
82158-26070

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-26170

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ)

 1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-26080

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ)

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-26120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,320,321,GRH300,320..GCC,NZ;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH)

 1
82666P - HOLDER, CONNECTOR NO.11
82666-26B80

GDH322..N;GDH300..5D..ARL;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,NZ,TH;GDH322..LHD..P..GEN;GDH303,304,328,GRH304;GDH301,GRH301,322..N,Q;GDH322,GRH303..LHD..(J,Q);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,301,321..4D..6FC..(ARL,NZ)

 1
82666Q - HOLDER, CONNECTOR NO.12
82666-21040

GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)

 1
82666S - HOLDER, CONNECTOR NO.13
82666-26B90

GDH322..N;GDH300..5D..ARL;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,NZ,TH;GDH322..LHD..P..GEN;GDH303,304,328,GRH304;GDH301,GRH301,322..N,Q;GDH322,GRH303..LHD..(J,Q);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,301,321..4D..6FC..(ARL,NZ)

 1
82666T - HOLDER, CONNECTOR NO.14
82666-21040

GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)

 1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-26M80

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-26U90

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050

GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)

 7
Common parts
82715-26S60
82715-26S70
90119-06A06
90119-06A24
90467-09075
91553-80616
91553-80620
Linked diagrams
8417

ILLUST NO.30 OF38(1902- )GDH300,301,32#,GRH300,301,32#

Click highlighted areas on diagram

FLOOR

diagram 82161 82162 82164 82165 82666V 82666W 82666Y 82666Z 82815S 82815T 82818J 82818K 82818L 9011906A06 9011906A06 9011906A06 9011906A06 90178T0018 9167180620 9167180620 9415180600
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-26M90

GDH300..SHP..ARL

*POSD & *ECS(*SD & BACK DOOR)

 1
82161-2F020

GDH300..SHP..ARL

 1
82162 - WIRE, FLOOR, NO.2
82162-26350

GDH300..SHP..ARL

*POSD & *ECS(*SD & BACK DOOR)

 1
82162-26L50

GDH300..SHP..ARL

 1
82164 - WIRE, FRAME
82164-26A50

GDH301;GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..4D..6F..(GEN,TH)

 1
82165 - WIRE, FRAME, NO.2
82165-26510

GDH300,GRH300..SHP;GDH301,GRH301..D..GEN

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

 1
82666V - HOLDER, CONNECTOR NO.15
82666-26A50

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666W - HOLDER, CONNECTOR NO.16
82666-26A60

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 1
82666Y - HOLDER, CONNECTOR NO.18
82666-26A80

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
82666Z - HOLDER, CONNECTOR NO.19
82666-26A90

GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..6FC..P..GCC;GDH322..LHD..6F..(N,P,Q);GDH322,GRH303..LHD..6FC..(J,N,Q);GDH300,GRH303..RHD..(SG,SHP)..GEN;GDH301,306,GRH301,321,322..LHD..(G,J,N,P,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH)

 1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-26K30

GDH300..SHP..ARL

 1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-26K40

GDH300..SHP..ARL

 1
Common parts
90119-06A06
90178-T0018
91671-80620
94151-80600

ILLUST NO.32 OF38(1902- )GDH300,301,GRH300,301

Click highlighted areas on diagram

ROOF

diagram 82171 82172 82174 82175 82177 82183 82184 82185 82188A 82667F 82667G 82667H 82667J 82667J 82667K 82667K 82712K 82815P 9011906A06 9011906A06 9011906A06
Part # Description Qty Price
82171 - WIRE, ROOF, NO.1
82171-26Z10

GDH300..SHP..ARL

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

 1
82171-26Z00

GDH300..SHP..ARL

 1
82172 - WIRE, ROOF, NO.2
82172-26Z90

GDH300,GRH300..ARL

 1
82172-2F020

GDH300..SHP..ARL

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

 1
82172-2F030

GDH300..SHP..ARL

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

 1
82172-2F010

GDH300,GRH300..ARL

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82174 - WIRE, ROOF, NO.4
82174-26380

GDH300..SHP..ARL;GDH300,GRH300..LHD..4D

WIRELESS DOOR LOCK-WITH

 1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-26340

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH

 1
82184 - WIRE, BACK DOOR, NO.1
82184-26460

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH)

 1
82184-26670

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH)

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82185 - WIRE, BACK DOOR, NO.2
82185-26A50

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ)

 1
82185-26A70

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301,321,322..4D..6FC..(ARL,NZ)

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82185-26B50

GDH300..SHP..ARL

WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD & BACK DOOR)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82185-26B30

GDH300..SHP..ARL

WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD & BACK DOOR)

 1
82188A - WIRE, BACK DOOR, NO.3
82188-26420

GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,GRH300..GCC,NZ

 1
82188-26440

GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,GRH300..GCC,NZ

REAR WINDOW WIPER-WITH

 1
82188-26430

GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,GRH300..GCC,NZ

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82188-26450

GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,GRH300..GCC,NZ

REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
82667F - HOLDER, CONNECTOR, NO.21
82666-26B10

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
82667G - HOLDER, CONNECTOR, NO.22
82666-26B20

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
82667H - HOLDER, CONNECTOR, NO.23
82666-26C20

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH)

 1
82667J - HOLDER, CONNECTOR, NO.24
82666-26B40

GDH300..SHP..ARL;GDH300,320,321,322,GRH300,320,322..LHD..4D..D..GEN

WIRELESS DOOR LOCK-WITH

 1
82666-26C30

GDH322..P..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH320,GRH300,320,322..LHD..4D..(D,P);GDH300,301,306,322,GRH301..LHD..(D,G,J)..GEN;GDH303,304,321,GRH304..(D,G,H,J)..(ARL,GCC,GEN,TH)

 1
82667J - HOLDER, CONNECTOR, NO.24
82666-26B40

GDH300..SHP..ARL;GDH300,320,321,322,GRH300,320,322..LHD..4D..D..GEN

WIRELESS DOOR LOCK-WITH

 1
82666-26C30

GDH322..P..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH320,GRH300,320,322..LHD..4D..(D,P);GDH300,301,306,322,GRH301..LHD..(D,G,J)..GEN;GDH303,304,321,GRH304..(D,G,H,J)..(ARL,GCC,GEN,TH)

 1
82667K - HOLDER, CONNECTOR, NO.25
82666-26C40

GDH306..LHD;GRH303..LHD..J;GRH320..RHD..SG;GDH300..SHP..ARL;GDH303,304,GRH304;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,322,GRH300,301,303,322..RHD..(D,G,J)..(GEN,IDN,NZ,TH)

 1
82667K - HOLDER, CONNECTOR, NO.25
82666-26C40

GDH306..LHD;GRH303..LHD..J;GRH320..RHD..SG;GDH300..SHP..ARL;GDH303,304,GRH304;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,322,GRH300,301,303,322..RHD..(D,G,J)..(GEN,IDN,NZ,TH)

 1
82712K - SUPPORT, WIRING HARNESS
82712-60550

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
Common parts
90119-06A06

ILLUST NO.35 OF38(1902- )GDH321..N..GEN ; (1902- )GDH30#,320,322,328,GRH30#,32#

Click highlighted areas on diagram

FRONT SEAT

diagram 82191 82191 82191A 82192 82192 82192A 82192B 8219A 8219AA 8219BA
Part # Description Qty Price
82191 - WIRE, FRONT SEAT, RH
82191-26140

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1
82191 - WIRE, FRONT SEAT, RH
82191-26140

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1
82191A - WIRE, FRONT SEAT, RH
82191-26180

GDH300..TH;GDH320..6FC..ARL;GDH300,303..5D..ARL;GDH300..4D..6FC..ARL

 1
82192 - WIRE, FRONT SEAT, LH
82192-26040

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1
82192 - WIRE, FRONT SEAT, LH
82192-26040

GDH300..5D..ARL;GDH320..6FC..ARL;GDH300..4D..6FC..ARL

 1

ILLUST NO.37 OF38(1902- )

Click highlighted areas on diagram

CONNECTOR 1/2

diagram 8282460460 9098010860 9098010942 9098010942 9098011016 9098011016 9098011019 9098011019 9098011020 9098011020 9098011148 9098011156 9098011156 9098011162 9098011194 9098011292 9098011314 9098011918 9098012380 9098012416 9098012490 9098012490 9098012698 9098012699 9098012A92
Part # Description Qty Price
Common parts
82824-60460
90980-10860
90980-10942
90980-11016
90980-11019
90980-11020
90980-11148
90980-11156
90980-11162
90980-11194
90980-11292
90980-11314
90980-11918
90980-12380
90980-12416
90980-12490
90980-12698
90980-12699
90980-12A92

ILLUST NO.38 OF38(1902- )

Click highlighted areas on diagram

CONNECTOR 2/2

diagram 9098010619 9098010996 9098010997 9098011246 9098012520 9098012555 9098012699 9098012790 9098012790 9098012A59 9098012C39 9098012C54 9098012C55 9098012C56 90980WA063
Part # Description Qty Price
Common parts
90980-10619
90980-10996
90980-10997
90980-11246
90980-12520
90980-12555
90980-12699
90980-12790
90980-12A59
90980-12C39
90980-12C54
90980-12C55
90980-12C56
90980-WA063
