GDH300R-RCTDYQ (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV..GDH322..RHD..6F ; (1902- )1GDFTV..GDH322..6F..GCC ; (1902-

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 90105T0081 9017908204 90182T0011 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-30110

1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ)

12V 2.4KW

 1
28100-30110

1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ)

12V 2.4KW

 1
Common parts
90105-12053
90105-T0081
90179-08204
90182-T0011
94151-80800

(1902- )1GDFTV..GDH322..6FC..GCC,GEN ; (1902-)1GDFTV..GDH30#,320..6FC..GCC,G

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 9010512053 9017908204 9017912047 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-30110

1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ)

12V 2.4KW

 1
Common parts
90105-12053
90179-08204
90179-12047
94151-80800

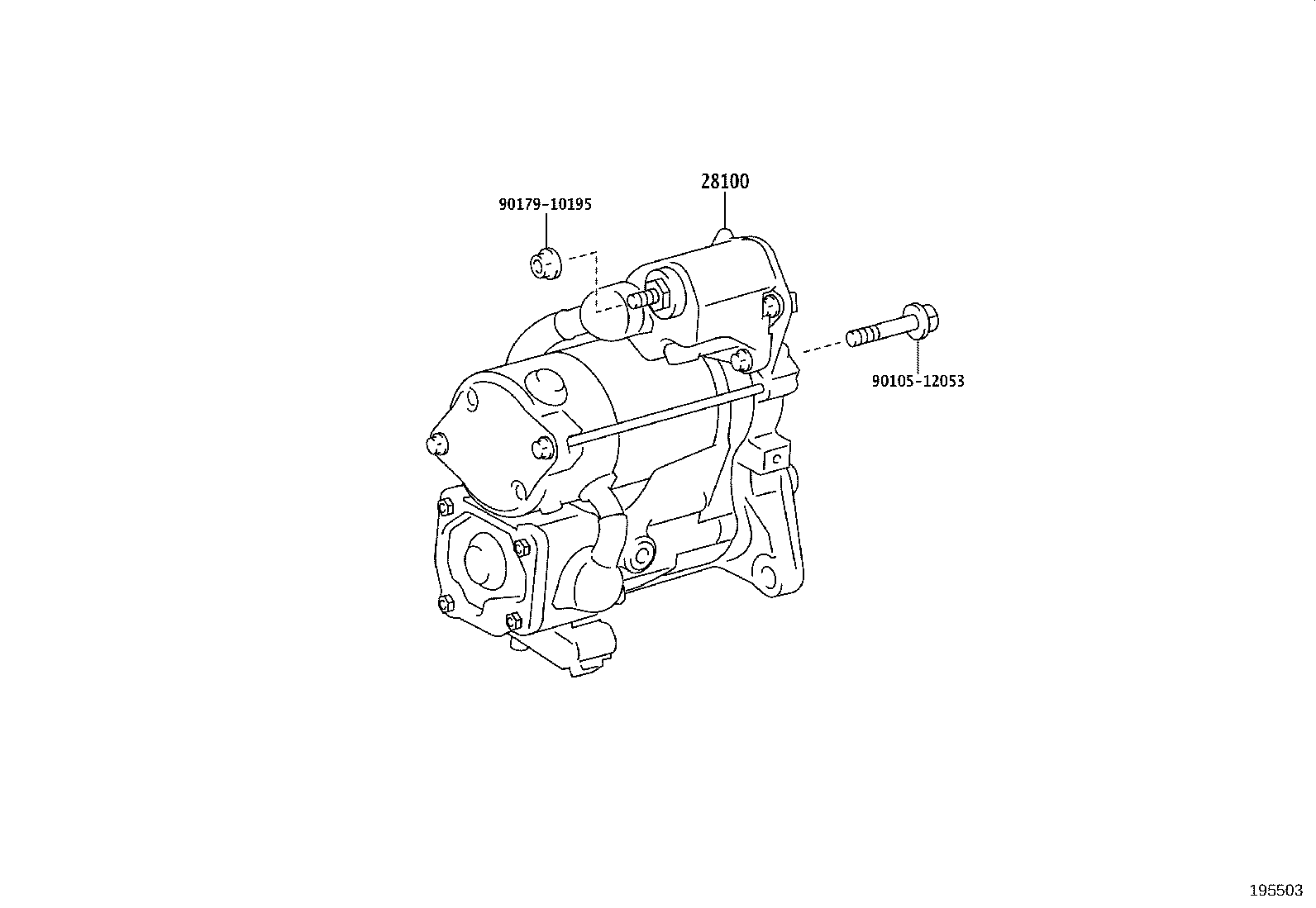

(1902- )1GDFTV..GDH300,320..6F..ARL

Click highlighted areas on diagram

12V 2.4KW

diagram 28100 9010512053 9017910195
Part # Description Qty Price
28100 - STARTER ASSY
28100-30110

1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ)

12V 2.4KW

 1
Common parts
90105-12053
90179-10195

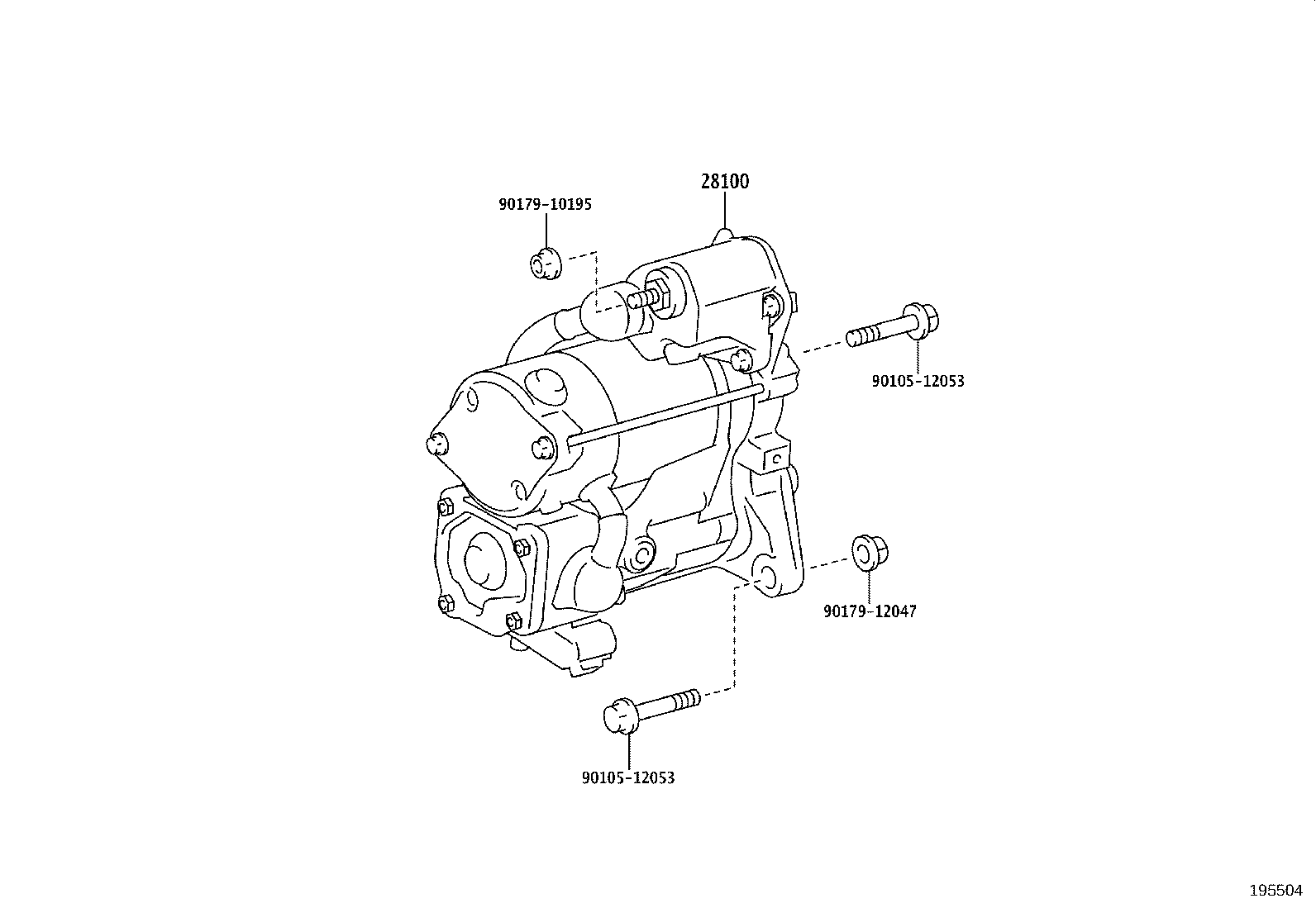

(1902- )1GDFTV..GDH300,301,303,320,321,322..6FC..ARL,NZ

Click highlighted areas on diagram

12V 2.4KW

diagram 28100 9010512053 9010512053 9017910195 9017912047
Part # Description Qty Price
28100 - STARTER ASSY
28100-30110

1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH301,303,320,321,322..6FC..(ARL,NZ)

12V 2.4KW

 1
Common parts
90105-12053
90179-10195
90179-12047
