GDH300R-RCFDY (2019)
Toyota Hiace

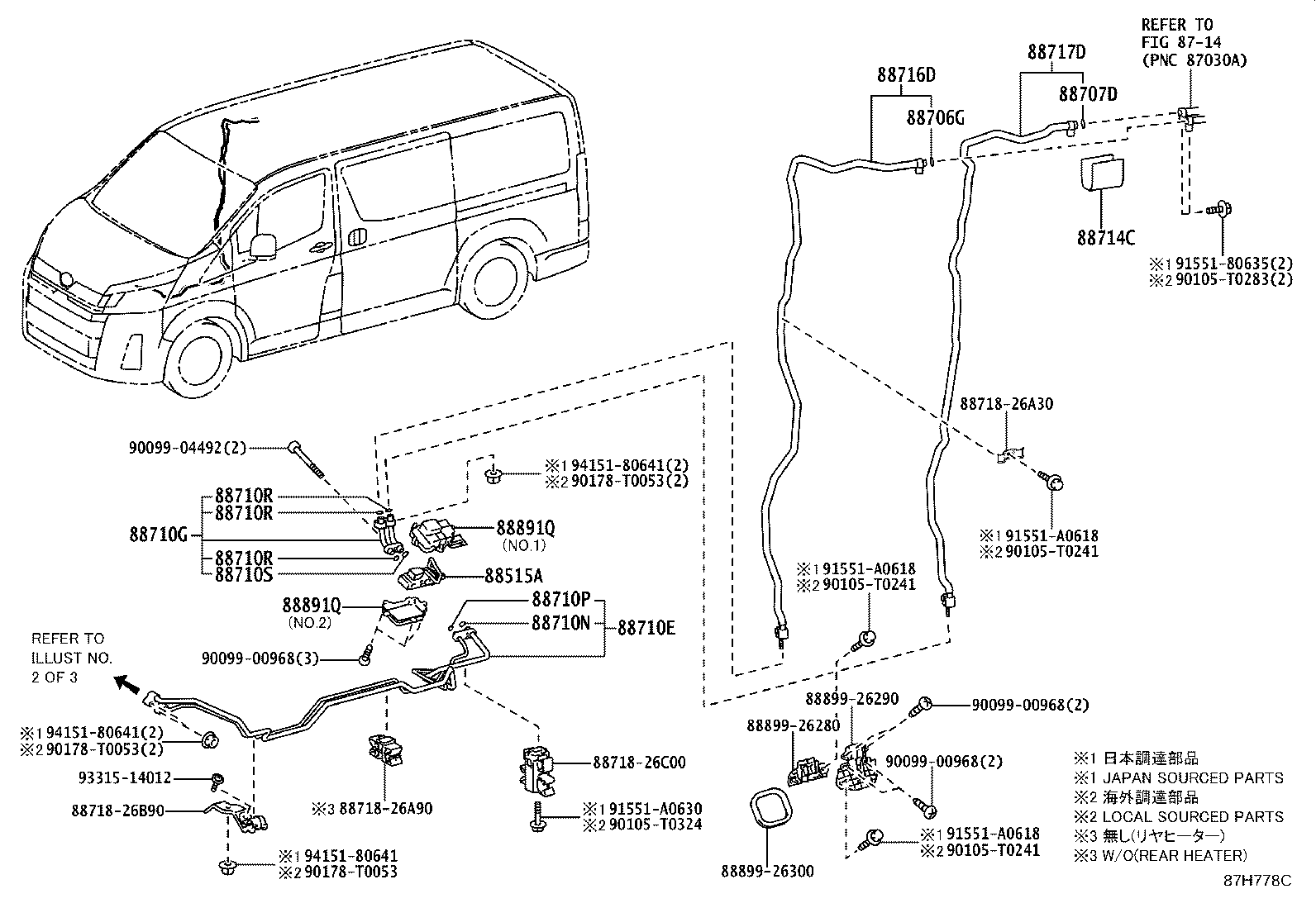

ILLUST NO. 3 OF 3(1902- )SHP ; (1902- )GDH304..TH ; (1902-)GDH303..LHD..H ; (1902- )GDH
REAR(W(REAR COOLER))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14120 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN ID=10.8,OD=15.6,REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14121 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN ID=13.4,OD=18.2,REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-26F10 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-26F00 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14121 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE) |
1 | ||
| 88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) | ||||
| 90099-14120 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
3 | ||
| 88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) | ||||
| 90099-14120 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
3 | ||
| 88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) | ||||
| 90099-14120 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
3 | ||
| 88710S - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) | ||||
| 90099-14121 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88899-26120 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88710-26E20 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88710-26E30 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),NO.1 |
1 | ||
| 88899-26180 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),NO.2 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),NO.1 |
1 | ||
| 88899-26180 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),NO.2 |
1 | ||
| Common parts | ||||
| 88718-26A30 | ||||
| 88718-26A90 | ||||
| 88718-26B90 | ||||
| 88718-26C00 | ||||
| 88899-26280 | ||||
| 88899-26290 | ||||
| 88899-26300 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90105-T0241 | ||||
| 90105-T0283 | ||||
| 90105-T0324 | ||||
| 90178-T0053 | ||||
| 91551-80635 | ||||
| 91551-A0618 | ||||
| 91551-A0630 | ||||
| 93315-14012 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||

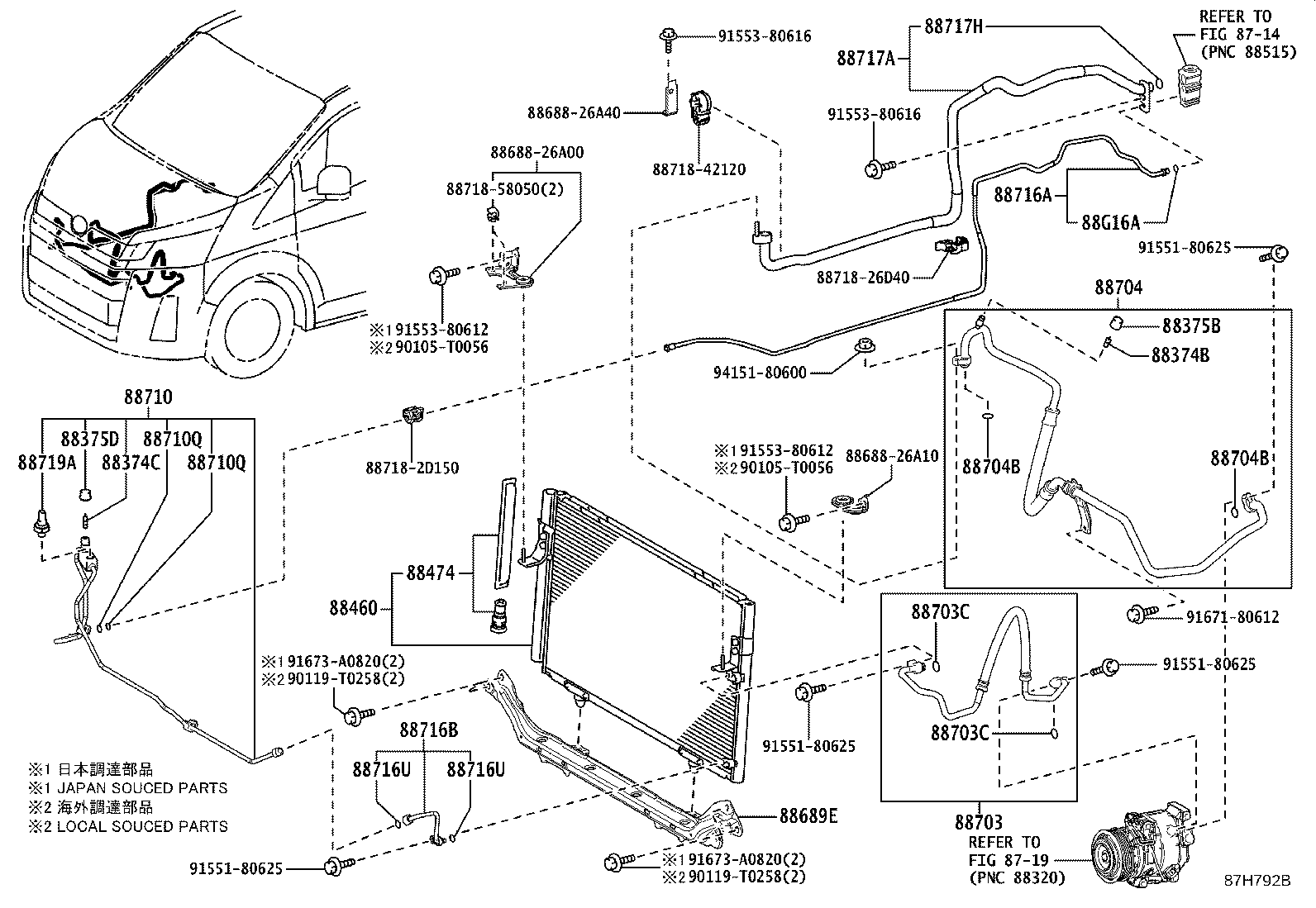

ILLUST NO. 2 OF 3(1902- )GDH301,322..RHD..D,P..GEN ; (1902-)GDH300,320,321..RHD..D..ARL,GEN,I
FRONT:SINGLE A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-26020 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 884A0-26010 |
GDH300,301..(SG,SHP)..D..GEN 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88474-12020 |
GRH301..RHD..D;GRH301..LHD..6F..D;GDH300,301..(SG,SHP)..D..GEN 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-26A50 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-26030 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-26030 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26A60 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26A40 |
GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320,GRH320..RHD..GEN;GDH300,301,321,322,GRH300,301,322..RHD..4D..D..(GEN,IDN) FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26890 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26A50 |
GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320,GRH320..RHD..GEN;GDH300,301,321,322,GRH300,301,322..RHD..4D..D..(GEN,IDN) FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 90099-14121 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| Common parts | ||||
| 88688-26A00 | ||||
| 88688-26A10 | ||||
| 88688-26A40 | ||||
| 88718-26D40 | ||||
| 88718-2D150 | ||||
| 88718-42120 | ||||
| 88718-58050 | ||||
| 90105-T0056 | ||||
| 90119-T0258 | ||||
| 91551-80625 | ||||
| 91553-80612 | ||||
| 91553-80616 | ||||
| 91671-80612 | ||||
| 91673-A0820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(1902- )RHD..SHP ; (1902- )GDH322..RHD..ARL,GEN,NZ ; (1902- )GDH301,303,30
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-26020 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 884A0-26010 |
GDH300,301..(SG,SHP)..D..GEN 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88474-12020 |
GRH301..RHD..D;GRH301..LHD..6F..D;GDH300,301..(SG,SHP)..D..GEN 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-26A50 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-26030 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-26030 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26A60 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26D90 |
GDH300..RHD..SHP;GDH301..RHD..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26890 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14121 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE) |
1 | ||
| 88G16E - RING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14120 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 88G16F - RING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH300..RHD..SHP;GDH301,GRH301..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REARCOOLER,JET NOZZLE) |
1 | ||
| Common parts | ||||
| 88688-26A00 | ||||
| 88688-26A10 | ||||
| 88688-26A40 | ||||
| 88718-2D150 | ||||
| 88718-58050 | ||||
| 90105-T0056 | ||||
| 90119-T0258 | ||||
| 91551-80625 | ||||
| 91553-80612 | ||||
| 91671-80612 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
