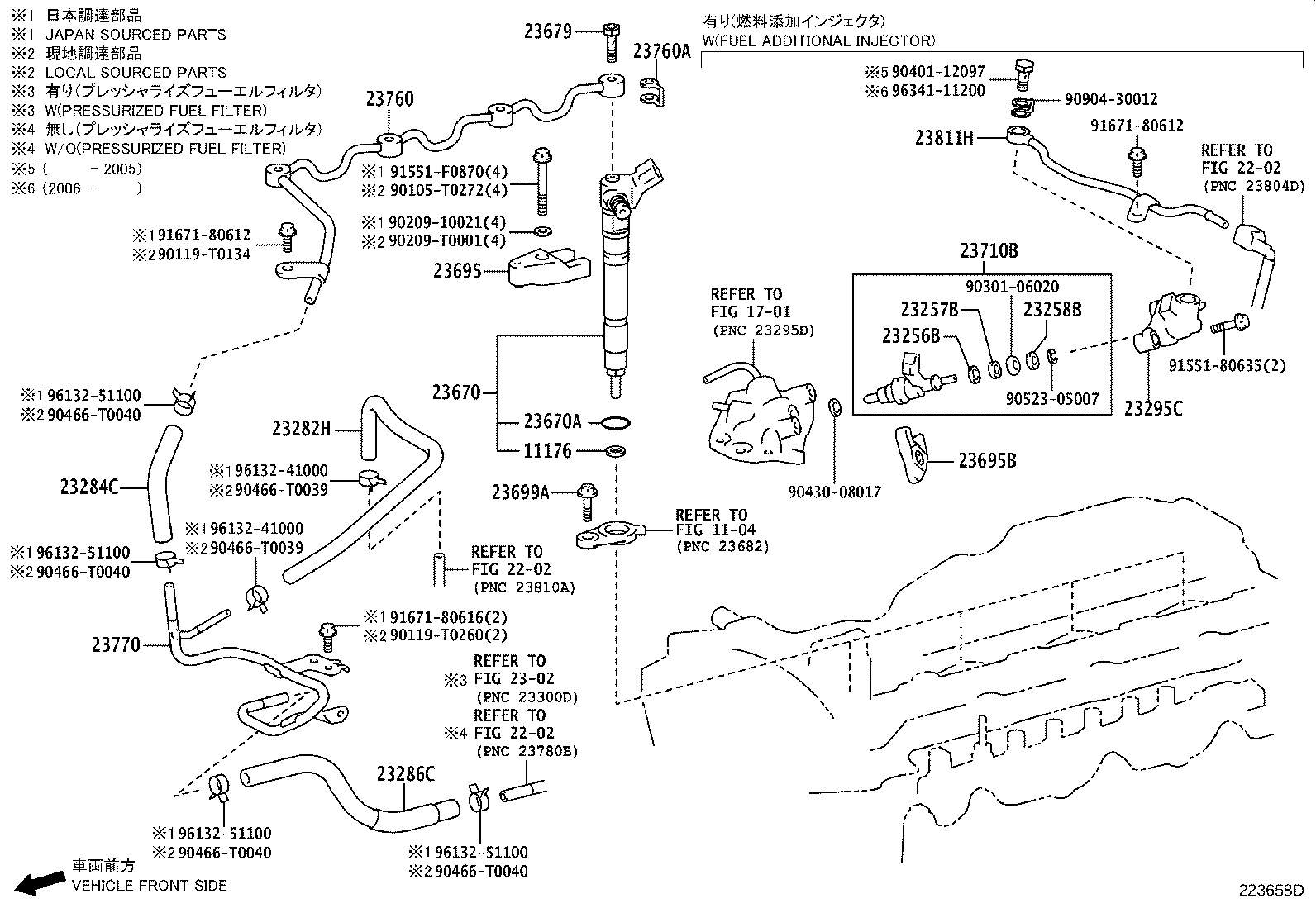

GDH300R-RCFDY (2019)
Toyota Hiace
(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-33010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
4 | ||
| 23256B - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23256-74010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23257B - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23257-74010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23258B - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28011 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23258-28011 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23282H - HOSE, FUEL, NO.4 | ||||
| 23282-0E012 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23282-11021 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23284C - HOSE, FUEL, NO.5 | ||||
| 23284-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
1 | ||
| 23284-11010 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH |
1 | ||
| 23286C - HOSE, FUEL, NO.6 | ||||
| 23286-11010 |
1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 23286-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 23286-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
1 | ||
| 23295C - HOLDER, INJECTOR | ||||
| 23296-11020 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),(J) |
1 | ||
| 23296-11020 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
1 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-19015 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
4 | ||
| 23670-19055 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 90401-06002 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
4 | ||
| 90401-T0007 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (L) |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
4 | ||
| 23695B - CLAMP, NOZZLE HOLDER, NO.2 | ||||
| 23695-28010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23695-28010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
4 | ||
| 23710B - INJECTOR ASSY, EXHAUST FUEL ADDITION | ||||
| 23710-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23710-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0E010 |
1GDFTV..GDH30#,32# |
1 | ||
| 23760-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 23760-0E011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (L) |
1 | ||
| 23760A - GASKET | ||||
| 90430-06013 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH |
4 | ||
| 90430-06013 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
4 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-11010 |
1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN (J) |
1 | ||
| 23770-0E011 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (L) |
1 | ||
| 23770-0E010 |
1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN (L) |
1 | ||
| 23770-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 23811H - PIPE, FUEL, NO.1 | ||||
| 23811-0E010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),(L) |
1 | ||
| 23811-11040 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),(J) |
1 | ||
| 23811-0E010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(L) |
1 | ||
| 23811-11040 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,(J) |
1 | ||
| Common parts | ||||
| 90105-T0272 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-06020 | ||||
| 90401-12097 | ||||
| 90430-08017 | ||||
| 90466-T0039 | ||||
| 90466-T0040 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80635 | ||||
| 91551-F0870 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| 96341-11200 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 2202 | ||||
| 2302 | ||||
