GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

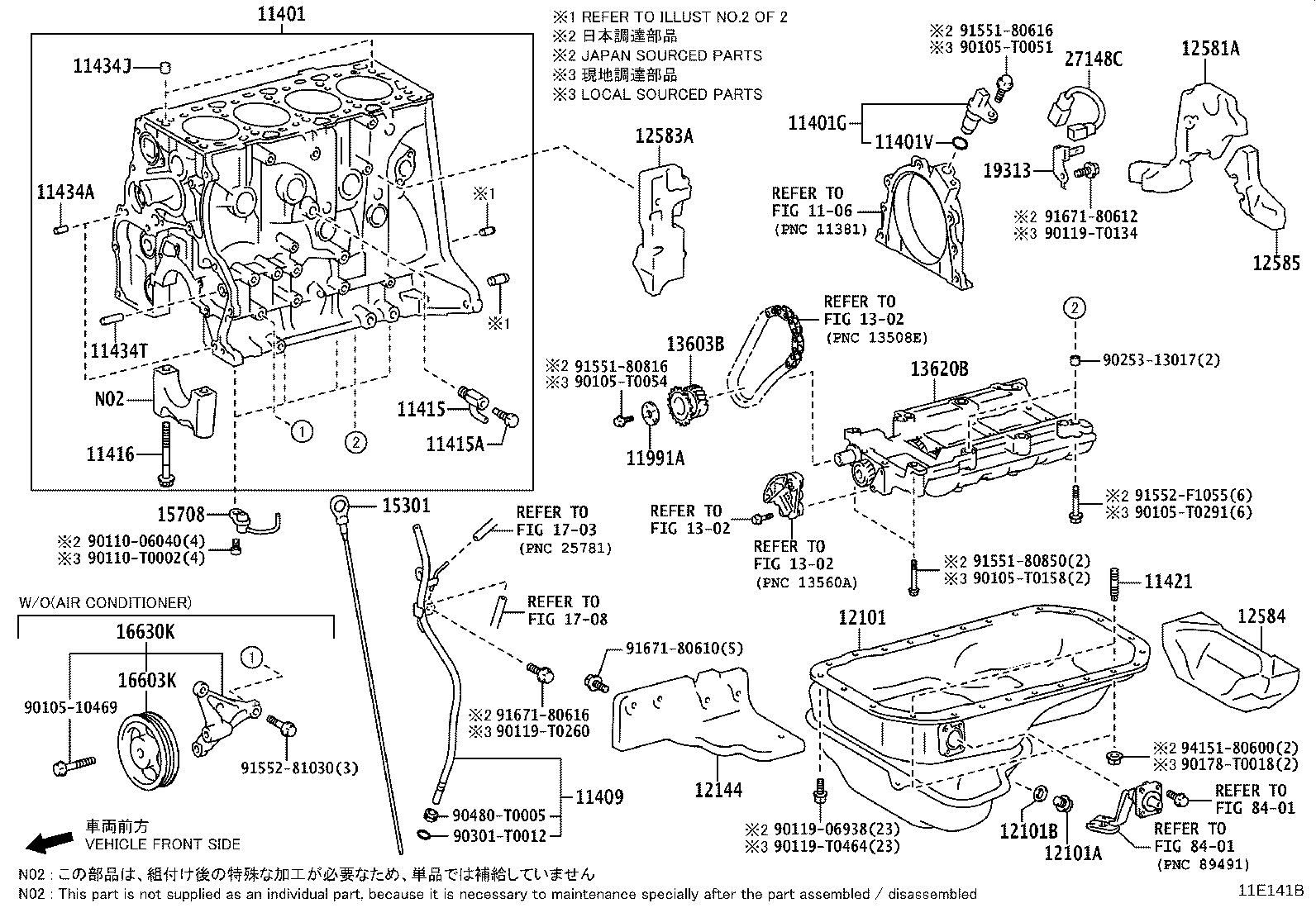

ILLUST NO. 1 OF 2(1902- )1GDFTV

Click highlighted areas on diagram

diagram 1106 11401 11401G 11401V 11409 11415 11415A 11416 11421 11434A 11434J 11434T 11991A 12101 12101A 12101B 12144 12581A 12583A 12584 12585 1302 1302 1302 13603B 13620B 15301 15708 16603K 16630K 1703 1708 19313 27148C 8401 8401 9010510469 90105T0051 90105T0054 90105T0158 90105T0291 9011006040 90110T0002 9011906938 90119T0134 90119T0260 90119T0464 90178T0018 9025313017 90301T0012 90480T0005 9155180616 9155180816 9155180850 9155281030 91552F1055 9167180610 9167180612 9167180616 9415180600
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80888

1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH30#,320,321,328..GCC,GEN,PH,TH

 1
11401-80888

1GDFTV..GDH300..SHP..6F..GEN

HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S)&FRONT HEATER-WITH

 1
11401-80A15

1GDFTV..GDH300..5D;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

 1
11401G - SENSOR, CRANK POSITION
90919-05073

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;1GDFTV..GDH322..ARL,GCC;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-0E011

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09128

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH300,GRH300..4D..(GEN,TH);1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02191

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 10
11421 - BOLT, STUD(FOR OIL PAN)
90126-06028

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

L=18,OD=8,(J)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

 1
11991A - PLATE, BALANCESHAFT THRUST, NO.1
11991-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

(J)

 1
12101 - PAN SUB-ASSY, OIL
12101-11140

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
12144 - SILENCER, OIL PAN COVER
12144-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-11020

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
12581-11020

1GDFTV..GDH300..SHP..GEN

HONG KONG SPEC

 1
12583A - INSULATOR, CYLINDER BLOCK, NO.3
12583-11020

1GDFTV..GDH300..SHP..GEN

HONG KONG SPEC

 1
12583-11020

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

MADE IN JAPAN

 1
12585 - INSULATOR, CYLINDER BROCK, NO.5
12585-11020

1GDFTV..GDH300..SHP..GEN

HONG KONG SPEC

 1
12585-11020

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
13603B - GEAR SUB-ASSY, BALANCESHAFT
13603-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

(J)

 1
13620B - BALANCER ASSY, ENGINE
13620-11013

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
13620-11011

1GDFTV..GDH30#,32#

 1
13620-11012

1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11100

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

(J)

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 4
16603K - PULLEY SUB-ASSY, IDLER
16603-28050

1GDFTV..GDH320..GEN;1GDFTV..GDH321..D..IDN;1GDFTV..GDH300..RHD..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH300,301,322..4D..D..GEN

 1
16630K - PULLEY ASSY, IDLER
16630-11010

1GDFTV..GDH320..GEN;1GDFTV..GDH321..D..IDN;1GDFTV..GDH300..RHD..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH300,301,322..4D..D..GEN

 1
19313 - BRACKET, CRANK POSITION SENSOR HARNESS
19313-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
27148C - WIRE, CONNECTING
27148-11010

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
Common parts
90105-10469
90105-T0051
90105-T0054
90105-T0158
90105-T0291
90110-06040
90110-T0002
90119-06938
90119-T0134
90119-T0260
90119-T0464
90178-T0018
90253-13017
90301-T0012
90480-T0005
91551-80616
91551-80816
91551-80850
91552-81030
91552-F1055
91671-80610
91671-80612
91671-80616
94151-80600
Linked diagrams
1106
1302
1703
1708
8401

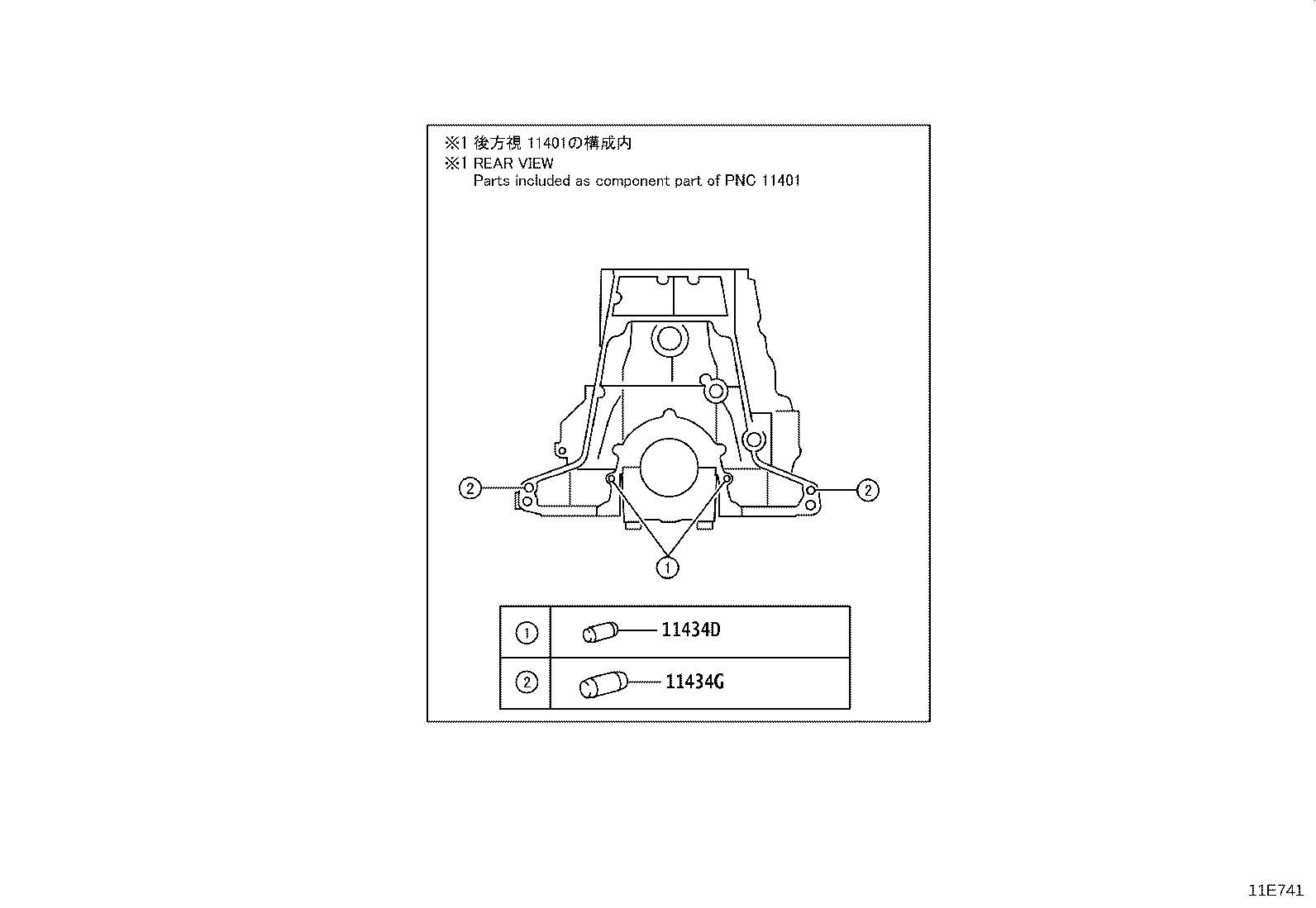

ILLUST NO. 2 OF 2(1902- )1GDFTV

Click highlighted areas on diagram

diagram 11434D 11434G
Part # Description Qty Price
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

L=11,OD=6,(J)

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
