GDH300R-RBFDY (2019)
Toyota Hiace

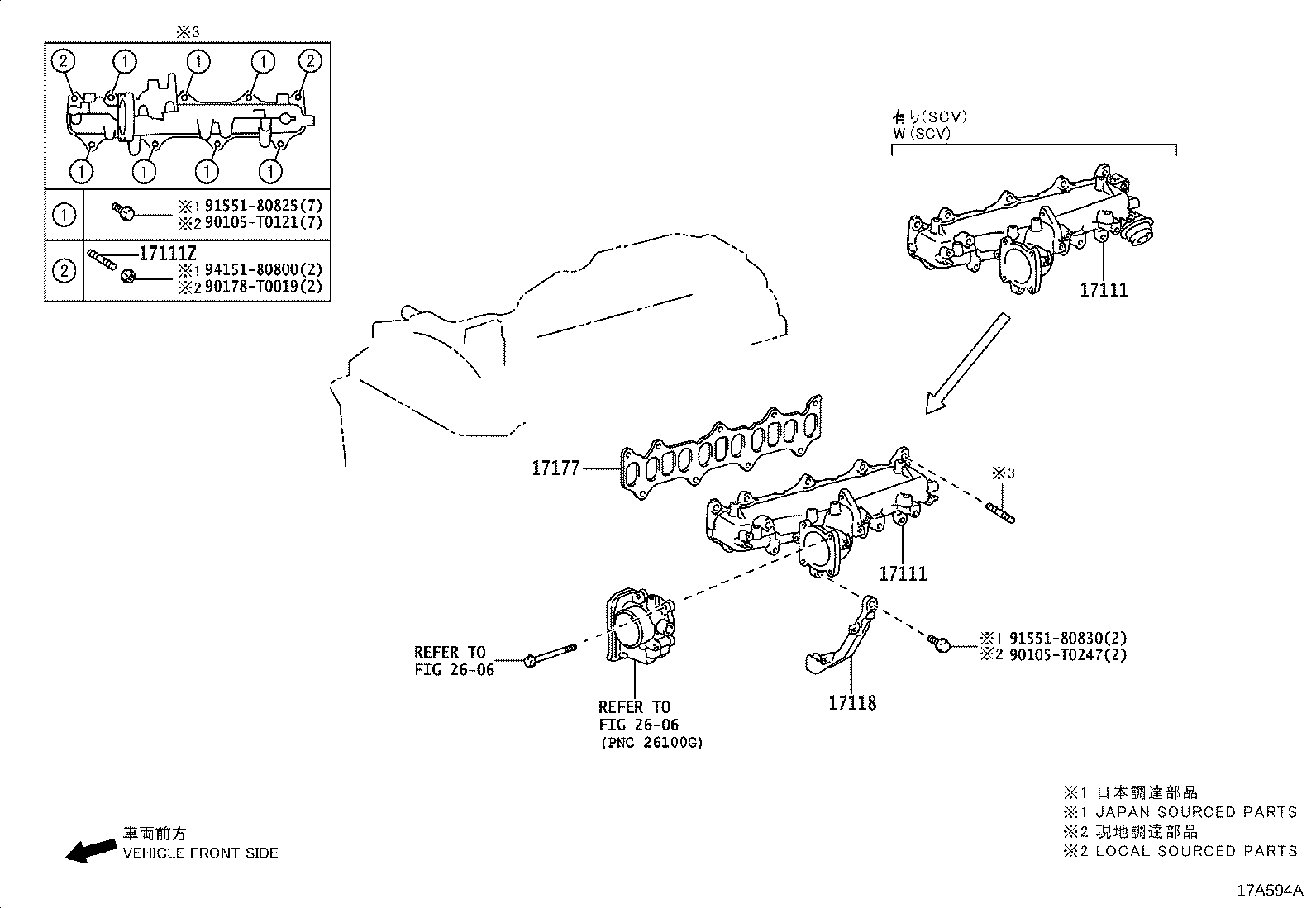

ILLUST NO. 2 OF 5(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11391 |
1GDFTV..GDH322..GCC;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) (J) |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11391 |
1GDFTV..GDH322..GCC;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) (J) |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11390 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-11080 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| Common parts | ||||
| 90105-T0121 | ||||
| 90105-T0247 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2606 | ||||

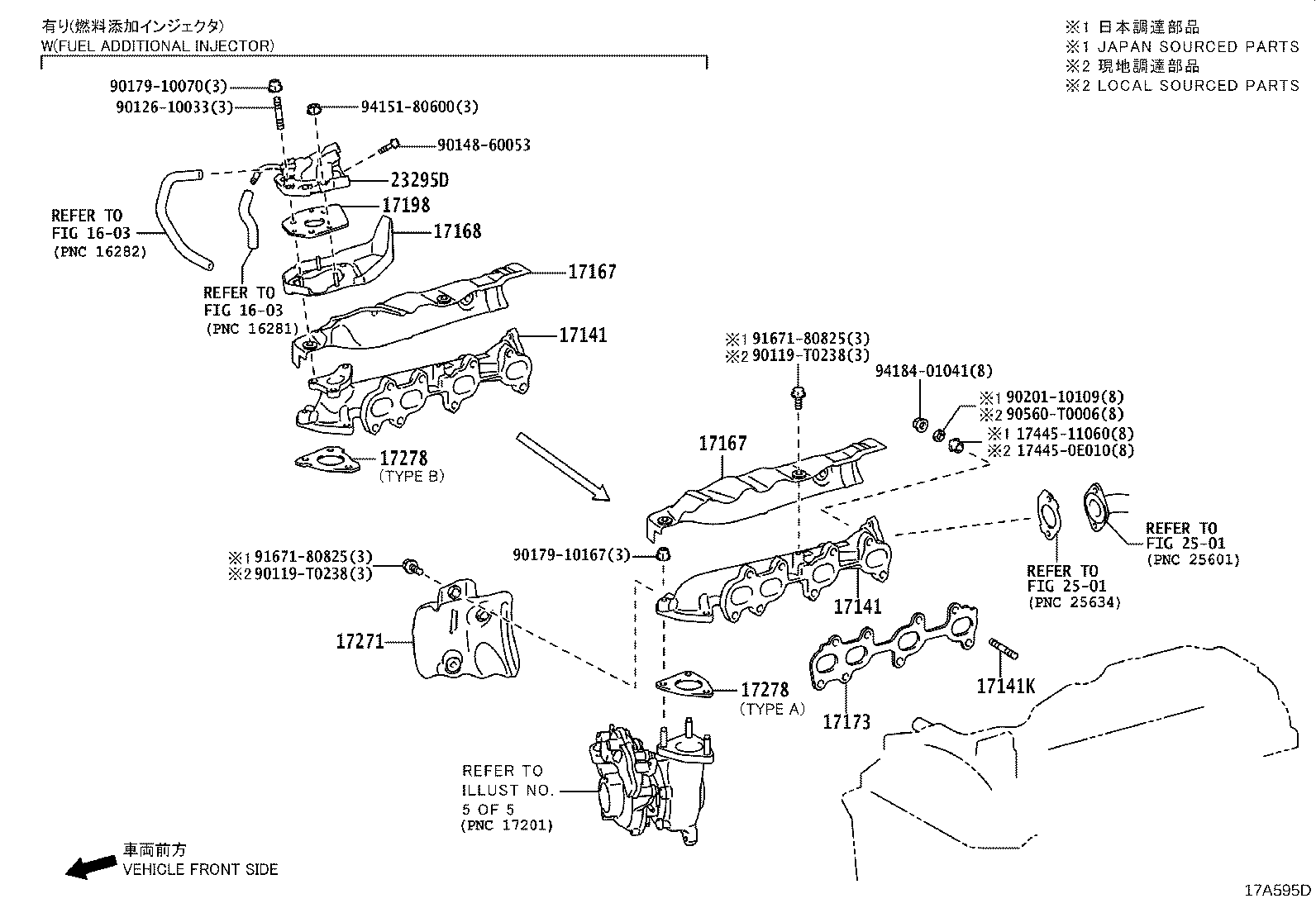

ILLUST NO. 3 OF 5(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11350 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11350 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10034 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-11330 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-11330 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11060 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-11021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) (J),TYPE A:REF ILL. |
1 | ||
| 17278-11050 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J),TYPE A:REF ILL. |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) (J),TYPE A:REF ILL. |
1 | ||
| 17278-11050 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J),TYPE A:REF ILL. |
1 | ||
| Common parts | ||||
| 17445-0E010 | ||||
| 17445-11060 | ||||
| 90119-T0238 | ||||
| 90126-10033 | ||||
| 90148-60053 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90201-10109 | ||||
| 90560-T0006 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94184-01041 | ||||

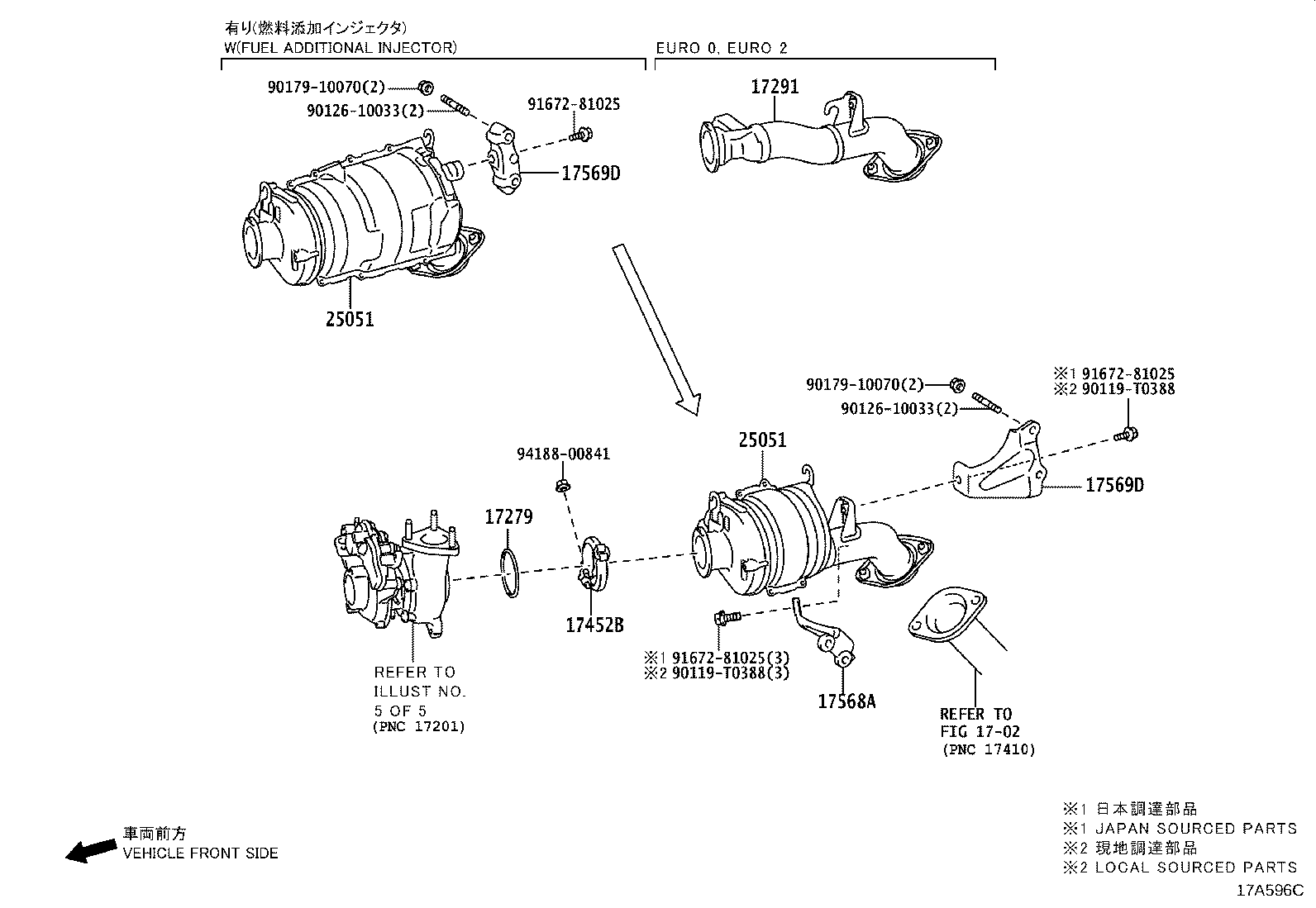

ILLUST NO. 4 OF 5(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-0E011 |
1GDFTV..GDH322..D,N;1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH300,301,320..GCC,GEN;1GDFTV..GDH303,304..RHD..(GEN,TH) |
1 | ||
| 17452B - CLAMP, EXHAUST PIPE | ||||
| 17452-11070 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17568A - STAY, EXHAUST PIPE SUPPORT | ||||
| 17568-11170 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17569D - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-11120 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..LHD..(D,N);1GDFTV..GDH322..RHD..(GEN,TH);1GDFTV..GDH300,301,303,304,320,328..GCC,GEN,PH,TH,VN (J) |
1 | ||
| 17569-11121 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 17569D - STAY, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17569-11120 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..LHD..(D,N);1GDFTV..GDH322..RHD..(GEN,TH);1GDFTV..GDH300,301,303,304,320,328..GCC,GEN,PH,TH,VN (J) |
1 | ||
| 17569-11121 |
1GDFTV..GDH322..GCC;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH304,321..(D,H)..(IDN,TH);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH (J) |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-11080 |
1GDFTV..GDH301..RHD..GEN;1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN FIJI SPEC,(J) |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-11080 |
1GDFTV..GDH301..RHD..GEN;1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN FIJI SPEC,(J) |
1 | ||
| Common parts | ||||
| 90119-T0388 | ||||
| 90126-10033 | ||||
| 90179-10070 | ||||
| 91672-81025 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1702 | ||||

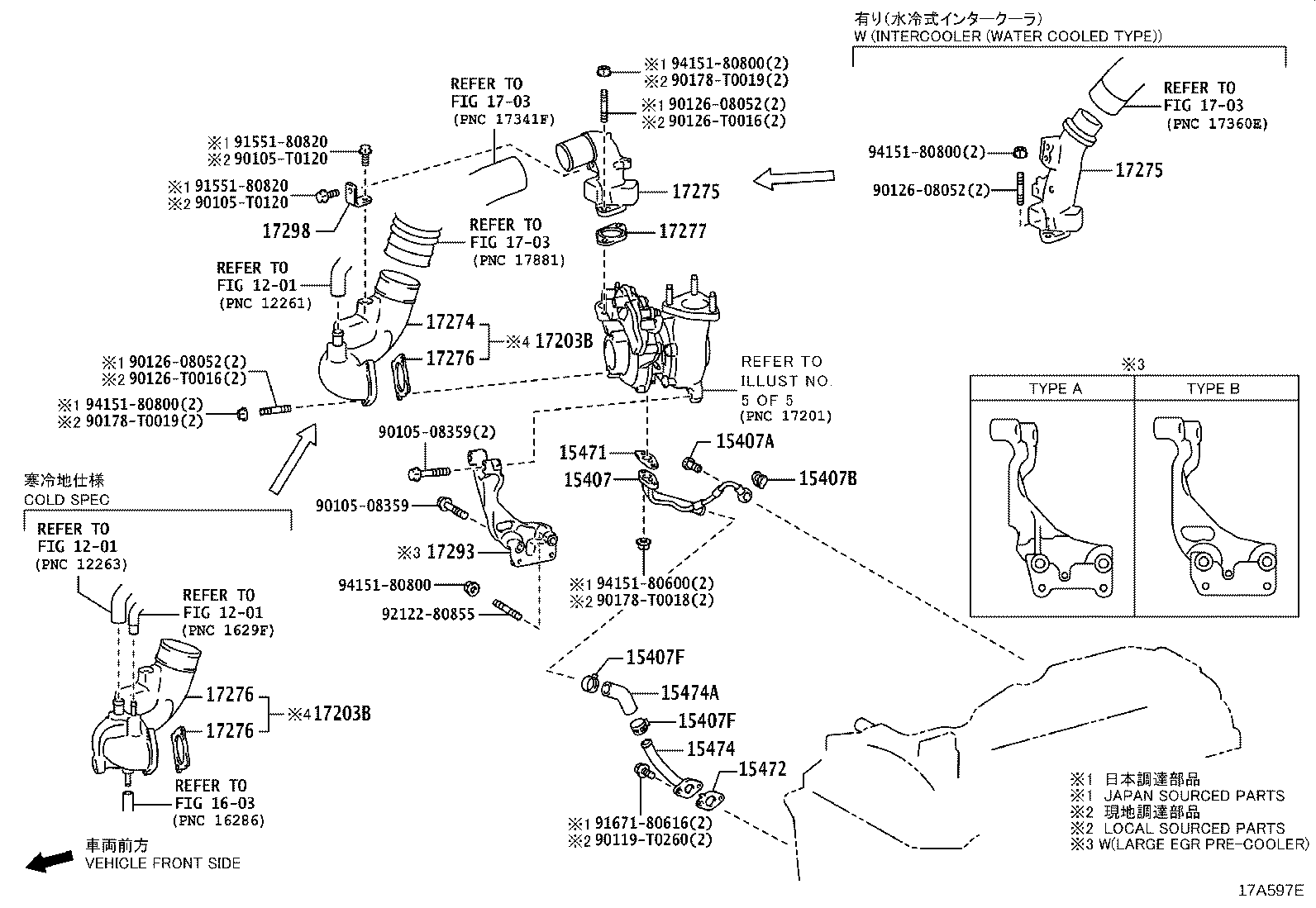

ILLUST NO. 1 OF 5(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-0E020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1GDFTV..GDH30#,32# (J) |
1 | ||
| 96341-11200 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J),TYPE A:REF ILL. |
1 | ||
| 17293-11011 |
1GDFTV..GDH30#,32# TYPE B:REFER ILLUST. |
1 | ||
| 17298 - STAY, COMPRESSOR ELBOW | ||||
| 17298-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| Common parts | ||||
| 90105-08359 | ||||
| 90105-T0120 | ||||
| 90119-T0260 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 91551-80820 | ||||
| 91671-80616 | ||||
| 92122-80855 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 5 OF 5(1902- )1GDFTV..GDH300,301,303,320..ARL,NZ ;(1902- )1GDFTV..GDH300,321..SG,S
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
ILLUST NO. 5 OF 5(1902- )1GDFTV..GDH301..LHD..6F..N ; (1902-)1GDFTV..GDH320..LHD..SP..GEN ; (
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
ILLUST NO. 5 OF 5(1902- )1GDFTV..GDH321,322..RHD..GEN,IDN ; (1902- )1GDFTV..GDH300,301,303,320
TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
ILLUST NO. 5 OF 5(1902- )1GDFTV..GDH322..LHD..6F ; (1902- )1GDFTV..GDH322..6FC..GCC ; (1902-
TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11040 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..GCC,IDN;1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 04175-11041 |
1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH321,322..(D,P,Q)..(GCC,IDN);1GDFTV..GDH300,301,303,320,328..GCC,GEN,PH,TH TYPE D:REFER ILLUST. |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17201-11080 |
1GDFTV..GDH300..5D;1GDFTV..GDH322..GCC;1GDFTV..GDH321..N..GEN;1GDFTV..GDH301,303,328;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71021 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| 89674-71020 |
GDH30#,32# |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
