GDH300R-GBFDYQ (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )

Click highlighted areas on diagram

W/O CONSOLE

diagram 58802E 58809B 58839A 58904B 58997 90119T0287 9046705127 9046709240 9167380616 9167380820
Part # Description Qty Price
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-26010C0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-26060C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26090C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58904-26110C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-26030

GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL

 1
Common parts
90119-T0287
90467-05127
90467-09240
91673-80616
91673-80820

(1902- )RHD

Click highlighted areas on diagram

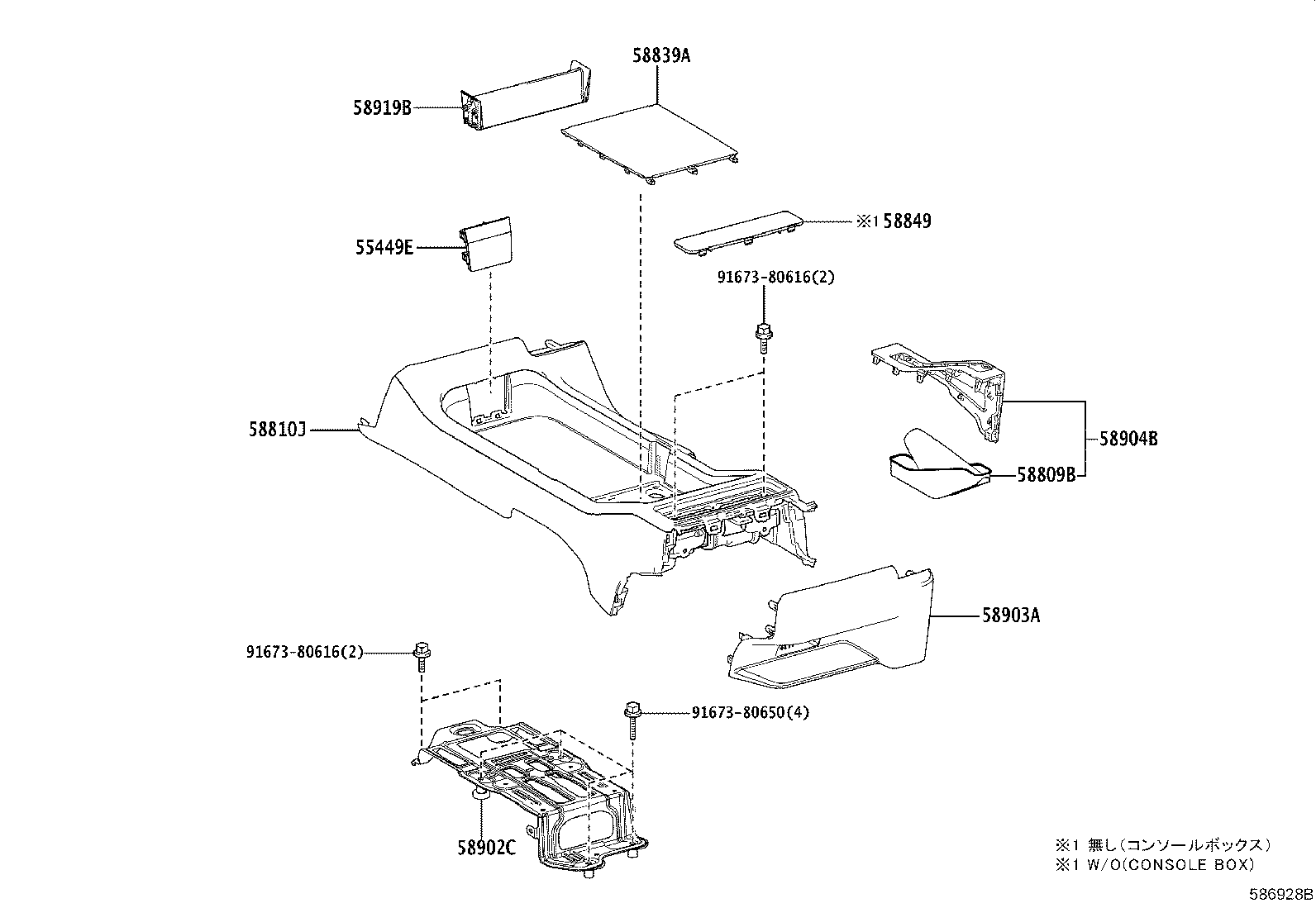

CONSOLE TRAY

diagram 55449E 58809B 58810J 58839A 58849 58902C 58903A 58904B 58919B 9167380616 9167380616 9167380650
Part # Description Qty Price
55449E - BASE, SWITCH
55449-26030C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-26010C0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58810J - BOX ASSY, CONSOLE
58810-26230C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-26060C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-26020C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-26060

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE)

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-26040C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26090C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58904-26110C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-26020C0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
Common parts
91673-80616
91673-80650

(1902- )

Click highlighted areas on diagram

CONSOLE BOX

diagram 55633A 58815A 58820A 58821A 58825A 58903E 58904B 58905 58908A 8121 9054103078 9167380616 9167380628 9356054012 9356054012
Part # Description Qty Price
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26090C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

REAR CONSOLE BOX-WITH(TRAY TYPE),BLACK,TRIM1#

 1
58904-26110C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
Common parts
90541-03078
91673-80616
91673-80628
93560-54012
Linked diagrams
8121
