GDH300R-GBFDYQ (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH300,301,303,320,321,322..ARL,NZ

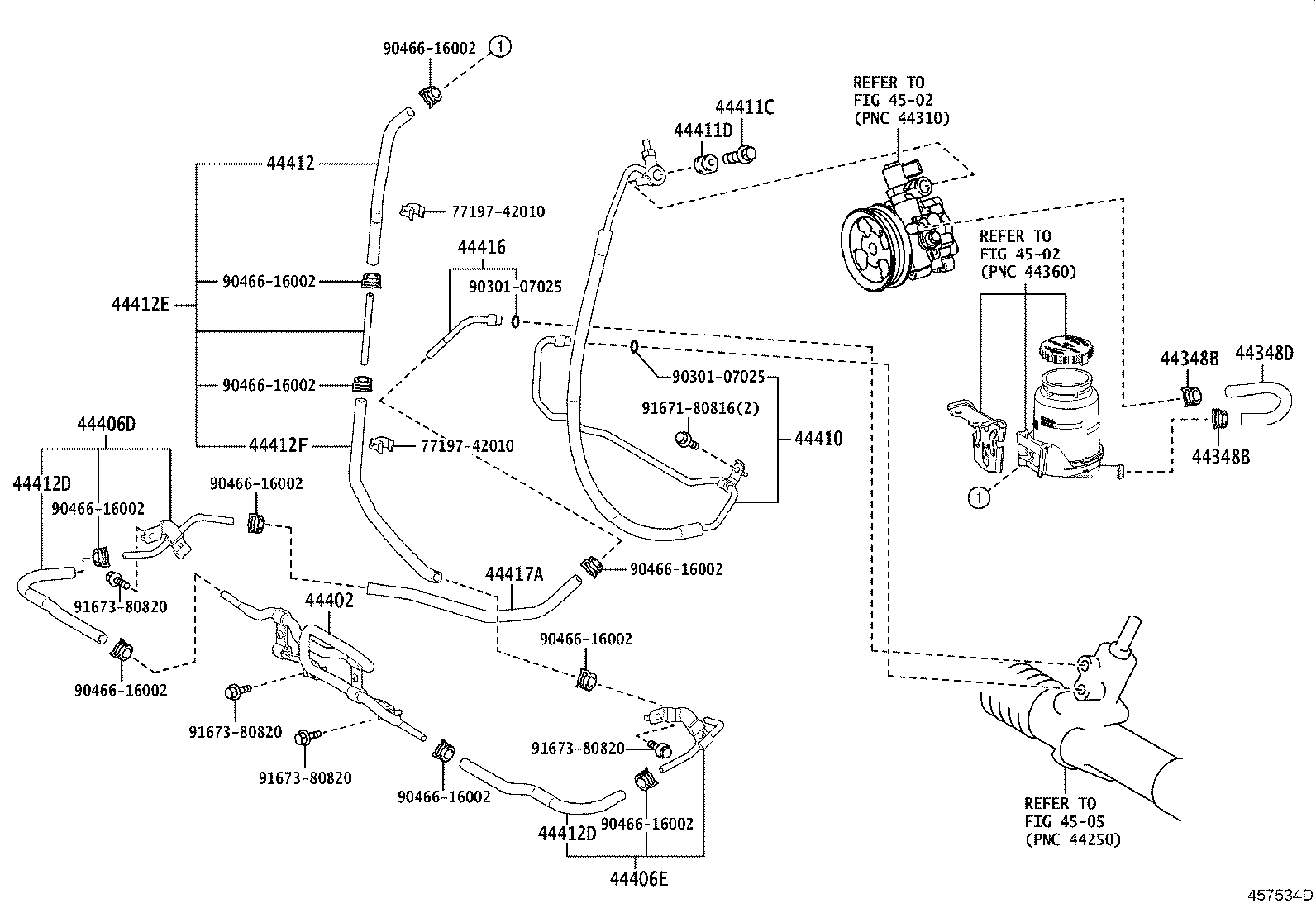

Click highlighted areas on diagram

diagram 44348B 44348B 44348D 44402 44406D 44406E 44410 44411C 44411D 44412 44412D 44412D 44412E 44412F 44416 44417A 4502 4502 4505 7719742010 7719742010 9030107025 9030107025 9046616002 9046616002 9046616002 9046616002 9046616002 9046616002 9046616002 9046616002 9046616002 9046616002 9167180816 9167380820 9167380820 9167380820 9167380820
Part # Description Qty Price
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-26300

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-26030

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-26050

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-26060

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26B90

GDH320..6F..ARL;GDH300..4D..6F..ARL

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
44412 - HOSE, RETURN
44428-26050

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44412D - HOSE, RETURN, NO.1
44428-26010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 2
44412D - HOSE, RETURN, NO.1
44428-26010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 2
44412E - HOSE, RETURN, NO.2
44412-26200

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44412F - HOSE, RETURN, NO.3
44428-26040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26090

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
44412-26180

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
Common parts
77197-42010
90301-07025
90466-16002
91671-80816
91673-80820
Linked diagrams
4502
4505
