GDH300R-GBFDYQ (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV

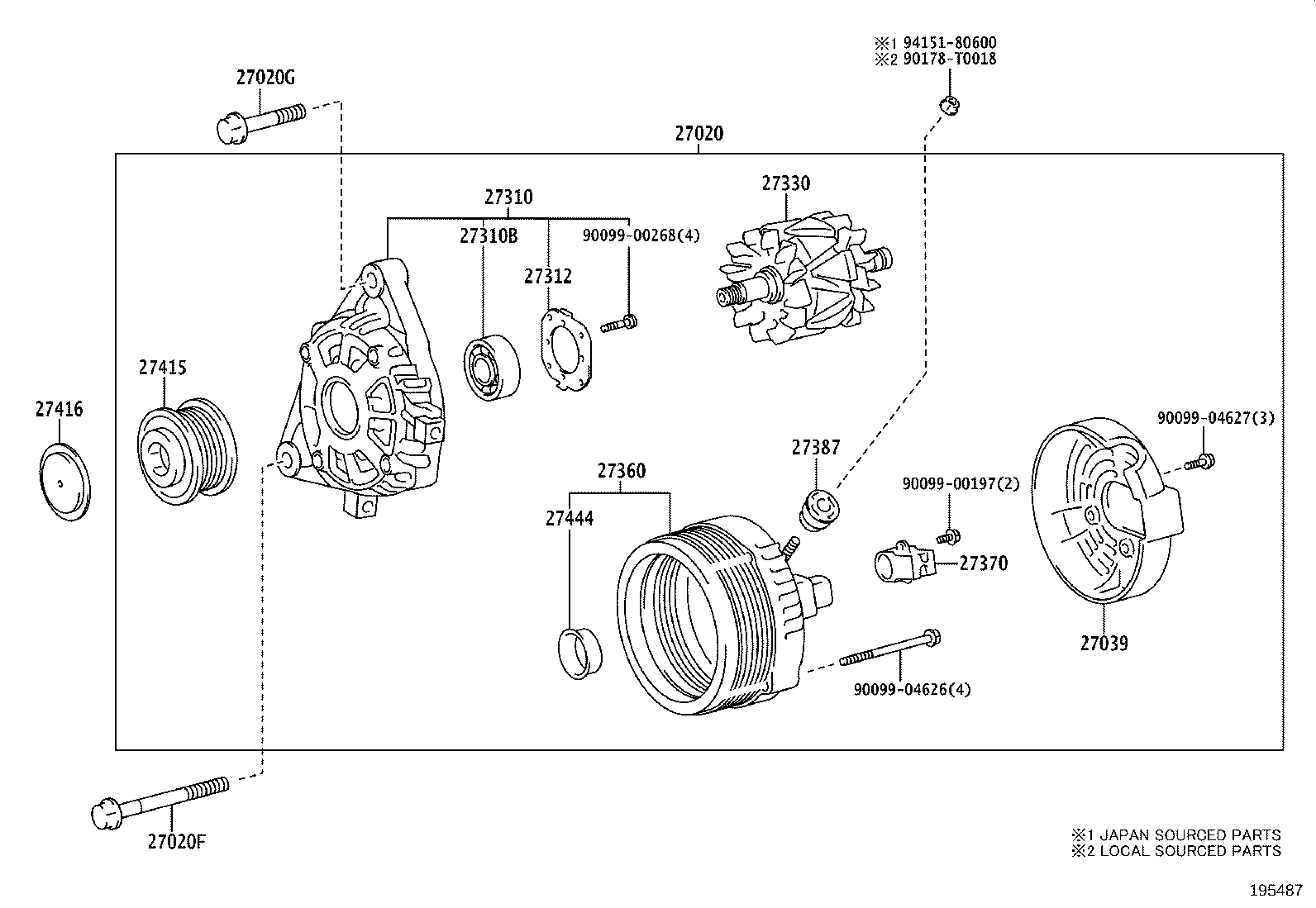

Click highlighted areas on diagram

12V 100A,130A

diagram 27020 27020F 27020G 27039 27310 27310B 27312 27330 27360 27370 27387 27415 27416 27444 9009900197 9009900268 9009904626 9009904627 90178T0018 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11350

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL

12V 130A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
91552-81090

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

(J)

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91672-81045

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

(J)

 1
27039 - COVER, ALTERNATOR REAR END
27039-11290

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-30240

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;7GRFKS..GRH300,303,320..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN;1GDFTV,7GRFKS..GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
27312 - PLATE, RETAINER
27312-72100

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;7GRFKS..GRH300,303,320..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN;1GDFTV,7GRFKS..GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-37220

7GRFKS..GRH303..LHD..G;1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;7GRFKS..GRH303,321..(G,J,Q)..ARL

 1
27360 - COIL ASSY, ALTERNATOR
27360-11290

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;7GRFKS..GRH300,303,320..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN;1GDFTV,7GRFKS..GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
27387 - INSULATOR, TERMINAL
27387-20130

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30010

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

 1
27416 - CAP, ALTERNATOR PULLEY
27416-30020

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH306,321..RHD..(G,J,N)

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;7GRFKS..GRH300,303,320..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN;1GDFTV,7GRFKS..GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
Common parts
90099-00197
90099-00268
90099-04626
90099-04627
90178-T0018
94151-80600
