GDH300L-RBFDYV (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1902- )GDH300,303,320,322..GCC

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 827111E360 827111E360 88453C 88453D 88454A 88454A 88467H 88467H 88550L 88550M 88590D 88590E 88897T 88897T 9009904119 9009904119 9009905164 9009905164
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-31070

1GDFTV..GDH303,322..GCC;1GDFTV..GDH300,320..6F..GCC

 2
16793-31070

1GDFTV..GDH300..SP..6F..GCC

JORDAN SPEC

 2
16793-31070

1GDFTV..GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 2
88453C - FAN, COOLING, NO.1
88453-26030

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88453-26030

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88453-26030

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88453D - FAN, COOLING, NO.2
88453-26040

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88453-26040

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88453-26040

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88454A - SHROUD, FAN
88454-26120

GDH303,322..GCC;GDH300,320..6F..GCC

 2
88454-26120

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 2
88454-26120

GDH300..SP..6F..GCC

JORDAN SPEC

 2
88454A - SHROUD, FAN
88454-26120

GDH303,322..GCC;GDH300,320..6F..GCC

 2
88454-26120

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 2
88454-26120

GDH300..SP..6F..GCC

JORDAN SPEC

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

GDH303,322..GCC;GDH300,320..6F..GCC

 4
88467-20190

GDH300..SP..6F..GCC

JORDAN SPEC

 4
88467-20190

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 4
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

GDH303,322..GCC;GDH300,320..6F..GCC

 4
88467-20190

GDH300..SP..6F..GCC

JORDAN SPEC

 4
88467-20190

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 4
88550L - MOTOR ASSY, COOLING FAN, NO.1
88550-26120

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88550-26120

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88550-26120

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88550M - MOTOR ASSY, COOLING FAN, NO.2
88550-26130

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88550-26130

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88550-26130

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88590D - BLOWER ASSY, W/SHROUD, NO.1
88590-26170

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88590-26170

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88590-26170

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88590E - BLOWER ASSY, W/SHROUD, NO.2
88590-26180

GDH300..SP..6F..GCC

JORDAN SPEC

 1
88590-26180

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 1
88590-26180

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88897T - GROMMET, COOLER
88897-26140

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 2
88897-26140

GDH300..SP..6F..GCC

JORDAN SPEC

 2
88897-26140

GDH303,322..GCC;GDH300,320..6F..GCC

 2
88897T - GROMMET, COOLER
88897-26140

GDH300,320..6F..GCC

GCC(WITHOUT SAUDI ARABIA,UAE)

 2
88897-26140

GDH300..SP..6F..GCC

JORDAN SPEC

 2
88897-26140

GDH303,322..GCC;GDH300,320..6F..GCC

 2
Common parts
82711-1E360
90099-04119
90099-05164

ILLUST NO. 3 OF 3(1902- )SHP ; (1902- )GDH304..TH ; (1902-)GDH303..LHD..H ; (1902- )GDH

Click highlighted areas on diagram

REAR(W(REAR COOLER))

diagram 8714 88515A 88706G 88707D 88710E 88710G 88710N 88710P 88710R 88710R 88710R 88710S 88714C 88716D 88717D 8871826A30 8871826A90 8871826B90 8871826C00 88891Q 88891Q 8889926280 8889926290 8889926300 9009900968 9009900968 9009900968 9009904492 90105T0241 90105T0241 90105T0241 90105T0283 90105T0324 90178T0053 90178T0053 90178T0053 9155180635 91551A0618 91551A0618 91551A0618 91551A0630 9331514012 9415180641 9415180641 9415180641
Part # Description Qty Price
Common parts
88718-26A30
88718-26A90
88718-26B90
88718-26C00
88899-26280
88899-26290
88899-26300
90099-00968
90099-04492
90105-T0241
90105-T0283
90105-T0324
90178-T0053
91551-80635
91551-A0618
91551-A0630
93315-14012
94151-80641
Linked diagrams
8714

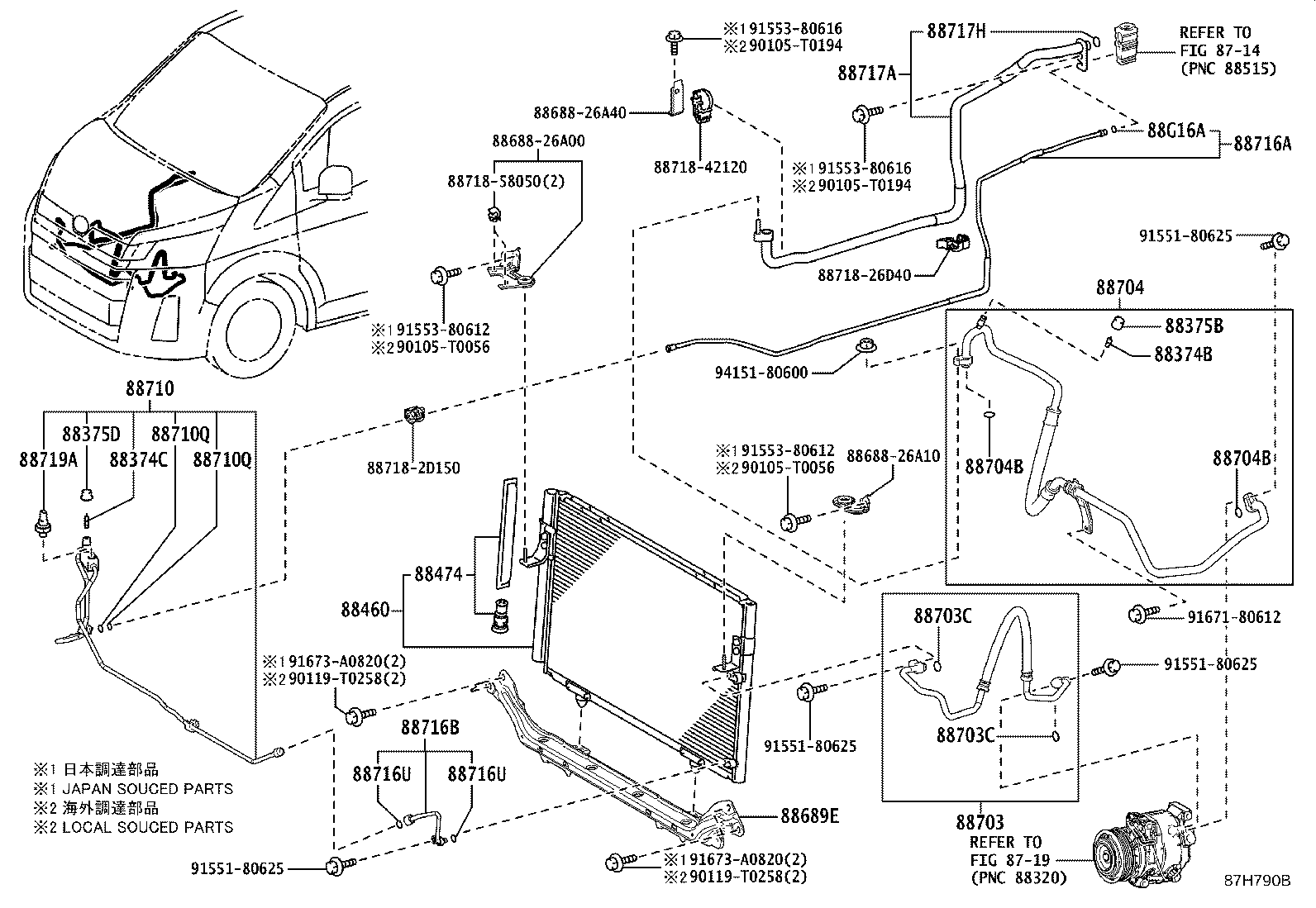

ILLUST NO. 2 OF 3(1902- )GDH301,321,322..LHD..D,P..GEN ; (1902- )GDH300,320,328..LHD..GEN,PH,V

Click highlighted areas on diagram

FRONT:SINGLE A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 8868826A00 8868826A10 8868826A40 88689E 88703 88703C 88703C 88704 88704B 88704B 88710 88710Q 88710Q 88716A 88716B 88716U 88716U 88717A 88717H 8871826D40 887182D150 8871842120 8871858050 88719A 88G16A 90105T0056 90105T0056 90105T0194 90105T0194 90119T0258 90119T0258 9155180625 9155180625 9155180625 9155180625 9155380612 9155380612 9155380616 9155380616 9167180612 91673A0820 91673A0820 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88460 - CONDENSER ASSY, COOLER
884A0-26020

GDH321..GEN;GDH301,322..N;GDH322..LHD..(P,Q)..GEN;GDH300,320..6F..(GCC,TH)

 1
88474 - DRYER, COOLER
88474-12020

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88689E - BRACKET, COOLER, NO.1
88688-26A50

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26040

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-26030

GDH301,322..N;GDH321..GEN,NZ;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A60

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-26890

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
Common parts
88688-26A00
88688-26A10
88688-26A40
88718-26D40
88718-2D150
88718-42120
88718-58050
90105-T0056
90105-T0194
90119-T0258
91551-80625
91553-80612
91553-80616
91671-80612
91673-A0820
94151-80600
Linked diagrams
8714
8719

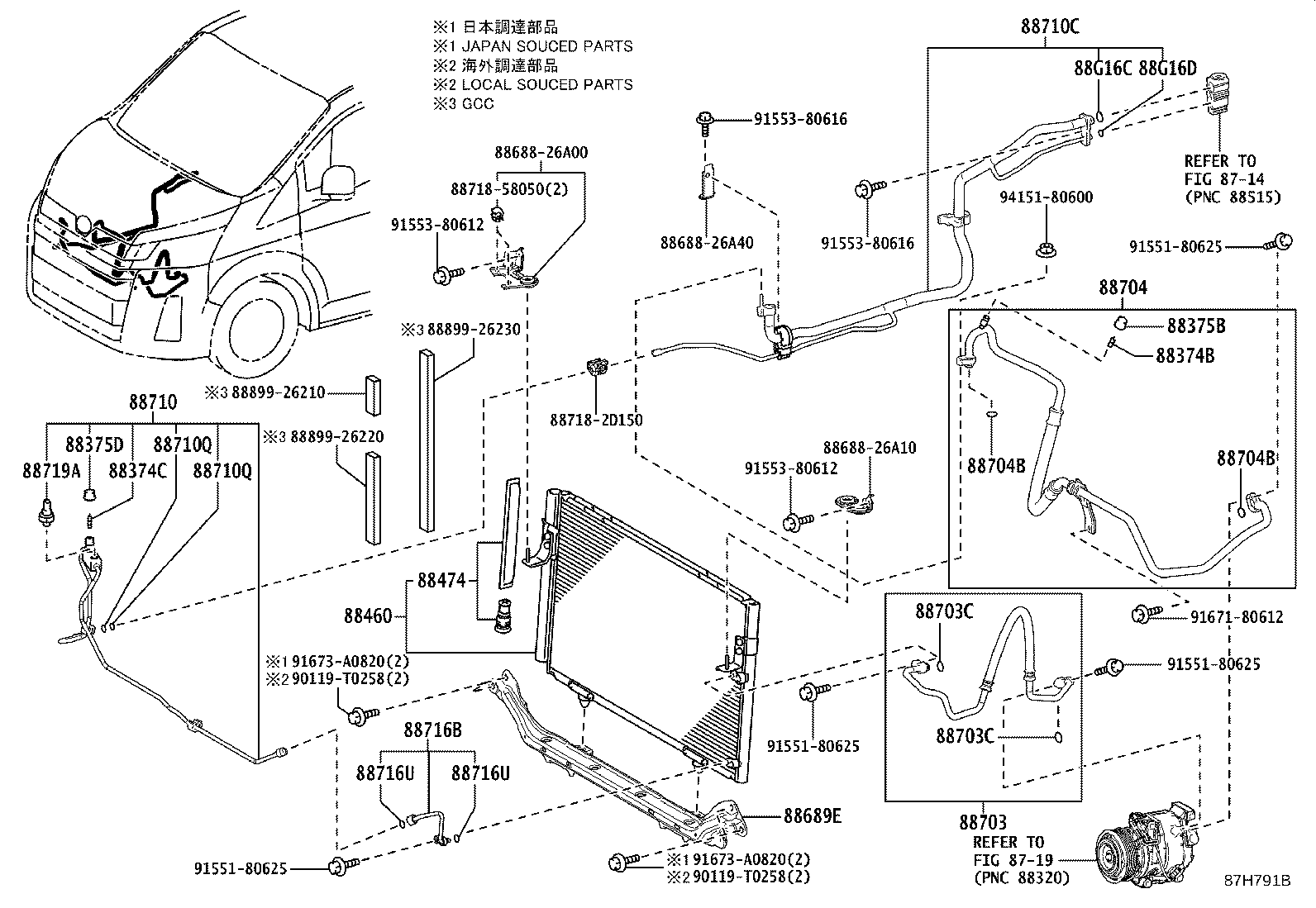

ILLUST NO. 2 OF 3(1902- )GDH300,320..GCC

Click highlighted areas on diagram

FRONT:SINGLE A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 8868826A00 8868826A10 8868826A40 88689E 88703 88703C 88703C 88704 88704B 88704B 88710 88710C 88710Q 88710Q 88716B 88716U 88716U 887182D150 8871858050 88719A 8889926210 8889926220 8889926230 88G16C 88G16D 90119T0258 90119T0258 9155180625 9155180625 9155180625 9155180625 9155380612 9155380612 9155380616 9155380616 9167180612 91673A0820 91673A0820 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88460 - CONDENSER ASSY, COOLER
884A0-26020

GDH321..GEN;GDH301,322..N;GDH322..LHD..(P,Q)..GEN;GDH300,320..6F..(GCC,TH)

 1
88474 - DRYER, COOLER
88474-12020

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88689E - BRACKET, COOLER, NO.1
88688-26A50

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26040

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-26030

GDH301,322..N;GDH321..GEN,NZ;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A60

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26A90

GDH300,320,GRH300,320..6F..GCC

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-26890

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH)

ID=13.4,OD=18.2

 1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH)

ID=6.7,OD=10.3

 1
Common parts
88688-26A00
88688-26A10
88688-26A40
88718-2D150
88718-58050
88899-26210
88899-26220
88899-26230
90119-T0258
91551-80625
91553-80612
91553-80616
91671-80612
91673-A0820
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1902- )RHD..SHP ; (1902- )GDH322..RHD..ARL,GEN,NZ ; (1902- )GDH301,303,30

Click highlighted areas on diagram

FRONT:DUAL A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 8868826A00 8868826A10 8868826A40 88689E 88703 88703C 88703C 88704 88704B 88704B 88710 88710C 88710Q 88710Q 88716B 88716U 88716U 887182D150 8871858050 88719A 88G16C 88G16D 88G16E 88G16F 90105T0056 90105T0056 90119T0258 90119T0258 9155180625 9155180625 9155180625 9155180625 9155380612 9155380612 9167180612 91673A0616 91673A0616 91673A0820 91673A0820 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88460 - CONDENSER ASSY, COOLER
884A0-26020

GDH321..GEN;GDH301,322..N;GDH322..LHD..(P,Q)..GEN;GDH300,320..6F..(GCC,TH)

 1
88474 - DRYER, COOLER
88474-12020

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88689E - BRACKET, COOLER, NO.1
88688-26A50

GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26040

GDH303,322..GCC;GDH300,320..6F..GCC

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-26030

GDH301,322..N;GDH321..GEN,NZ;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH

ID=13.4,OD=18.2

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A60

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26A90

GDH300,320,GRH300,320..6F..GCC

 1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

ID=6.7,OD=10.3

 2
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-26890

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

GDH301,322..N;GDH322..ARL,GCC,NZ;GDH306,322..LHD..(G,J,P,Q)..GEN;GDH300,301,320,328..GCC,NZ,PH,TH;GDH303,304,321..ARL,GCC,GEN,NZ,TH

 2
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN

 1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH)

ID=13.4,OD=18.2

 1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH)

ID=6.7,OD=10.3

 1
Common parts
88688-26A00
88688-26A10
88688-26A40
88718-2D150
88718-58050
90105-T0056
90119-T0258
91551-80625
91553-80612
91671-80612
91673-A0616
91673-A0820
94151-80600
Linked diagrams
8714
8719
