GDH300L-GBFDY (2019)
Toyota Hiace
(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

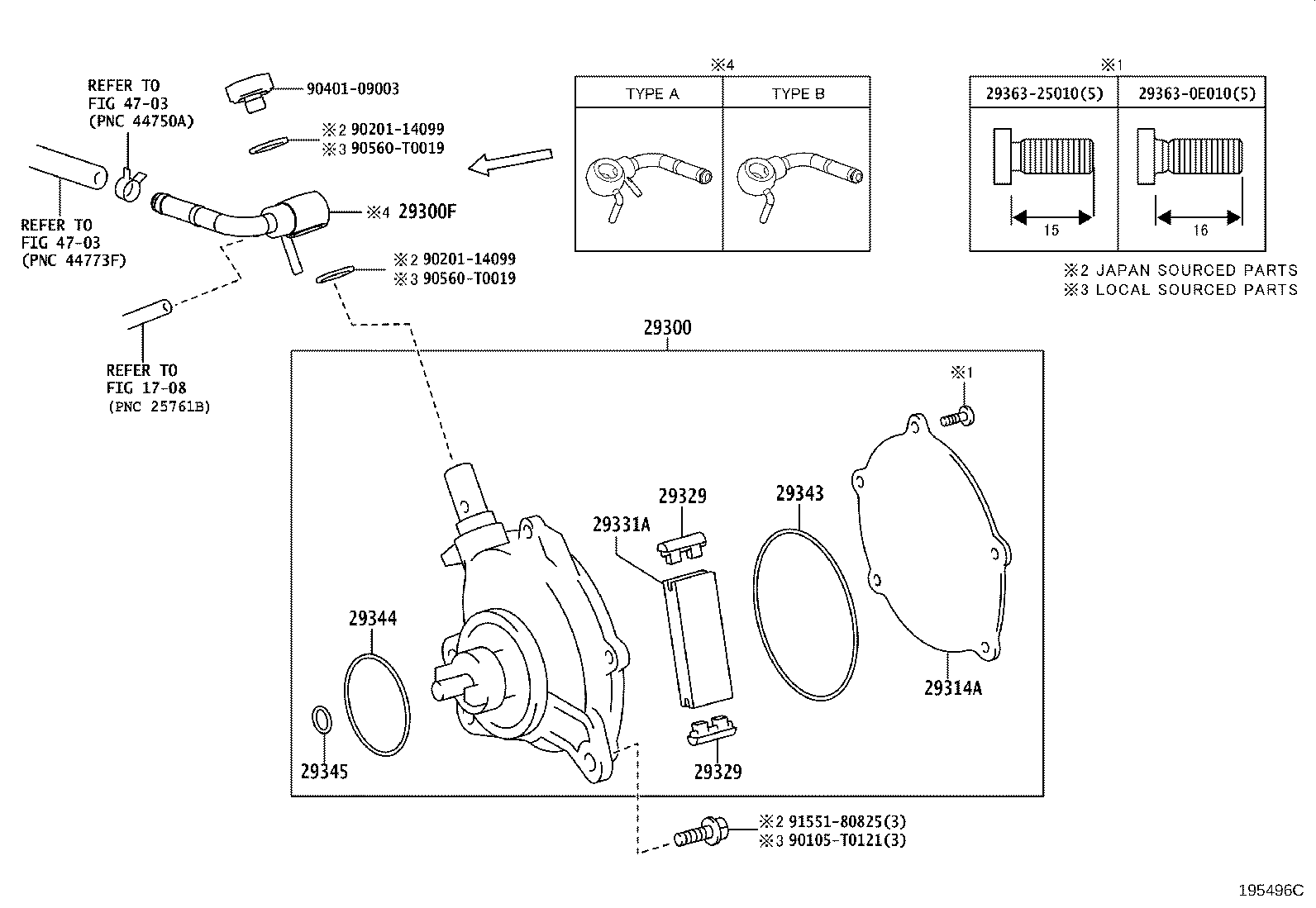

| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-11021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 29300F - UNION | ||||
| 90405-09196 |
1GDFTV..GDH300,301,320..LHD..6F..GEN COSTA RICA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 90405-09196 |
1GDFTV..GDH300..LHD..6F..GEN MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 90405-09196 |
1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN CHILE SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 90405-09197 |
1GDFTV..GDH322..D,N;1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH300,301,320..GCC,GEN;1GDFTV..GDH303,304..RHD..(GEN,TH) TYPE B:REFER ILLUST. |
1 | ||
| 90405-09196 |
1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN;1GDFTV..GDH303,322..LHD..(D,G,J,N)..GEN PERU SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 29314A - COVER, END | ||||
| 29314-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 29314-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
2 | ||
| 29329-37010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
2 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
2 | ||
| 29329-37010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
2 | ||
| 29331A - VANE, VACUUM PUMP | ||||
| 29331-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 29331-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 29343 - RING, O VACUUM PUMP, NO.1 | ||||
| 29343-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 29343-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 29344 - RING, O VACUUM PUMP, NO.2 | ||||
| 29344-22011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 29344-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 29345 - RING, O VACUUM PUMP, NO.3 | ||||
| 29345-0E010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (L) |
1 | ||
| 29345-22011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| Common parts | ||||
| 29363-0E010 | ||||
| 29363-25010 | ||||
| 90105-T0121 | ||||
| 90201-14099 | ||||
| 90401-09003 | ||||
| 90560-T0019 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4703 | ||||
