GDH201R-SSTNY (2017)
Toyota Hiace
ILLUST NO. 1 OF 7(1701- )GDH201
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDH200..LHD..5D..GEN;KDH200,203..GCC,MA,TH;KDH223..4FC..(GEN,TH);KDH201..4D..5F..(GEN,TH);KDH222..(03S,16S)..(GEN,KEN,SA);KDH203,213,220..(06S,11S,13S,15S)..(GEN,SA);GDH201,KDH202,212,220,223..(03S,06S,10S,11S,12S,13S,15S,16S)..(GCC,GEN,MA,VN) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-71070 |
GDH201 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-71080 |
GDH201 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-71090 |
GDH201 |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-26190 |
GDH201 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60150 |
GDH201 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
GDH201 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60180 |
GDH201 |
1 | ||
| Common parts | ||||
| 82715-26S00 | ||||
| 90119-08C62 | ||||
| 90179-06274 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 91673-80612 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||

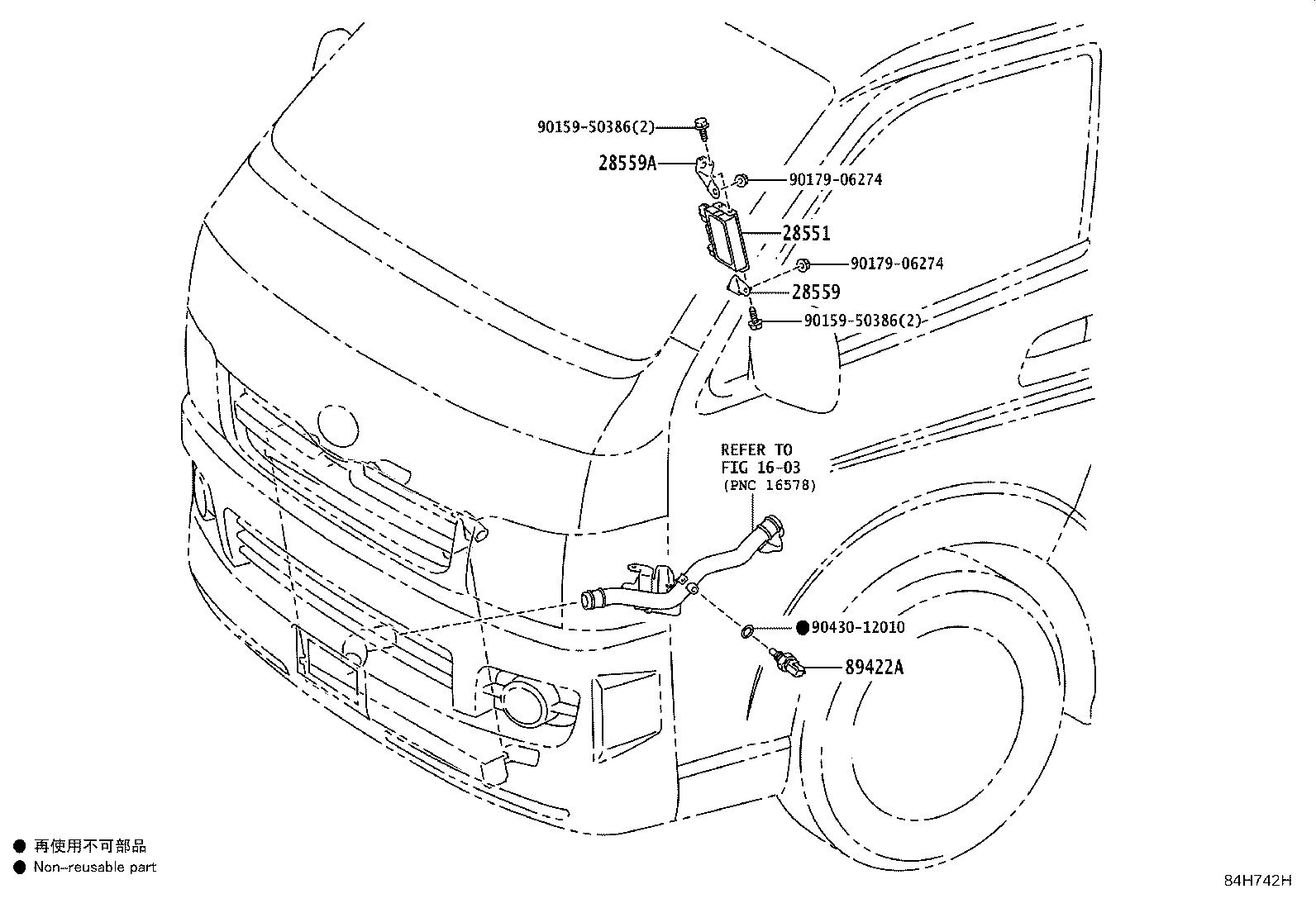

ILLUST NO. 2 OF 7(1701- )GDH201
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1KDFTV..KDH201..SP..(03S,06S)..GEN;1GDFTV,1KDFTV..GDH201,KDH203,213..02S,06S,10S |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-30010 |
1KDFTV..KDH201..SP..(03S,06S)..GEN;1GDFTV,1KDFTV..GDH201,KDH203,213..02S,06S,10S |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-30020 |
1KDFTV..KDH201..SP..(03S,06S)..GEN;1GDFTV,1KDFTV..GDH201,KDH203,213..02S,06S,10S |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
TRH213..LHD;TRH223..4FC..GL;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);KDH223,TRH201..STD..(ARL,GCC,GEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH203,213,220,TRH200..(02S,06S,10S,11S,12S,13S,15S)..(4FC,5F)..(GEN,SA) |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||

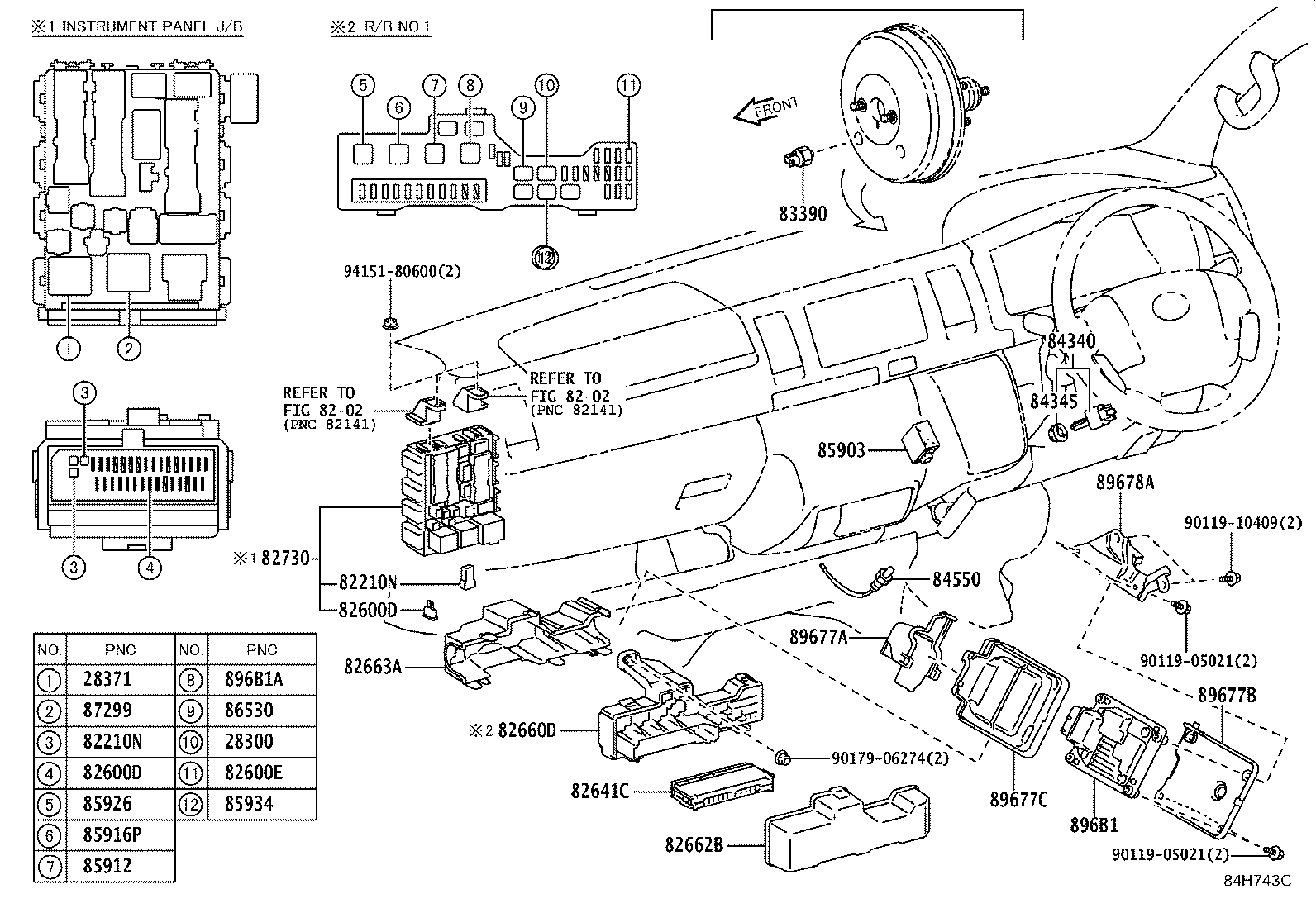

ILLUST NO. 4 OF 7(1701- )GDH201
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2TRFE..TRH201;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2TRFE..TRH223..LHD..STD..GEN;5LE,2TRFE..LH200,TRH203..4D..5F;2TRFE..TRH223..5F..GL..(GCC,RUS);2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV,2TRFE..KDH200,TRH213,221..GCC,MA,TH;2TRFE..TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);1GDFTV,1KDFTV,2KDFTV,5LE..GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV,1TRFE..KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 25A,MINI FUSE |
1 | ||
| 90982-09025 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 25A,MINI FUSE |
1 | ||
| 90982-09025 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH 10A,MINI FUSE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-26050 |
TRH201;KDH223..4FC..TH;TRH223..GL..GCC;TRH213,221..GCC,TH;KDH200,201..LHD..5D;TRH213,223..LHD..STD..GEN;KDH201,TRH200..RHD..(4FC,5F);KDH220,TRH203..(06S,10S,15S)..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH223,TRH221..(02S,06S,12S)..(ARL,RUS,SA);KDH222,223,LH200..4D..(03S,14S,16S)..(ARL,GEN,KEN,VN);GDH201,KDH202,203,21#,220,221,LH202,212,222..ARL,GCC,GEN |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26261 |
KDH223..4FC..TH;TRH22#..(02S,06S,14S)..STD;KDH212,222,LH200..RHD..4D..(GEN,KEN);KDH202,220,223,TRH200,213..RHD..(06S,11S,14S,15S)..(4FC,5F);GDH201,KDH201,203,221,LH202,212,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,15S,16S) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26590 |
GDH201 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26162 |
KDH222..RHD..(GEN,KEN);TRH213,221..02S,06S,11S;LH200,TRH223..RHD..4D..(03S,14S)..STD;KDH202,212,220,LH212,222,TRH200..RHD..(06S,15S,16S)..(4FC,5F);GDH201,KDH201,203,221,223,LH202,TRH201,203..RHD..(02S,03S,05S,06S,10S,14S,15S) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
TRH221..GCC;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200,220..LHD..5D;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S;KDH203,213,220,223,TRH200..(02S,06S,10S,11S,12S,13S,14S,15S)..(4FC,5F)..(ARL,GEN,RUS,SA) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRH221..GCC;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200,220..LHD..5D;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S;KDH203,213,220,223,TRH200..(02S,06S,10S,11S,12S,13S,14S,15S)..(4FC,5F)..(ARL,GEN,RUS,SA) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
KDH223..VN;TRH223..TH;TRH213..GL..(GEN,TH);KDH201..RHD..SP..GEN;GDH201,KDH203,222..RHD..(02S,03S,06S,12S);KDH223,TRH223..(10S,13S,16S)..4FC..(GEN,TH);KDH21#,TRH200..(06S,10S,11S)..(4FC,5F)..GEN |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
TRH201;KDH223..4FC..TH;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..(13S,16S)..4FC..GL;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDH201..SP..06S;KDH200,223..MA,RUS;KDH21#,222..GL..GEN;KDH223..(14S,16S)..(ARL,GEN,VN);GDH201,KDH202,203,222..RHD..(03S,06S,10S,12S) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
KDH212..13S..GL;TRH223..5F..GL..GCC;KDH202,TRH203..RHD..GEN;TRH223..(13S,16S)..4FC..GL;KDH223,LH200..4D..(GEN,VN);KDH200,202,TRH203,221..5F..GCC;GDH201,KDH201,213,TRH213..GL..GEN;KDH201,212..LHD..(02S,03S,11S,16S);TRH201,213..(03S,06S,11S,16S)..(GCC,SA,TH);KDH203,220,LH202,212,222,TRH221..06S,12S,15S,16S |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 90987-04010 |
TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;TRH223..STD..(ARL,SA);TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S (J) |
1 | ||
| 90987-T2003 |
TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;TRH223..STD..(ARL,SA);TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S (L) |
1 | ||
| 89677A - BRACKET, UREA PUMP CONTROL, NO.1 | ||||
| 89677-26030 |
GDH201 |
1 | ||
| 89677B - BRACKET, UREA PUMP CONTROL, NO.3 | ||||
| 89678-26030 |
GDH201 |
1 | ||
| 89677C - BRACKET, UREA PUMP CONTROL, NO.4 | ||||
| 89678-26040 |
GDH201 |
1 | ||
| 89678A - BRACKET, UREA PUMP CONTROL, NO.2 | ||||
| 89677-26040 |
GDH201 |
1 | ||
| 896B1 - COMPUTER, UREA PUMP CONTROL | ||||
| 896B1-26021 |
GDH201 |
1 | ||
| 896B1-26020 |
GDH201 |
1 | ||
| 896B1A - RELAY, DCU MAIN | ||||
| 90987-02025 |
GDH201 |
1 | ||
| Common parts | ||||
| 90119-05021 | ||||
| 90119-10409 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

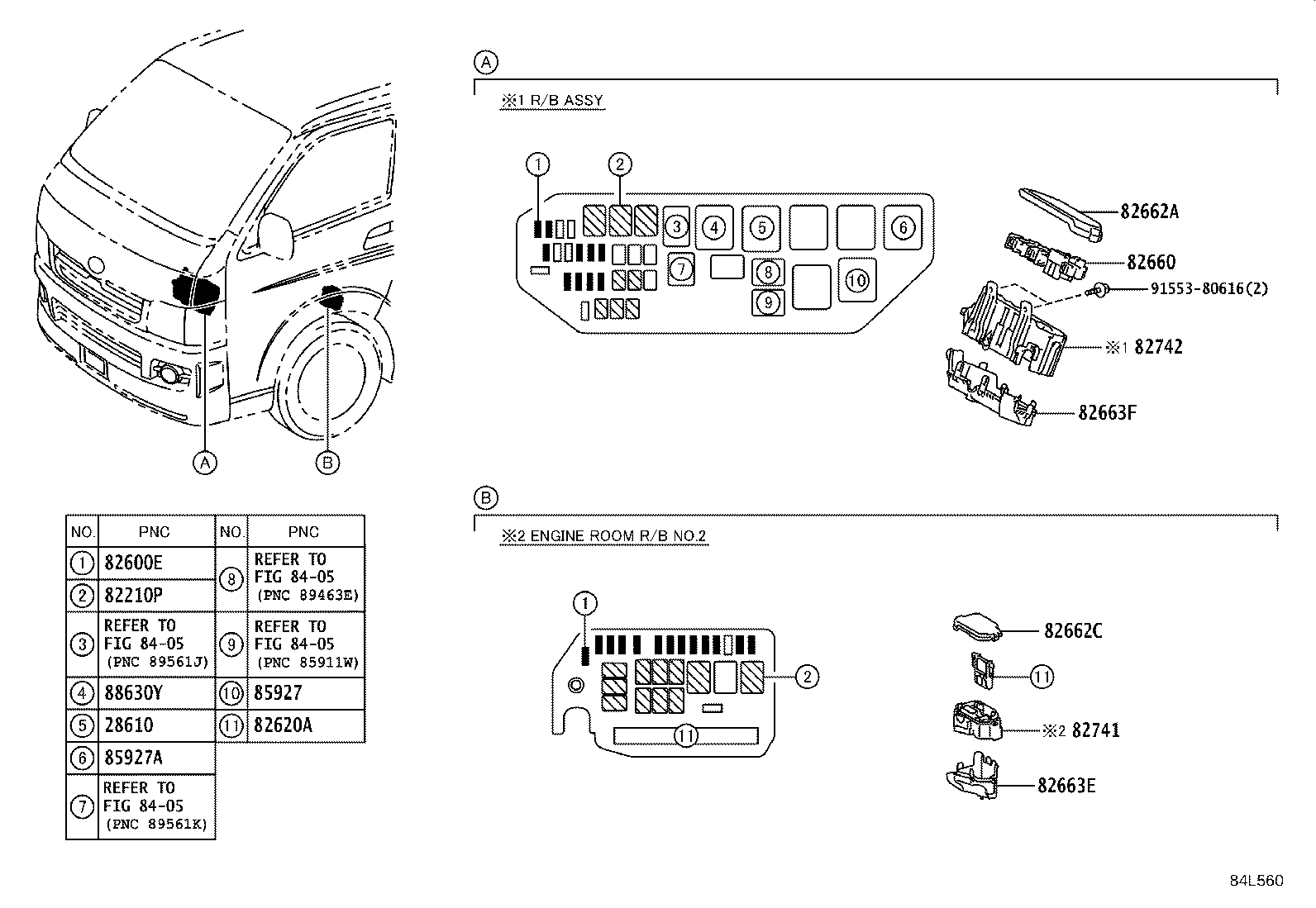

ILLUST NO. 3 OF 7(1701- )GDH201
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-02025 |
1GDFTV..GDH201 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08305 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08299 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 40A-40A-40A,FEMALE |
1 | ||
| 90982-08303 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08304 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08294 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08302 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08308 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26540 |
GDH201 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26360 |
GDH201 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26501 |
GDH201 |
1 | ||
| 82662-26293 |
TRH200,201;TRH203..5F;TRH221..GCC;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 82662-26500 |
GDH201 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26581 |
GDH201 |
1 | ||
| 82662-26580 |
GDH201 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-26170 |
GDH201 |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82663-26120 |
GDH201 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26080 |
GDH201 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26070 |
GDH201 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
KDH201..02S,05S;TRH201..RHD..(5F,6FC);KDH201,212..LHD..(03S,13S,16S)..STD;GDH201,KDH203,LH212..(06S,12S,16S)..GEN (J) |
1 | ||
| 90987-T2002 |
KDH201..02S,05S;TRH201..RHD..(5F,6FC);KDH201,212..LHD..(03S,13S,16S)..STD;GDH201,KDH203,LH212..(06S,12S,16S)..GEN (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02025 |
GDH201 (J) |
1 | ||
| 90987-T2002 |
GDH201 (L) |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) (J) |
1 | ||
| 90987-T2003 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) (L) |
1 | ||
| Common parts | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 8405 | ||||
