GDH201R-SSTNY (2017)

Toyota Hiace

Production Jan 2017 - Jan 2019
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )GDH201

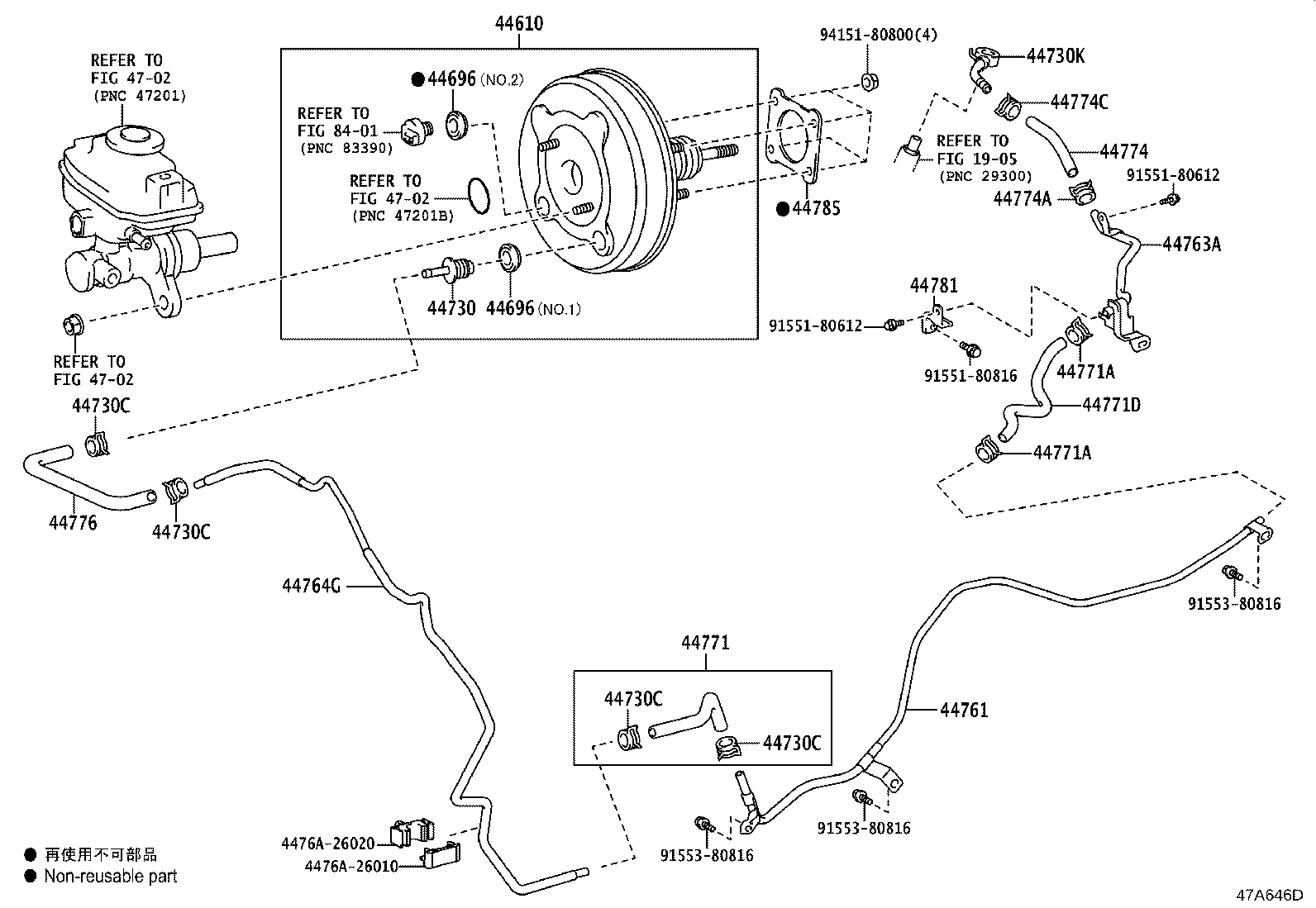

Click highlighted areas on diagram

diagram 1905 44610 44696 44696 44730 44730C 44730C 44730C 44730C 44730K 44761 44763A 44764G 4476A26010 4476A26020 44771 44771A 44771A 44771D 44774 44774A 44774C 44776 44781 44785 4702 4702 4702 8401 9155180612 9155180612 9155180816 9155380816 9155380816 9155380816 9415180800
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN)

 1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500

TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09195

GDH201

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26450

GDH201

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44761-26460

GDH201

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26180

KDH200..MA;GDH201,KDH201,202,203,TRH201,203..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44770-26010

KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S)

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
96133-41500

GDH201

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
96133-41500

GDH201

 2
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-26190

GDH201

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26440

GDH201

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

GDH201

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

GDH201

 1
44776 - HOSE, BRAKE BOOSTER
44776-26040

KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S)

 1
44781 - BRACKET, HOSE
44781-26010

GDH201

 1
Common parts
4476A-26010
4476A-26020
91551-80612
91551-80816
91553-80816
94151-80800
Linked diagrams
1905
4702
8401
