GDH201R-SSTNY (2017)
Toyota Hiace
Production
Jan 2017
-
Jan 2019
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )1GDFTV

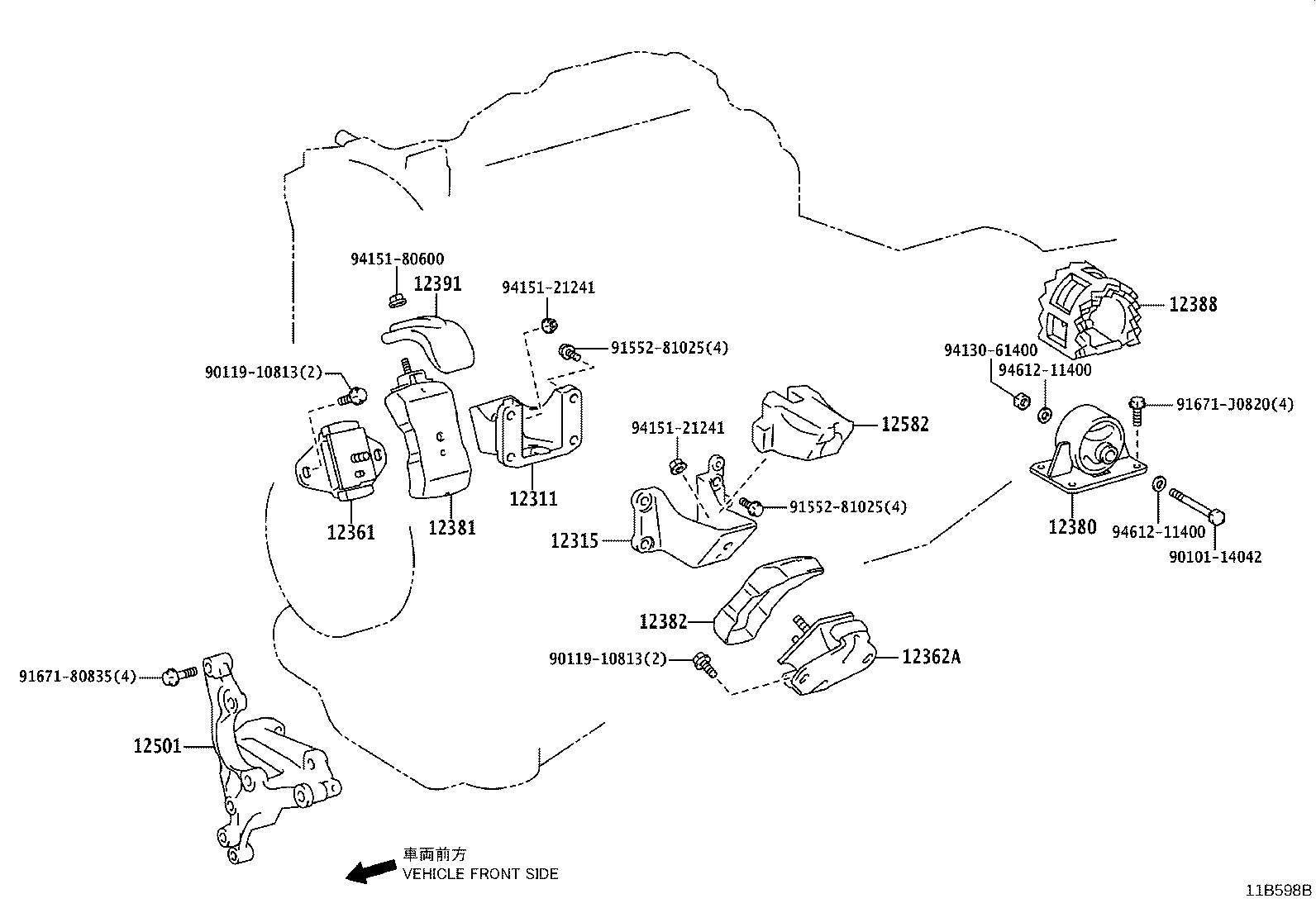

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-11150 |
1GDFTV..GDH201 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-30061 |
1GDFTV..GDH201 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-11220 |
1GDFTV..GDH201 |
1 | ||
| 12361-11221 |
1GDFTV..GDH201 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-11320 |
1GDFTV..GDH201 |
1 | ||
| 12362-11321 |
1GDFTV..GDH201 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-75040 |
1GDFTV..GDH201 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-11040 |
1GDFTV..GDH201 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12382-11010 |
1GDFTV..GDH201 |
1 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-67011 |
1GDFTV..GDH201 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-11030 |
1GDFTV..GDH201 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-11011 |
1GDFTV..GDH201 |
1 | ||
| 12501-11012 |
1GDFTV..GDH201 |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-11010 |
1GDFTV..GDH201 |
1 | ||
| Common parts | ||||
| 90101-14042 | ||||
| 90119-10813 | ||||
| 91552-81025 | ||||
| 91671-80835 | ||||
| 91671-J0820 | ||||
| 94130-61400 | ||||
| 94151-21241 | ||||
| 94151-80600 | ||||
| 94612-11400 | ||||
