GDH201R-SSTDY (2017)
Toyota Hiace
Production
Jan 2017
-
Jan 2019
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )GDH201

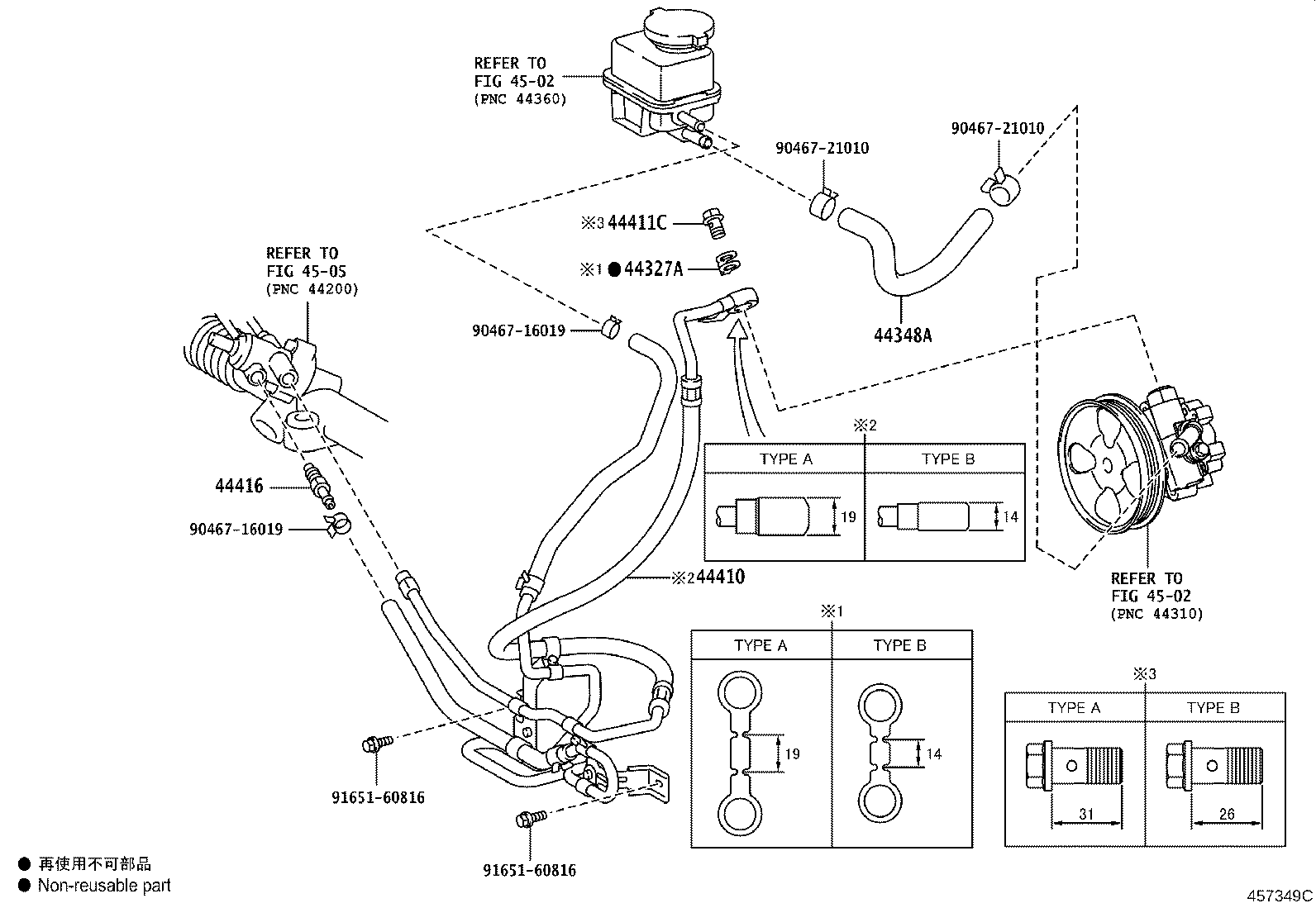

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26290 |
GDH201 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26B50 |
GDH201 TYPE B:REFER ILLUST. |
1 | ||
| 44410-26B51 |
GDH201 TYPE B:REFER ILLUST. |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60370 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
