GDH201R-SSTDY (2017)

Toyota Hiace

Production Jan 2017 - Jan 2019
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )GDH201

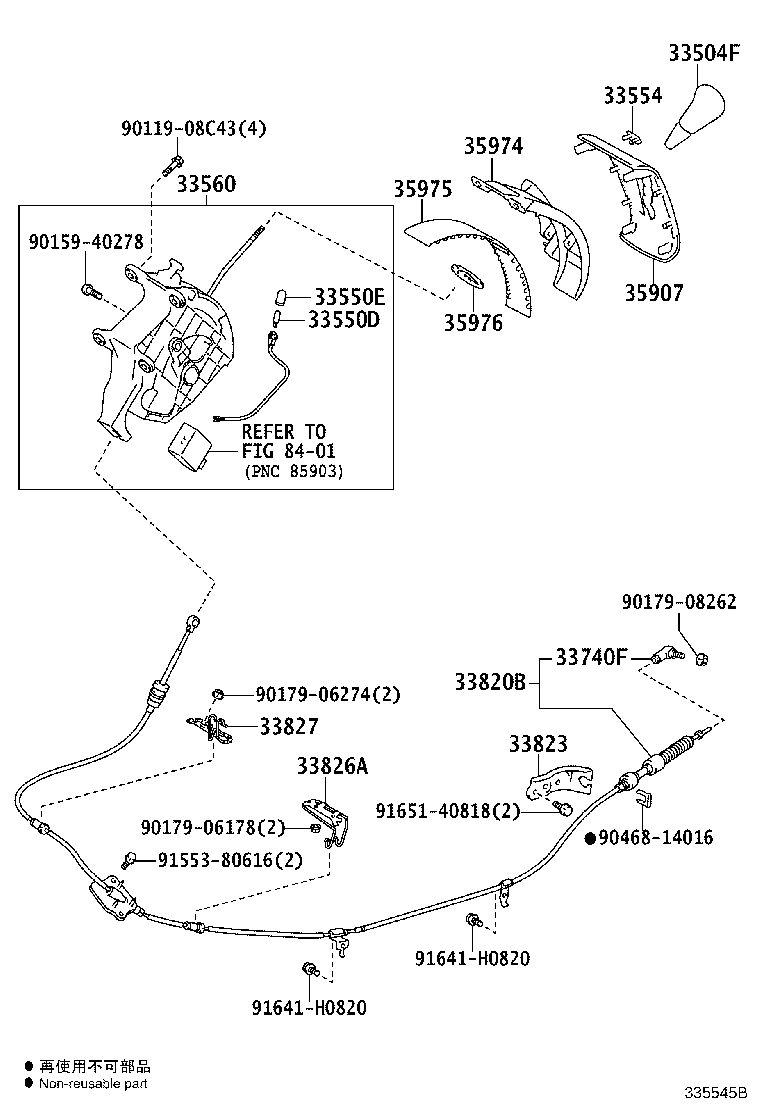

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554 33560 33740F 33820B 33823 33826A 33827 35907 35974 35975 35976 8401 9011908C43 9015940278 9017906178 9017906274 9017908262 9046814016 9155380616 91641H0820 91641H0820 9165140818
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-26020C0

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

BLACK,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-58010

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

 1
33554 - CAP, SHIFT LEVER
33554-26010

KDH222,TRH200..RHD..4FC;GDH201,KDH201,221,223,TRH201,22#..(4FC,6FC)..STD..(ARL,GEN)

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-26040

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26500

GDH201

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-26140

GDH201

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-26010

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-26010

TRH200..4FC;GDH201,KDH201,221,222,223,TRH201,213,22#..RHD..(4FC,6FC)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-26040

TRH200..4FC;GDH201,KDH201,221,222,223,TRH201,213,22#..RHD..(4FC,6FC)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-26060

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-12150

TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC

 1
Common parts
90119-08C43
90159-40278
90179-06178
90179-06274
90179-08262
90468-14016
91553-80616
91641-H0820
91651-40818
Linked diagrams
8401
