GDH201R-SSTDY (2017)

Toyota Hiace

Production Jan 2017 - Jan 2019
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )1GDFTV

Click highlighted areas on diagram

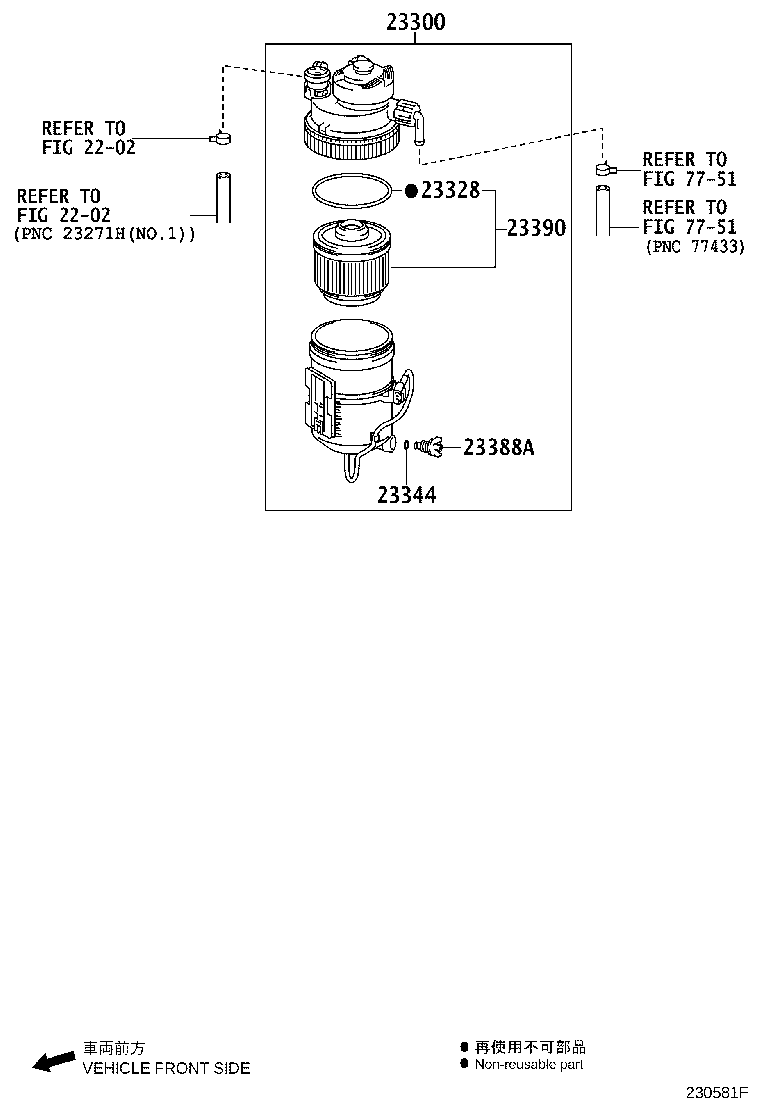

diagram 2202 2202 23300 23328 23344 23388A 23390 7751 7751
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-30205

1GDFTV..GDH201

 1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010

1GDFTV..GDH201

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041

1GDFTV..GDH201

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041

1GDFTV..GDH201

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L050

1GDFTV..GDH201

 1
Linked diagrams
2202
7751

(1701- )1GDFTV

Click highlighted areas on diagram

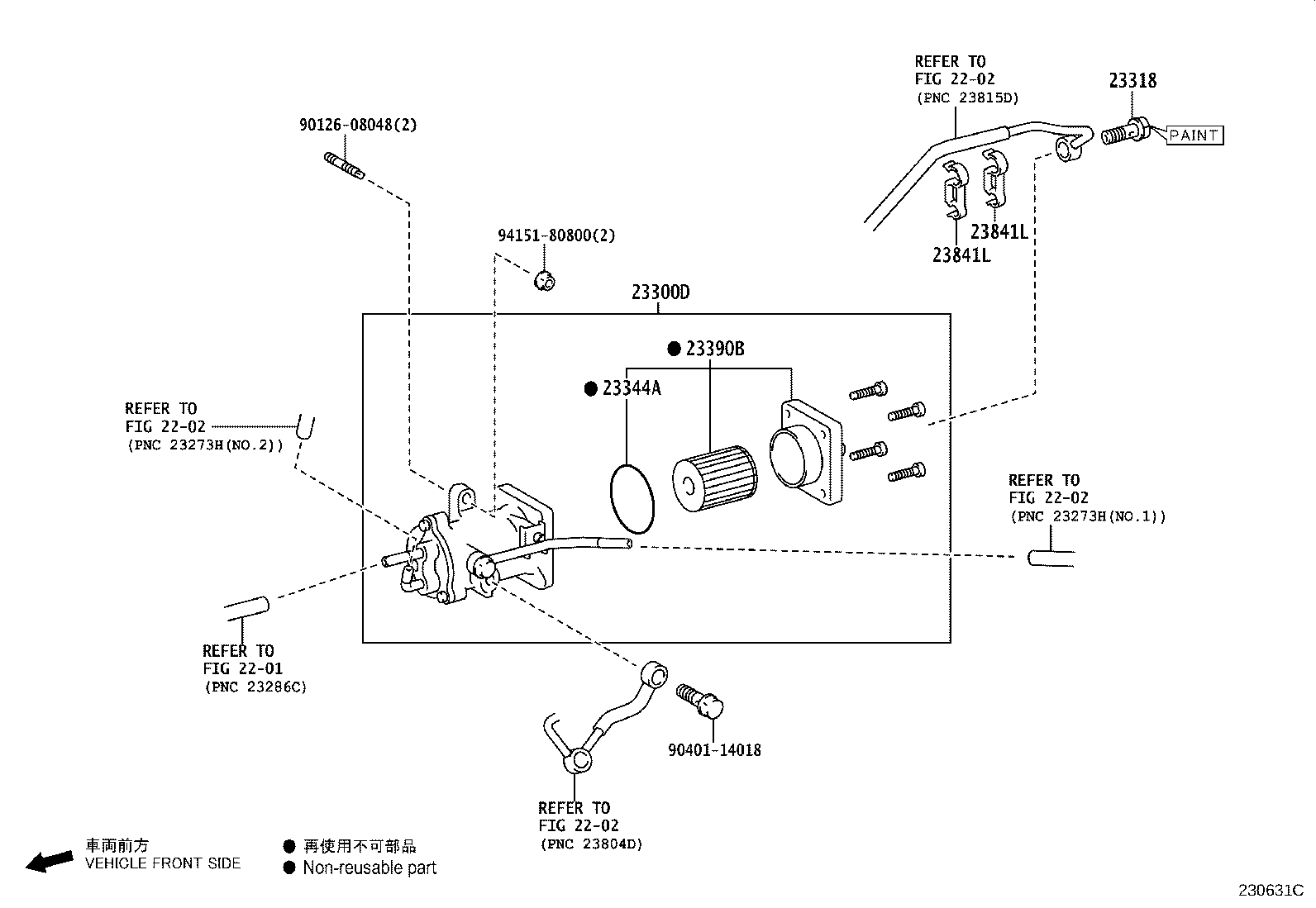

PRESSURIZED FUEL FILTER

diagram 2201 2202 2202 2202 2202 23300D 23318 23344A 23390B 23841L 23841L 9012608048 9040114018 9415180800
Part # Description Qty Price
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-11230

1GDFTV..GDH201

 1
23300-11231

1GDFTV..GDH201

 1
23318 - BOLT, UNION
90401-14018

1GDFTV..GDH201

NO PAINT

 1
90401-14020

1GDFTV..GDH201

PAINTED=PINK

 1
23344A - GASKET, FUEL FILTER ELEMENT
23385-11230

1GDFTV..GDH201

 1
23390B - ELEMENT ASSY, FUEL FILTER, NO.2
23390-11231

1GDFTV..GDH201

 1
23390-11230

1GDFTV..GDH201

 1
23841L - CLAMP, FUEL PIPE
23841-11050

1GDFTV..GDH201

 2
23841L - CLAMP, FUEL PIPE
23841-11050

1GDFTV..GDH201

 2
Common parts
90126-08048
90401-14018
94151-80800
Linked diagrams
2201
2202
