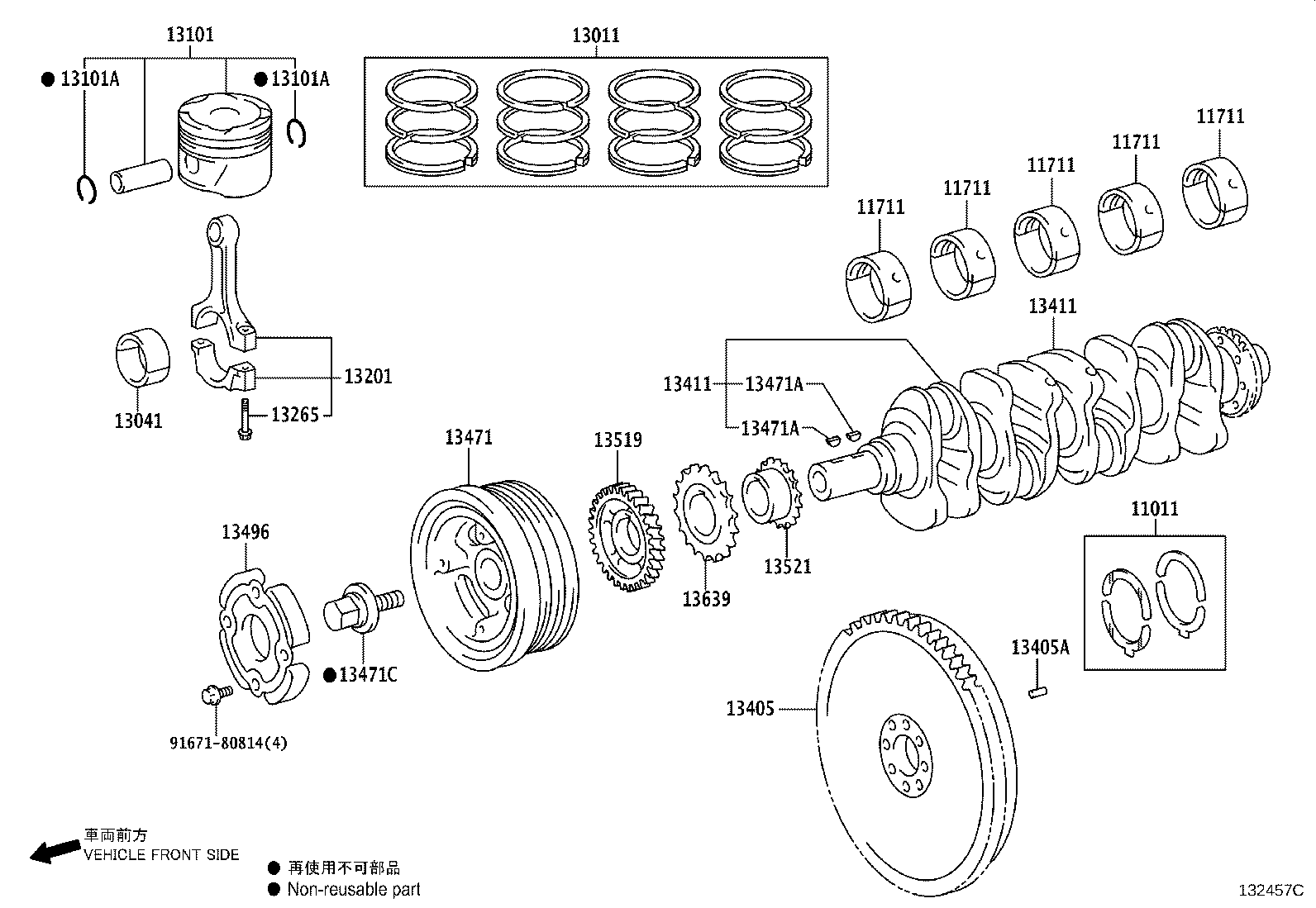

Toyota Hiace GDH201 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11011-30010	1GDFTV..GDH201 STD	01/2017 - 01/2019	1
11711 - BEARING, CRANKSHAFT
11701-1103002	1GDFTV..GDH201 MARK 2,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103003	1GDFTV..GDH201 MARK 3,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103004	1GDFTV..GDH201 MARK 4,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103005	1GDFTV..GDH201 MARK 5,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103006	1GDFTV..GDH201 MARK 6,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11711 - BEARING, CRANKSHAFT
11701-1103002	1GDFTV..GDH201 MARK 2,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103003	1GDFTV..GDH201 MARK 3,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103004	1GDFTV..GDH201 MARK 4,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103005	1GDFTV..GDH201 MARK 5,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103006	1GDFTV..GDH201 MARK 6,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11711 - BEARING, CRANKSHAFT
11701-1103002	1GDFTV..GDH201 MARK 2,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103003	1GDFTV..GDH201 MARK 3,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103004	1GDFTV..GDH201 MARK 4,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103005	1GDFTV..GDH201 MARK 5,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103006	1GDFTV..GDH201 MARK 6,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11711 - BEARING, CRANKSHAFT
11701-1103002	1GDFTV..GDH201 MARK 2,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103003	1GDFTV..GDH201 MARK 3,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103004	1GDFTV..GDH201 MARK 4,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103005	1GDFTV..GDH201 MARK 5,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103006	1GDFTV..GDH201 MARK 6,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11711 - BEARING, CRANKSHAFT
11701-1103002	1GDFTV..GDH201 MARK 2,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103003	1GDFTV..GDH201 MARK 3,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103004	1GDFTV..GDH201 MARK 4,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103005	1GDFTV..GDH201 MARK 5,REFER REPAIR MANUAL	01/2017 - 01/2019	5
11701-1103006	1GDFTV..GDH201 MARK 6,REFER REPAIR MANUAL	01/2017 - 01/2019	5
13011 - RING SET, PISTON
13011-11200	1GDFTV..GDH201 STD	01/2017 - 01/2019	1
13041 - BEARING, CONNECTING ROD
13041-1106005	1GDFTV..GDH201 MARK 5	01/2017 - 01/2019	4
13041-1106002	1GDFTV..GDH201 MARK 2	01/2017 - 01/2019	4
13041-1106004	1GDFTV..GDH201 MARK 4	01/2017 - 01/2019	4
13041-1106003	1GDFTV..GDH201 MARK 3	01/2017 - 01/2019	4
13041-1106006	1GDFTV..GDH201 MARK 6	01/2017 - 01/2019	4
13101 - PISTON SUB-ASSY, W/PIN
13101-1119002	1GDFTV..GDH201 STD,MARK 2	01/2017 - 01/2019	4
13101-1119001	1GDFTV..GDH201 STD,MARK 1	01/2017 - 01/2019	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013	1GDFTV..GDH201	01/2017 - 01/2019	8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013	1GDFTV..GDH201	01/2017 - 01/2019	8
13201 - ROD SUB-ASSY, CONNECTING
13201-11050C0	1GDFTV..GDH201 MARK C	01/2017 - 01/2018	4
13201-11050A0	1GDFTV..GDH201 MARK A	01/2017 - 01/2018	4
13201-11050C0	1GDFTV..GDH201 MARK C,(J)	01/2018 - 01/2019	4
13201-0E020A0	1GDFTV..GDH201 MARK A,(L)	01/2018 - 01/2019	4
13201-11050B0	1GDFTV..GDH201 MARK B	01/2017 - 01/2018	4
13201-0E020B0	1GDFTV..GDH201 MARK B,(L)	01/2018 - 01/2019	4
13201-11050A0	1GDFTV..GDH201 MARK A,(J)	01/2018 - 01/2019	4
13201-11050B0	1GDFTV..GDH201 MARK B,(J)	01/2018 - 01/2019	4
13201-0E020C0	1GDFTV..GDH201 MARK C,(L)	01/2018 - 01/2019	4
13265 - BOLT, CONNECTING ROD
13265-22031	1GDFTV..GDH201	01/2017 - 01/2019	8
13405 - FLYWHEEL SUB-ASSY
13405-11090	1GDFTV..GDH201	01/2017 - 01/2019	1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-05121	1GDFTV..GDH201 L=15,OD=5	01/2017 - 01/2019	1
13411 - CRANKSHAFT
13401-11090	1GDFTV..GDH201	01/2017 - 01/2019	1
13411 - CRANKSHAFT
13401-11090	1GDFTV..GDH201	01/2017 - 01/2019	1
13471 - PULLEY, CRANKSHAFT
13408-11060	1GDFTV..GDH201	01/2017 - 01/2019	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30516	1GDFTV..GDH201	01/2017 - 01/2019	2
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30516	1GDFTV..GDH201	01/2017 - 01/2019	2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-18003	1GDFTV..GDH201	01/2017 - 01/2019	1
13496 - COVER, CRANKSHAFT PULLY
13496-11010	1GDFTV..GDH201	01/2017 - 01/2019	1
13519 - GEAR, OIL PUMP DRIVE
13519-11010	1GDFTV..GDH201	01/2017 - 01/2019	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-11050	1GDFTV..GDH201	01/2017 - 01/2019	1
13639 - SPROCKET, BALANCESHAFT TIMING
13639-11010	1GDFTV..GDH201	01/2017 - 01/2019	1
Common parts
91671-80814

GDH201R-SSTDY (2017)

(1701- )1GDFTV
