FC100- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7403)DA11#,FA100,11#,FC100..RHD

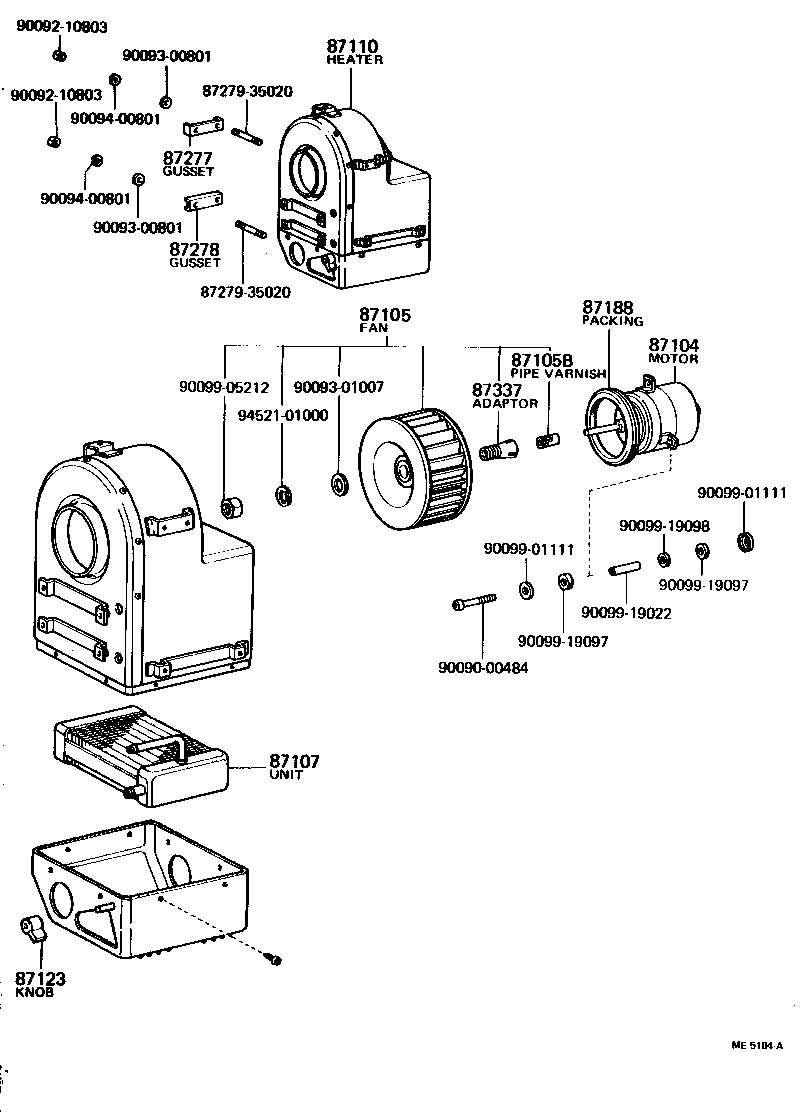

Click highlighted areas on diagram

diagram 87104 87105 87105B 87107 87110 87123 87188 87277 87278 8727935020 8727935020 87337 9009000484 9009210803 9009210803 9009300801 9009300801 9009301007 9009400801 9009400801 9009901111 9009901111 9009905212 9009919022 9009919097 9009919097 9009919098 9452101000
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-55050

FA100,11#,FC100..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-26010

DA11#,FA100,11#,FC100..RHD

2800KCAL/H.

 1
87105B - PIPE VARNISH, HEATER BLOWER FAN
87295-55050

DA11#,FA100,11#,FC100..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-36041

DA11#,FA100,11#,FC100..RHD

 1
87110 - HEATER ASSY
87110-36041

FA100,11#,FC100..RHD

 1
87123 - KNOB, HEATER
87293-55050

FA100,11#,FC100..RHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87118-55040

DA11#,FA100,11#,FC100..RHD

 1
87277 - GUSSET, HEATER SETTING, NO.1
87277-55040

DA11#,FA100,11#,FC100..RHD

 1
87278 - GUSSET, HEATER SETTING, NO.2
87279-55040

DA11#,FA100,11#,FC100..RHD

 1
87337 - ADAPTER, HEATER BLOWER MOTOR
87292-55050

FA100,11#,FC100..RHD

 1
Common parts
87279-35020
90090-00484
90092-10803
90093-00801
90093-01007
90094-00801
90099-01111
90099-05212
90099-19022
90099-19097
90099-19098
94521-01000
