FB100L-K (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
May 1971
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7105)FB100

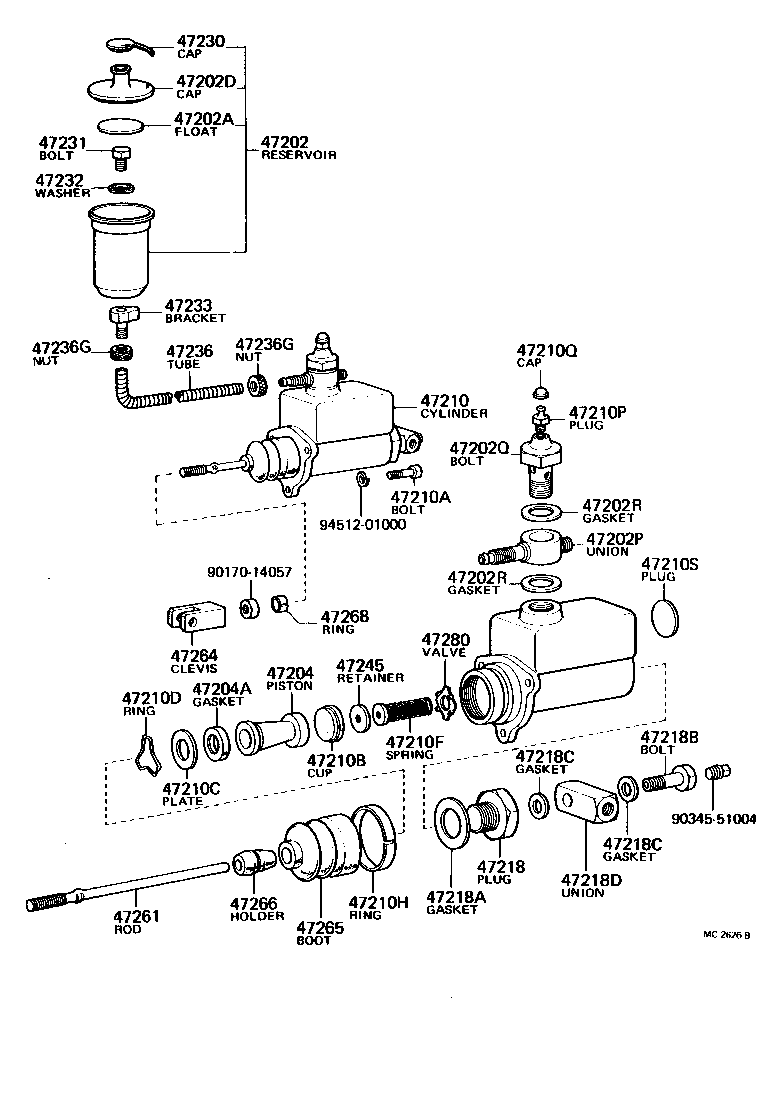

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-57010 |
DB10#,FB100 |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
DB10#,FB100 |
1 | ||
| 47202D - CAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET) | ||||
| 31424-30010 |
DB10#,FB100 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-20076 |
DB10#,FB100 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47217-57011 |
DB10#,FB100 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-32028 |
DB10#,FB100 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-32028 |
DB10#,FB100 |
2 | ||
| 47204 - PISTON, MASTER CYLINDER | ||||
| 47204-66010 |
FB100 |
1 | ||
| 47204A - GASKET(FOR MASTER CYLINDER PISTON) | ||||
| 90947-01017 |
FB100 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-57011 |
FB100 |
1 | ||
| 47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING) | ||||
| 91111-41032 |
DB10#,FB100 |
3 | ||
| 47210B - CUP, CYLINDER(FOR BRAKE MASTER CYLINDER) | ||||
| 90947-01018 |
FB100 |
1 | ||
| 47210C - PLATE(FOR BRAKE MASTER CYLINDER PISTON STOP) | ||||
| 90201-30165 |
FB100 |
1 | ||
| 47210D - RING, HOLE SNAP(FOR BRAKE MASTER CYLINDER PISTON STOP) | ||||
| 90521-53059 |
FB100 |
1 | ||
| 47210F - SPRING, COMPRESSOR, NO.1(FOR MASTER CYLINDER PISTON RET | ||||
| 90501-23171 |
FB100 |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 47267-55020 |
FB100 |
1 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-35010 |
DB10#,FB100 |
1 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 31478-30010 |
DB10#,FB100 |
1 | ||
| 47210S - PLUG, EXPANSION(FOR BRAKE MASTER CYLINDER) | ||||
| 90330-32021 |
FB100 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47214-66010 |
FB100 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-38057 |
FB100 |
1 | ||
| 47218B - BOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90401-13002 |
FB100 |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-13111 |
FB100 ID=13.1,OD=21.5 |
1 | ||
| 90430-15112 |
DB10#,FB100 ID=15.1,OD=20.5 |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-13111 |
FB100 ID=13.1,OD=21.5 |
1 | ||
| 90430-15112 |
DB10#,FB100 ID=15.1,OD=20.5 |
1 | ||
| 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90405-14060 |
DB10#,FB100 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31425-30020 |
DB10#,FB100 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
DB10#,FB100 |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-35010 |
DB10#,FB100 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-57011 |
FB100 |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 90447-18009 |
FB100 |
1 | ||
| 47236G - NUT, UNION(FOR RESERVOIR TUBE) | ||||
| 90402-20036 |
DB10#,FB100 |
2 | ||
| 47236G - NUT, UNION(FOR RESERVOIR TUBE) | ||||
| 90402-20036 |
DB10#,FB100 |
2 | ||
| 47245 - RETAINER, PISTON RETURN SPRING | ||||
| 47244-66010 |
FB100 |
1 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-57010 |
FB100 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-57010 |
FB100 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-55020 |
FB100 |
1 | ||
| 47266 - HOLDER, MASTER CYLINDER BOOT | ||||
| 47266-57010 |
FB100 |
1 | ||
| 47268 - RING, MASTER CYLINDER BOOT RETAINING | ||||
| 47268-55020 |
FB100 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-59410 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| Common parts | ||||
| 90170-14057 | ||||
| 90345-51004 | ||||
| 94512-01000 | ||||
