FA115L-P (1969)
Toyota Heavy Duty Truck

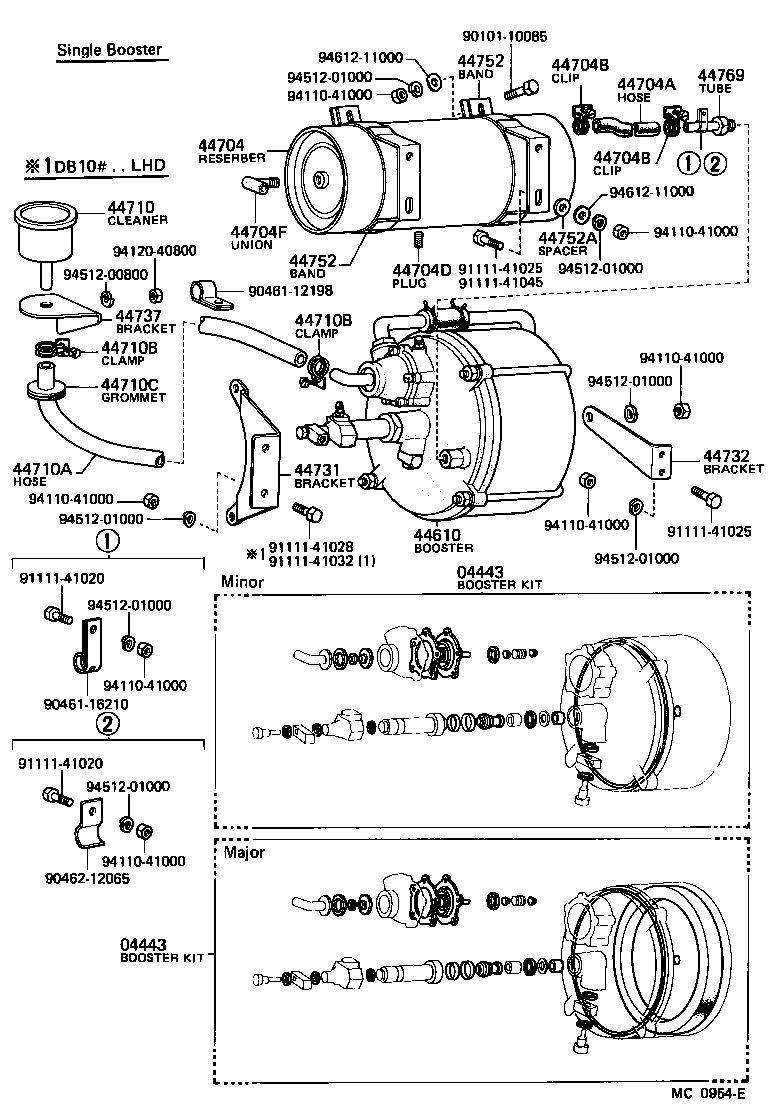

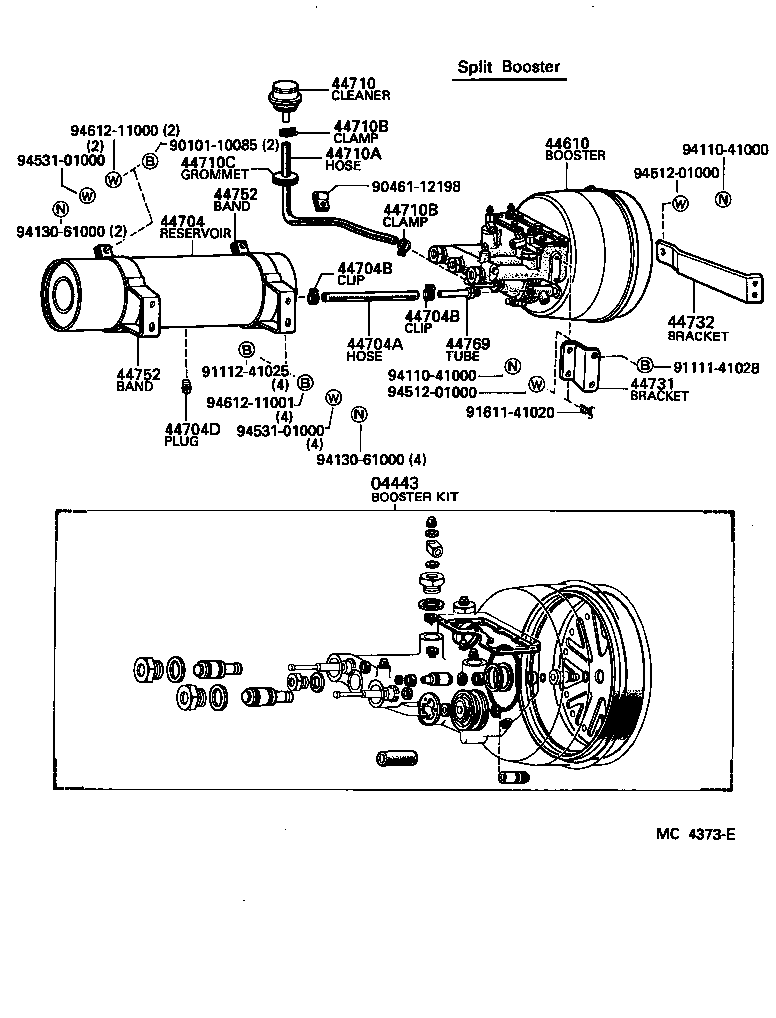

ILLUST NO. 1 OF 6(6903-8002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55050 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55050 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44610-55140 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-55050 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44704-55060 |
DA11#,FA100,11# |
1 | ||
| 44704-55060 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-24318 |
DA11#,FA100,11#,FB100 L=185 |
1 | ||
| 90445-24318 |
DA11#,FA100,11#,FB100,FC100 L=185,W/SINGLE BOOSTER |
1 | ||
| 90445-24346 |
DA11#,FA100,115..LHD L=115,W/SPLIT BOOSTER |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53020 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44710 - CLEANER ASSY, BRAKE BOOSTER AIR | ||||
| 44710-55010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44710-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44710-66011 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44710A - HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90447-21014 |
DA11#,FA100,11#..1SR L=750 |
1 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710C - GROMMET, BOOSTER AIR CLEANER HOSE | ||||
| 90480-30078 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44731-96518 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44769 - TUBE, VACUUM RESERVOIR CONNECT | ||||
| 44769-55030 |
DA11#,FA100,11# |
1 | ||
| 44769-55060 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44769-55030 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| Common parts | ||||
| 90101-10085 | ||||
| 90461-12198 | ||||
| 90461-16210 | ||||
| 90462-12065 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 91111-41028 | ||||
| 91111-41032 | ||||
| 91111-41045 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

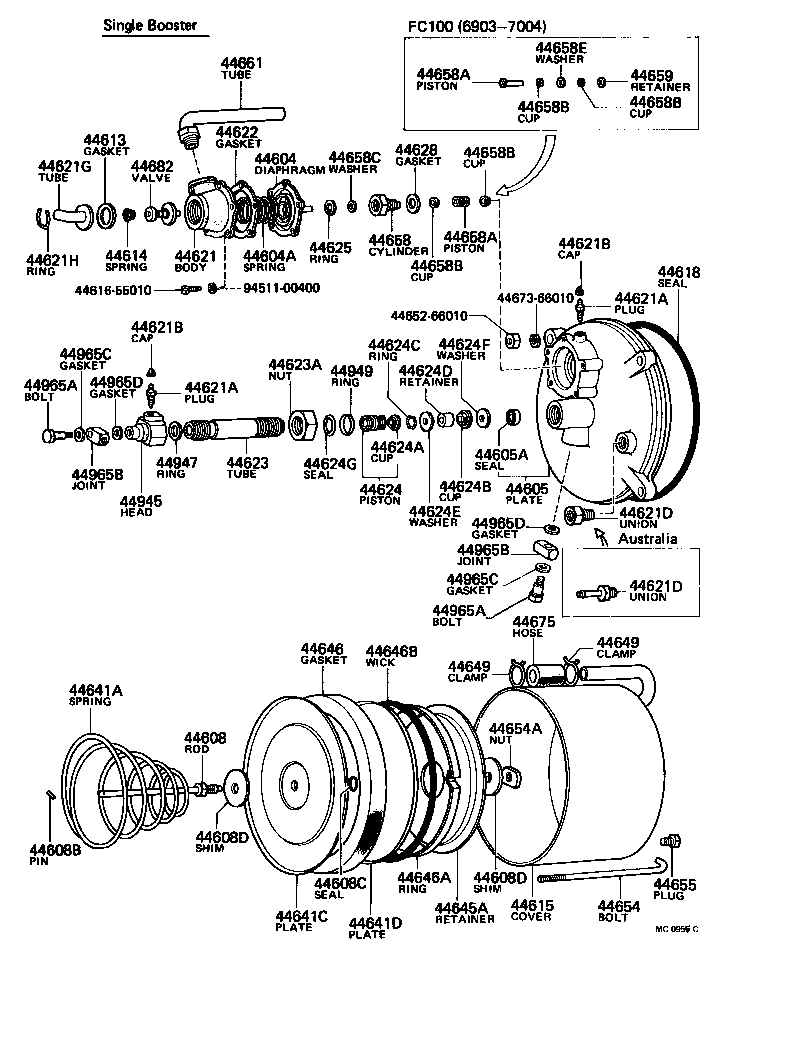

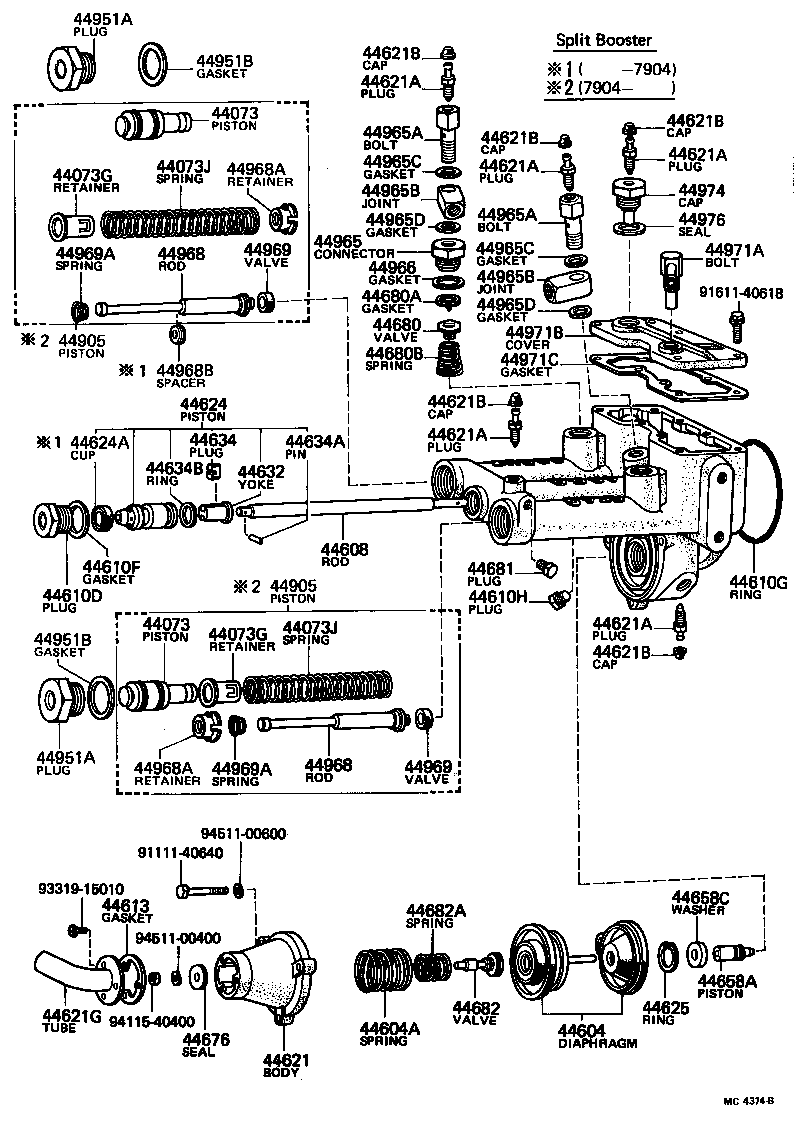

ILLUST NO. 2 OF 6(6903-8002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44908-55080 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44677-37030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-55050 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605A - SEAL, BOOSTER OIL | ||||
| 44636-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44636-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44608B - PIN, BOOSTER PUSH ROD | ||||
| 44664-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608C - SEAL, BOOSTER PISTON ROD | ||||
| 44644-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608D - SHIM(FOR BOOSTER PUSH ROD) | ||||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44608D - SHIM(FOR BOOSTER PUSH ROD) | ||||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44613 - GASKET, BOOSTER PIPE HOLDER | ||||
| 44685-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44613-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44614 - SPRING, BOOSTER POPET | ||||
| 44614-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44651-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44621-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44651-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621D - UNION, BRAKE BOOSTER | ||||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
1 | ||
| 90404-20082 |
FA100,11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44621D - UNION, BRAKE BOOSTER | ||||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
1 | ||
| 90404-20082 |
FA100,11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44621G - TUBE & COVER, BOOSTER | ||||
| 44609-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44621H - RING, BOOSTER SNAP | ||||
| 44611-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44622 - GASKET, BOOSTER VALVE BODY | ||||
| 44622-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44623 - TUBE, BOOSTER SLAVE CYLINDER | ||||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44623A - NUT, BOOSTER SLAVE CYLINDER | ||||
| 44659-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624 - PISTON, HYDRAULIC CYLINDER | ||||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44073-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44624A - CUP, BOOSTER HYDRAULIC PISTON, NO.1 | ||||
| 44625-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44625-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44624B - CUP, BOOSTER HYDRAULIC PISTON, NO.2 | ||||
| 44668-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624C - RING, BOOSTER SNAP | ||||
| 44665-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44667-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624E - WASHER, BOOSTER PISTON STOP | ||||
| 44666-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624F - WASHER, BOOSTER PISTON | ||||
| 44669-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624G - SEAL, BOOSTER HYDRAULIC PISTON | ||||
| 44672-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 96151-02200 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44625-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44628 - GASKET, BOOSTER VALVE CYLINDER | ||||
| 44628-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44641C - PLATE, BOOSTER PISTON, FRONT | ||||
| 44641-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44641-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44641D - PLATE, BOOSTER PISTON, REAR | ||||
| 44643-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44643-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44645A - RETAINER, BOOSTER PISTON WICK | ||||
| 44647-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44647-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646 - GASKET, BOOSTER PISTON | ||||
| 44642-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44642-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646A - RING, BOOSTER PISTON GASKET | ||||
| 44646-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44646-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646B - WICK, BOOSTER GASKET | ||||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44689-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44689-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44654 - BOLT, BOOSTER HOOK | ||||
| 44654-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 44654-57010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 44654A - NUT, BOOSTER | ||||
| 44648-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44655 - PLUG, BOOSTER | ||||
| 44655-66010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44655-59810 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44684-55041 |
DA11#,DB105,FA100,115 |
1 | ||
| 44658 - CYLINDER, CONTROL VALVE PISTON | ||||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658C - WASHER, BOOSTER PISTON STOP | ||||
| 44653-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44626-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44661 - TUBE, BOOSTER VACUUM | ||||
| 44604-37030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44675 - HOSE, BOOSTER VACUUM | ||||
| 44675-57010 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44688-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44682 - VALVE, BOOSTER VACUUM | ||||
| 44602-55070 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44945 - HEAD, BOOSTER CYLINDER | ||||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44947 - RING, BOOSTER BACK UP | ||||
| 44657-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44949 - RING, O, BOOSTER PISTON | ||||
| 44661-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44968-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
3 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44968-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
3 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| Common parts | ||||
| 44616-55010 | ||||
| 44652-66010 | ||||
| 44673-66010 | ||||
| 94511-00400 | ||||

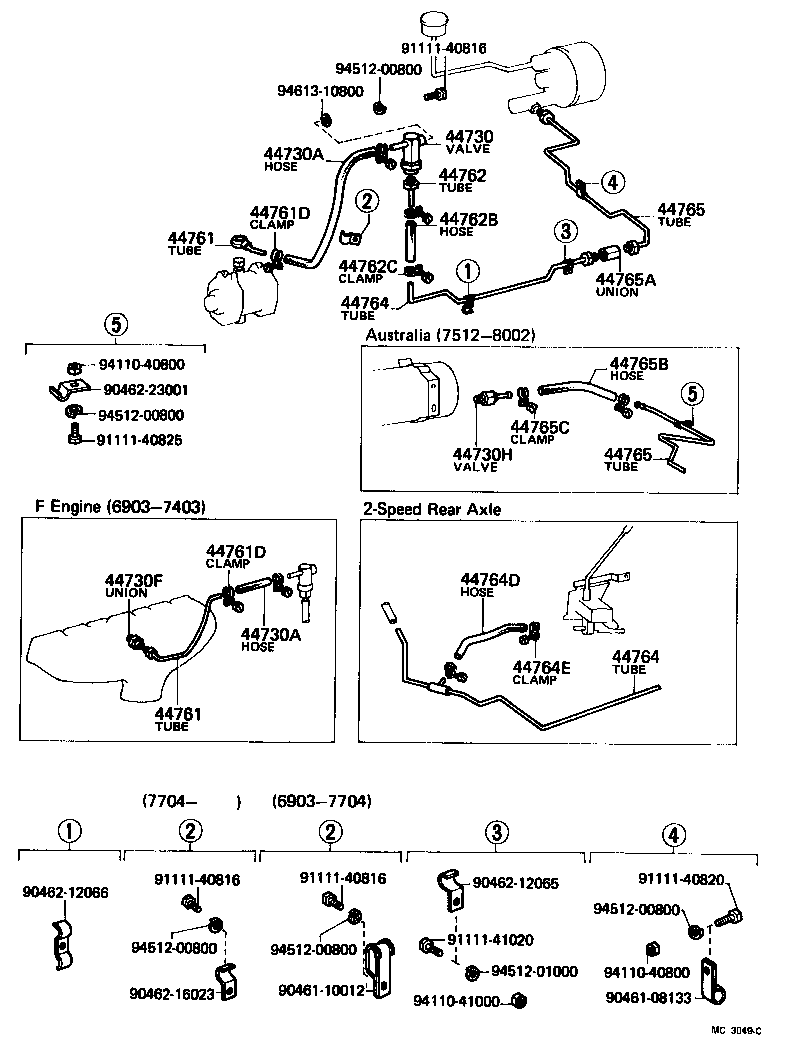

ILLUST NO. 6 OF 6(6903-7703)DB10#..LHD ; (6903- )DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44730-55030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-18028 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44762B - HOSE, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE | ||||
| 90445-24317 |
DA11#,DB10#,FA100,11#,FC100 L=160 |
1 | ||
| 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-55070 |
DA11#,FA100,11# |
1 | ||
| 44765-55071 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 44765-55111 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-55070 |
DA11#,FA100,11# |
1 | ||
| 44765-55071 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 44765-55111 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44765A - UNION, CONNECTOR TO BRAKE BOOSTER TUBE | ||||
| 90404-20073 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| Common parts | ||||
| 90461-08133 | ||||
| 90461-10012 | ||||
| 90462-12065 | ||||
| 90462-12066 | ||||
| 90462-16023 | ||||
| 90462-23001 | ||||
| 91111-40816 | ||||
| 91111-40820 | ||||
| 91111-40825 | ||||
| 91111-41020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||

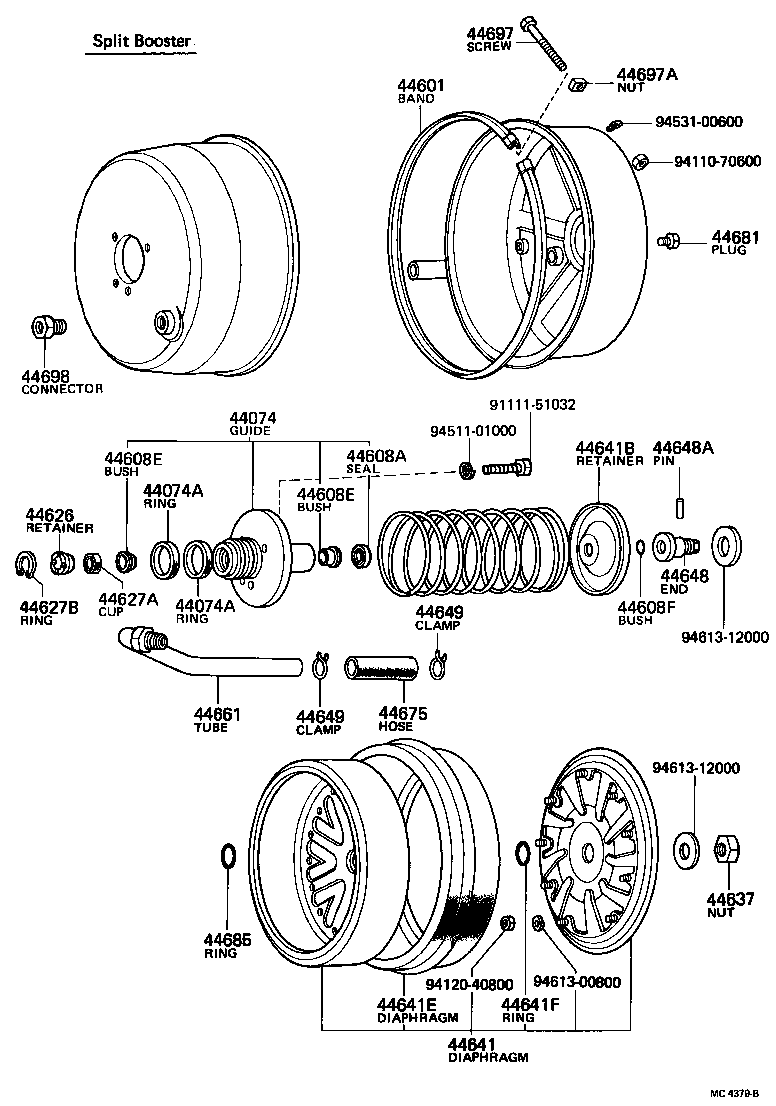

ILLUST NO. 1 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55050 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44610-55140 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-55050 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44704-55060 |
DA11#,FA100,11# |
1 | ||
| 44704-55060 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-24318 |
DA11#,FA100,11#,FB100 L=185 |
1 | ||
| 90445-24318 |
DA11#,FA100,11#,FB100,FC100 L=185,W/SINGLE BOOSTER |
1 | ||
| 90445-24346 |
DA11#,FA100,115..LHD L=115,W/SPLIT BOOSTER |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53020 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44710 - CLEANER ASSY, BRAKE BOOSTER AIR | ||||
| 44710-55010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44710-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44710-66011 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44710A - HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90447-21014 |
DA11#,FA100,11#..1SR L=750 |
1 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710C - GROMMET, BOOSTER AIR CLEANER HOSE | ||||
| 90480-30078 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44731-96518 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44769 - TUBE, VACUUM RESERVOIR CONNECT | ||||
| 44769-55030 |
DA11#,FA100,11# |
1 | ||
| 44769-55060 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44769-55030 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| Common parts | ||||
| 90101-10085 | ||||
| 90461-12198 | ||||
| 91111-41028 | ||||
| 91112-41025 | ||||
| 91611-41020 | ||||
| 94110-41000 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 94612-11000 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT | ||||
| 44905-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44905-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT | ||||
| 44905-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44905-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44073G - RETAINER, PISTON RETURN SPRING | ||||
| 44956-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44956-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073G - RETAINER, PISTON RETURN SPRING | ||||
| 44956-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44956-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073J - SPRING, BOOSTER PISTON RETURN | ||||
| 44955-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44955-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44073J - SPRING, BOOSTER PISTON RETURN | ||||
| 44955-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44955-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44908-55080 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44677-37030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44610D - PLUG, HYDRAULIC CYLINDER | ||||
| 44622-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44610F - GASKET(FOR BRAKE BOOSTER) | ||||
| 90430-24105 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44610G - RING(FOR HYDRAULIC CYLINDER BODY) | ||||
| 44618-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44610H - PLUG(FOR HYDRAULIC CYLINDER BODY) | ||||
| 90345-53007 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44613 - GASKET, BOOSTER PIPE HOLDER | ||||
| 44685-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44613-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44651-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44621-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44651-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 31478-30010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44621G - TUBE & COVER, BOOSTER | ||||
| 44609-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44624 - PISTON, HYDRAULIC CYLINDER | ||||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44073-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44624A - CUP, BOOSTER HYDRAULIC PISTON, NO.1 | ||||
| 44625-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44625-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 96151-02200 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44625-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44632 - YOKE, HYDRAULIC VALVE | ||||
| 44632-20010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44634 - PLUG, PISTON VALVE | ||||
| 44634-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44634A - PIN, STRAIGHT(FOR BOOSTER PISTON VALVE) | ||||
| 90250-03134 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44634B - RING, SET(FOR BOOSTER PISTON VALVE) | ||||
| 90522-15012 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44658C - WASHER, BOOSTER PISTON STOP | ||||
| 44653-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44626-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44676 - SEAL, AIR VALVE | ||||
| 44676-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44676-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44680 - VALVE ASSY, BOOSTER OUTLET CHECK | ||||
| 47280-20010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44680A - GASKET, BOOSTER OUTLET CHECK VALVE | ||||
| 44962-37010 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44680B - SPRING, BOOSTER OUTLET CHECK VALVE | ||||
| 44961-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44961-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44681 - PLUG, BOOSTER | ||||
| 44681-36020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44682 - VALVE, BOOSTER VACUUM | ||||
| 44602-55070 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44682A - SPRING, COMPRESSION(FOR VACUUM VALVE) | ||||
| 44614-37030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44951A - PLUG, BOOSTER SUB CYLINDER | ||||
| 44953-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44951A - PLUG, BOOSTER SUB CYLINDER | ||||
| 44953-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44951B - GASKET, BOOSTER SUB CYLINDER | ||||
| 44656-36020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44951B - GASKET, BOOSTER SUB CYLINDER | ||||
| 44656-36020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44965 - CONNECTOR, BOOSTER | ||||
| 44965-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44968-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
3 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44968-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
3 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44966 - GASKET, BOOSTER CONNECTOR | ||||
| 44966-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44966-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44968 - ROD, BOOSTER SUB PISTON | ||||
| 44957-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44957-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44968 - ROD, BOOSTER SUB PISTON | ||||
| 44957-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44957-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44968A - RETAINER, BOOSTER SUB PISTON ROD | ||||
| 44948-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44948-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968A - RETAINER, BOOSTER SUB PISTON ROD | ||||
| 44948-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44948-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968B - SPACER, BOOSTER SUB CYLINDER | ||||
| 44949-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44949-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44969 - VALVE, BOOSTER SUB CYLINDER | ||||
| 44946-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44946-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969 - VALVE, BOOSTER SUB CYLINDER | ||||
| 44946-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44946-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969A - SPRING, BOOSTER SUB CYLINDER VALVE | ||||
| 44947-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44947-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44969A - SPRING, BOOSTER SUB CYLINDER VALVE | ||||
| 44947-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44947-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44971A - BOLT, BOOSTER PIPE JOINT | ||||
| 44977-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44971B - COVER, BOOSTER RESERVOIR | ||||
| 44971-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44971C - GASKET, BOOSTER RESERVOIR COVER | ||||
| 44976-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44974 - CAP, BOOSTER OIL RESERVOIR | ||||
| 44974-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44976 - SEAL, BOOSTER | ||||
| 44628-36020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| Common parts | ||||
| 91111-40640 | ||||
| 91611-40618 | ||||
| 93319-15010 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
ILLUST NO. 3 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44074 - GUIDE SUB-ASSY, BOOSTER ROD | ||||
| 44074-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44074A - RING(FOR BOOSTER ROD GUIDE) | ||||
| 90301-34086 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44074A - RING(FOR BOOSTER ROD GUIDE) | ||||
| 90301-34086 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44608F - BUSH(FOR BOOSTER PUSH ROD) | ||||
| 44669-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44627A - CUP, CYLINDER(FOR BOOSTER ROD) | ||||
| 44629-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44627B - RING, HOLE SNAP(FOR ROD CUP RETAINER) | ||||
| 90521-26087 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44637 - NUT OR RING SNAP, BOOSTER DIAPHRAGM SET | ||||
| 44637-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44641 - DIAPHRAGM, BOOSTER | ||||
| 44075-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44641E - DIAPHRAGM, BOOSTER | ||||
| 44641-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44641F - RING, O | ||||
| 96710-01028 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44648 - END, PISTON ROD | ||||
| 44648-55092 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44648A - PIN, BOOSTER ROD END | ||||
| 44636-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44689-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44689-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44661 - TUBE, BOOSTER VACUUM | ||||
| 44604-37030 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44675 - HOSE, BOOSTER VACUUM | ||||
| 44675-57010 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44688-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44681 - PLUG, BOOSTER | ||||
| 44681-36020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
2 | ||
| 44685 - RING, O OR GROMMET(FOR BOOSTER PISTON ROD END) | ||||
| 96720-02020 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44697-55091 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44983-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 44698 - CONNECTOR, BOOSTER VACUUM | ||||
| 44698-55090 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| Common parts | ||||
| 91111-51032 | ||||
| 94110-70600 | ||||
| 94120-40800 | ||||
| 94511-01000 | ||||
| 94531-00600 | ||||
| 94613-00800 | ||||
| 94613-12000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
