FA115L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Jul 1982
Engine F 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(6903-7003)4F

Click highlighted areas on diagram

diagram 46204 46204A 46204B 46204C 46361 46442 46442 46501 46501A 46531 46560 46561 46561 46561A 46561A 46562 46562 46567 46567 46567 46567 46567A 46567A 46570 46570 46570A 46570A 46570B 46570B 46581 46581 46581A 46581A 46581B 46581B 9026605006 9411040600 9411040600 9412041000 9412041000 9461211000 9461211000 9461211000 9461211000 9461211000 9461211000 9538102020 9538102020 9538102020 9538102020 9538102020 9538102020
Part # Description Qty Price
46204 - BAND SUB-ASSY, PARKING BRAKE
46204-55020

FA100,11#,FC100..4F

 1
46204A - BOLT, PARKING BRAKE BAND
90103-08004

FA100,11#,FC100..4F

 1
46204B - SPRING, COMPRESSION, PARKING BRAKE BAND
90501-14095

FA100,11#,FC100..4F

 1
46204C - BOLT, PARKING BRAKE BAND SET
90101-06089

FA100,11#,FC100..4F

 1
46361 - ROD, PARKING BRAKE PULL
46361-55020

FA100,11#,FC100..4F

 1
46368-55010

FA100,11#,FC100..4F

 1
46442 - PIN, WIRE PIVOT
46442-55020

FA100,11#,FC100..4F

 1
46442 - PIN, WIRE PIVOT
46442-55020

FA100,11#,FC100..4F

 1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46530-55011

FA100,11#,FC100..4F

 1
46501-55020

FA100,11#,FC100..4F

 1
46530-55010

FA100,11#,FC100..4F

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-12056

FA100,11#,FC100..4F

 4
90114-12002

FA100,11#,FC100..4F

 4
46531 - LINING, PARKING BRAKE SHOE
46531-55020

FA100,11#,FC100..4F

 1
46560 - BAND ASSY, PARKING BRAKE
46560-55020

FA100,11#,FC100..4F

 1
46561 - LEVER, PARKING BRAKE BAND, NO.1
46561-55030

FA100,11#,FC100..4F

 1
46561 - LEVER, PARKING BRAKE BAND, NO.1
46561-55030

FA100,11#,FC100..4F

 1
46561A - PIN, W/HOLE, PARKING BRAKE BAND LEVER
90240-10048

FA100,11#,FC100..4F

 1
46561A - PIN, W/HOLE, PARKING BRAKE BAND LEVER
90240-10048

FA100,11#,FC100..4F

 1
46562 - LEVER, PARKING BRAKE BAND, NO.2
46562-55010

FA100,11#,FC100..4F

 1
46562 - LEVER, PARKING BRAKE BAND, NO.2
46562-55010

FA100,11#,FC100..4F

 1
46567 - RETAINER, PARKING BRAKE BAND LEVER
46567-55030

FA100,11#,FC100..4F

 2
46567 - RETAINER, PARKING BRAKE BAND LEVER
46567-55030

FA100,11#,FC100..4F

 2
46567 - RETAINER, PARKING BRAKE BAND LEVER
46567-55030

FA100,11#,FC100..4F

 2
46567 - RETAINER, PARKING BRAKE BAND LEVER
46567-55030

FA100,11#,FC100..4F

 2
46567A - PIN, W/HOLE, PARKING BRAKE BAND LEVER RETAINER
90240-10041

FA100,11#,FC100..4F

 1
46567A - PIN, W/HOLE, PARKING BRAKE BAND LEVER RETAINER
90240-10041

FA100,11#,FC100..4F

 1
46570 - LEVER ASSY, PARKING BRAKE BAND
46570-55020

FA100,11#,FC100..4F

 1
46570 - LEVER ASSY, PARKING BRAKE BAND
46570-55020

FA100,11#,FC100..4F

 1
46570A - PIN, STRAIGHT, PARKING BRAKE BAND LEVER
90250-10067

FA100,11#,FC100..4F

 1
46570A - PIN, STRAIGHT, PARKING BRAKE BAND LEVER
90250-10067

FA100,11#,FC100..4F

 1
46570B - SPACER, PARKING BRAKE BAND LEVER
90560-10105

FA100,11#,FC100..4F

 1
46570B - SPACER, PARKING BRAKE BAND LEVER
90560-10105

FA100,11#,FC100..4F

 1
46581 - ROD, PARKING BRAKE BAND PULL
46581-55020

FA100,11#,FC100..4F

 1
46581 - ROD, PARKING BRAKE BAND PULL
46581-55020

FA100,11#,FC100..4F

 1
46581A - SPRING, COMPRESSION, PARKING BRAKE BAND PULL ROD
90501-23105

FA100,11#,FC100..4F

 2
46581A - SPRING, COMPRESSION, PARKING BRAKE BAND PULL ROD
90501-23105

FA100,11#,FC100..4F

 2
46581B - NUT, PARKING BRAKE BAND PULL ROD
90170-12066

FA100,11#,FC100..4F

 2
46581B - NUT, PARKING BRAKE BAND PULL ROD
90170-12066

FA100,11#,FC100..4F

 2
Common parts
90266-05006
94110-40600
94120-41000
94612-11000
95381-02020

ILLUST NO. 2 OF 2(7003- )

Click highlighted areas on diagram

diagram 46332 46332 46357 46357 46361 46361 46361A 46361A 46361B 46362 46441 46441 46501 46501A 46506 46514 46514A 46515 46520 46520A 46550 46550 46550A 46550A 46550E 46553 46555 46556 46557 46557 46558 46563 46584 46584A 9017010162 9020110013 9020622072 9026604020 9026604020 9111271432 9112141045 9318915028 9412541200 9413061000 9414641200 9414641200 9451101000 9451201400 9461110501 9461111000 9461211200 9461211200 9461211600 9461410600 9538102020 9538102020 9538102025 9538102025
Part # Description Qty Price
46332 - LEVER, PARKING BRAKE LINK
46332-55071

FA100,11#,FC100..LHD..4F

 1
46332-55050

FA100,11#,FC100..LHD..4F

 1
46332-55072

FA100,115..LHD..4F

 1
46332 - LEVER, PARKING BRAKE LINK
46332-55071

FA100,11#,FC100..LHD..4F

 1
46332-55050

FA100,11#,FC100..LHD..4F

 1
46332-55072

FA100,115..LHD..4F

 1
46357 - BRACKET, LEVER SUPPORT
46359-55040

FA100,11#,FC100..LHD..4F

 1
46359-55061

FA100,11#,FC100..LHD..4F

 1
46357 - BRACKET, LEVER SUPPORT
46359-55040

FA100,11#,FC100..LHD..4F

 1
46359-55061

FA100,11#,FC100..LHD..4F

 1
46361 - ROD, PARKING BRAKE PULL
46361-55020

FA100,11#,FC100..4F

 1
46368-55010

FA100,11#,FC100..4F

 1
46361 - ROD, PARKING BRAKE PULL
46361-55020

FA100,11#,FC100..4F

 1
46368-55010

FA100,11#,FC100..4F

 1
46361B - SPRING, COMPRESSION(FOR PARKING BRAKE PUSH ROD)
90501-10199

FA100,11#,FC100..4F

 1
46362 - ROD, PARKING BRAKE PULL, NO.1
46362-55030

DA11#,FA100,11#,FB100,FC100

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-55020

DA11#,DB10#,FA100,11#,FB100,FC100

ID=8

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-55020

DA11#,DB10#,FA100,11#,FB100,FC100

ID=8

 2
46501 - DRUM SUB-ASSY, PARKING BRAKE
46530-55011

FA100,11#,FC100..4F

 1
46501-55020

FA100,11#,FC100..4F

 1
46530-55010

FA100,11#,FC100..4F

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-12056

FA100,11#,FC100..4F

 4
90114-12002

FA100,11#,FC100..4F

 4
46514 - SPACER, PARKING BRAKE DRUM
46514-55010

FA100,11#,FC100..4F

 1
46514A - WASHER, PARKING BRAKE DRUM SPACER
90201-38374

FA100,11#,FC100..4F

 1
46520 - PLATE SUB-ASSY, PARKING BRAKE
46503-55021

DA11#,DB10#,FA100,11#,FB100,FC100..LHD

 1
46503-55021

DA11#,FA100,115..LHD

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-55013

DA11#,DB10#,FA100,11#,FB100,FC100

 2
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-55013

DA11#,DB10#,FA100,11#,FB100,FC100

 2
46584 - LEVER, PARKING BRAKE CAM
46584-55011

DA11#,DB10#,FA100,11#,FB100,FC100

 1
Common parts
90170-10162
90201-10013
90206-22072
90266-04020
91112-71432
91121-41045
93189-15028
94125-41200
94130-61000
94146-41200
94511-01000
94512-01400
94611-10501
94611-11000
94612-11200
94612-11600
94614-10600
95381-02020
95381-02025

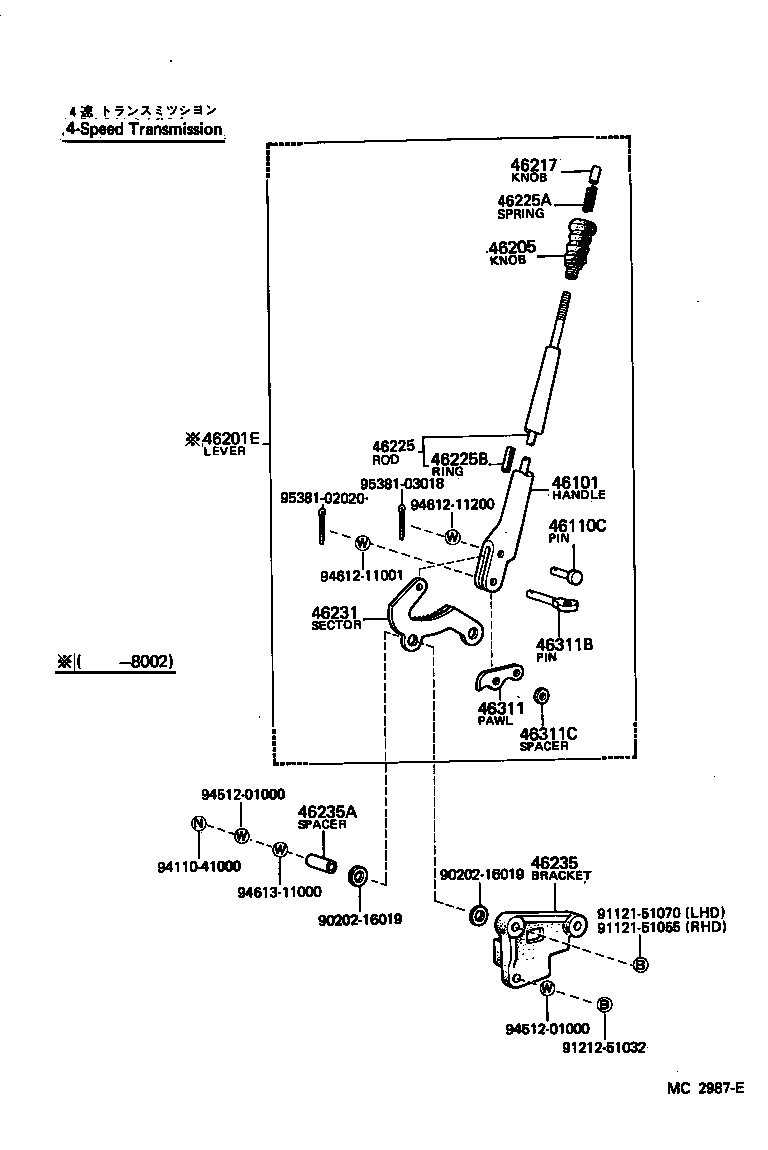

ILLUST NO. 1 OF 2(6903-8208)4F

Click highlighted areas on diagram

diagram 46101 46110C 46201E 46205 46217 46225 46225A 46225B 46231 46235 46235A 46311 46311B 46311C 9020216019 9020216019 9112151055 9112151070 9121251032 9411041000 9451201000 9451201000 9461211001 9461211200 9461311000 9538102020 9538103018
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46201-55040

FA100,11#,FC100..4F

 1
46201-55070

FA100,115..LHD..4F

 1
46110C - PIN(FOR PARKING BRAKE HANDLE SET)
90240-12045

DA11#,DB10#,FA100,11#,FB100,FC100

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-55040

FA100,11#,FC100..4F

 1
46210-55070

FA100,115..LHD..4F

 1
46210-55070

FA100,11#..LHD..BTR..4F

 1
46205 - KNOB SUB-ASSY, PARKING BRAKE LEVER
46205-55010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-55021

DA11#,DB10#,FA100,11#,FB100,FC100

ISO

 1
46225 - ROD, PARKING BRAKE PAWL RELEASE
46209-55040

FA100,11#,FC100..LHD..4F

 1
46209-55011

FA100,11#,FC100..4F

ISO

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-12160

DA11#,DB10#,FA100,11#,FB100,FC100

 1
46225B - RING, PARKING BRAKE PAWL RELEASE ROD
90562-05014

DA11#,DB10#,FA100,11#,FB100,FC100

 1
46231 - SECTOR, PARKING BRAKE LEVER
46203-55050

FA100,11#,FC100..4F

 1
46203-55070

FA100,11#,FC100..LHD..4F

 1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-55020

FA100,11#,FC100..LHD..4F

 1
46235A - SPACER, PARKING BRAKE LEVER SUPPORT BRACKET
90560-10106

DA11#,FA100,11#,FB100,FC100

L=16

 2
46311 - PAWL, PARKING BRAKE
46311-55020

FA100,11#,FC100..4F

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46226-55011

FA100,11#,FC100..4F

 1
90240-10047

FA100,11#,FC100..4F

 1
46226-55012

FA100,11#,FC100..4F

 1
46311C - SPACER(FOR PARKING BRAKE PAWL PIVOT)
90560-11107

DA11#,DB10#,FA100,11#,FB100,FC100

 1
90560-11107

DB10#,FC100;FA100,11#..4F

 1
Common parts
90202-16019
91121-51055
91121-51070
91212-51032
94110-41000
94512-01000
94612-11001
94612-11200
94613-11000
95381-02020
95381-03018
