FA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7403)F..FA100,11#,FC100

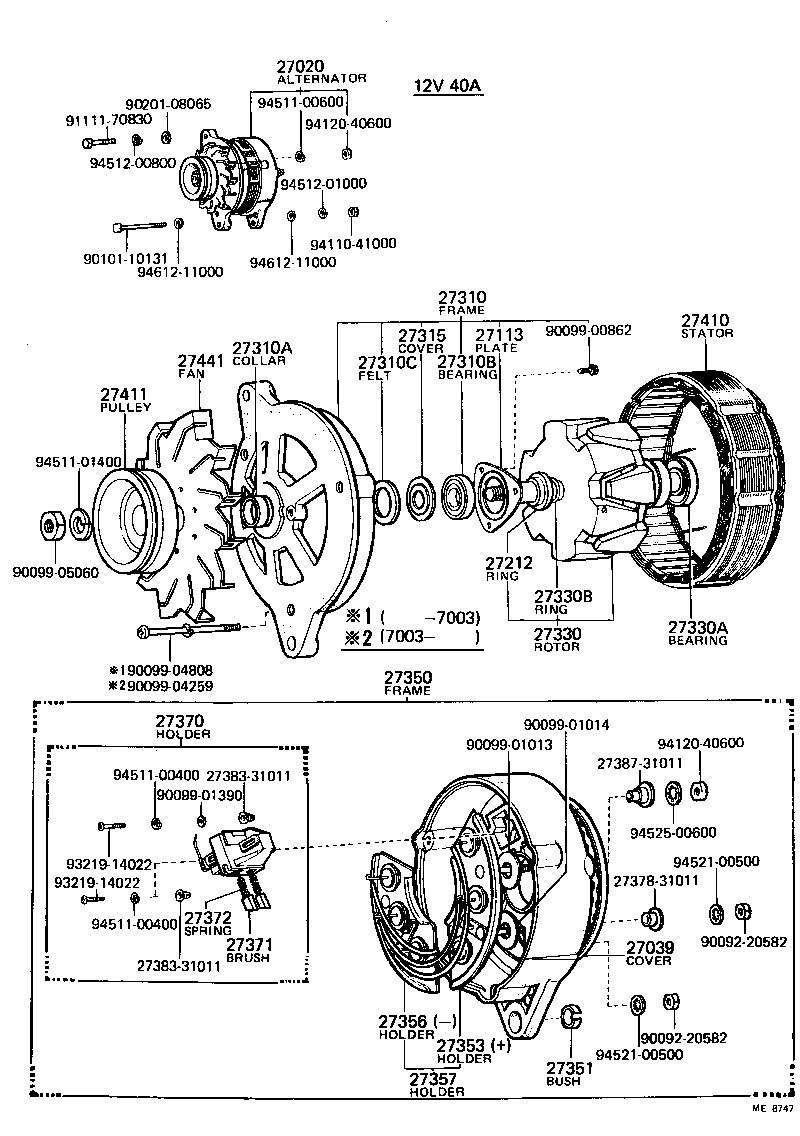

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27330B 27350 27351 27353 27356 27357 27370 27371 27372 2737831011 2738331011 2738331011 2738731011 27410 27411 27441 9009220582 9009220582 9009900862 9009901013 9009901014 9009901390 9009904259 9009904808 9009905060 9010110131 9020108065 9111170830 9321914022 9321914022 9411041000 9412040600 9412040600 9451100400 9451100400 9451100600 9451101400 9451200800 9451201000 9452100500 9452100500 9452500600 9461211000 9461211000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-60032

F..FA100,11#,FC100

12V 40A

 1
27020-60033

F..FA100,11#,FC100

12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-33011

F..FA11#,FC100

12V 40A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011

F..FA100,11#,FC100

12V 40A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

F..FA100,11#,FC100

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31011

F..FA100,11#,FC100

12V 40A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075

F..FA100,11#,FC100

12V 40A

 1
90099-19203

F..FA100,11#,FC100

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10013

F..FA100,11#,FB100,FC100

12V 40A,55A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004

F..FA100,11#,FB100,FC100

12V 40A,55A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011

F..FA100,11#,FC100

12V 40A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-33010

F..FA100,11#,FC100

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97113-06201

F..FA100,11#,FC100

12V 40A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

F..FA100,11#,FC100

12V 40A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-33010

F..FA100,11#,FC100

12V 40A

 1
27350-33011

F..FA100,11#,FC100

12V 40A

 1
27350-33012

F..FA100,11#,FC100

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010

F..FA100,11#,FC100

12V 40A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012

F..FA100,11#,FC100

12V 40A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-31012

F..FA100,11#,FC100

12V 40A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-31012

F..FA100,11#,FC100

12V 40A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31012

F..FA100,11#,FC100

12V 40A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

F..FA100,11#,FC100

12V 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

F..FA100,11#,FC100

12V 40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-33010

F..FA100,11#,FC100

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-60032

F..FA100,11#,FC100

12V 40A

 1
27441 - FAN, ALTERNATOR
27441-31011

F..FA100,11#,FC100

12V 40A

 1
Common parts
27378-31011
27383-31011
27387-31011
90092-20582
90099-00862
90099-01013
90099-01014
90099-01390
90099-04259
90099-04808
90099-05060
90101-10131
90201-08065
91111-70830
93219-14022
94110-41000
94120-40600
94511-00400
94511-00600
94511-01400
94512-00800
94512-01000
94521-00500
94525-00600
94612-11000
