FA100LD- (1969)
Toyota Heavy Duty Truck

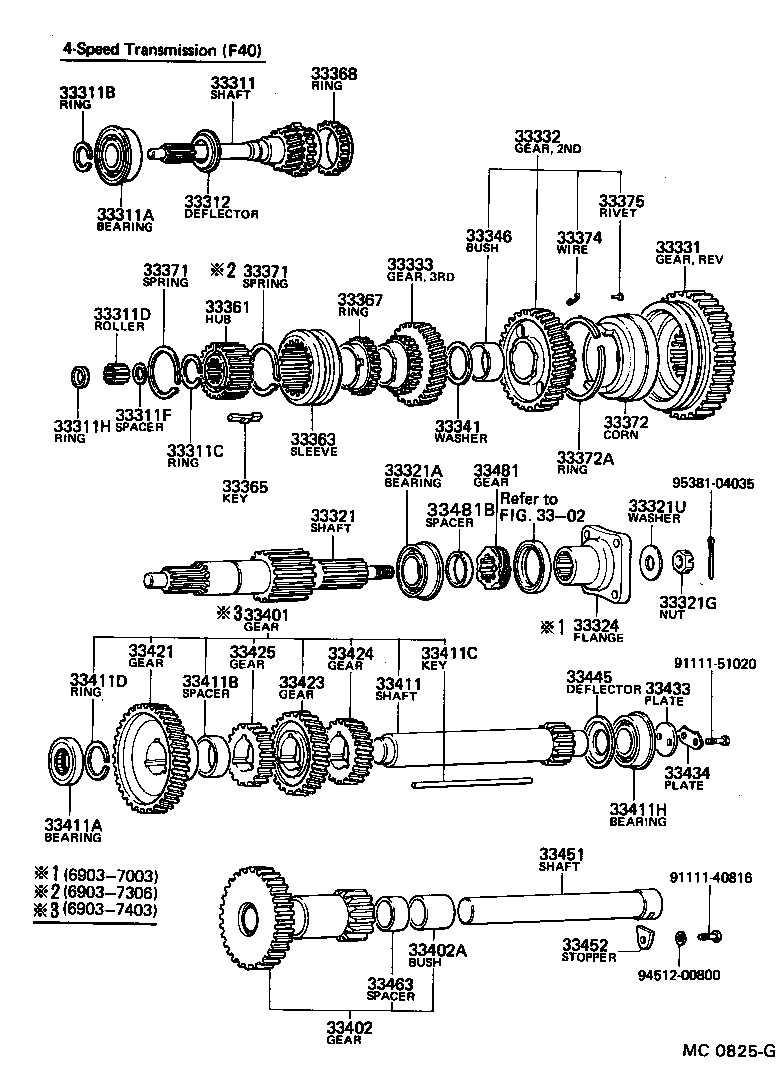

(6903-8208)4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-55070 |
FA100,11#,FC100..4F N=17 |
1 | ||
| 33311-55071 |
FA100,11#,FC100..4F N=17 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40012 |
FA100,11#,FC100..4F |
1 | ||
| 97154-06308 |
FA100,11#,FC100..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-36016 |
FA100,11#,FC100..4F T=3.20-3.31,T=3.20-3.31 |
1 | ||
| 90520-36015 |
FA100,11#,FC100..4F T=3.31-3.42,T=3.31-3.42 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90520-34013 |
FA100,11#,FC100..4F T=2.5 |
1 | ||
| 90520-34014 |
FA100,11#,FC100..4F T=2.3 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06010 |
FA100,11#,FC100..4F |
18 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-26045 |
FA100,11#,FC100..4F |
1 | ||
| 33311H - RING, NEEDLE ROLLER BEARING SERVICE | ||||
| 90522-29002 |
FA100,11#,FC100..4F |
1 | ||
| 33312 - DEFLECTOR, TRANSMISSION FRONT BEARING OIL | ||||
| 33312-55020 |
FA100,11#,FC100..4F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-55021 |
FA100,11#,FC100..4F N=11 |
1 | ||
| 33321-55020 |
FA100,11#,FC100..4F N=11 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97154-06308 |
FA100,11#,FC100..4F |
1 | ||
| 90363-40012 |
FA100,11#,FC100..4F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 94141-41900 |
FA100,11#,FC100..4F |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-19049 |
FA100,11#..4F |
1 | ||
| 33324 - FLANGE, OUTPUT SHAFT COMPANION (MTM) | ||||
| 37324-57010 |
FA100,11#,FC100..4F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33303-55010 |
FA100,11#,FC100..4F N=42 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33304-55020 |
FA100,11#,FC100..4F N=30 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-55021 |
FA100,11#,FC100..4F N=23 |
1 | ||
| 33341 - WASHER, 2ND & 3RD GEAR THRUST | ||||
| 33342-55011 |
FA100,11#,FC100..4F |
1 | ||
| 33346 - BUSH, 2ND GEAR | ||||
| 90999-71002 |
FA100,11#,FC100..4F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33362-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-55010 |
FA100,11#,FC100..4F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-55010 |
FA100,11#,FC100..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-55010 |
FA100,11#,FC100..4F |
2 | ||
| 33372 - CONE, 2ND SPEED SYNCHRONIZING | ||||
| 33372-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33372A - RING, 2ND SYNCHRONIZING CORN SNAP | ||||
| 90521-99026 |
FA100,11#,FC100..4F |
1 | ||
| 33374 - WIRE, 2ND GEAR SYNCHRONIZER | ||||
| 33374-55010 |
FA100,11#,FC100..4F |
2 | ||
| 33375 - RIVET, 2ND GEAR SYNCHRONIZER | ||||
| 33375-55010 |
FA100,11#,FC100..4F |
4 | ||
| 33401 - GEAR SUB-ASSY, COUNTER | ||||
| 33401-55030 |
FA100,11#,FC100..4F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-55020 |
FA100,11#,FC100..4F N=30:19 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90999-71006 |
FA100,11#,FC100..4F |
2 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-55010 |
FA100,11#,FC100..4F N=14 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-38003 |
FA100,11#,FC100..4F |
1 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-53063 |
FA100,11#,FC100..4F |
1 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90282-05005 |
FA100,11#,FC100..4F |
4 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-42020 |
FA100,11#,FC100..4F T=3.0 |
1 | ||
| 90520-42019 |
FA100,11#,FC100..4F T=3.2 |
1 | ||
| 90520-42021 |
FA100,11#,FC100..4F T=2.8 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-40017 |
FA100,11#,FC100..4F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-55010 |
FA100,11#,FC100..4F N=40 |
1 | ||
| 33423 - GEAR, COUNTER SHAFT 3RD SPEED | ||||
| 33423-55030 |
FA100,11#,FC100..4F N=28 |
1 | ||
| 33424 - GEAR, COUNTER SHAFT 2ND SPEED | ||||
| 33424-55020 |
FA100,11#,FC100..4F N=20 |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-55010 |
FA100,11#,FC100..4F N=23 |
1 | ||
| 33433 - PLATE, COUNTER GEAR REAR BEARING LOCK | ||||
| 33433-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33434 - PLATE, COUNTER GEAR REAR BEARING LOCK BOLT | ||||
| 33434-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33445 - DEFLECTOR, OIL, COUNTER GEAR REAR BEARING | ||||
| 33445-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-55021 |
FA100,11#,FC100..4F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 33463 - SPACER, REVERSE IDLER GEAR BUSH | ||||
| 33463-55010 |
FA100,11#,FC100..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-55110 |
FA100,11#,FC100..4F N=6 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 33487-59030 |
FA100,11#,FC100..4F |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91111-51020 | ||||
| 94512-00800 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 3302 | ||||
