DB105LC-Q (1969)
Toyota Heavy Duty Truck

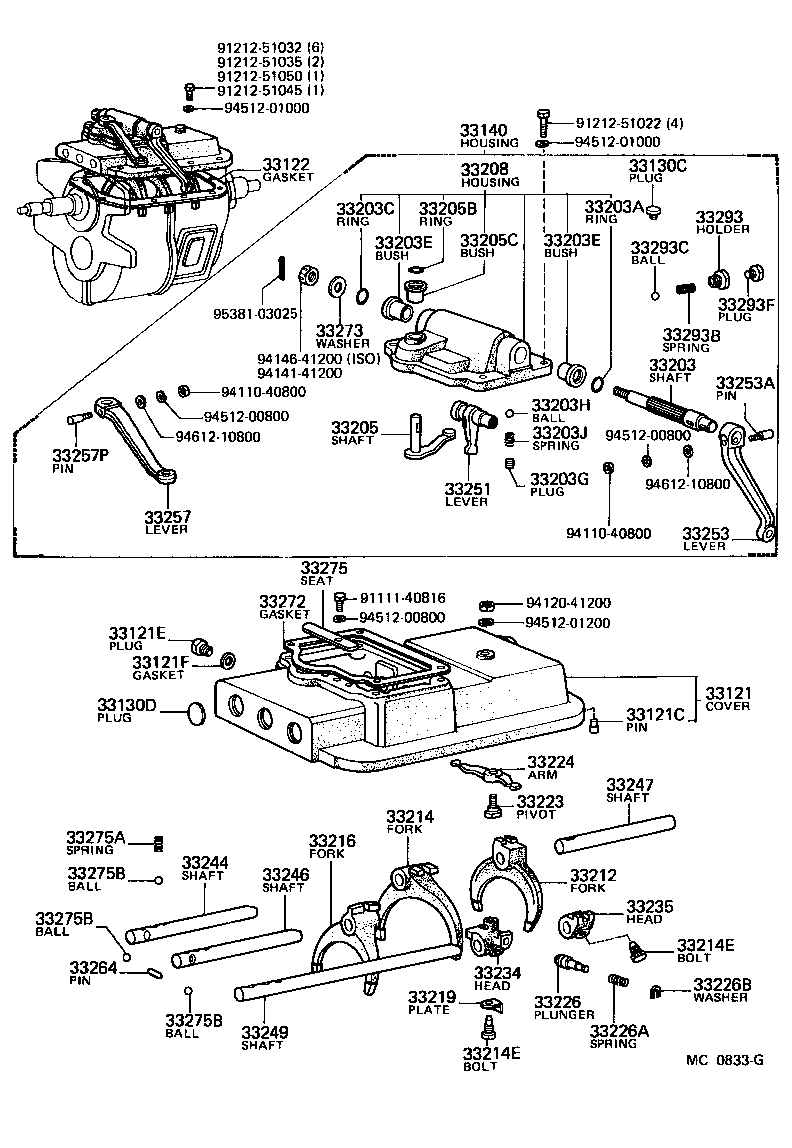

(6903-7212)DB10#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-57010 |
DB10# |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90241-08014 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 33121E - PLUG, TRANSMISSION CASE COVER | ||||
| 90341-12007 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33121F - GASKET, TRANSMISSION CASE COVER PLUG | ||||
| 90430-12015 |
DA11#,DB10#,FA100,11#,FB100..5F T=0.8 |
1 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33130C - PLUG, BREATHER, TRANSMISSION CASE COVER | ||||
| 90930-03001 |
DB10# |
1 | ||
| 33130D - PLUG, EXPANSION, TRANSMISSION CASE COVER | ||||
| 96412-02200 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 33140 - HOUSING ASSY, GEAR SHIFT LEVER SHAFT | ||||
| 33140-96522 |
DB10#..LHD |
1 | ||
| 33140-96519 |
DB10#..LHD |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-96521 |
DB10#..LHD |
1 | ||
| 33261-57010 |
DB10#..LHD |
1 | ||
| 33203A - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-23008 |
DB10# |
1 | ||
| 33203C - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-16007 |
DB10# |
1 | ||
| 33203E - BUSH(FOR SHIFT LEVER SHAFT) | ||||
| 90999-70049 |
DB10# ID=17 |
1 | ||
| 90999-70050 |
DB10# ID=24 |
1 | ||
| 33203E - BUSH(FOR SHIFT LEVER SHAFT) | ||||
| 90999-70049 |
DB10# ID=17 |
1 | ||
| 90999-70050 |
DB10# ID=24 |
1 | ||
| 33203G - PLUG(FOR SHIFT LEVER SHAFT BALL SPRING) | ||||
| 90340-08002 |
DB10# |
1 | ||
| 33203H - BALL(FOR SHIFT LEVER SHAFT) | ||||
| 90360-06004 |
DB10# |
1 | ||
| 33203J - SPRING(FOR SHIFT LEVER SHAFT BALL) | ||||
| 90501-14036 |
DB10# |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-96519 |
DB10#..LHD |
1 | ||
| 33205B - RING, O(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90301-13009 |
DB10# |
1 | ||
| 33205C - BUSH(FOR SELECT LEVER SHAFT) | ||||
| 90381-14004 |
DB10# |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33208-57010 |
DB10# |
1 | ||
| 33212 - FORK, 1ST & REVERSE SHIFT | ||||
| 33212-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33214 - FORK, 2ND & 3RD SHIFT | ||||
| 33214-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 33218-55020 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX19-7 |
1 | ||
| 33218-35010 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX15-6 |
5 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 33218-55020 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX19-7 |
1 | ||
| 33218-35010 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX15-6 |
5 | ||
| 33216 - FORK, 4TH & 5TH SHIFT | ||||
| 33216-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33219 - PLATE, SHIFT FORK LOCK | ||||
| 33219-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33224 - ARM, 1ST & REVERSE SHIFT | ||||
| 33222-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-23068 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 33234 - HEAD, 1ST & REVERSE SHIFT | ||||
| 33232-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33235 - HEAD, 1ST & REVERSE SHIFT ARM | ||||
| 33239-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33244 - SHAFT, 2ND & 3RD SHIFT FORK | ||||
| 33244-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33246 - SHAFT, 4TH & 5TH SHIFT FORK | ||||
| 33246-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33247 - SHAFT, 1ST & REVERSE SHIFT FORK | ||||
| 33242-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33249 - SHAFT, 1ST & REVERSE SHIFT HEAD | ||||
| 33249-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-57010 |
DB10# |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-96519 |
DB10# |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-57010 |
DB10# |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-96519 |
DB10#..LHD |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-57010 |
DB10# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05093 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-57010 |
DB10# T=0.2 |
1 | ||
| 33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1 | ||||
| 90201-12033 |
DB10# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-57010 |
DB10# |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33293 - HOLDER, REVERSE RESTRICT BALL | ||||
| 33293-35010 |
DB10#..LHD |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-20046 |
DB10# |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
DB10# |
1 | ||
| 33293F - PLUG (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90341-16004 |
DB10#..LHD |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91212-51022 | ||||
| 91212-51032 | ||||
| 91212-51035 | ||||
| 91212-51045 | ||||
| 91212-51050 | ||||
| 94110-40800 | ||||
| 94120-41200 | ||||
| 94141-41200 | ||||
| 94146-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-10800 | ||||
| 95381-03025 | ||||

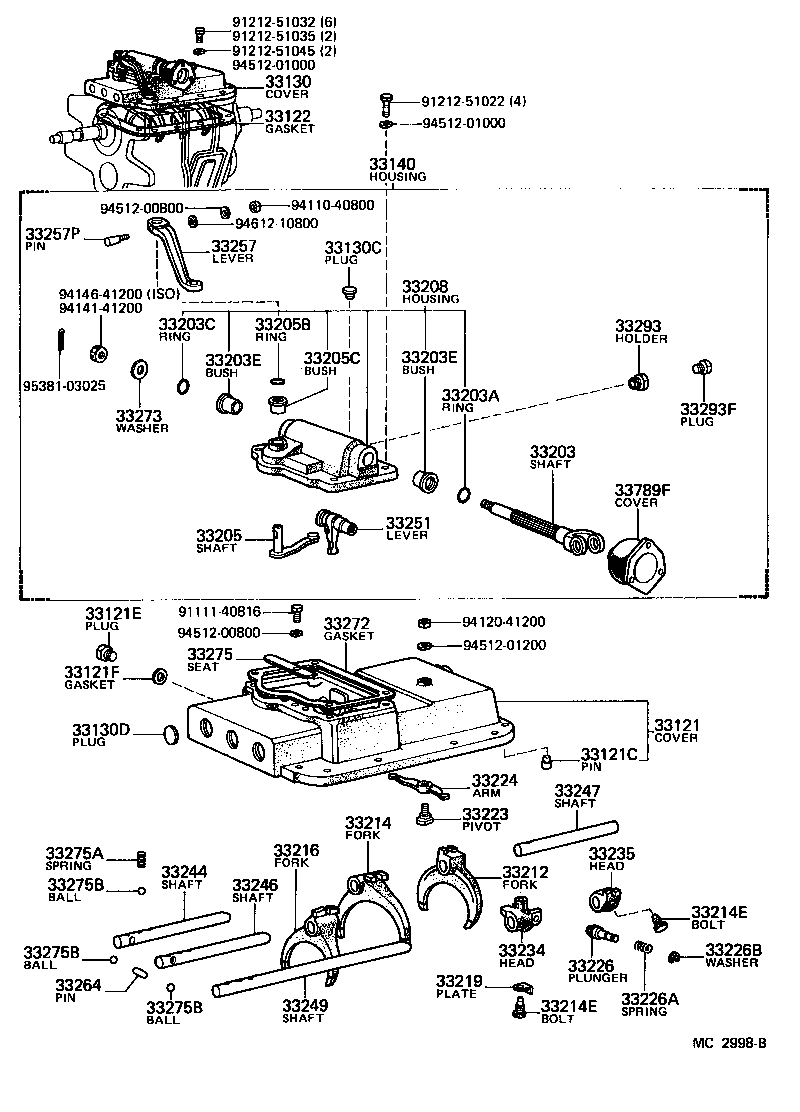

(7212-7703)DB10#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-57010 |
DB10# |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90241-08014 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 33121E - PLUG, TRANSMISSION CASE COVER | ||||
| 90341-12007 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33121F - GASKET, TRANSMISSION CASE COVER PLUG | ||||
| 90430-12015 |
DA11#,DB10#,FA100,11#,FB100..5F T=0.8 |
1 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33130 - COVER ASSY, TRANSMISSION CASE | ||||
| 33130-96519 |
DB10#..LHD |
1 | ||
| 33130-96523 |
DB10#..LHD |
1 | ||
| 33130C - PLUG, BREATHER, TRANSMISSION CASE COVER | ||||
| 90930-03001 |
DB10# |
1 | ||
| 33130D - PLUG, EXPANSION, TRANSMISSION CASE COVER | ||||
| 96412-02200 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 33140 - HOUSING ASSY, GEAR SHIFT LEVER SHAFT | ||||
| 33140-96522 |
DB10#..LHD |
1 | ||
| 33140-96519 |
DB10#..LHD |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-96521 |
DB10#..LHD |
1 | ||
| 33261-57010 |
DB10#..LHD |
1 | ||
| 33203A - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-23008 |
DB10# |
1 | ||
| 33203C - RING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT) | ||||
| 90301-16007 |
DB10# |
1 | ||
| 33203E - BUSH(FOR SHIFT LEVER SHAFT) | ||||
| 90999-70049 |
DB10# ID=17 |
1 | ||
| 90999-70050 |
DB10# ID=24 |
1 | ||
| 33203E - BUSH(FOR SHIFT LEVER SHAFT) | ||||
| 90999-70049 |
DB10# ID=17 |
1 | ||
| 90999-70050 |
DB10# ID=24 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-96519 |
DB10#..LHD |
1 | ||
| 33205B - RING, O(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90301-13009 |
DB10# |
1 | ||
| 33205C - BUSH(FOR SELECT LEVER SHAFT) | ||||
| 90381-14004 |
DB10# |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33208-57010 |
DB10# |
1 | ||
| 33212 - FORK, 1ST & REVERSE SHIFT | ||||
| 33212-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33214 - FORK, 2ND & 3RD SHIFT | ||||
| 33214-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 33218-55020 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX19-7 |
1 | ||
| 33218-35010 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX15-6 |
5 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 33218-55020 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX19-7 |
1 | ||
| 33218-35010 |
DA11#,DB10#,FA100,11#,FB100..5F *10-1.25PX15-6 |
5 | ||
| 33216 - FORK, 4TH & 5TH SHIFT | ||||
| 33216-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33219 - PLATE, SHIFT FORK LOCK | ||||
| 33219-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33224 - ARM, 1ST & REVERSE SHIFT | ||||
| 33222-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-23068 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 33234 - HEAD, 1ST & REVERSE SHIFT | ||||
| 33232-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33235 - HEAD, 1ST & REVERSE SHIFT ARM | ||||
| 33239-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33244 - SHAFT, 2ND & 3RD SHIFT FORK | ||||
| 33244-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33246 - SHAFT, 4TH & 5TH SHIFT FORK | ||||
| 33246-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33247 - SHAFT, 1ST & REVERSE SHIFT FORK | ||||
| 33242-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33249 - SHAFT, 1ST & REVERSE SHIFT HEAD | ||||
| 33249-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-57010 |
DB10# |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-96519 |
DB10#..LHD |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-57010 |
DB10# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05093 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-57010 |
DB10# T=0.2 |
1 | ||
| 33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1 | ||||
| 90201-12033 |
DB10# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-57010 |
DB10# |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
7 | ||
| 33293 - HOLDER, REVERSE RESTRICT BALL | ||||
| 33293-35010 |
DB10#..LHD |
1 | ||
| 33293F - PLUG (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90341-16004 |
DB10#..LHD |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-37010 |
DB10# |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91212-51022 | ||||
| 91212-51032 | ||||
| 91212-51035 | ||||
| 91212-51045 | ||||
| 94110-40800 | ||||
| 94120-41200 | ||||
| 94141-41200 | ||||
| 94146-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-10800 | ||||
| 95381-03025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
