DB105LC-Q (1969)
Toyota Heavy Duty Truck

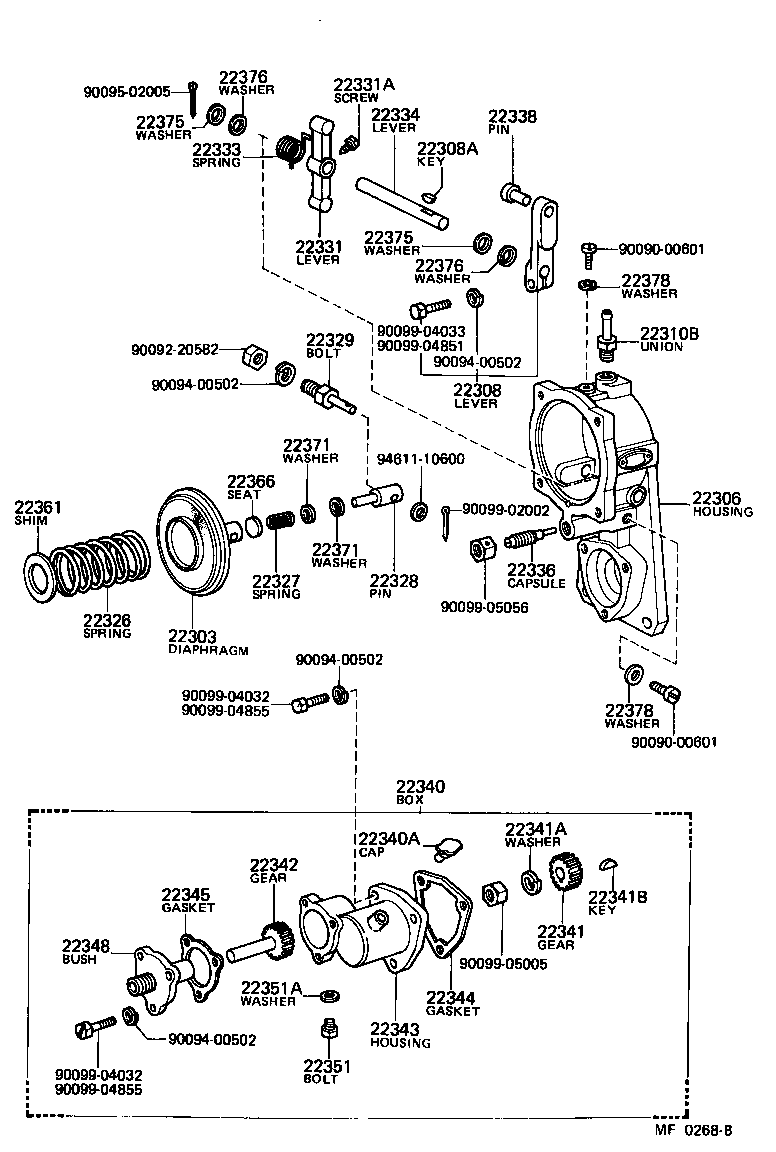

ILLUST NO. 2 OF 2(6903-7404)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22303 - DIAPHRAGM SUB-ASSY, GOVERNOR | ||||
| 22303-77020 |
2D..DA11#,DB10# |
1 | ||
| 22306 - HOUSING SUB-ASSY, GOVERNOR | ||||
| 22306-77021 |
2D..DA11#,DB10# ISO |
1 | ||
| 22308 - LEVER SUB-ASSY, INJECTION PUMP, NO.2 | ||||
| 22308-77021 |
2D..DA11#,DB10# |
2 | ||
| 22308A - KEY(FOR INJECTION PUMP STOP LEVER) | ||||
| 90099-13001 |
2D..DA11#,DB10# |
2 | ||
| 22310B - UNION, VENTURI PIPE | ||||
| 90404-12018 |
2D..DA11#,DB10# |
1 | ||
| 22326 - SPRING, GOVERNOR MAIN | ||||
| 90501-15129 |
2D..DB10# |
1 | ||
| 22327 - SPRING, GOVERNOR ADAPTER | ||||
| 22327-77020 |
2D..DA11#,DB10# |
1 | ||
| 22328 - PIN, GOVERNOR ADAPTER | ||||
| 22328-77020 |
2D..DA11#,DB10# |
1 | ||
| 22329 - BOLT, DIAPHRAGM CONNECTING | ||||
| 22329-77021 |
2D..DA11#,DB10# |
1 | ||
| 22331 - LEVER, GOVERNOR STOP | ||||
| 22331-77021 |
2D..DA11#,DB10# |
1 | ||
| 22331A - BOLT, GOVERNOR STOP LEVER | ||||
| 22332-77021 |
2D..DA11#,DB10# |
1 | ||
| 22333 - SPRING, DIAPHRAGM STOP LEVER RETURN | ||||
| 22333-77020 |
2D..DA11#,DB10# |
1 | ||
| 22334 - LEVER, W/SHAFT GOVERNOR STOP | ||||
| 22334-76050 |
2D..DA11#,DB105 |
1 | ||
| 22334-76051 |
2D..DB10# |
1 | ||
| 22336 - CAPSULE, FULL STOP | ||||
| 22336-77020 |
2D..DA11#,DB10# |
1 | ||
| 22338 - PIN, LEVER | ||||
| 22338-77020 |
2D..DA11#,DB10# |
1 | ||
| 22340 - BOX ASSY, ENGINE SPEEDOMETOR GEAR | ||||
| 22340-77051 |
2D..DA11#,DB10# ISO |
1 | ||
| 22340A - CAP, OIL(FOR ENGINE SPEEDOMETER GEAR HOUSING) | ||||
| 90099-50001 |
2D..DA11#,DB10# |
1 | ||
| 22341 - GEAR, DRIVE | ||||
| 22341-76010 |
2D..DA11#,DB10# |
1 | ||
| 22341A - WASHER, SPRING(FOR DRIVE GEAR) | ||||
| 22349-76010 |
2D..DA11#,DB10# |
1 | ||
| 22341B - KEY(FOR DRIVE GEAR) | ||||
| 22353-76010 |
2D..DA11#,DB10# |
1 | ||
| 22342 - GEAR, DRIVEN(FOR INJECTION) | ||||
| 22342-76050 |
2D..DA11#,DB10# |
1 | ||
| 22343 - HOUSING, ENGINE SPEEDOMETER GEAR | ||||
| 22343-77051 |
2D..DA11#,DB10# |
1 | ||
| 22344 - GASKET, ENGINE SPEEDOMETER GEAR BOX | ||||
| 22344-76010 |
2D..DA11#,DB10# |
1 | ||
| 22345 - GASKET, SPEEDOMETER GEAR HOUSING | ||||
| 22345-76010 |
2D..DA11#,DB10# |
1 | ||
| 22348 - BUSH, GEAR SHAFT | ||||
| 22348-77050 |
2D..DA11#,DB10# |
1 | ||
| 22351 - BOLT(FOR SPEEDOMETER GEAR HOUSING) | ||||
| 22351-76010 |
2D..DA11#,DB10# |
1 | ||
| 22351A - WASHER(FOR SPEEDOMETER GEAR HOUSING) | ||||
| 22618-77020 |
2D..DA11#,DB10# |
2 | ||
| 22361 - SHIM, MAIN SPRING | ||||
| 22361-76010 |
2D..DA11#,DB10# T=3.0,T=3.0 |
1 | ||
| 22364-76010 |
2D..DA11#,DB10# T=0.5,T=0.5 |
1 | ||
| 22362-76010 |
2D..DA11#,DB10# T=2.0,T=2.0 |
1 | ||
| 22363-76010 |
2D..DA11#,DB10# T=1.0,T=1.0 |
1 | ||
| 22366 - SEAT, ADAPTER SPRING | ||||
| 22368-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22367-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22366-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22369-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22371 - WASHER, ADAPTER SPRING | ||||
| 22371-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22374-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22373-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22372-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22371 - WASHER, ADAPTER SPRING | ||||
| 22371-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22374-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22373-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22372-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22375 - WASHER, STOP LEVER SHAFT | ||||
| 90099-01179 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 90099-01157 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22375-76010 |
2D..DA11#,DB10# |
2 | ||
| 22375 - WASHER, STOP LEVER SHAFT | ||||
| 90099-01179 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 90099-01157 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22375-76010 |
2D..DA11#,DB10# |
2 | ||
| 22376 - WASHER, STOP LEVER SHAFT | ||||
| 22376-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22377-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22376 - WASHER, STOP LEVER SHAFT | ||||
| 22376-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22377-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
2D..DA11#,DB10# |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 90090-00601 | ||||
| 90092-20582 | ||||
| 90094-00502 | ||||
| 90095-02005 | ||||
| 90099-02002 | ||||
| 90099-04032 | ||||
| 90099-04033 | ||||
| 90099-04851 | ||||
| 90099-04855 | ||||
| 90099-05005 | ||||
| 90099-05056 | ||||
| 94611-10600 | ||||

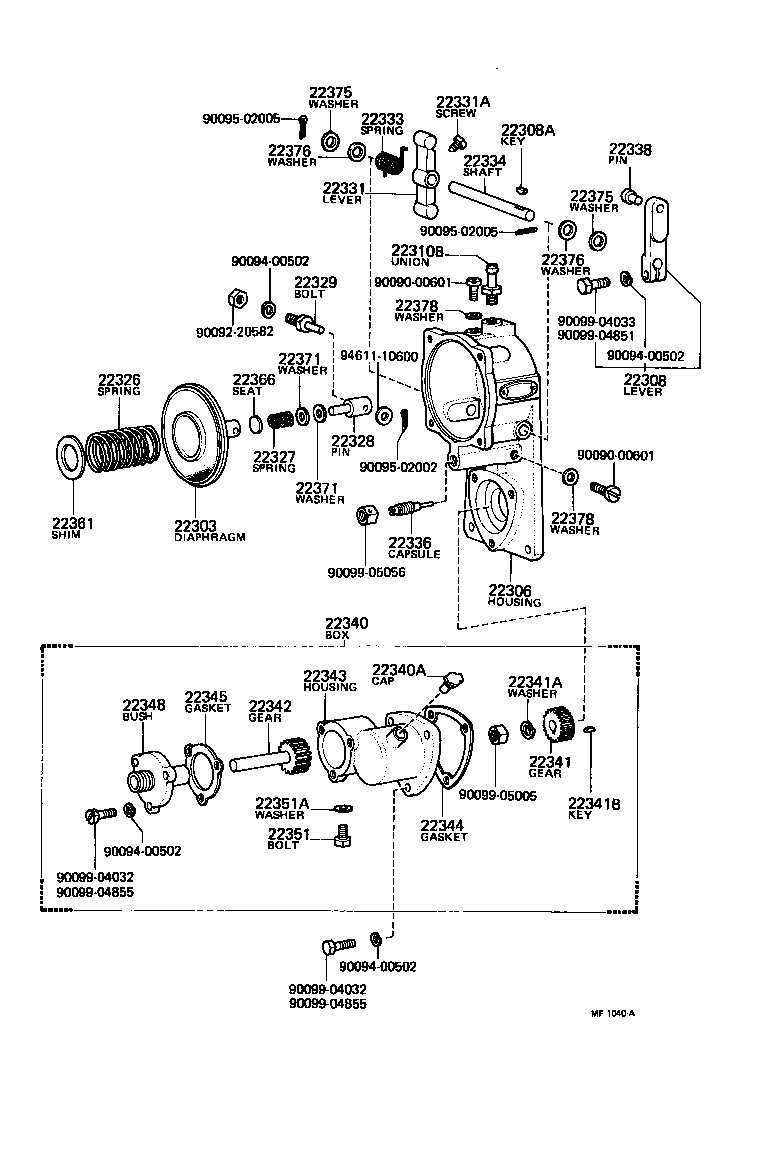

ILLUST NO. 2 OF 2(7404-7503)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22303 - DIAPHRAGM SUB-ASSY, GOVERNOR | ||||
| 22303-77020 |
2D..DA11#,DB10# |
1 | ||
| 22306 - HOUSING SUB-ASSY, GOVERNOR | ||||
| 22306-77021 |
2D..DA11#,DB10# ISO |
1 | ||
| 22308 - LEVER SUB-ASSY, INJECTION PUMP, NO.2 | ||||
| 22308-77021 |
2D..DA11#,DB10# |
2 | ||
| 22308A - KEY(FOR INJECTION PUMP STOP LEVER) | ||||
| 90099-13001 |
2D..DA11#,DB10# |
2 | ||
| 22310B - UNION, VENTURI PIPE | ||||
| 90404-12018 |
2D..DA11#,DB10# |
1 | ||
| 22326 - SPRING, GOVERNOR MAIN | ||||
| 90501-15129 |
2D..DB10# |
1 | ||
| 22327 - SPRING, GOVERNOR ADAPTER | ||||
| 22327-77020 |
2D..DA11#,DB10# |
1 | ||
| 22328 - PIN, GOVERNOR ADAPTER | ||||
| 22328-77020 |
2D..DA11#,DB10# |
1 | ||
| 22329 - BOLT, DIAPHRAGM CONNECTING | ||||
| 22329-77021 |
2D..DA11#,DB10# |
1 | ||
| 22331 - LEVER, GOVERNOR STOP | ||||
| 22331-77021 |
2D..DA11#,DB10# |
1 | ||
| 22331A - BOLT, GOVERNOR STOP LEVER | ||||
| 22332-77021 |
2D..DA11#,DB10# |
1 | ||
| 22333 - SPRING, DIAPHRAGM STOP LEVER RETURN | ||||
| 22333-77020 |
2D..DA11#,DB10# |
1 | ||
| 22334 - LEVER, W/SHAFT GOVERNOR STOP | ||||
| 22334-76050 |
2D..DA11#,DB105 |
1 | ||
| 22334-76051 |
2D..DB10# |
1 | ||
| 22336 - CAPSULE, FULL STOP | ||||
| 22336-77020 |
2D..DA11#,DB10# |
1 | ||
| 22338 - PIN, LEVER | ||||
| 22338-77020 |
2D..DA11#,DB10# |
1 | ||
| 22340 - BOX ASSY, ENGINE SPEEDOMETOR GEAR | ||||
| 22340-77051 |
2D..DA11#,DB10# ISO |
1 | ||
| 22340A - CAP, OIL(FOR ENGINE SPEEDOMETER GEAR HOUSING) | ||||
| 90099-50001 |
2D..DA11#,DB10# |
1 | ||
| 22341 - GEAR, DRIVE | ||||
| 22341-76010 |
2D..DA11#,DB10# |
1 | ||
| 22341A - WASHER, SPRING(FOR DRIVE GEAR) | ||||
| 22349-76010 |
2D..DA11#,DB10# |
1 | ||
| 22341B - KEY(FOR DRIVE GEAR) | ||||
| 22353-76010 |
2D..DA11#,DB10# |
1 | ||
| 22342 - GEAR, DRIVEN(FOR INJECTION) | ||||
| 22342-76050 |
2D..DA11#,DB10# |
1 | ||
| 22343 - HOUSING, ENGINE SPEEDOMETER GEAR | ||||
| 22343-77051 |
2D..DA11#,DB10# |
1 | ||
| 22344 - GASKET, ENGINE SPEEDOMETER GEAR BOX | ||||
| 22344-76010 |
2D..DA11#,DB10# |
1 | ||
| 22345 - GASKET, SPEEDOMETER GEAR HOUSING | ||||
| 22345-76010 |
2D..DA11#,DB10# |
1 | ||
| 22348 - BUSH, GEAR SHAFT | ||||
| 22348-77050 |
2D..DA11#,DB10# |
1 | ||
| 22351 - BOLT(FOR SPEEDOMETER GEAR HOUSING) | ||||
| 22351-76010 |
2D..DA11#,DB10# |
1 | ||
| 22351A - WASHER(FOR SPEEDOMETER GEAR HOUSING) | ||||
| 22618-77020 |
2D..DA11#,DB10# |
2 | ||
| 22361 - SHIM, MAIN SPRING | ||||
| 22361-76010 |
2D..DA11#,DB10# T=3.0,T=3.0 |
1 | ||
| 22364-76010 |
2D..DA11#,DB10# T=0.5,T=0.5 |
1 | ||
| 22362-76010 |
2D..DA11#,DB10# T=2.0,T=2.0 |
1 | ||
| 22363-76010 |
2D..DA11#,DB10# T=1.0,T=1.0 |
1 | ||
| 22366 - SEAT, ADAPTER SPRING | ||||
| 22368-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22367-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22366-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22369-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22371 - WASHER, ADAPTER SPRING | ||||
| 22371-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22374-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22373-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22372-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22371 - WASHER, ADAPTER SPRING | ||||
| 22371-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22374-76010 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 22373-76010 |
2D..DA11#,DB10# T=0.5 |
1 | ||
| 22372-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22375 - WASHER, STOP LEVER SHAFT | ||||
| 90099-01179 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 90099-01157 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22375-76010 |
2D..DA11#,DB10# |
2 | ||
| 22375 - WASHER, STOP LEVER SHAFT | ||||
| 90099-01179 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 90099-01157 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22375-76010 |
2D..DA11#,DB10# |
2 | ||
| 22376 - WASHER, STOP LEVER SHAFT | ||||
| 22376-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22377-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22376 - WASHER, STOP LEVER SHAFT | ||||
| 22376-76010 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22377-76010 |
2D..DA11#,DB10# T=0.3 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
2D..DA11#,DB10# |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
2D..DA11#,DB10# |
2 | ||
| Common parts | ||||
| 90090-00601 | ||||
| 90092-20582 | ||||
| 90094-00502 | ||||
| 90095-02002 | ||||
| 90095-02005 | ||||
| 90099-04032 | ||||
| 90099-04033 | ||||
| 90099-04851 | ||||
| 90099-04855 | ||||
| 90099-05005 | ||||
| 90099-05056 | ||||
| 94611-10600 | ||||

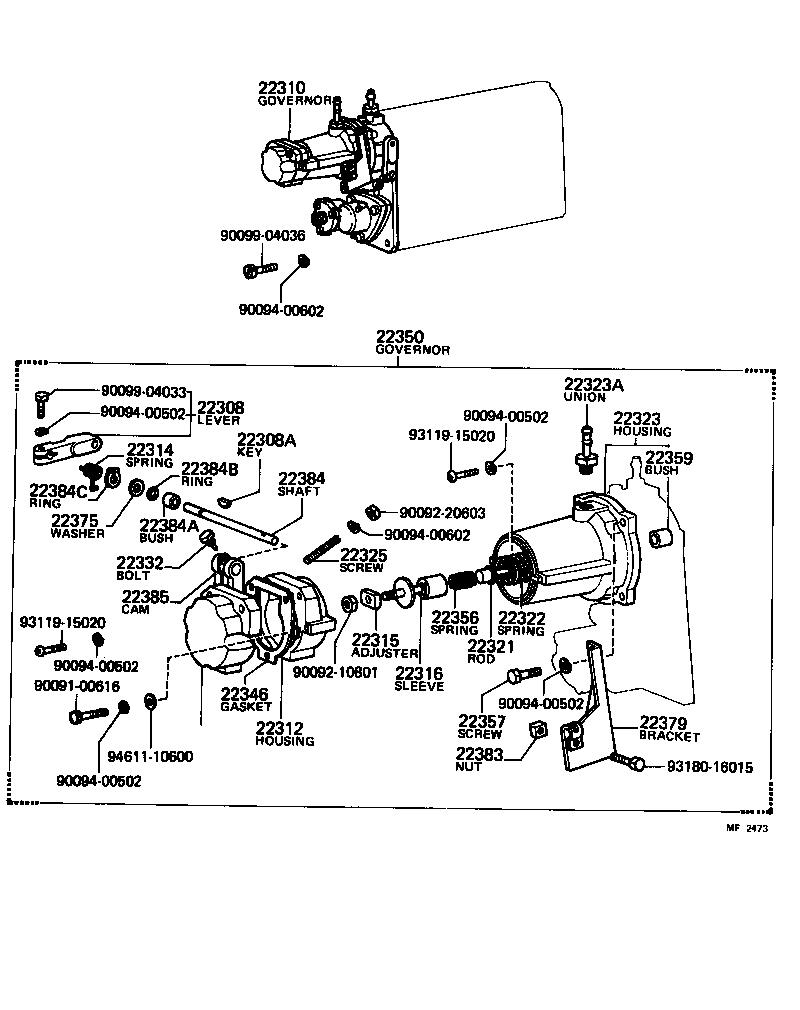

ILLUST NO. 1 OF 2(6903-7503)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22308 - LEVER SUB-ASSY, INJECTION PUMP, NO.2 | ||||
| 22308-77021 |
2D..DA11#,DB10# |
2 | ||
| 22308A - KEY(FOR INJECTION PUMP STOP LEVER) | ||||
| 90099-13001 |
2D..DA11#,DB10# |
2 | ||
| 22310 - GOVERNOR ASSY, INJECTION PUMP | ||||
| 22310-77082 |
2D..DB105 |
1 | ||
| 22310-77081 |
2D..DB10# |
1 | ||
| 22312 - HOUSING, LEVER | ||||
| 22312-77022 |
2D..DA11#,DB10# |
1 | ||
| 22314 - SPRING, BACK(FOR GOVERNOR SHAFT) | ||||
| 22314-77020 |
2D..DA11#,DB10# |
1 | ||
| 22315 - ADJUSTER, IDLING | ||||
| 22315-77020 |
2D..DA11#,DB10# |
1 | ||
| 22316 - SLEEVE, IDLING SPRING | ||||
| 22316-77020 |
2D..DA11#,DB10# |
1 | ||
| 22321 - ROD, PUSH | ||||
| 22321-77020 |
2D..DA11#,DB10# |
1 | ||
| 22322 - SPRING, RETURN(FOR IDLING CAPSULE) | ||||
| 22322-77020 |
2D..DA11#,DB10# |
1 | ||
| 22323 - HOUSING, GOVERNOR DIAPHRAGM | ||||
| 22323-77020 |
2D..DA11#,DB10# |
1 | ||
| 22323-77021 |
2D..DA11#,DB105 |
1 | ||
| 22323A - UNION, VENTURI PIPE | ||||
| 90404-12018 |
2D..DA11#,DB10# |
2 | ||
| 22325 - SCREW, LEVER | ||||
| 22325-77020 |
2D..DA11#,DB10# |
1 | ||
| 22332 - BOLT, GOVERNOR STOP | ||||
| 22388-77021 |
2D..DA11#,DB10# |
1 | ||
| 22346 - GASKET, GOVERNOR CAP | ||||
| 22346-77020 |
2D..DA11#,DB10# |
1 | ||
| 22350 - GOVERNOR ASSY, PNEUMATIC SMALL | ||||
| 22350-77020 |
2D..DB105 |
1 | ||
| 22350-77020 |
2D..DA11#,DB10# |
1 | ||
| 22356 - SPRING, GOVERNOR IDLING | ||||
| 90501-18130 |
2D..DA11#,DB10# |
1 | ||
| 22357 - SCREW, DIAPHRAGM HOUSING SET | ||||
| 22357-76011 |
2D..DA11#,DB10# ISO |
4 | ||
| 22359 - BUSH, DIAPHRAGM | ||||
| 22359-77020 |
2D..DA11#,DB10# |
1 | ||
| 22375 - WASHER, STOP LEVER SHAFT | ||||
| 90099-01179 |
2D..DA11#,DB10# T=1.0 |
1 | ||
| 90099-01157 |
2D..DA11#,DB10# T=0.2 |
1 | ||
| 22375-76010 |
2D..DA11#,DB10# |
2 | ||
| 22379 - BRACKET, STOP WIRE | ||||
| 22379-76010 |
2D..DA11#,DB10# |
1 | ||
| 22383 - NUT, STOP WIRE BRACKET | ||||
| 90173-05038 |
2D..DB105 |
1 | ||
| 22383-76010 |
2D..DA11#,DB10# |
1 | ||
| 22384 - SHAFT, GOVERNOR | ||||
| 22384-77021 |
2D..DA11#,DB10# |
1 | ||
| 22384A - BUSH(FOR GOVERNOR SHAFT) | ||||
| 90099-19046 |
2D..DA11#,DB10# |
1 | ||
| 22384B - RING, O(FOR GOVERNOR SHAFT) | ||||
| 90099-14009 |
2D..DA11#,DB10# |
1 | ||
| 22384C - RING, E(FOR GOVERNOR SHAFT) | ||||
| 90099-07003 |
2D..DA11#,DB10# |
1 | ||
| 22385 - CAM(FOR INJECTION PUMP GOVERNOR) | ||||
| 22385-77021 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90091-00616 | ||||
| 90092-10801 | ||||
| 90092-20603 | ||||
| 90094-00502 | ||||
| 90094-00602 | ||||
| 90099-04033 | ||||
| 90099-04036 | ||||
| 93119-15020 | ||||
| 93180-16015 | ||||
| 94611-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
