DB105C-Q (1969)
Toyota Heavy Duty Truck
(6903- )5F

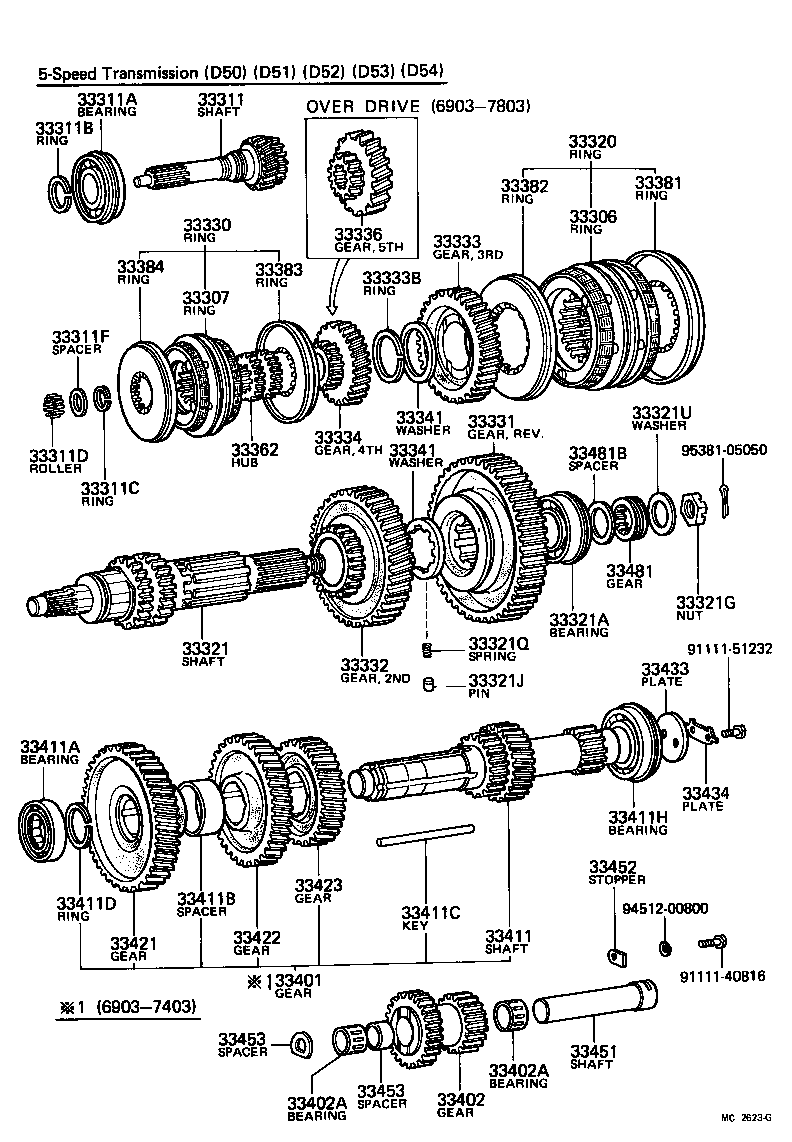

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 | ||||
| 33306-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33307 - RING SUB-ASSY, SYNCHRONIZER, NO.2 | ||||
| 33307-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-55041 |
DA11#,DB10#..5FO N=21 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 97153-06310 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-46022 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90520-38017 |
DA11#,DB10#,FA100,11#,FB100..5F T=3.2 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-07013 |
DA11#,DB10#,FA100,11#,FB100..5F |
17 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-31071 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33320 - RING ASSY, SYNCHRONIZER, NO.1 | ||||
| 33320-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97153-06310 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90171-30008 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321J - PIN, STRAIGHT (FOR OUTPUT SHAFT) | ||||
| 90334-07002 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321Q - SPRING, COMPRESSION (FOR OUTPUT SHAFT) | ||||
| 90501-09069 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-31125 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33330 - RING ASSY, SYNCHRONIZER, NO.2 | ||||
| 33330-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-55021 |
DA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR N=47 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-55030 |
DA11#,DB10#,FA100,11#,FB100..5F N=40 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-55042 |
DA11#,DB10#..5FO N=30 |
1 | ||
| 33333B - RING, SHAFT SNAP (FOR 3RD REAR) | ||||
| 90520-63025 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33334-55020 |
DA11#,DB10#..5FO N=17 |
1 | ||
| 33341 - WASHER, 2ND & 3RD GEAR THRUST | ||||
| 33341-55010 |
DA11#,DB10#,FA100,11#,FB100..5F 2ND |
1 | ||
| 33342-55020 |
DA11#,DB10#,FA100,11#,FB100..5F 3RADIAL |
1 | ||
| 33341 - WASHER, 2ND & 3RD GEAR THRUST | ||||
| 33341-55010 |
DA11#,DB10#,FA100,11#,FB100..5F 2ND |
1 | ||
| 33342-55020 |
DA11#,DB10#,FA100,11#,FB100..5F 3RADIAL |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33382 - RING, 3RD SYNCHRONIZER OUTER | ||||
| 33382-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33383 - RING, 4TH SYNCHRONIZER OUTER | ||||
| 33383-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33384 - RING, 5TH SYNCHRONIZER OUTER | ||||
| 33384-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33401 - GEAR SUB-ASSY, COUNTER | ||||
| 33401-55052 |
DA11#,DB10#..5FO |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-55031 |
DA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR N=23,18 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 33466-59030 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 33466-59030 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-55021 |
DA115..1SR;DB10#,FB100;DA110,116..5FO;DA115..5FO..2SR;DA110,116,FA100,11#..5FD..1SR N=18,23,14 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97521-00307 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-61078 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90282-06004 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-50023 |
DA11#,DB10#,FA100,11#,FB100..5F T=3.4 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 97153-06310 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-55040 |
DA11#,DB10#..5FO N=43 |
1 | ||
| 33422 - GEAR, COUNTER SHAFT 4TH SPEED | ||||
| 33422-55020 |
DA11#,DB10#..5FO N=46 |
1 | ||
| 33423 - GEAR, COUNTER SHAFT 3RD SPEED | ||||
| 33423-55041 |
DA11#,DB10#..5FO N=33 |
1 | ||
| 33433 - PLATE, COUNTER GEAR REAR BEARING LOCK | ||||
| 33433-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33434 - PLATE, COUNTER GEAR REAR BEARING LOCK BOLT | ||||
| 33434-55020 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 33453 - SPACER, REVERSE IDLER GEAR SHAFT | ||||
| 33462-55010 |
DA11#,DB10#,FA100,11#,FB100..5F FR |
1 | ||
| 33453 - SPACER, REVERSE IDLER GEAR SHAFT | ||||
| 33462-55010 |
DA11#,DB10#,FA100,11#,FB100..5F FR |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-55080 |
DB10#;DA11#..1SR N=6 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 33487-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91111-51232 | ||||
| 94512-00800 | ||||
| 95381-05050 | ||||
