DB105C-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

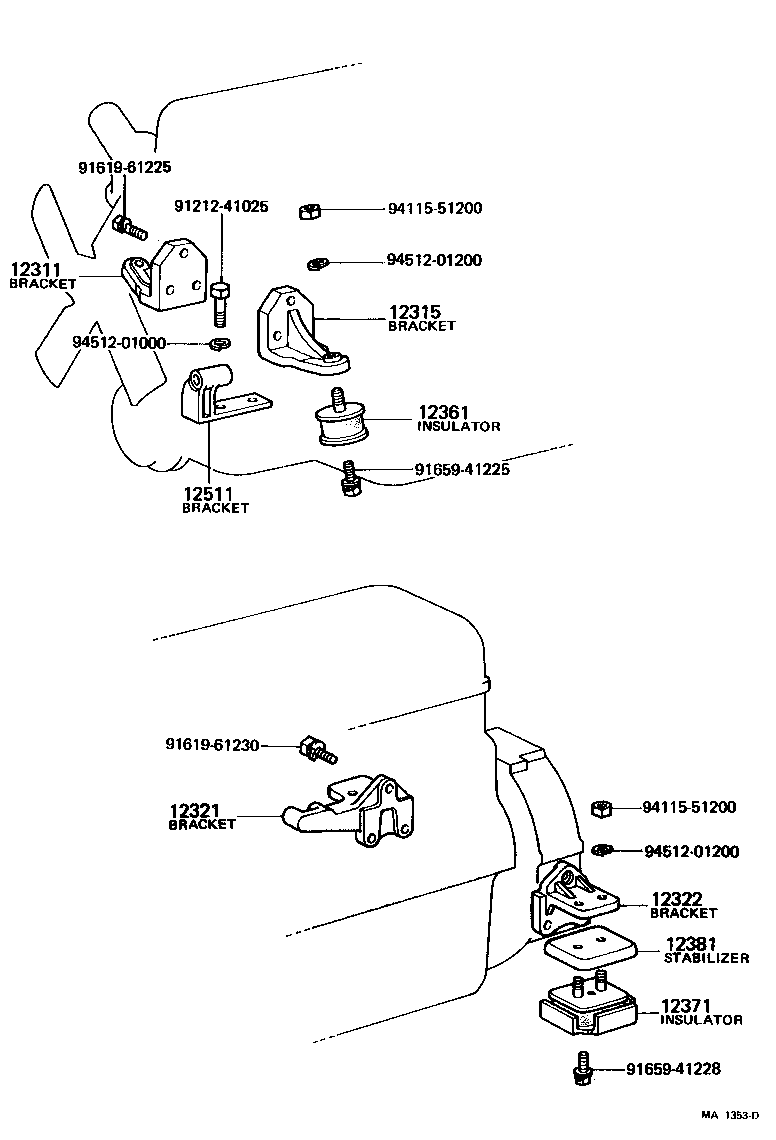

(6903-8207)F

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12371 12381 12511 9121241025 9161961225 9161961230 9165941225 9165941228 9411551200 9411551200 9451201000 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-76030

2D..DA11#,DB10#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-76030

2D..DA11#,DB10#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-76031

2D..DA11#,DB10#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-76011

2D..DA11#,DB10#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-76020

2D..DA11#,DB10#

 2
12361-76021

2D..DA11#,DB10#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-76030

2D..DA11#,DB10#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-76010

2D..DA11#,DB10#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-76020

2D..DA11#,DB10#

 1
Common parts
91212-41025
91619-61225
91619-61230
91659-41225
91659-41228
94115-51200
94512-01000
94512-01200

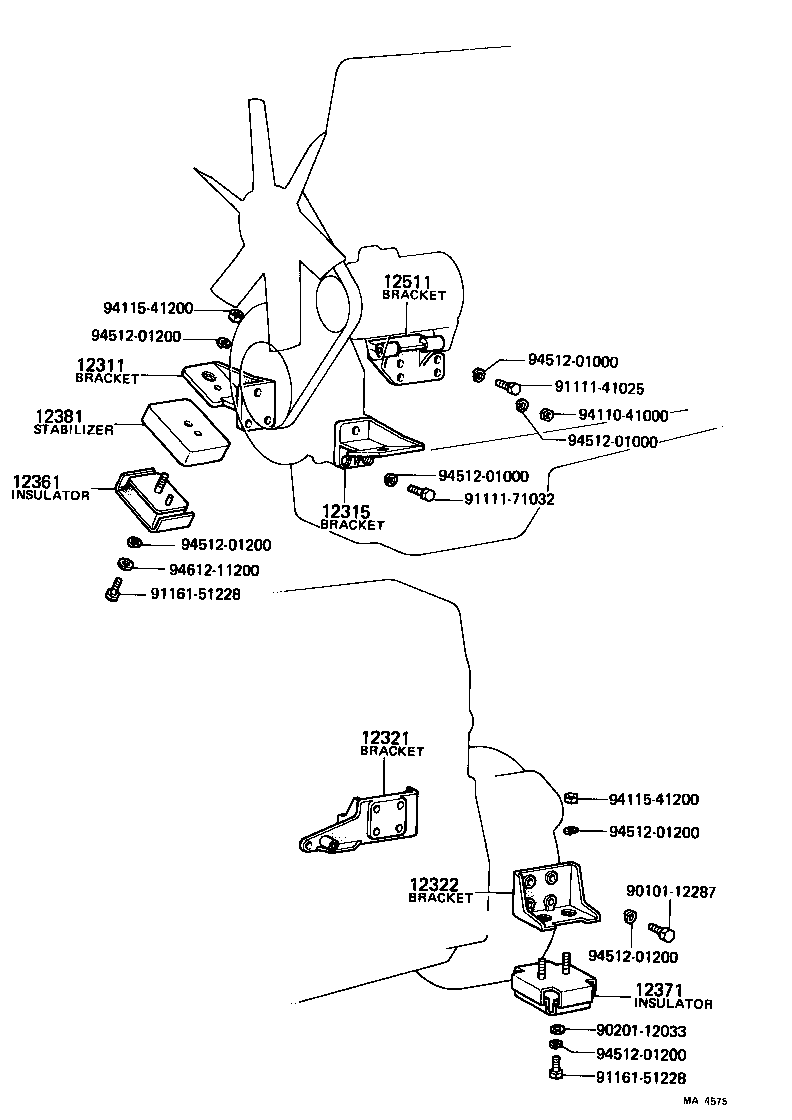

(6903-7704)2D

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12371 12381 12511 9010112287 9020112033 9111141025 9111171032 9116151228 9116151228 9411041000 9411541200 9411541200 9451201000 9451201000 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200 9461211200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-76030

2D..DA11#,DB10#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-76030

2D..DA11#,DB10#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-76031

2D..DA11#,DB10#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-76011

2D..DA11#,DB10#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-76020

2D..DA11#,DB10#

 2
12361-76021

2D..DA11#,DB10#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-76030

2D..DA11#,DB10#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-76010

2D..DA11#,DB10#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-76020

2D..DA11#,DB10#

 1
Common parts
90101-12287
90201-12033
91111-41025
91111-71032
91161-51228
94110-41000
94115-41200
94512-01000
94512-01200
94612-11200
