Toyota Heavy duty truck DB105 STANDARD TOOL

DB105C-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

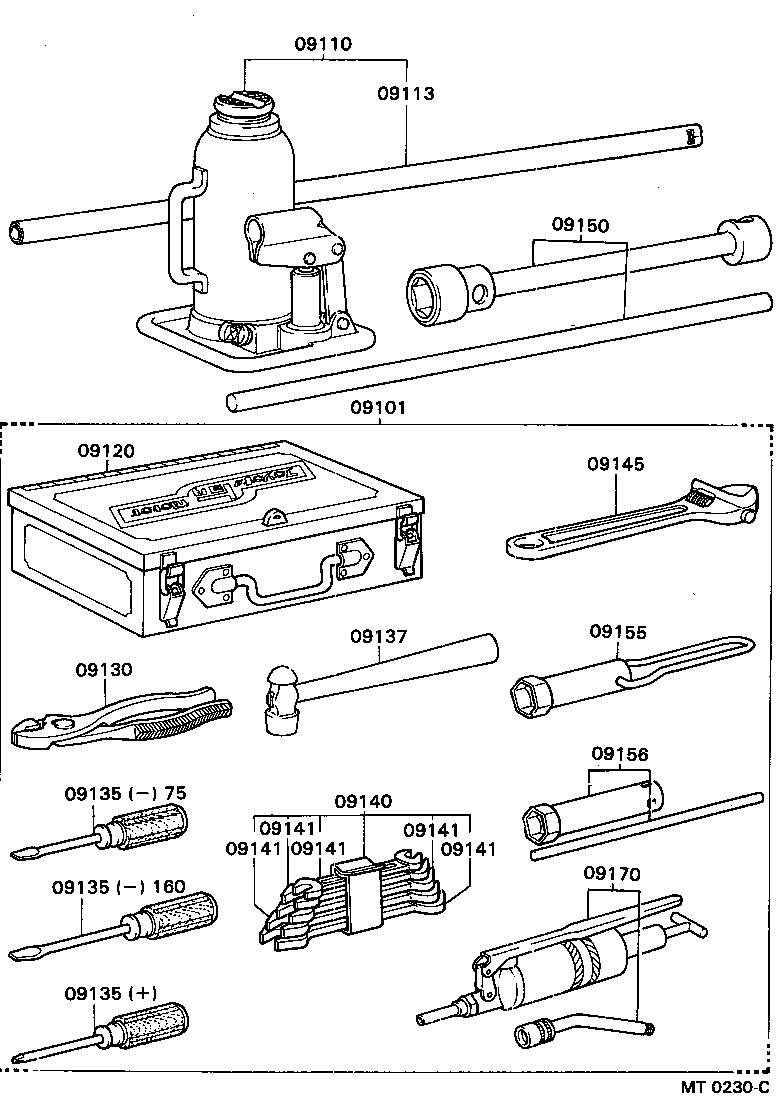

(6903-7403)

Click highlighted areas on diagram

Part #	Description	Period	Qty
09101 - TOOL SET, STANDARD W/O JACK
09102-55020	DA11#,DB10#	03/1969 - 03/1974	1
09110 - JACK ASSY
09110-55010	DB10#,FA100,FB100,FC100 7 TON	03/1969 - 12/2001	1
09113 - HANDLE, JACK
09113-55011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
09120 - BAG, TOOL
09120-55010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
09130 - PLIERS
99913-22000	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 05/1982	1
09135 - DRIVER, SCREW
09135-00030	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 75	03/1969 - 03/1974	1
09135-00060	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 150	03/1969 - 03/1974	1
09135-00090	DA11#,DB10#,FA100,11#,FB100,FC100 (+)	03/1969 - 03/1974	1
09135 - DRIVER, SCREW
09135-00030	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 75	03/1969 - 03/1974	1
09135-00060	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 150	03/1969 - 03/1974	1
09135-00090	DA11#,DB10#,FA100,11#,FB100,FC100 (+)	03/1969 - 03/1974	1
09135 - DRIVER, SCREW
09135-00030	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 75	03/1969 - 03/1974	1
09135-00060	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 150	03/1969 - 03/1974	1
09135-00090	DA11#,DB10#,FA100,11#,FB100,FC100 (+)	03/1969 - 03/1974	1
09137 - HAMMER
09137-00010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
09140 - SPANNER SET
09140-00040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09145 - WRENCH, MONKEY
99911-10250	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 08/1987	1
09150 - WRENCH, HUB NUT BOX
09150-56010	DB105	04/1974 - 03/1977	1
09150-00040	DB10#,FB100	03/1969 - 03/1974	1
09156 - WRENCH, GROW PLUG
09156-00010	DA11#,DB10#	03/1969 - 04/1977	1
09170 - PUMP ASSY, GREASE
09170-00010	DA11#,DB10#,FA100,11#,FB100,FC100 150CC	03/1969 - 03/1974	1

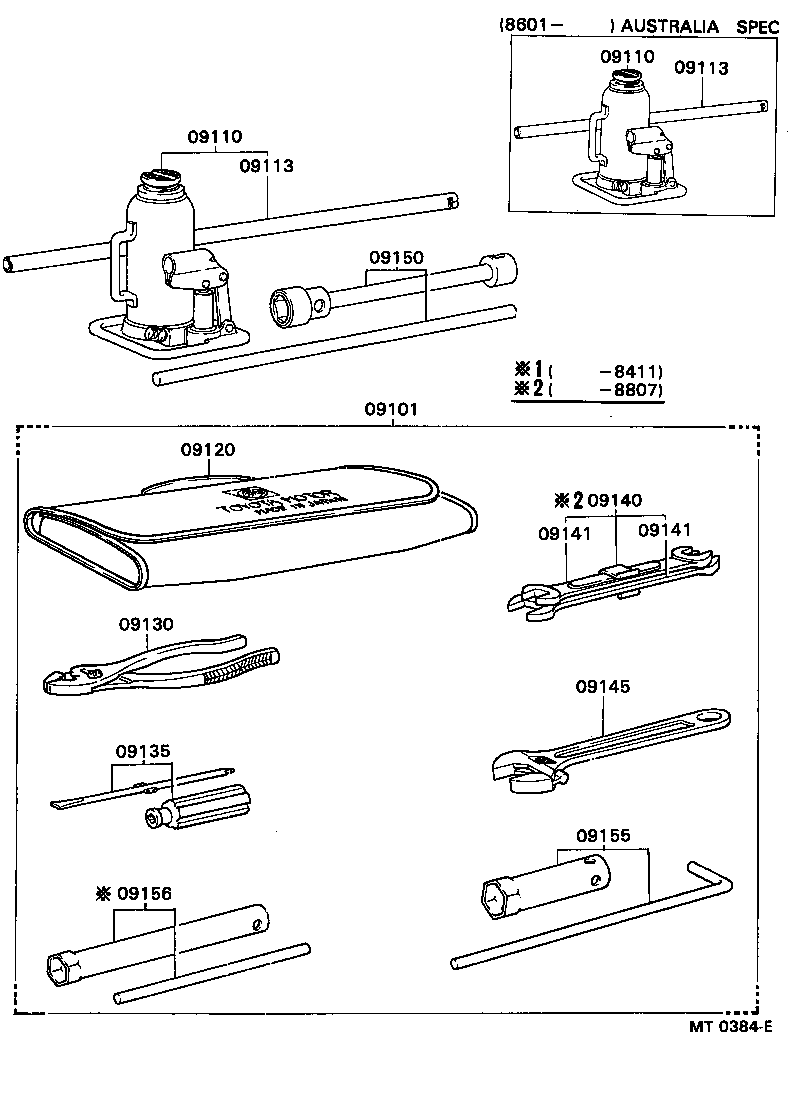

(7404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
09101 - TOOL SET, STANDARD W/O JACK
09102-55020	DA11#,DB10#	03/1969 - 03/1974	1
09110 - JACK ASSY
09110-55010	DB10#,FA100,FB100,FC100 7 TON	03/1969 - 12/2001	1
09110 - JACK ASSY
09110-55010	DB10#,FA100,FB100,FC100 7 TON	03/1969 - 12/2001	1
09113 - HANDLE, JACK
09113-55011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
09113 - HANDLE, JACK
09113-55011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
09120 - BAG, TOOL
09120-55010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
09130 - PLIERS
99913-22000	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 05/1982	1
09135 - DRIVER, SCREW
09135-00030	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 75	03/1969 - 03/1974	1
09135-00060	DA11#,DB10#,FA100,11#,FB100,FC100 (-) 150	03/1969 - 03/1974	1
09135-00090	DA11#,DB10#,FA100,11#,FB100,FC100 (+)	03/1969 - 03/1974	1
09140 - SPANNER SET
09140-00040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09141 - SPANNER
09141-00080	DA11#,DB10#,FA100,11#,FB100,FC100 21X23	03/1969 - 03/1974	1
09141-00030	DA11#,DB10#,FA100,11#,FB100,FC100 10X12	03/1969 - 08/1980	1
09141-00060	DA11#,DB10#,FA100,11#,FB100,FC100 14X17	03/1969 - 03/1974	1
09141-00011	DA11#,DB10#,FA100,11#,FB100,FC100 8X9	03/1969 - 03/1974	1
09141-00040	DA11#,DB10#,FA100,11#,FB100,FC100 12X14	03/1969 - 03/1974	1
09145 - WRENCH, MONKEY
99911-10250	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 08/1987	1
09150 - WRENCH, HUB NUT BOX
09150-56010	DB105	04/1974 - 03/1977	1
09150-00040	DB10#,FB100	03/1969 - 03/1974	1
09156 - WRENCH, GROW PLUG
09156-00010	DA11#,DB10#	03/1969 - 04/1977	1

DB105C-Q (1969)

(6903-7403)

(7404- )
