DB105C- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DB10#

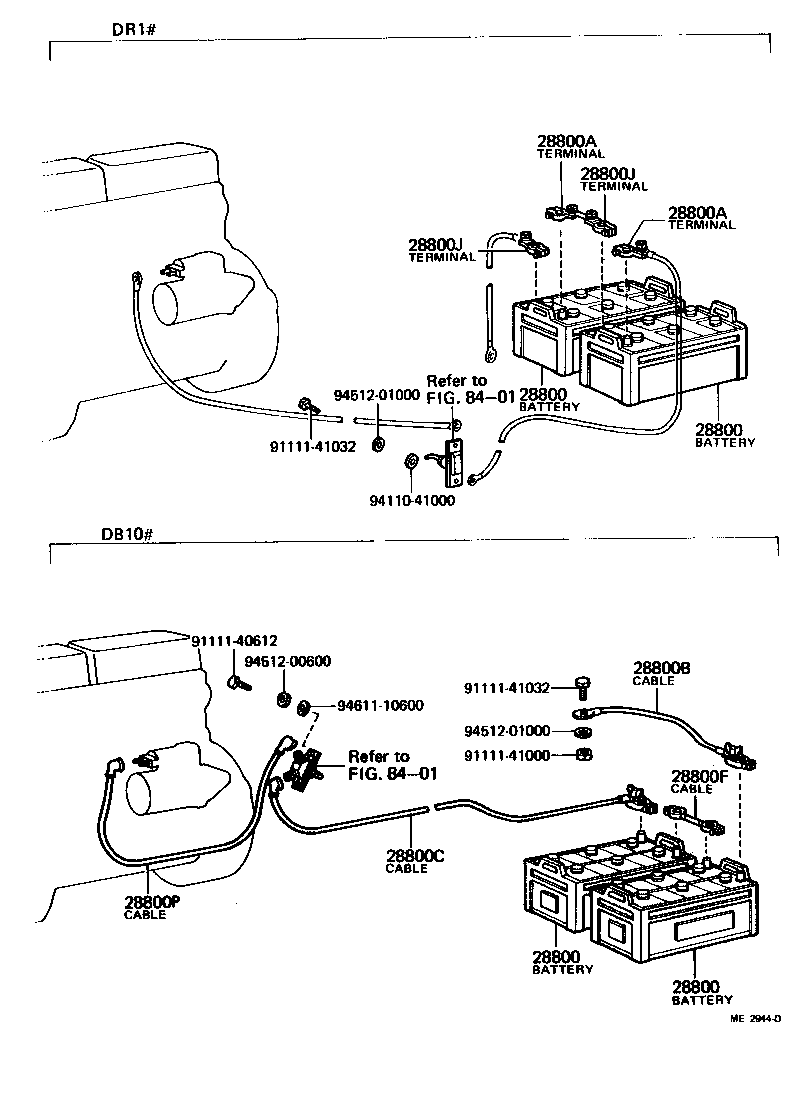

Click highlighted areas on diagram

diagram 28800 28800 28800 28800 28800A 28800A 28800B 28800C 28800F 28800J 28800J 28800P 8401 8401 9111140612 9111141000 9111141032 9111141032 9411041000 9451200600 9451201000 9451201000 9461110600
Part # Description Qty Price
28800 - BATTERY
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800B - CABLE, BATTERY TO GROUND
90982-02002

2D..DB10#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01013

2D..DB10#

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03006

2D..DA11#,DB10#

 1
28800J - TERMINAL, BATTERY NEGATIVE
99142-87160

2D..DB10#

 1
28800J - TERMINAL, BATTERY NEGATIVE
99142-87160

2D..DB10#

 1
28800P - CABLE, BATTERY TO STARTER(FOR MAIN SWITCH TO STARTER)
90982-01017

2D..DB105

 1
90982-01017

2D..DA11#,DB10#

 1
Common parts
91111-40612
91111-41000
91111-41032
94110-41000
94512-00600
94512-01000
94611-10600
Linked diagrams
8401
