DB105C- (1969)
Toyota Heavy Duty Truck

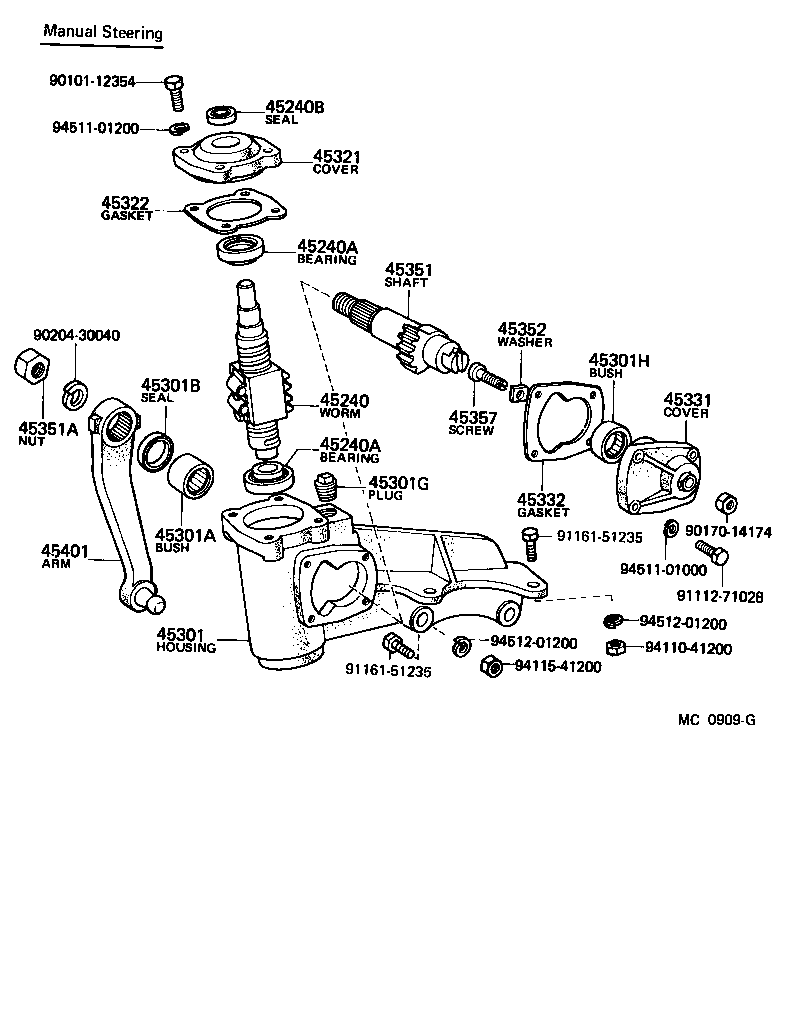

ILLUST NO. 1 OF 2(7003-7703)DB10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45241-55040 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| 45240-96520 |
DB10#..RHD |
1 | ||
| 45240-96518 |
DB10#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-24052 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-55080 |
DB10#..RHD |
1 | ||
| 45311-96522 |
DB10#..RHD |
1 | ||
| 45301-96520 |
DB10#..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-70032 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36035 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90341-18002 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.20 |
1 | ||
| 45323-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.30 |
2 | ||
| 45324-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.50 |
3 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45350-55020 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.0 |
1 | ||
| 45352-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=3.9 |
1 | ||
| 45355-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.2 |
1 | ||
| 45354-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.1 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-55101 |
DB10#..RHD |
1 | ||
| 45401-96520 |
DB10#..RHD |
1 | ||
| Common parts | ||||
| 90101-12354 | ||||
| 90170-14174 | ||||
| 90204-30040 | ||||
| 91112-71028 | ||||
| 91161-51235 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
| 94512-01200 | ||||

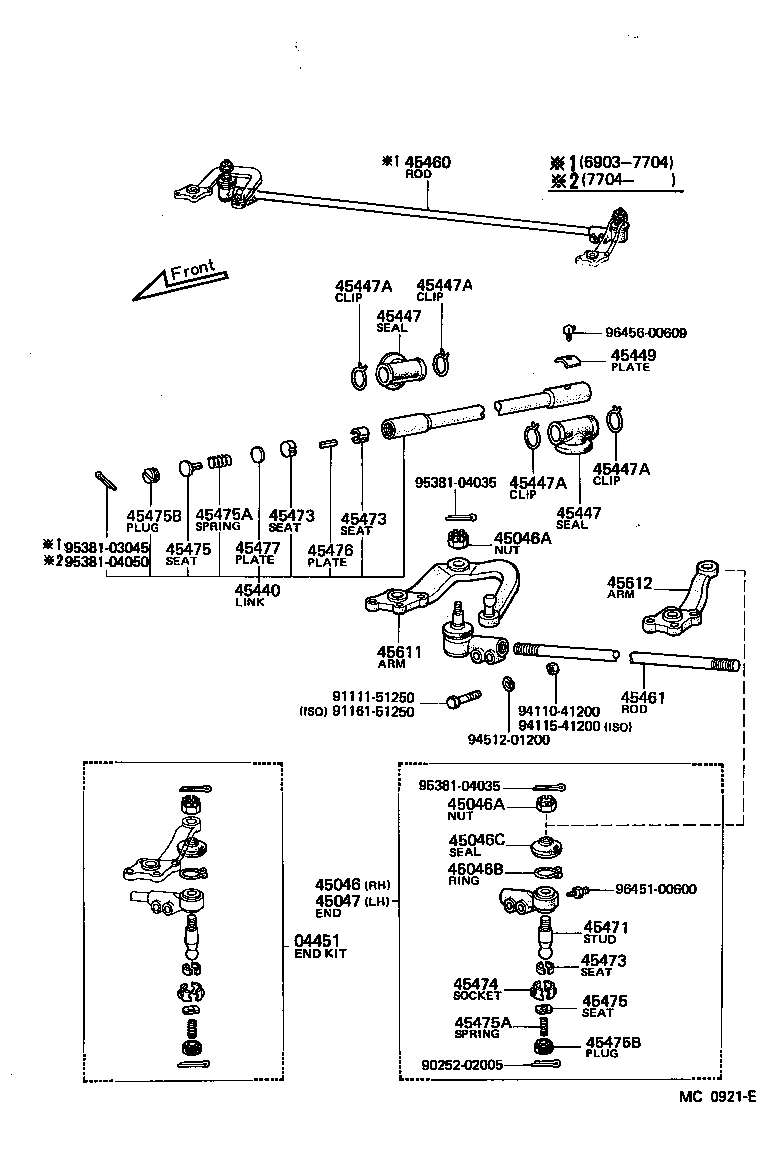

ILLUST NO. 2 OF 2(6903- )DA11#,DB10#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04451 - END KIT, STEERING TIE ROD | ||||
| 04451-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90522-48025 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-55081 |
DB10#..RHD |
1 | ||
| 45440-96520 |
DB10#..RHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-55011 |
DB10#,FB100;DA11#,FA100,11#,FC100..RHD |
2 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-55011 |
DB10#,FB100;DA11#,FA100,11#,FC100..RHD |
2 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45449 - PLATE, DRAG LINK DUST SEAL | ||||
| 45449-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-55040 |
DB10# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-55040 |
DB10# |
1 | ||
| 45471 - STUD, STEERING LINK JOINT | ||||
| 45471-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45474 - SOCKET, BALL STUD SEAT | ||||
| 45474-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 45475-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 45475-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-23104 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90501-55119 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-23104 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90501-55119 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-48007 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90340-33015 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-48007 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90340-33015 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-55080 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-55060 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| Common parts | ||||
| 90252-02005 | ||||
| 91111-51250 | ||||
| 91161-51250 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 95381-03045 | ||||
| 95381-04035 | ||||
| 95381-04050 | ||||
| 96451-00600 | ||||
| 96456-00609 | ||||

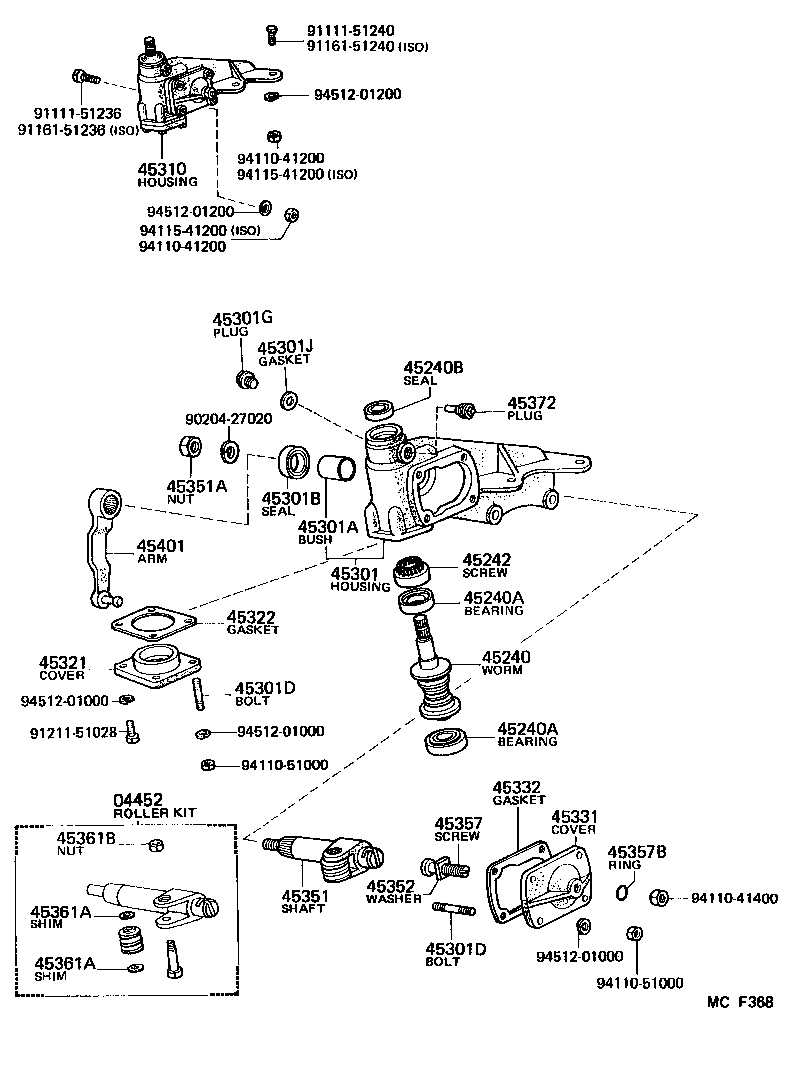

ILLUST NO. 1 OF 2(6903-7003)DB10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04452 - ROLLER KIT, STEERING SECTOR | ||||
| 04452-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45241-55040 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| 45240-96520 |
DB10#..RHD |
1 | ||
| 45240-96518 |
DB10#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-24052 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-55080 |
DB10#..RHD |
1 | ||
| 45311-96522 |
DB10#..RHD |
1 | ||
| 45301-96520 |
DB10#..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-70032 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36035 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10102 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10102 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90341-18002 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45301J - GASKET, STEERING GEAR HOUSING OIL PLUG | ||||
| 90430-18012 |
DA11#,DB10#,FA100,11#,FC100 ID=18.5,OD=26 |
2 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.20 |
1 | ||
| 45323-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.30 |
2 | ||
| 45324-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.50 |
3 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45350-55020 |
DA11#,DB10#,FA100,11#,FC100..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.0 |
1 | ||
| 45352-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=3.9 |
1 | ||
| 45355-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.2 |
1 | ||
| 45354-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.1 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45357B - RING, O, SECTOR SHAFT ADJUSTING SCREW | ||||
| 90301-10005 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-15064 |
DA11#,DB10# |
2 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-15064 |
DA11#,DB10# |
2 | ||
| 45361B - NUT(FOR STEERING SECTOR ROLLER SETTING) | ||||
| 90170-12051 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 45372-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45372-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-55101 |
DB10#..RHD |
1 | ||
| 45401-96520 |
DB10#..RHD |
1 | ||
| Common parts | ||||
| 90204-27020 | ||||
| 91111-51236 | ||||
| 91111-51240 | ||||
| 91161-51236 | ||||
| 91161-51240 | ||||
| 91211-51028 | ||||
| 94110-41200 | ||||
| 94110-41400 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
