DB105C- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7704)DA11#,DB10#,FA100,11#,FC100

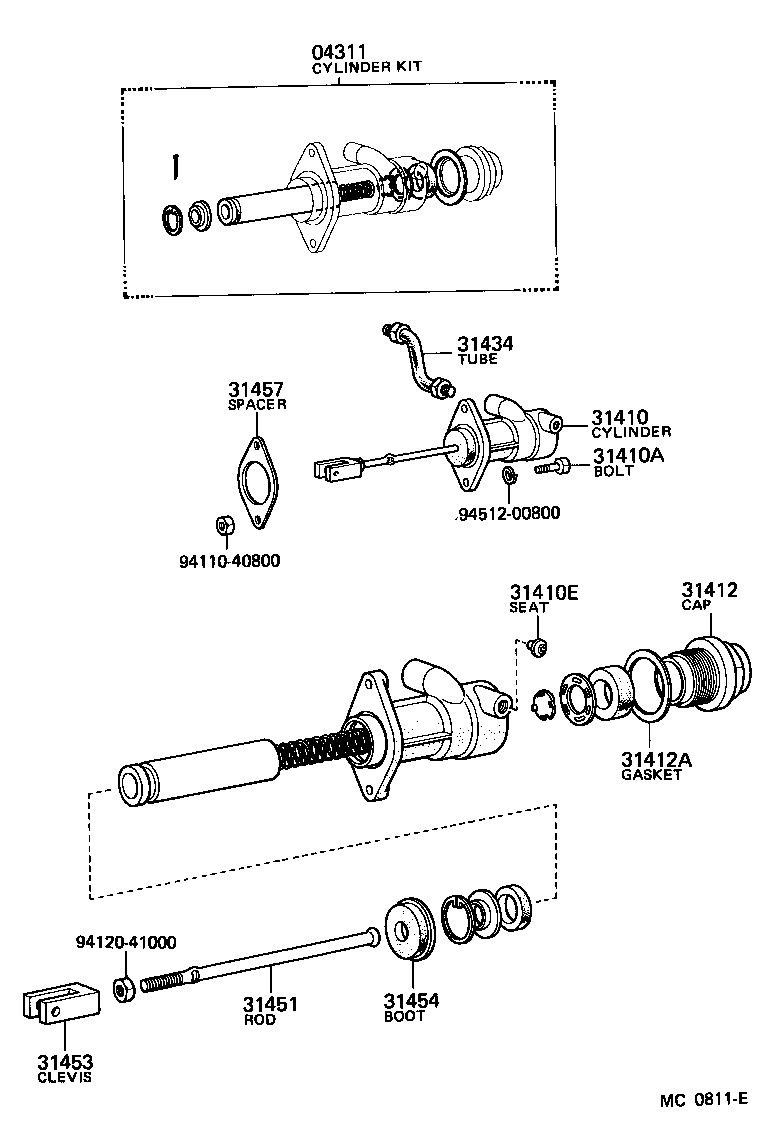

Click highlighted areas on diagram

diagram 04311 31410 31410A 31410E 31412 31412A 31434 31451 31453 31454 31457 9411040800 9412041000 9451200800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-40010

DA11#,DB10#,FA100,11#,FC100

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-55021

DB10#

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91111-40832

DA11#,DB10#,FA100,11#,FB100,FC100

 2
31410E - SEAT, UNION(FOR CLUTCH MASTER CYLINDER)
90410-05010

DA11#,DB10#,FA100,11#,FC100

 2
31412 - CAP, CLUTCH MASTER CYLINDER
31412-30020

DA11#,DB10#,FA100,11#,FC100

 1
31412A - GASKET(FOR CLUTCH MASTER CYLINDER CAP)
90430-34017

DA11#,DB10#,FA100,11#,FC100

 1
31434 - TUBE, CLUTCH RESERVOIR
47209-55012

DA11#,DB10#,FA100,11#,FC100

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-55020

DB10#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-30011

DA11#,DB10#,FA100,11#,FC100

 1
31453-30011

DB10#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-30020

DA11#,DB10#,FA100,11#,FC100

 1
31457 - SPACER, CLUTCH MASTER CYLINDER
31457-96518

DB10#

 1
Common parts
94110-40800
94120-41000
94512-00800
