DB105C- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7704)2D

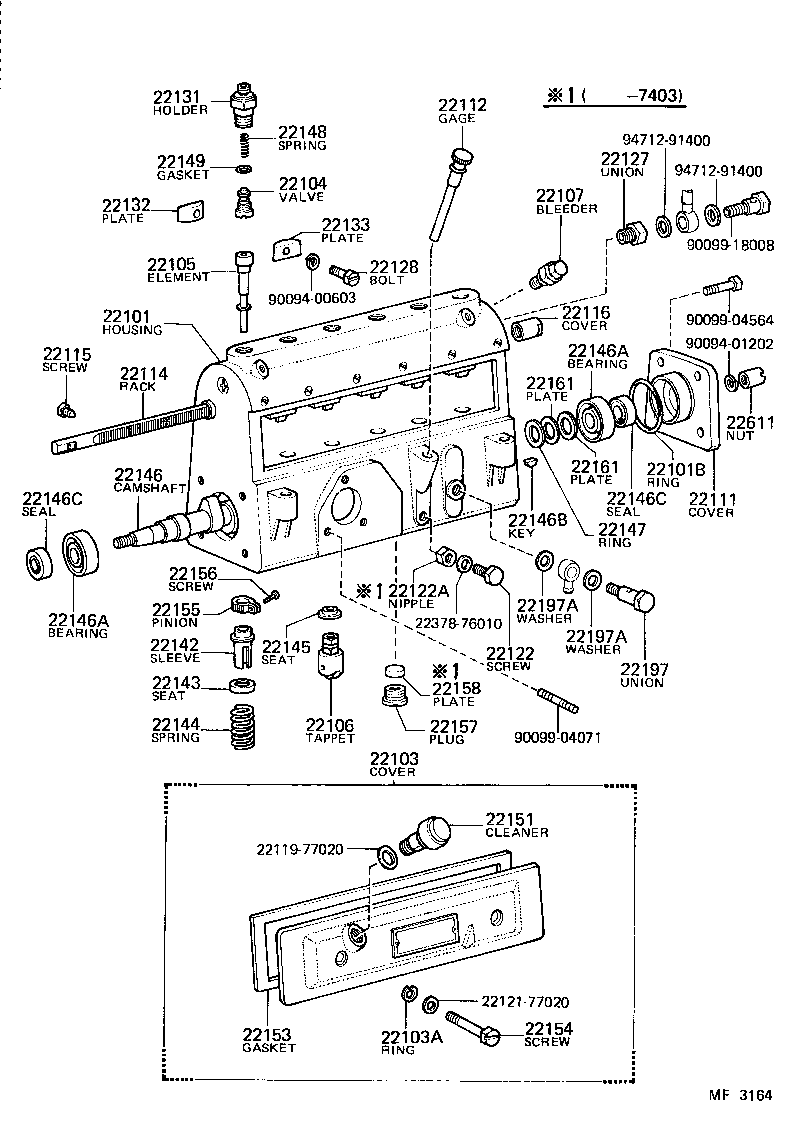

Click highlighted areas on diagram

diagram 22101 22101B 22103 22103A 22104 22105 22106 22107 22111 22112 22114 22115 22116 2211977020 2212177020 22122 22122A 22127 22128 22131 22132 22133 22142 22143 22144 22145 22146 22146A 22146A 22146B 22146C 22146C 22147 22148 22149 22151 22153 22154 22155 22156 22157 22158 22161 22161 22197 22197A 22197A 2237876010 22611 9009400603 9009401202 9009904071 9009904564 9009918008 9471291400 9471291400
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22101-77020

2D..DA11#,DB10#

 1
22101B - RING, O(FOR INJECTION PUMP HOUSING)
90099-14002

2D..DA11#,DB10#

 2
22103 - COVER SUB-ASSY, INJECTION PUMP
22103-77051

2D..DB10#

 1
22103A - RING, SNAP(FOR INJECTION PUMP COVER)
90099-07020

2D..DB10#

 2
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-77020

2D..DA11#,DB10#

 6
22105 - ELEMENT SUB-ASSY, INJECTION PUMP
22105-77020

2D..DA11#,DB10#

 6
22106 - TAPPET SUB-ASSY, INJECTION PUMP
22106-77020

2D..DA11#,DB10#

 6
22107 - BLEEDER SUB-ASSY, AIR
22150-67010

2D..DA11#,DB10#

 1
22111 - COVER, INJECTION PUMP CAMSHAFT BEARING
22111-77020

2D..DA11#,DB10#

 1
22112 - GAGE, INJECTION PUMP OIL LEVEL
22112-77021

2D..DA11#,DB10#

 1
22114 - RACK, CONTROL
22114-77020

2D..DA11#,DB10#

 1
22115 - SCREW, RACK GUIDE
22115-77020

2D..DA11#,DB10#

 1
22116 - COVER, CONTROL RACK
22116-77020

2D..DA11#,DB10#

 1
22122 - SCREW, DRAIN
22122-77020

2D..DA11#,DB10#

 1
22122A - NIPPLE, DRAIN PLUG
22123-77020

2D..DA11#,DB10#

 1
22127 - UNION, INJECTION PUMP FUEL INLET
22127-76010

2D..DA11#,DB10#

 1
22128 - BOLT(FOR DELIVERY VALVE HOLDER LOCK PLATE)
22128-77020

2D..DA11#,DB10#

 3
22131 - HOLDER, DELIVERY VALVE
22131-77020

2D..DA11#,DB10#

 6
22132 - PLATE, DELIVERY VALVE HOLDER REAR LOCK
22132-77021

2D..DA11#,DB10#

 3
22133 - PLATE, DELIVERY VALVE HOLDER FRONT LOCK
22133-77021

2D..DA11#,DB10#

 3
22142 - SLEEVE, PLUNGER CONTROL
22142-77020

2D..DA11#,DB10#

 6
22143 - SEAT, SPRING UPPER
22143-77020

2D..DA11#,DB10#

 6
22144 - SPRING, PUMP PLUNGER
90501-30133

2D..DA11#,DB10#

 6
22145 - SEAT, SPRING, LOWER
22145-77020

2D..DA11#,DB10#

 6
22146 - CAMSHAFT, INJECTION PUMP
22146-77020

2D..DA11#,DB10#

 1
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2D..DA11#,DB10#

 2
22146A - BEARING(FOR INJECTION CAMSHAFT)
90099-10087

2D..DA11#,DB10#

 2
22146B - KEY(FOR INJECTION PUMP CAMSHAFT)
90099-13002

2D..DA11#,DB10#

 1
22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT
90099-15003

2D..DA11#,DB10#

 2
22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT
90099-15003

2D..DA11#,DB10#

 2
22147 - RING, CAMSHAFT ADJUST
22147-77020

2D..DA11#,DB10#

 2
22148 - SPRING, DELIVERY VALVE
22148-77020

2D..DA11#,DB10#

 6
22149 - GASKET, DELIVERY VALVE
22149-76010

2D..DA11#,DB10#

 6
22151 - CLEANER, INJECTION PUMP AIR
22151-46021

2D..DA11#,DB10#

 1
22153 - GASKET, INJECTION PUMP COVER PLATE
22153-76010

2D..DA11#,DB10#

 1
22154 - SCREW(FOR INJECTION PUMP COVER SETTING)
22154-76051

2D..DA11#,DB10#

 2
22155 - PINION, PLUNGER CONTROL
22155-76010

2D..DA11#,DB10#

 6
22156 - SCREW, PLUNGER CONTROL PINION CLAMP
22156-76010

2D..DA11#,DB10#

 6
22157 - PLUG, INJECTION PUMP FELT PLATE
22157-48023

2D..DA11#,DB10#

 6
22158 - PLATE, INJECTION PUMP CAMSHAFT OIL FELT
22158-76010

2D..DA11#,DB10#

 6
22161 - PLATE, CAMSHAFT SHIM
22162-76010

2D..DA11#,DB10#

T=0.12,T=0.12

 1
22161-76010

2D..DA11#,DB10#

T=0.10,T=0.10

 1
22165-76010

2D..DA11#,DB10#

T=0.18,T=0.18

 1
22164-76010

2D..DA11#,DB10#

T=0.16,T=0.16

 1
22163-76010

2D..DA11#,DB10#

T=0.14,T=0.14

 1
22166-76010

2D..DA11#,DB10#

T=0.50,T=0.50

 1
22161 - PLATE, CAMSHAFT SHIM
22162-76010

2D..DA11#,DB10#

T=0.12,T=0.12

 1
22161-76010

2D..DA11#,DB10#

T=0.10,T=0.10

 1
22165-76010

2D..DA11#,DB10#

T=0.18,T=0.18

 1
22164-76010

2D..DA11#,DB10#

T=0.16,T=0.16

 1
22163-76010

2D..DA11#,DB10#

T=0.14,T=0.14

 1
22166-76010

2D..DA11#,DB10#

T=0.50,T=0.50

 1
22197 - NIPPLE, OVER FLOW
90099-18005

2D..DA11#,DB10#

 1
22197A - WASHER(FOR OVER FLOW NIPPLE)
90201-10108

2D..DA11#,DB10#

 2
22197A - WASHER(FOR OVER FLOW NIPPLE)
90201-10108

2D..DA11#,DB10#

 2
22611 - NUT, TIMER ROUND
22611-77020

2D..DA11#,DB10#

 1
Common parts
22119-77020
22121-77020
22378-76010
90094-00603
90094-01202
90099-04071
90099-04564
90099-18008
94712-91400
