DB105C- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1977
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7704)2D

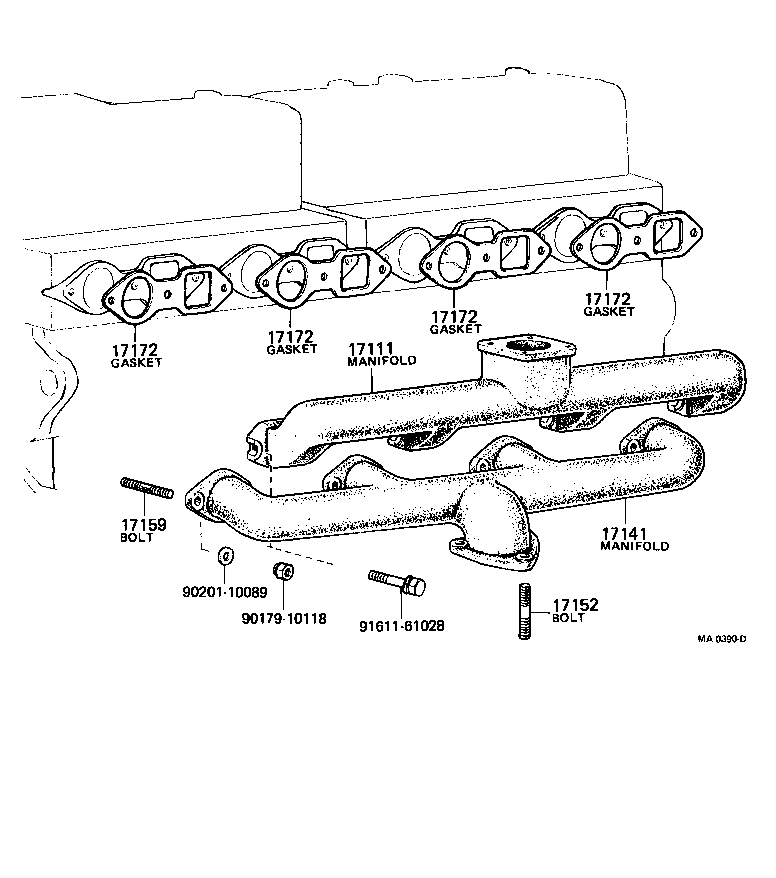

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17172 17172 17172 17172 9017910118 9020110089 9161161028
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-76010

2D..DA11#,DB10#

 1
17141 - MANIFOLD, EXHAUST
17141-76020

2D..DA11#,DB10#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

2D..DA11#,DB10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10070

2D..DA11#,DB10#

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
Common parts
90179-10118
90201-10089
91611-61028

(7501-7608)F

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17111B 17151 17152 17159 17169 17171 17171 17172 9010110485 9010110486 9017012211 9020112118 9111151030 9161941225 9451201000 9451201000
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

2D..DA11#,DB10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10070

2D..DA11#,DB10#

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
Common parts
90101-10485
90101-10486
90170-12211
90201-12118
91111-51030
91619-41225
94512-01000

(6903-7501)F

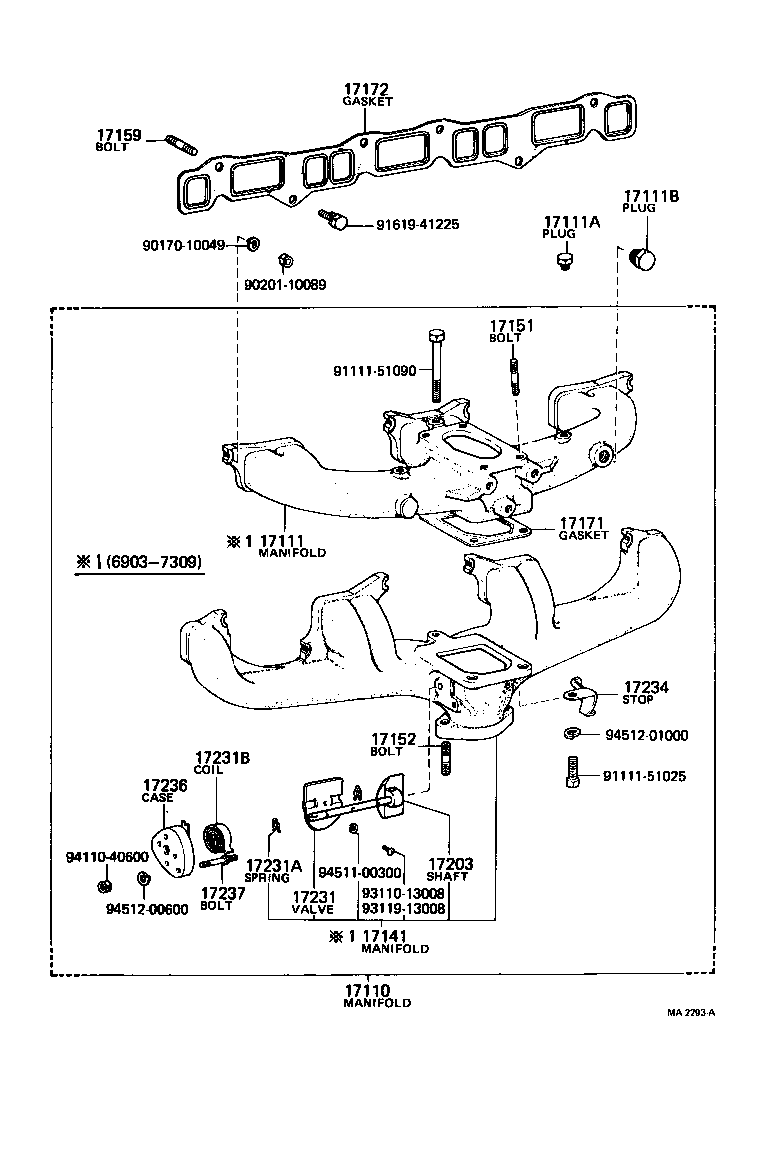

Click highlighted areas on diagram

diagram 17110 17111 17111A 17111B 17141 17151 17152 17159 17171 17172 17203 17231 17231A 17231B 17234 17236 17237 9017010049 9020110089 9111151025 9111151090 9161941225 9311013008 9311913008 9411040600 9451100300 9451200600 9451201000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-76010

2D..DA11#,DB10#

 1
17141 - MANIFOLD, EXHAUST
17141-76020

2D..DA11#,DB10#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

2D..DA11#,DB10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10070

2D..DA11#,DB10#

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-76011

2D..DA11#,DB10#

 4
Common parts
90170-10049
90201-10089
91111-51025
91111-51090
91619-41225
93110-13008
93119-13008
94110-40600
94511-00300
94512-00600
94512-01000
