DB102LC-Q (1969)
Toyota Heavy Duty Truck

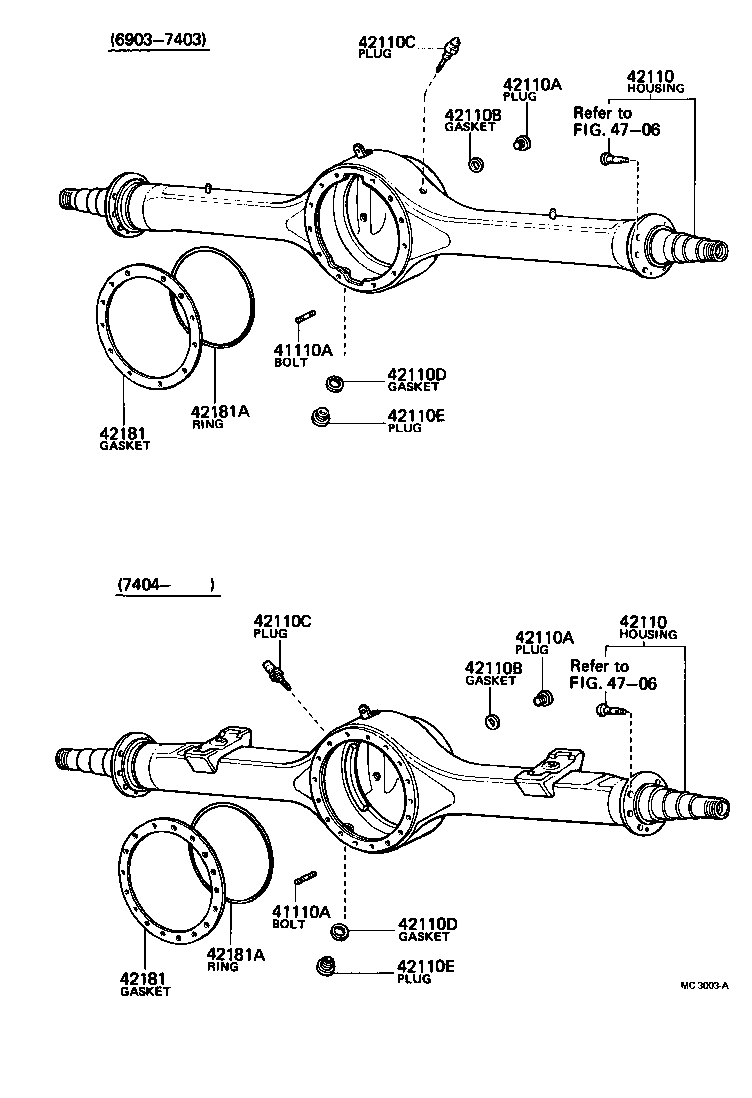

ILLUST NO. 1 OF 4(6903- )DA11#,DB10#,FA100,11#,FB100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90101-12103 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 90116-12048 |
DB10#,FB100;DA11#,FA100,11#..1SR L=40 |
8 | ||
| 90101-12288 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 90116-12047 |
DA11#,DB10#,FA100,11#,FB100,FC100 L=32 |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90101-12103 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 90116-12048 |
DB10#,FB100;DA11#,FA100,11#..1SR L=40 |
8 | ||
| 90101-12288 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 90116-12047 |
DA11#,DB10#,FA100,11#,FB100,FC100 L=32 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-56012 |
DB10# |
1 | ||
| 42110-56011 |
DB10# |
1 | ||
| 42110-96519 |
DB10# |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-56012 |
DB10# |
1 | ||
| 42110-56011 |
DB10# |
1 | ||
| 42110-96519 |
DB10# |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-25022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-25022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-25034 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-25034 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-55021 |
DA11#,DB10#,FA100,11#,FB100 T=1.0 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-55021 |
DA11#,DB10#,FA100,11#,FB100 T=1.0 |
1 | ||
| 42181A - RING, O (FOR DIFFERENTIAL CARRIER GASKET) | ||||
| 90301-99091 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42181A - RING, O (FOR DIFFERENTIAL CARRIER GASKET) | ||||
| 90301-99091 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| Linked diagrams | ||||
| 4706 | ||||

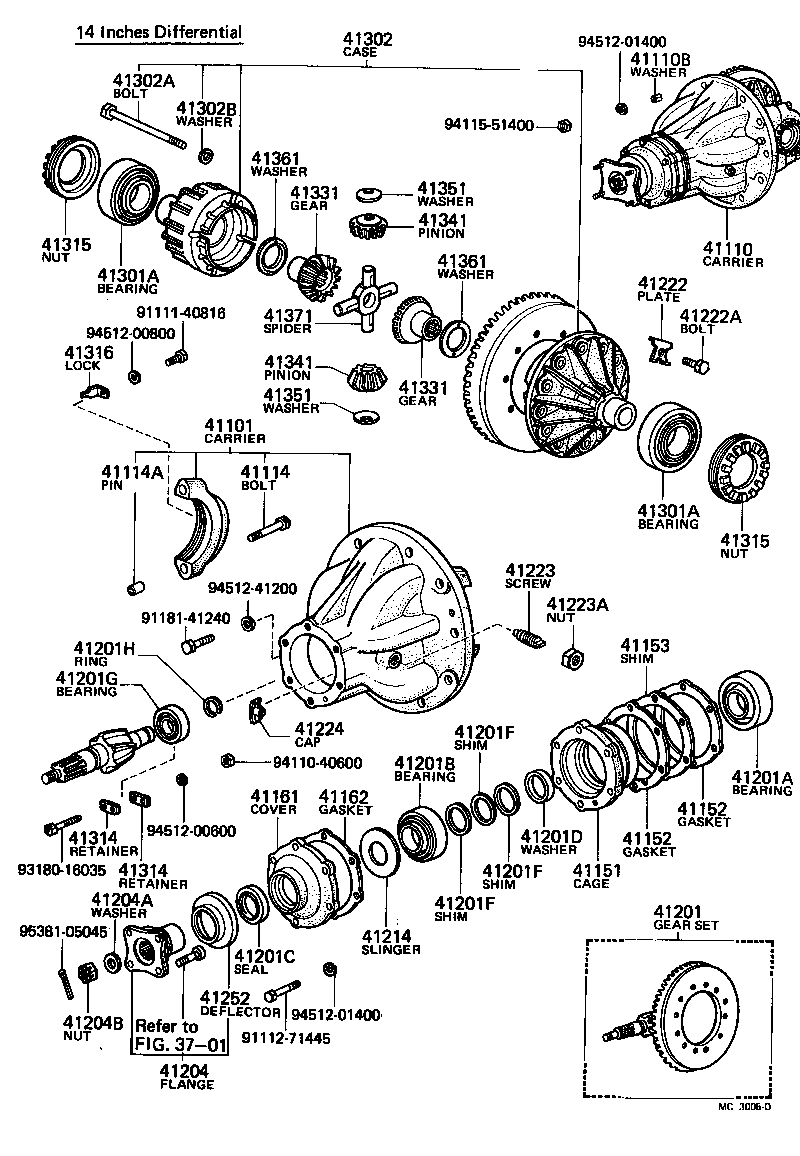

ILLUST NO. 2 OF 4(6903-7403)DA11#..1SR ; (6903-7403)DA11#..1SR ;(6903-8202)FA100,11#..1SR ; (6903-8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-55013 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41101-55012 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-56011 |
DB10# R=35:6=5.833 |
1 | ||
| 41110B - WASHER, CONE (FOR DIFFERENTIAL CARRIER SET) | ||||
| 42323-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90930-04007 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90930-04004 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 41114A - PIN, RING, REAR DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-22002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41152 - GASKET, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41152-55030 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.2 |
2 | ||
| 41152 - GASKET, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41152-55030 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.2 |
2 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41155-55010 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.228 |
3 | ||
| 41156-55010 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.450 |
3 | ||
| 41154-55010 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.150 |
3 | ||
| 41153-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.100 |
3 | ||
| 41161 - COVER, DIFFERENTIAL DRIVE PINION | ||||
| 41161-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-55010 |
DB10#,FB100;DA11#,FA100,11#..1SR T=0.5 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-55052 |
DB10#;DA11#..1SR N=35:6 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30310 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30310 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-65032 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-50090 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-30009 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90520-28044 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 37304-57010 |
DB10#,FB100 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-31125 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90171-30008 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
12 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-16039 |
DB10#,FB100;DA11#,FA100,11#..1SR *16-1.5PX32-18 |
12 | ||
| 90109-16010 |
DB10#,FB100;DA11#,FA100,11#..1SR |
12 | ||
| 41223 - SCREW, DIFFERENTIAL RING GEAR THRUST | ||||
| 41223-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41223A - NUT, HEXAGON (FOR RING GEAR THRUST SCREW LOCK) | ||||
| 90170-25034 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41224 - CAP, DIFFERENTIAL DRIVE GEAR SCREW | ||||
| 41224-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-55030 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-55022 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90930-04005 |
DB10#,FB100;DA11#,FA100,11#..1SR |
12 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90201-13124 |
DB10#,FB100;DA11#,FA100,11#..1SR |
12 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41314-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41314-55020 |
DB10#,FB100;DA11#,FA100,11#..1SR |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-55021 |
DB10#,FB100;DA11#,FA100,11#..1SR |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91112-71445 | ||||
| 91181-41240 | ||||
| 93180-16035 | ||||
| 94110-40600 | ||||
| 94115-51400 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-41200 | ||||
| 95381-05045 | ||||
| Linked diagrams | ||||
| 3701 | ||||
