DB102C-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1974
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

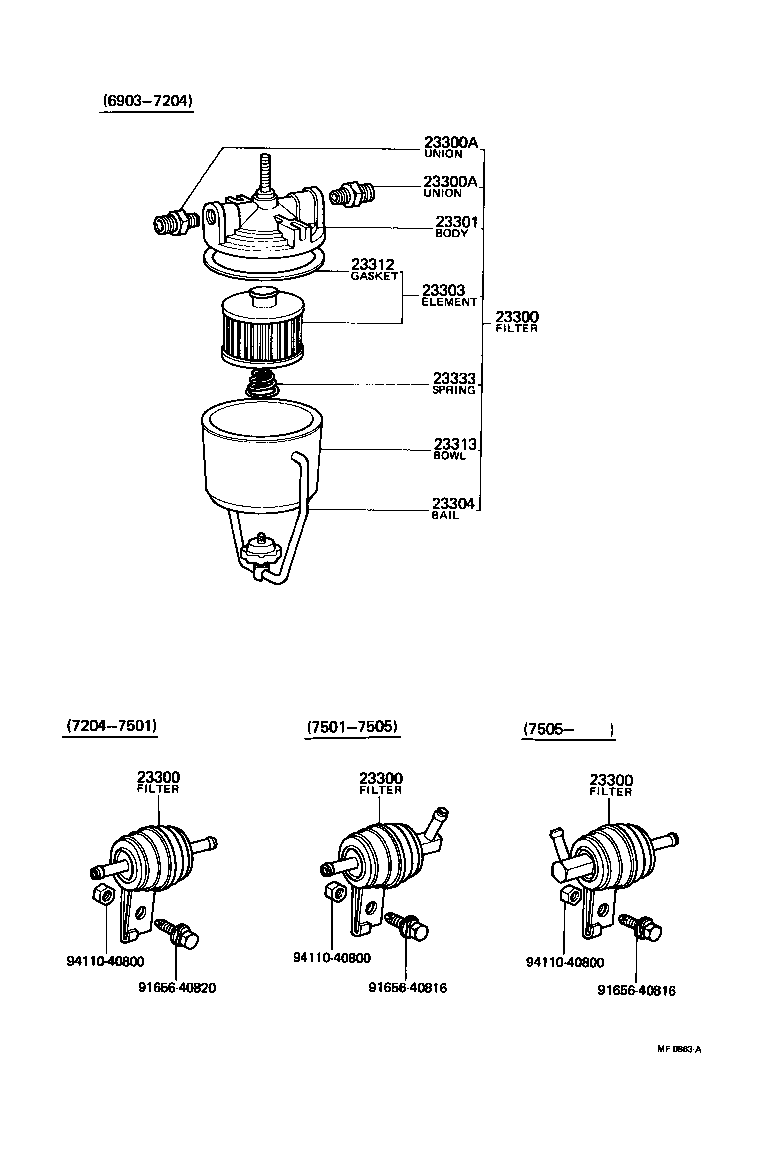

(6903-8207)F

Click highlighted areas on diagram

diagram 23300 23300 23300 23300 23300A 23300A 23301 23303 23304 23312 23313 23333 9165640816 9165640816 9165640820 9411040800 9411040800 9411040800
Part # Description Qty Price
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-76021

2D..DA11#,DB10#

 1
23312 - GASKET, FILTER BOWL
23312-76020

2D..DA11#,DB10#

 2
23313 - BOWL OR CYLINDER, FUEL FILTER
23313-76012

2D..DA11#,DB10#

 1
23333 - SPRING, FILTER ELEMENT SET
23333-76021

2D..DA11#,DB10#

 1
Common parts
91656-40816
91656-40820
94110-40800

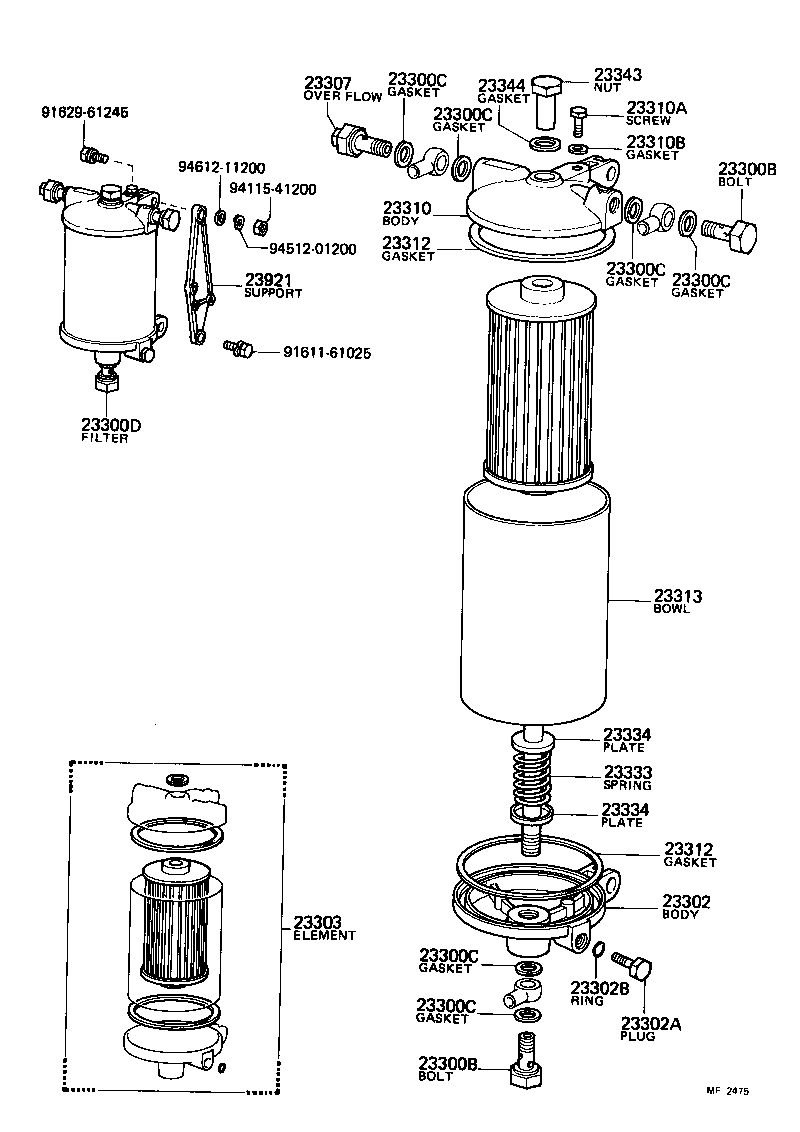

(6903-7704)2D

Click highlighted areas on diagram

diagram 23300B 23300B 23300C 23300C 23300C 23300C 23300C 23300C 23300D 23302 23302A 23302B 23303 23307 23310 23310A 23310B 23312 23312 23313 23333 23334 23334 23343 23344 23921 9161161025 9162961245 9411541200 9451201200 9461211200
Part # Description Qty Price
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90401-14007

2D..DA11#,DB10#

 2
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90401-14007

2D..DA11#,DB10#

 2
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22125-77020

2D..DA11#,DB10#

 6
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-76051

2D..DA11#,DB10#

 1
23302 - BODY SUB-ASSY, FUEL FILTER, LOWER
23302-76021

2D..DA11#,DB10#

 1
23302A - PLUG(FOR FUEL FILTER LOWER BODY)
23351-46010

2D..DA11#,DB10#

 1
23302B - RING(FOR FUEL FILTER LOWER BODY)
23353-46010

2D..DA11#,DB10#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-76021

2D..DA11#,DB10#

 1
23307 - OVERFLOW SUB-ASSY, FUEL FILTER
23307-76021

2D..DA11#,DB10#

 1
23310 - BODY, FUEL FILTER, UPPER
23311-76013

2D..DA11#,DB10#

 1
23310A - SCREW, AIR VENT(FOR FUEL FILTER)
23351-76010

2D..DA11#,DB10#

 1
23310B - GASKET, AIR VENT(FOR FUEL FILTER)
23353-76020

2D..DA11#,DB10#

 1
23312 - GASKET, FILTER BOWL
23312-76020

2D..DA11#,DB10#

 2
23312 - GASKET, FILTER BOWL
23312-76020

2D..DA11#,DB10#

 2
23313 - BOWL OR CYLINDER, FUEL FILTER
23313-76012

2D..DA11#,DB10#

 1
23333 - SPRING, FILTER ELEMENT SET
23333-76021

2D..DA11#,DB10#

 1
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-76021

2D..DA11#,DB10#

 2
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-76021

2D..DA11#,DB10#

 2
23343 - NUT, CLAMPING(FOR FUEL FILTER)
23343-76021

2D..DA11#,DB10#

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-76020

2D..DA11#,DB10#

 1
23921 - SUPPORT, FUEL FILTER
23921-76010

2D..DA11#,DB10#

 1
Common parts
91611-61025
91629-61245
94115-41200
94512-01200
94612-11200
