DB102C-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Mar 1974
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

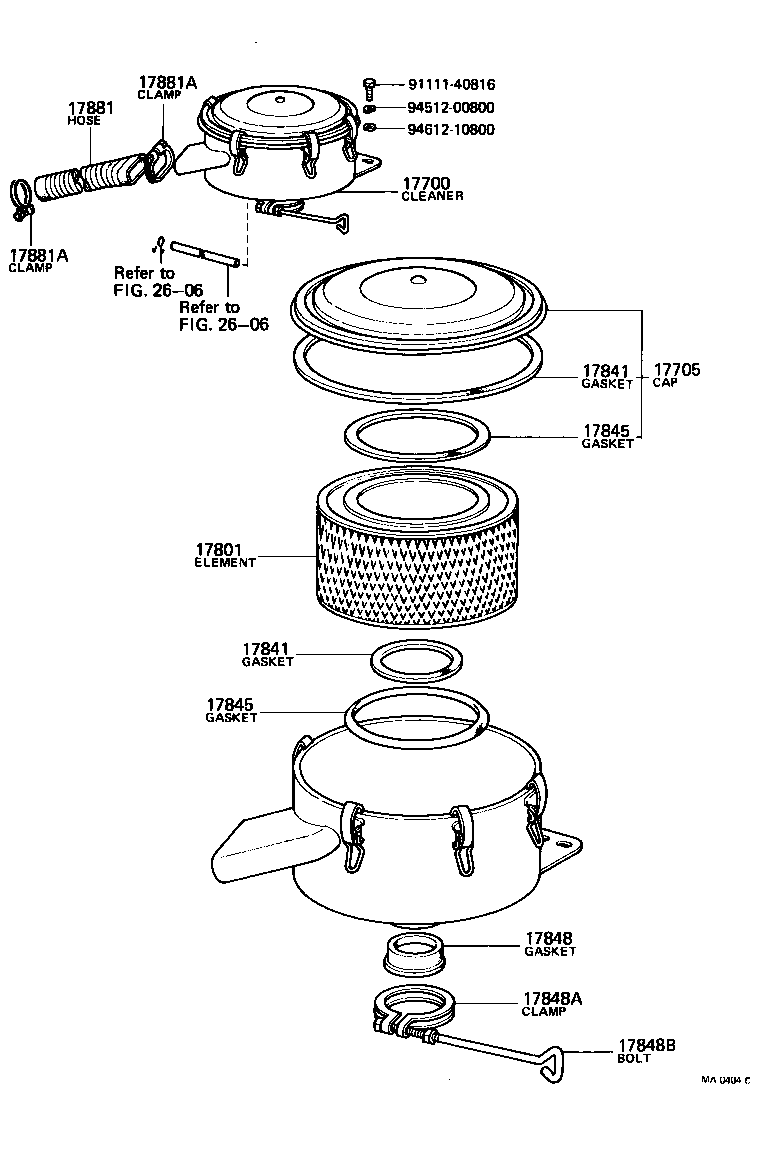

(6903-7704)2D

Click highlighted areas on diagram

diagram 17700 17705 17801 17841 17841 17845 17845 17848 17848A 17848B 17881 17881A 17881A 2606 2606 9111140816 9451200800 9461210800
Part # Description Qty Price
17705 - CAP SUB-ASSY, AIR CLEANER
17705-79010

2D..DA11#,DB10#

OIL BATH

 1
17705-77010

2D..DA11#,DB10#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77020

2D..DA11#,DB10#

PAPER ELEMENT

 1
17801-79020

2D..DA11#,DB10#

OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17845 - GASKET, AIR CLEANER CAP
17845-76010

2D..DA11#,DB10#

UPR,OIL BATH

 1
90430-99066

2D..DA11#,DB10#

LWR

 1
90430-99084

2D..DA11#,DB10#

LWR,OIL BATH

 1
17845 - GASKET, AIR CLEANER CAP
17845-76010

2D..DA11#,DB10#

UPR,OIL BATH

 1
90430-99066

2D..DA11#,DB10#

LWR

 1
90430-99084

2D..DA11#,DB10#

LWR,OIL BATH

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90301-70057

2D..DA11#,DB10#

OIL BATH

 1
17848A - CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90461-23141

2D..DA11#,DB10#

OIL BATH

 1
17848B - BOLT, CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90910-07012

2D..DA11#,DB10#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-76040

2D..DA11#,DB10#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-92035

2D..DA11#,DB10#

BODY SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-92035

2D..DA11#,DB10#

BODY SIDE

 1
Common parts
91111-40816
94512-00800
94612-10800
Linked diagrams
2606

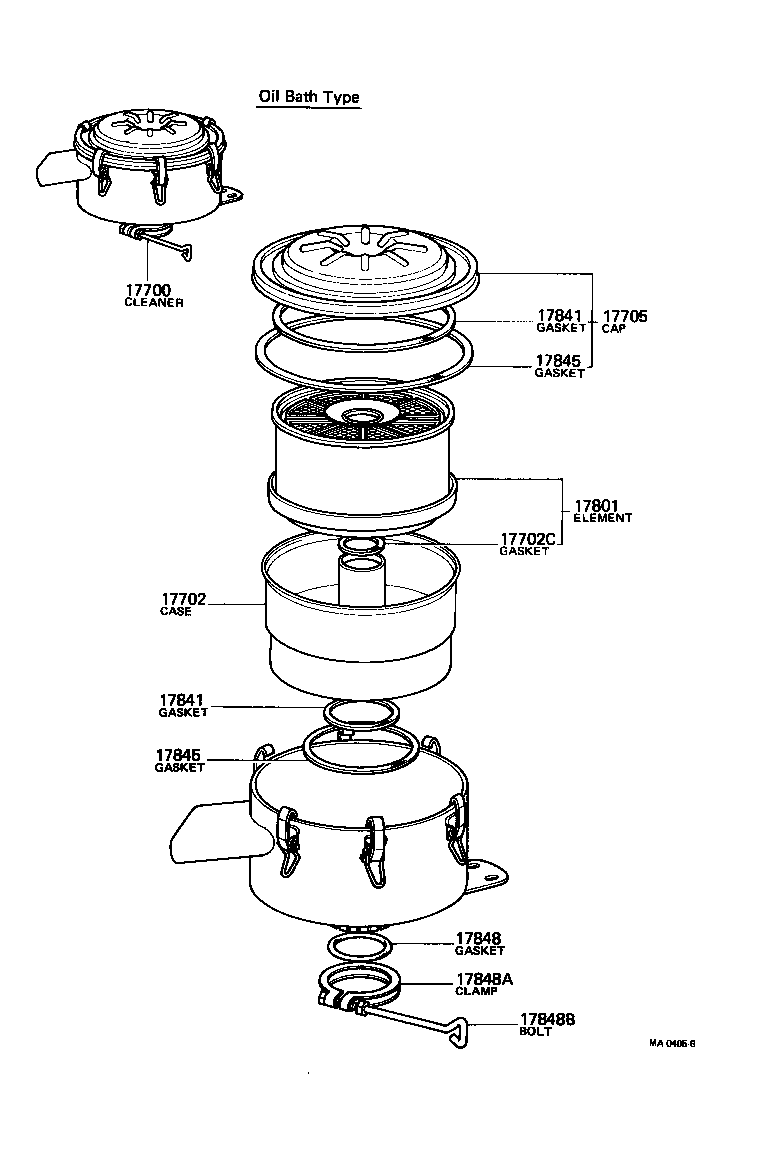

(6903-7704)2D

Click highlighted areas on diagram

diagram 17700 17702 17702C 17705 17801 17841 17841 17845 17845 17848 17848A 17848B
Part # Description Qty Price
17705 - CAP SUB-ASSY, AIR CLEANER
17705-79010

2D..DA11#,DB10#

OIL BATH

 1
17705-77010

2D..DA11#,DB10#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77020

2D..DA11#,DB10#

PAPER ELEMENT

 1
17801-79020

2D..DA11#,DB10#

OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17845 - GASKET, AIR CLEANER CAP
17845-76010

2D..DA11#,DB10#

UPR,OIL BATH

 1
90430-99066

2D..DA11#,DB10#

LWR

 1
90430-99084

2D..DA11#,DB10#

LWR,OIL BATH

 1
17845 - GASKET, AIR CLEANER CAP
17845-76010

2D..DA11#,DB10#

UPR,OIL BATH

 1
90430-99066

2D..DA11#,DB10#

LWR

 1
90430-99084

2D..DA11#,DB10#

LWR,OIL BATH

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90301-70057

2D..DA11#,DB10#

OIL BATH

 1
17848A - CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90461-23141

2D..DA11#,DB10#

OIL BATH

 1
17848B - BOLT, CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90910-07012

2D..DA11#,DB10#

 1

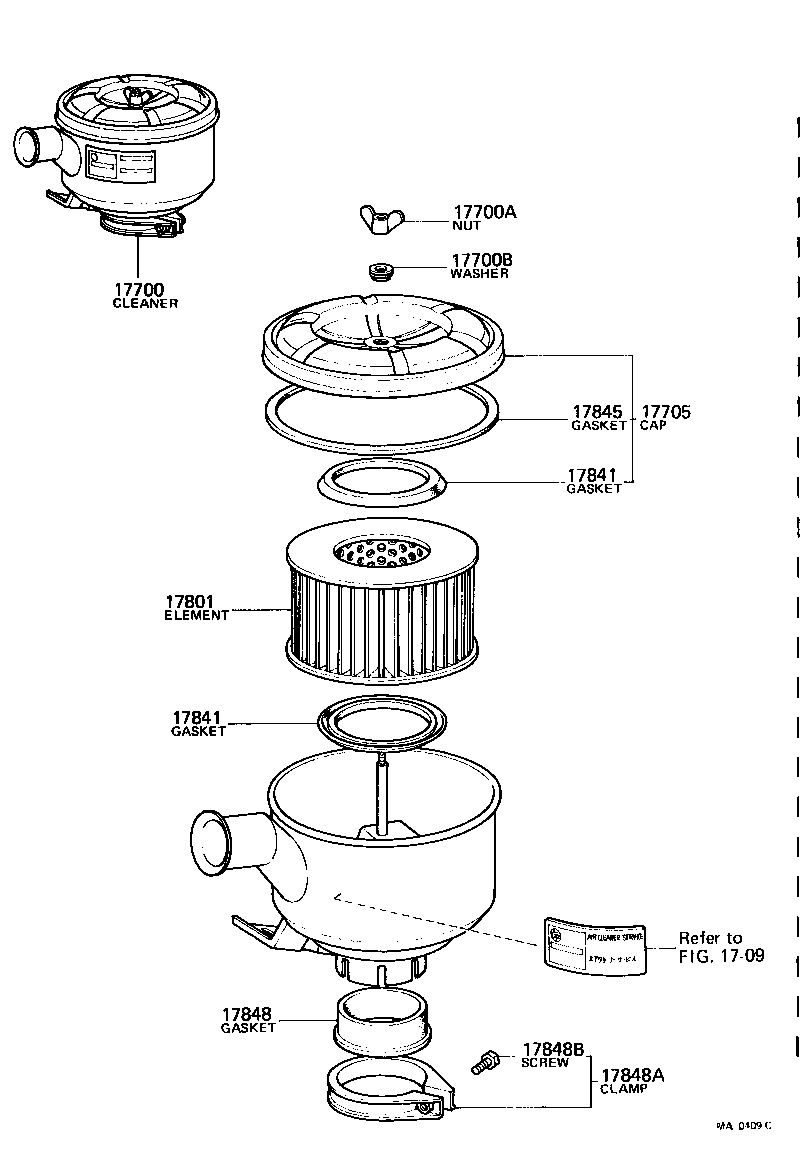

(6903-7501)F

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17705 17801 17841 17841 17845 17848 17848A 17848B
Part # Description Qty Price
17705 - CAP SUB-ASSY, AIR CLEANER
17705-79010

2D..DA11#,DB10#

OIL BATH

 1
17705-77010

2D..DA11#,DB10#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77020

2D..DA11#,DB10#

PAPER ELEMENT

 1
17801-79020

2D..DA11#,DB10#

OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17841 - GASKET, FILTER ELEMENT
17735-77010

2D..DA11#,DB10#

UPR

 1
90430-95080

2D..DA11#,DB10#

LWR,OIL BATH

 1
17841-77010

2D..DA11#,DB10#

LWR

 1
17841-79030

2D..DA11#,DB10#

UPR,OIL BATH

 1
17845 - GASKET, AIR CLEANER CAP
17845-76010

2D..DA11#,DB10#

UPR,OIL BATH

 1
90430-99066

2D..DA11#,DB10#

LWR

 1
90430-99084

2D..DA11#,DB10#

LWR,OIL BATH

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90301-70057

2D..DA11#,DB10#

OIL BATH

 1
17848A - CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90461-23141

2D..DA11#,DB10#

OIL BATH

 1
17848B - BOLT, CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90910-07012

2D..DA11#,DB10#

 1
Linked diagrams
1709
