DA116L-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7404- )DA11#,FA100,115

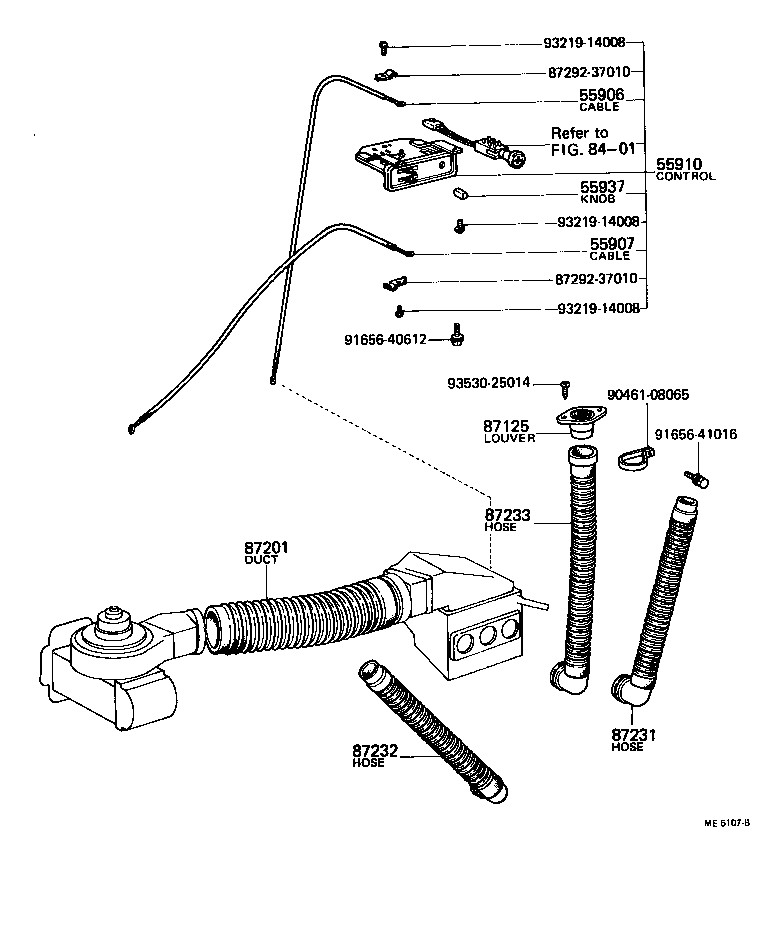

Click highlighted areas on diagram

diagram 55906 55907 55910 55937 8401 87125 87201 87231 87232 87233 8729237010 8729237010 9046108065 9165640612 9165641016 9321914008 9321914008 9321914008 9353025014
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
87286-55050

DA11#,FA100,115..LHD

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
87286-55010

DA11#,FA100,115

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-55020

DA11#,FA100,115..LHD

 1
55910-95215

DA11#,FA100,115..LHD

 1
55910-95211

DA11#,FA100,115..LHD

 1
55937 - KNOB, HEATER CONTROL LEVER
87123-55010

DA11#,FA100,115

 2
87125 - LOUVER, VENTILATION
88570-55010

DA11#,FA100,115

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-22010

DA11#,FA100,115

 1
87231 - HOSE, HEATER DEFROSTER, RH
87232-55010

DA11#,FA100,115

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-55010

DA11#,FA100,115

 1
87233 - HOSE, HEATER DEFROSTER, CENTER
87231-55020

DA11#,FA100,115..LHD

 1
Common parts
87292-37010
90461-08065
91656-40612
91656-41016
93219-14008
93530-25014
Linked diagrams
8401
