DA116L-Q (1969)
Toyota Heavy Duty Truck

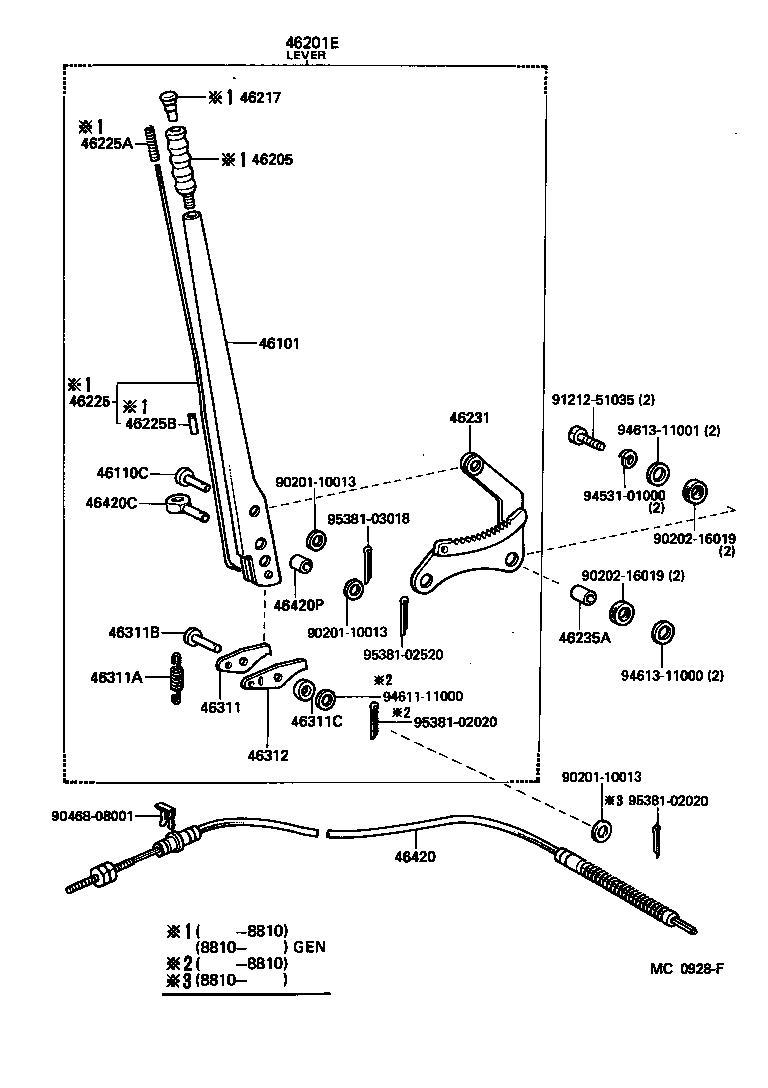

ILLUST NO. 1 OF 2(6903- )DA11#,FA100,11#,FB100..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46201-55031 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46201-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46201-55061 |
DA11#,FA100,115..LHD |
1 | ||
| 46201-55060 |
DA11#..LHD |
1 | ||
| 46201-55060 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46201-55031 |
DA11#,FA100,115..5F |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90240-12045 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46210-55051 |
FA100,11#,FB100..LHD..5F |
1 | ||
| 46210-55050 |
FA100,11#,FB100..LHD..5F |
1 | ||
| 46210-55051 |
DA11#..LHD |
1 | ||
| 46210-55050 |
DA11#,DB10#..LHD |
1 | ||
| 46210-55090 |
DA11#..LHD W/AIR SERVO BRAKE |
1 | ||
| 46210-55051 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46210-55091 |
DA11#,FA100,115..LHD |
1 | ||
| 46210-55090 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46205 - KNOB SUB-ASSY, PARKING BRAKE LEVER | ||||
| 46205-55010 |
DA11#..GEN |
1 | ||
| 46205-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-55030 |
DA11#..GEN |
1 | ||
| 46217-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 ISO |
1 | ||
| 46217-55030 |
DA11#,DB105,FA100,115 |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46209-55031 |
DA11#,DB10#,FA100,11#,FB100..LHD..5F ISO |
1 | ||
| 46209-55022 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46209-55032 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-12160 |
DA11#..GEN |
1 | ||
| 90501-12160 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46225B - RING, PARKING BRAKE PAWL RELEASE ROD | ||||
| 90562-05014 |
DA11#..GEN |
1 | ||
| 90562-05014 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46231 - SECTOR, PARKING BRAKE LEVER | ||||
| 46203-55061 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46203-55062 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46203-55063 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46203-55060 |
DA11#,DB10#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46235A - SPACER, PARKING BRAKE LEVER SUPPORT BRACKET | ||||
| 90560-10106 |
DA11#,FA100,11#,FB100,FC100 L=16 |
2 | ||
| 90560-10041 |
DA11# L=18 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-55030 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46311-55031 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46311-55032 |
DA11#,DB105,FA100,115 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-08069 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 90506-09280 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90240-10061 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46311C - SPACER(FOR PARKING BRAKE PAWL PIVOT) | ||||
| 90560-12240 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 90560-11107 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90560-11107 |
DA11#,DB105,FA100,115 |
1 | ||
| 46312 - PAWL, PARKING BRAKE, NO.2 | ||||
| 46312-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46312-55011 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46410-55030 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 46226-55011 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46226-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46226-55012 |
DA11#,FA100,11#..5F |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-10096 |
DA11#,DB10#,FA100,11#..5F |
1 | ||
| Common parts | ||||
| 90201-10013 | ||||
| 90202-16019 | ||||
| 90468-08001 | ||||
| 91212-51035 | ||||
| 94531-01000 | ||||
| 94611-11000 | ||||
| 94613-11000 | ||||
| 94613-11001 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||
| 95381-03018 | ||||

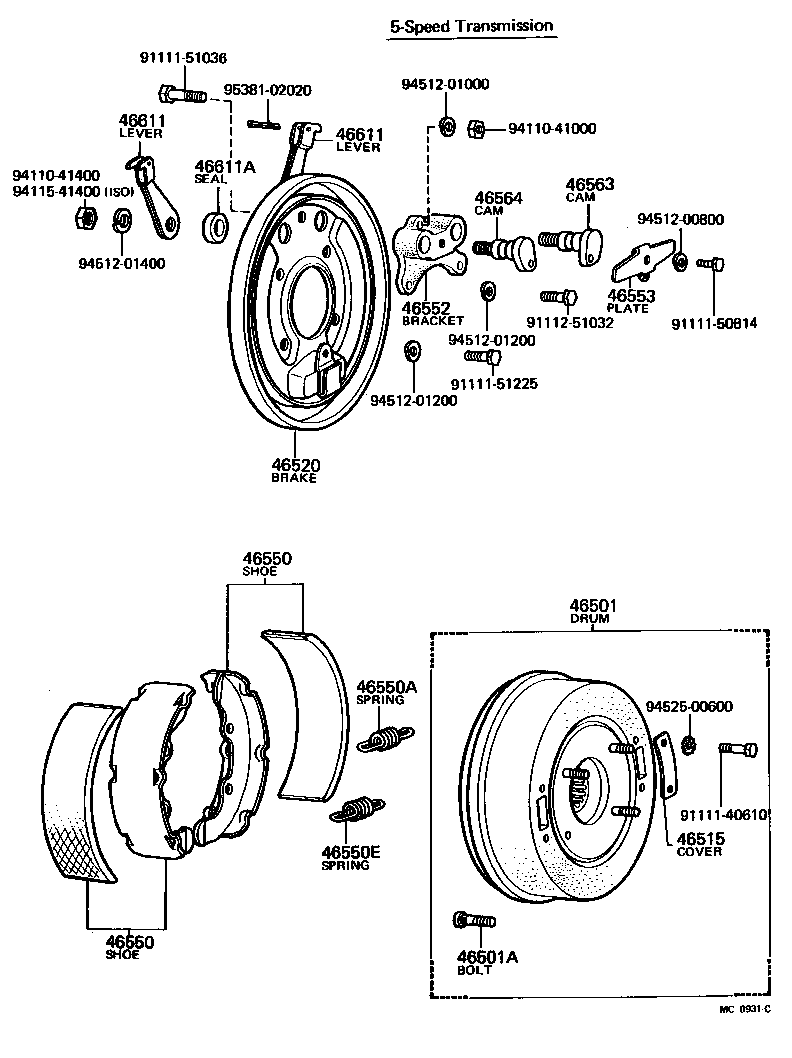

ILLUST NO. 2 OF 2(6903-7003)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501-55012 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-12006 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 90114-12057 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 90114-12057 |
DA11#,DB105,FA100,115 *12-1.25PX35-15 |
4 | ||
| 46515 - COVER, INSPECTION HOLE | ||||
| 46515-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 90950-01089 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100..LHD |
1 | ||
| 46503-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46503-55020 |
DA11#,DB105,FA100,115..LHD |
1 | ||
| 46503-55021 |
DA11#,FA100,115..LHD |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46550-55020 |
DA11#,FA100,115 |
2 | ||
| 46550-55013 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46550-55020 |
DA11#,FA100,115 |
2 | ||
| 46550-55013 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20083 |
DA11#,DB10#,FA100,11#..5F |
2 | ||
| 90506-32305 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20083 |
DA11#,DB10#,FA100,11#..5F |
2 | ||
| 90506-23303 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 46552 - BRACKET, PARKING BRAKE ANCHOR | ||||
| 46552-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46553 - PLATE, ANCHOR PIN | ||||
| 46553-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46553-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46563 - CAM, PARKING BRAKE, NO.1 | ||||
| 46563-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46563-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46564 - CAM, PARKING BRAKE, NO.2 | ||||
| 46564-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46505-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46505-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46611A - SEAL, DUST(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90303-22021 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| Common parts | ||||
| 91111-40610 | ||||
| 91111-50814 | ||||
| 91111-51036 | ||||
| 91111-51225 | ||||
| 91112-51032 | ||||
| 94110-41000 | ||||
| 94110-41400 | ||||
| 94115-41400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94525-00600 | ||||
| 95381-02020 | ||||

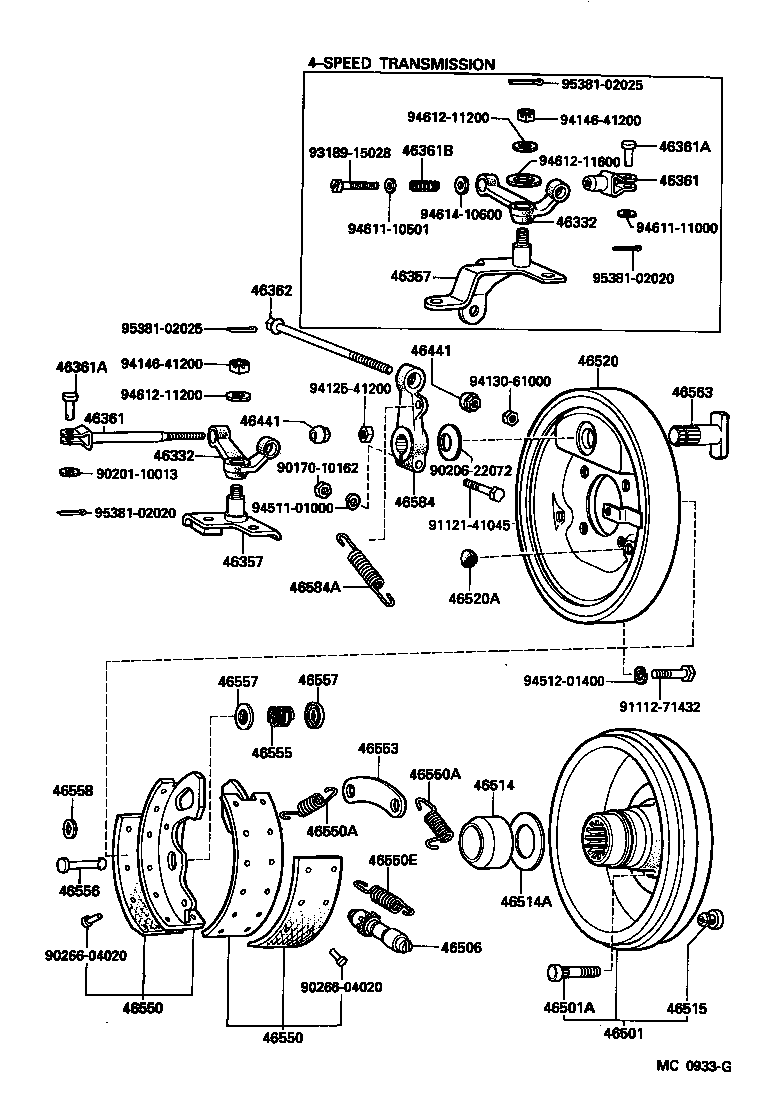

ILLUST NO. 2 OF 2(7003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46332 - LEVER, PARKING BRAKE LINK | ||||
| 46332-55030 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46332-55031 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46332 - LEVER, PARKING BRAKE LINK | ||||
| 46332-55030 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46332-55031 |
DA11#,FA100,115..LHD..5F |
1 | ||
| 46357 - BRACKET, LEVER SUPPORT | ||||
| 46359-55020 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46357 - BRACKET, LEVER SUPPORT | ||||
| 46359-55020 |
DA11#,FA100,11#,FB100..LHD..5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-55030 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46361-55031 |
DA11#,FA100,115..5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-55030 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 46361-55031 |
DA11#,FA100,115..5F |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-10083 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-10083 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 46362 - ROD, PARKING BRAKE PULL, NO.1 | ||||
| 46362-55031 |
DA11#,FA100,115 |
1 | ||
| 46362-55030 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=8 |
2 | ||
| 46441-55040 |
DA11#,DB105,FA100,115 ID=10 |
1 | ||
| 46441-55030 |
DA11#,DB105,FA100,115 ID=12 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=8 |
2 | ||
| 46441-55040 |
DA11#,DB105,FA100,115 ID=10 |
1 | ||
| 46441-55030 |
DA11#,DB105,FA100,115 ID=12 |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501-55012 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-12006 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 90114-12057 |
DA11#,DB10#,FA100,11#,FB100..5F |
4 | ||
| 90114-12057 |
DA11#,DB105,FA100,115 *12-1.25PX35-15 |
4 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46590-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46515 - COVER, INSPECTION HOLE | ||||
| 46515-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 90950-01089 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100..LHD |
1 | ||
| 46503-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46503-55020 |
DA11#,DB105,FA100,115..LHD |
1 | ||
| 46503-55021 |
DA11#,FA100,115..LHD |
1 | ||
| 46520A - PLUG, HOLE(FOR PARKING PLATE) | ||||
| 90950-01096 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46550-55020 |
DA11#,FA100,115 |
2 | ||
| 46550-55013 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-55011 |
DA11#,DB10#,FA100,11#,FB100..5F |
2 | ||
| 46550-55020 |
DA11#,FA100,115 |
2 | ||
| 46550-55013 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20083 |
DA11#,DB10#,FA100,11#..5F |
2 | ||
| 90506-32305 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20083 |
DA11#,DB10#,FA100,11#..5F |
2 | ||
| 90506-32305 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20083 |
DA11#,DB10#,FA100,11#..5F |
2 | ||
| 90506-23303 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 46553 - PLATE, ANCHOR PIN | ||||
| 46553-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46553-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-26579 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 46557-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 46557-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 46558 - WASHER, BRAKE SHOE HOLD DOWN | ||||
| 46558-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 46563 - CAM, PARKING BRAKE, NO.1 | ||||
| 46563-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46563-55010 |
DA11#,DB10#,FA100,11#,FB100..5F |
1 | ||
| 46584 - LEVER, PARKING BRAKE CAM | ||||
| 46584-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 46584-55012 |
DA11#,DB105,FA100,115 |
1 | ||
| 46584A - SPRING, PARKING BRAKE CAM LEVER | ||||
| 90506-23281 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| Common parts | ||||
| 90170-10162 | ||||
| 90201-10013 | ||||
| 90206-22072 | ||||
| 90266-04020 | ||||
| 91112-71432 | ||||
| 91121-41045 | ||||
| 93189-15028 | ||||
| 94125-41200 | ||||
| 94130-61000 | ||||
| 94146-41200 | ||||
| 94511-01000 | ||||
| 94512-01400 | ||||
| 94611-10501 | ||||
| 94611-11000 | ||||
| 94612-11200 | ||||
| 94612-11600 | ||||
| 94614-10600 | ||||
| 95381-02020 | ||||
| 95381-02025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
