DA116L-Q (1969)
Toyota Heavy Duty Truck
(6903- )DA11#,DB10#,FA100,11#,FB100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-55020 |
FA100,11#,FB100 |
2 | ||
| 42311-55041 |
DA11#,DB10# LH |
1 | ||
| 42311-55040 |
DA11#,DB10# LH |
1 | ||
| 42311-55020 |
DA11#,DB10# RH |
1 | ||
| 42312-55011 |
DA11# LH |
1 | ||
| 42311-55021 |
DA11#,DB10# RH |
1 | ||
| 42311-55051 |
DA11# RH |
1 | ||
| 42311-55021 |
FA100,11#,FB100 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-99011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90310-99042 |
DA11#,DB105,FA100,115 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90368-82078 |
DA11#,DB105,FA100,115 OUTER |
2 | ||
| 97600-32215 |
DA11#,DB10#,FA100,11#,FB100 OUTER |
2 | ||
| 97600-32217 |
DA11#,DB10#,FA100,11#,FB100 INNER |
2 | ||
| 90368-95077 |
DA11#,DB105,FA100,115 INNER |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90368-82078 |
DA11#,DB105,FA100,115 OUTER |
2 | ||
| 97600-32215 |
DA11#,DB10#,FA100,11#,FB100 OUTER |
2 | ||
| 97600-32217 |
DA11#,DB10#,FA100,11#,FB100 INNER |
2 | ||
| 90368-95077 |
DA11#,DB105,FA100,115 INNER |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90521-99049 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-56044 |
DA11#;FA100,115..2SR |
2 | ||
| 90311-48027 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-55020 |
DA11#,DB10#,FA100,11#,FB100 T=0.5 |
4 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 43245-65010 |
DA11#,DB10#,FA100,11#,FB100 ID=13.2 |
16 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42431-55012 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42411 - HUB, REAR AXLE | ||||
| 42411-55021 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42411-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42411-55022 |
DA11#,DB105,FA100,115 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-13066 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-13034 |
DA11#,DB10#,FA100,11#,FB100 |
16 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-55023 |
DA11#,DB105,FA100,115 |
1 | ||
| 42420-55022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42420-55903 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-55022 |
DA11#,DB105,FA100,115 OUTER |
2 | ||
| 42426-55021 |
DA11#,DB10#,FA100,11#,FB100 INNER |
2 | ||
| 42427-55021 |
DA11#,DB10#,FA100,11#,FB100 OUTER |
2 | ||
| 42426-55022 |
DA11#,DB105,FA100,115 INNER |
2 | ||
| 42427-55040 |
DA11#,DB105,FA100,115 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-55022 |
DA11#,DB105,FA100,115 OUTER |
2 | ||
| 42426-55021 |
DA11#,DB10#,FA100,11#,FB100 INNER |
2 | ||
| 42427-55021 |
DA11#,DB10#,FA100,11#,FB100 OUTER |
2 | ||
| 42426-55022 |
DA11#,DB105,FA100,115 INNER |
2 | ||
| 42427-55040 |
DA11#,DB105,FA100,115 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-55022 |
DA11#,DB105,FA100,115 OUTER |
2 | ||
| 42426-55021 |
DA11#,DB10#,FA100,11#,FB100 INNER |
2 | ||
| 42427-55021 |
DA11#,DB10#,FA100,11#,FB100 OUTER |
2 | ||
| 42426-55022 |
DA11#,DB105,FA100,115 INNER |
2 | ||
| 42427-55040 |
DA11#,DB105,FA100,115 |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 42419-55011 |
DA11#,DB105,FA100,115 |
2 | ||
| 42419-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90109-08015 |
DA11#,DB105,FA100,115 |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 42419-55011 |
DA11#,DB105,FA100,115 |
2 | ||
| 42419-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90109-08015 |
DA11#,DB105,FA100,115 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-55030 |
DA11#,DB105,FA100,115 |
2 | ||
| 42428-55022 |
DA11#,DB105,FA100,115 |
2 | ||
| 42428-55021 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-55030 |
DA11#,DB105,FA100,115 |
2 | ||
| 42428-55022 |
DA11#,DB105,FA100,115 |
2 | ||
| 42428-55021 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-55903 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42430-55022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42430-55023 |
DA11#,DB105,FA100,115 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42442-55010 |
DA11#,DB10#,FA100,11#,FB100 LH |
1 | ||
| 42441-55020 |
DA11#,DB10#,FA100,11#,FB100 RH |
1 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55010 |
DA11#,DB10#,FA100,11#,FB100 T=0.5 |
2 | ||
| 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH | ||||
| 42608-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 42608-55040 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 42608-55041 |
DA11#,DB105,FA100,115 |
8 | ||
| 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH | ||||
| 42609-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 42609-55040 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 42609-55041 |
DA11#,DB105,FA100,115 |
8 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02028 |
DA11#,DB10#,FA100,11#,FB100 RH |
8 | ||
| 90942-02008 |
DA11#,DB10#,FA100,11#,FB100 LH |
8 | ||
| 90942-02029 |
DA11#,DB10#,FA100,11#,FB100 LH |
8 | ||
| 90942-02007 |
DA11#,DB10#,FA100,11#,FB100 RH |
8 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55030 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 42631-55031 |
DA11#,DB105,FA100,115 |
8 | ||
| 42631-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
8 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
DA11#,DB105,FA100,115 |
8 | ||
| 42632-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
8 | ||
| 42632-55030 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| Common parts | ||||
| 91181-41240 | ||||
| 94110-41300 | ||||
| 94115-72000 | ||||
| 94125-41200 | ||||
| 94512-00800 | ||||
| 94512-01300 | ||||

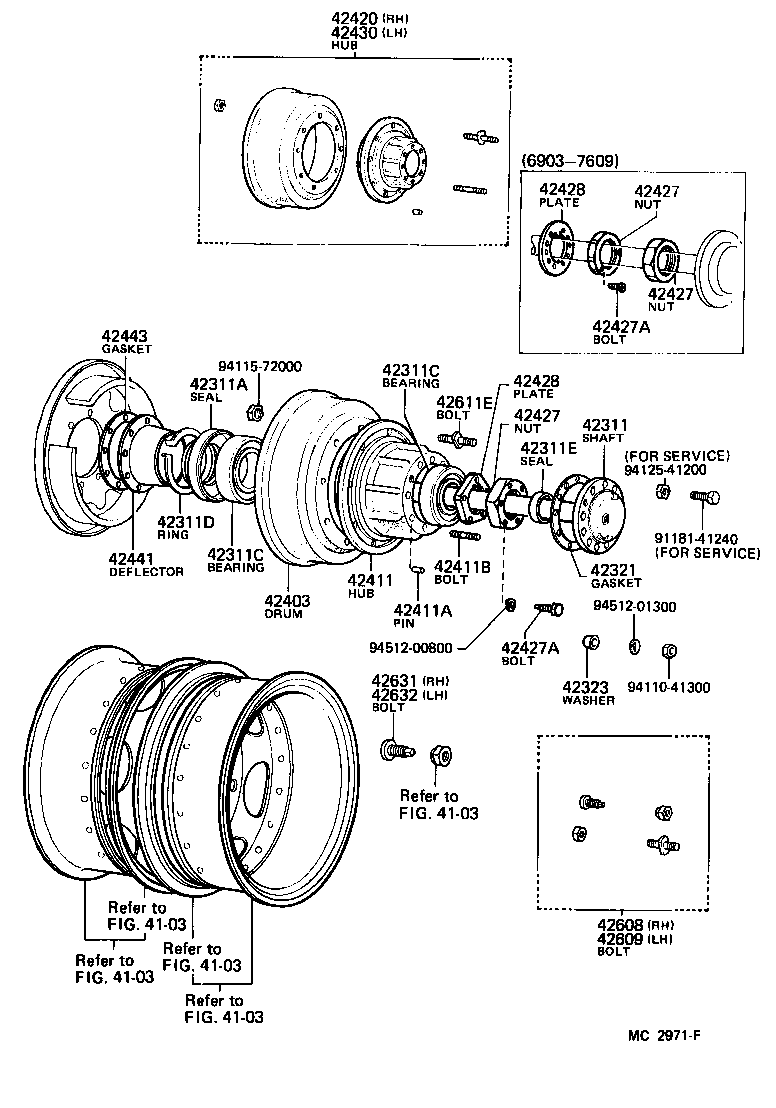

| Linked diagrams | ||||
| 4103 | ||||
