DA116L-Q (1969)
Toyota Heavy Duty Truck

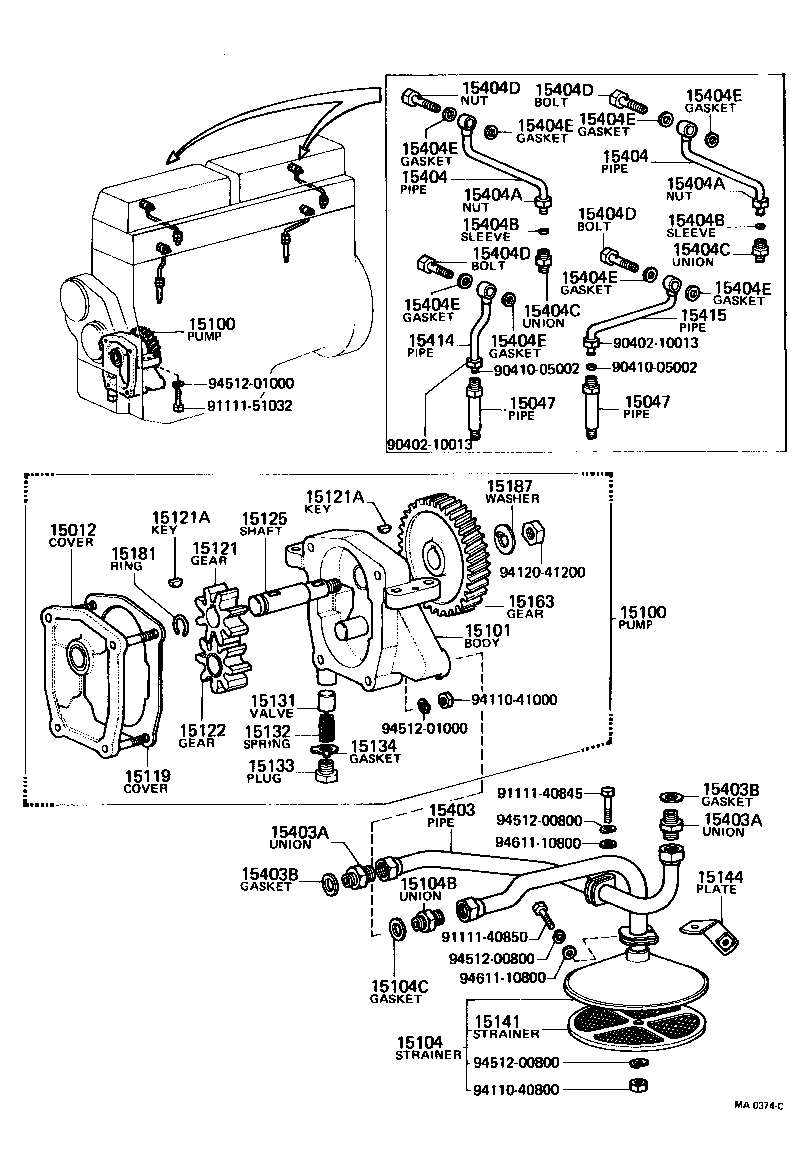

(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-76030 |
2D..DA11#,DB10# |
1 | ||
| 15012-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15047 - PIPE SUB-ASSY, OIL DELIVERY MAIN | ||||
| 15047-76010 |
2D..DA11#,DB10# |
2 | ||
| 15457-76011 |
2D..DA11#,DB10# |
2 | ||
| 15047 - PIPE SUB-ASSY, OIL DELIVERY MAIN | ||||
| 15047-76010 |
2D..DA11#,DB10# |
2 | ||
| 15457-76011 |
2D..DA11#,DB10# |
2 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15101-76031 |
2D..DA11#,DB105 |
1 | ||
| 15101-76030 |
2D..DA11#,DB10# |
1 | ||
| 15101-77010 |
2D..DA11# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-77030 |
2D..DA11# |
1 | ||
| 15104-76011 |
2D..DA11#,DB10# |
1 | ||
| 15104-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15104B - UNION(FOR OIL STRAINER) | ||||
| 90404-34133 |
2D..DA11#,DB10# |
1 | ||
| 90401-24068 |
2D..DA11# |
1 | ||
| 90404-34186 |
2D..DA11#,DB10# |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 90430-24096 |
2D..DA11#,DB10# |
1 | ||
| 15119 - GASKET, OIL PUMP COVER | ||||
| 15119-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-88111 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15121-60011 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15121-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-79410 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15122-76030 |
2D..DA11#,DB10# |
1 | ||
| 15122-60010 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15122-77010 |
2D..DA11# |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15125-76030 |
2D..DA11#,DB10# |
1 | ||
| 15125-76031 |
2D..DA11#,DB105 |
1 | ||
| 15125-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
F..FA100,11#,FC100 |
1 | ||
| 15131-24010 |
2D..DA11# |
1 | ||
| 15131-40010 |
2D..DA11#,DB10# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-76011 |
2D..DA11#,DB10# |
1 | ||
| 15132-40010 |
F..FA100,11#,FC100 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-24010 |
F..FA100,11#,FC100 |
1 | ||
| 15133-20010 |
2D..DA11#,DB10# |
1 | ||
| 15134 - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-20010 |
F..FA100,11#,FC100 |
1 | ||
| 15134-76010 |
2D..DA11#,DB10# |
1 | ||
| 15141 - STRAINER, OIL | ||||
| 15141-76010 |
2D..DA11#,DB10# |
1 | ||
| 15141-77020 |
2D..DA11# |
1 | ||
| 15144 - PLATE, OIL FILTER SUPPORTING | ||||
| 15144-77040 |
2D..DA11# |
1 | ||
| 15144-76021 |
2D..DA11#,DB10# |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-76030 |
2D..DA11#,DB10# |
1 | ||
| 15181 - RING, OIL PUMP SHAFT SNAP | ||||
| 15181-76030 |
2D..DA11#,DB10# |
1 | ||
| 15187 - WASHER, CLAW(FOR OIL PUMP DRIVE SHAFT GEAR) | ||||
| 15187-76030 |
2D..DA11#,DB10# |
1 | ||
| 15403 - PIPE SUB-ASSY, OIL PUMP OUTLET | ||||
| 15403-77020 |
2D..DA11# |
1 | ||
| 15403-76030 |
2D..DA11#,DB10# |
1 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-28131 |
2D..DA11#,DB10# |
2 | ||
| 90401-18003 |
2D..DA11# |
2 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-28131 |
2D..DA11#,DB10# |
2 | ||
| 90401-18003 |
2D..DA11# |
2 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL | ||||
| 15404-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15042-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 15042-76030 |
2D..DA11#,DB10# |
2 | ||
| 15042-77010 |
2D..DA11# |
2 | ||
| 15404-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL | ||||
| 15404-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15042-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 15042-76030 |
2D..DA11#,DB10# |
2 | ||
| 15042-77010 |
2D..DA11# |
2 | ||
| 15404-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404C - UNION, VALVE ROCKER SHAFT OIL PIPE | ||||
| 90404-10005 |
2D..DA11#,DB10# |
2 | ||
| 90404-10026 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-08001 |
2D..DA11# |
6 | ||
| 15404C - UNION, VALVE ROCKER SHAFT OIL PIPE | ||||
| 90404-10005 |
2D..DA11#,DB10# |
2 | ||
| 90404-10026 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-08001 |
2D..DA11# |
6 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15414 - PIPE, ROCKER SHAFT OIL DELIVERY, NO.1 | ||||
| 15404-76010 |
2D..DA11#,DB10# |
1 | ||
| 15415 - PIPE, ROCKER SHAFT OIL DELIVERY, NO.2 | ||||
| 15405-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90402-10013 | ||||
| 90410-05002 | ||||
| 91111-40845 | ||||
| 91111-40850 | ||||
| 91111-51032 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94611-10800 | ||||

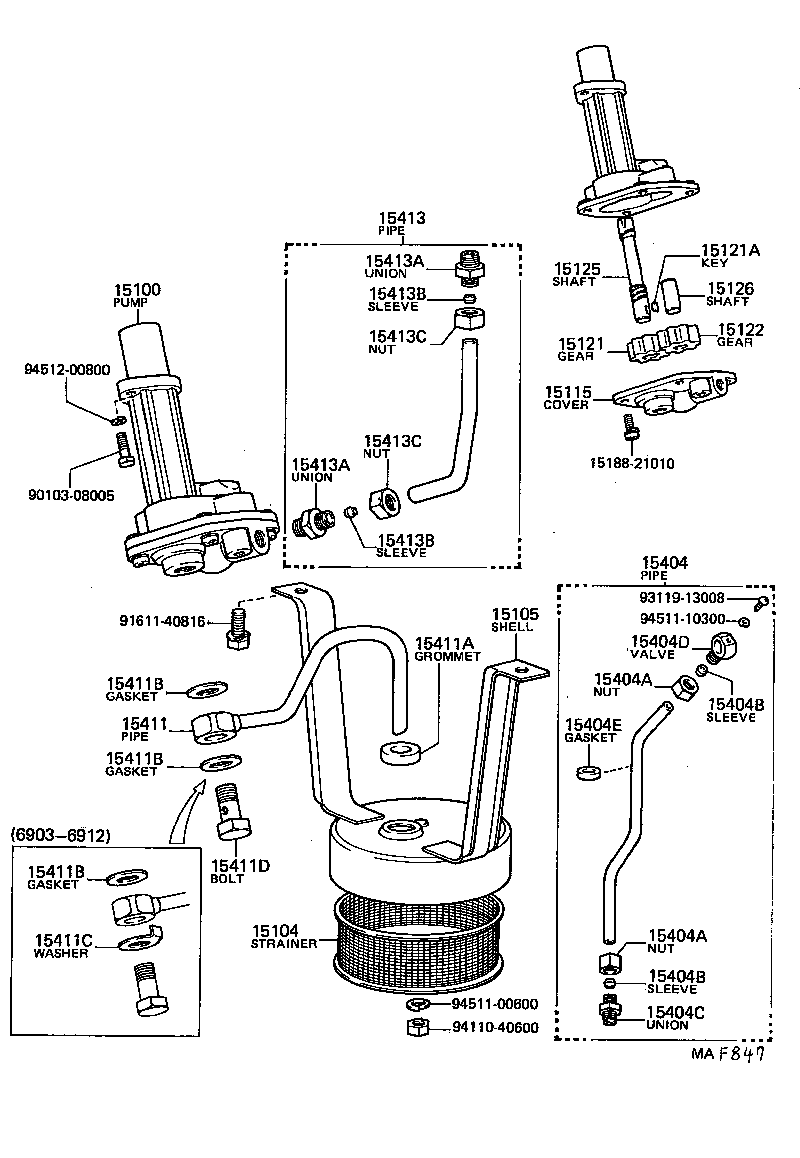

(7606-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-76030 |
2D..DA11#,DB10# |
1 | ||
| 15012-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-88111 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15121-60011 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15121-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-79410 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15122-76030 |
2D..DA11#,DB10# |
1 | ||
| 15122-60010 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15122-77010 |
2D..DA11# |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15125-76030 |
2D..DA11#,DB10# |
1 | ||
| 15125-76031 |
2D..DA11#,DB105 |
1 | ||
| 15125-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15126 - SHAFT, OIL PUMP DRIVEN | ||||
| 15126-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15126-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
F..FA100,11#,FC100 |
1 | ||
| 15131-24010 |
2D..DA11# |
1 | ||
| 15131-40010 |
2D..DA11#,DB10# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-76011 |
2D..DA11#,DB10# |
1 | ||
| 15132-40010 |

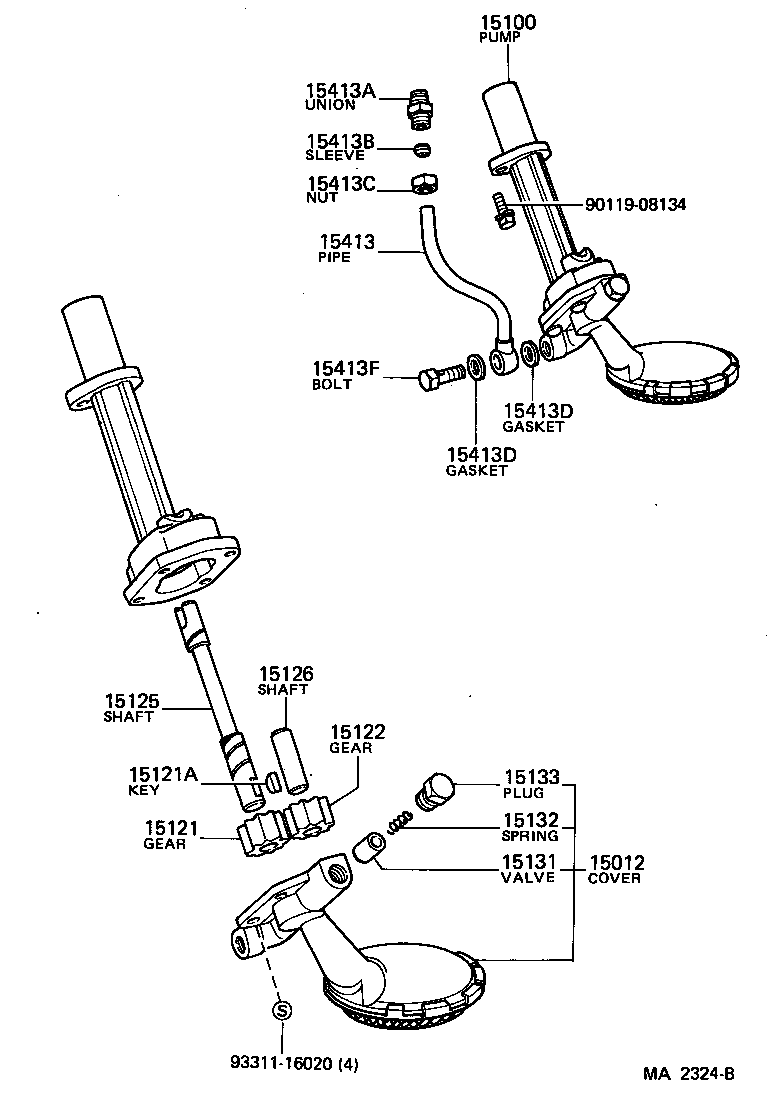

F..FA100,11#,FC100 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-24010 |
F..FA100,11#,FC100 |
1 | ||
| 15133-20010 |
2D..DA11#,DB10# |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15403-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15403-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-14235 |
F..FA100,11#,FC100 |
2 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-14235 |
F..FA100,11#,FC100 |
2 | ||
| 15413F - BOLT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-14093 |
F..FA100,11#,FC100 |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 93311-16020 | ||||

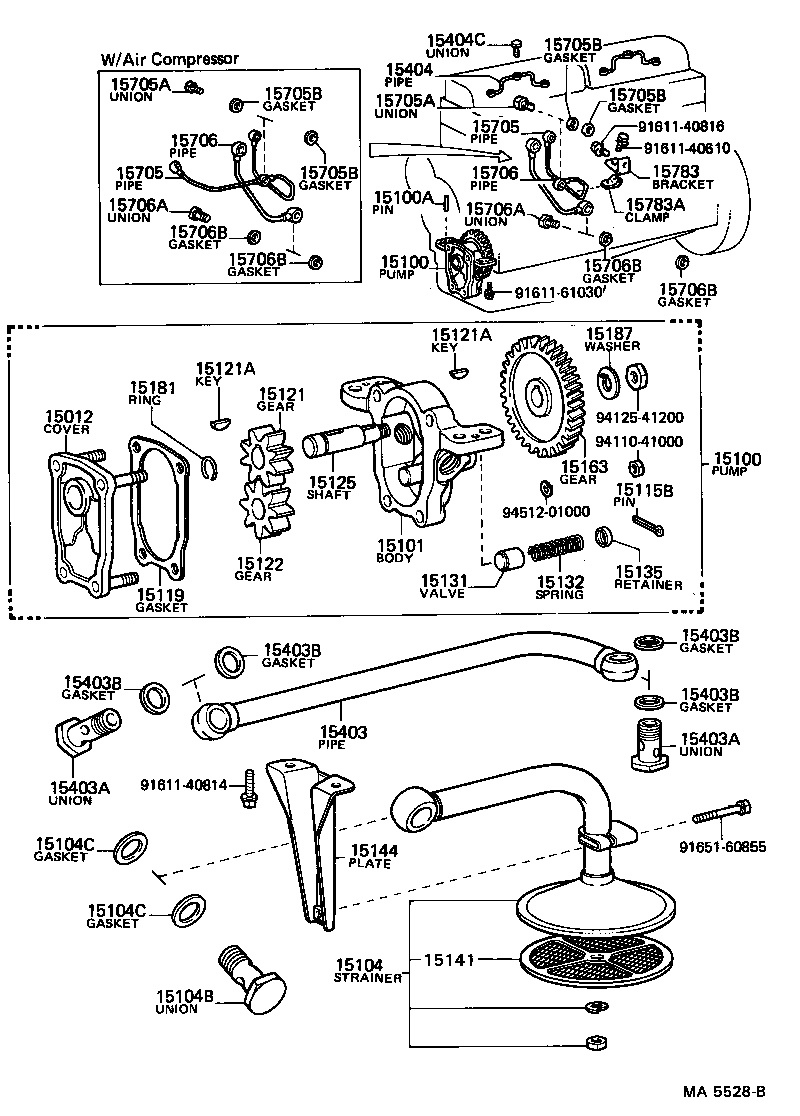

(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-76030 |
2D..DA11#,DB10# |
1 | ||
| 15012-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90250-08030 |
2D..DA11# |
2 | ||
| 90250-08050 |
2D..DA11# |
2 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15101-76030 |
2D..DA11#,DB10# |
1 | ||
| 15101-76031 |
2D..DA11#,DB105 |
1 | ||
| 15101-77010 |
2D..DA11# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-77030 |
2D..DA11# |
1 | ||
| 15104-76011 |
2D..DA11#,DB10# |
1 | ||
| 15104-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15104B - UNION(FOR OIL STRAINER) | ||||
| 90404-34133 |
2D..DA11#,DB10# |
1 | ||
| 90401-24068 |
2D..DA11# |
1 | ||
| 90404-34186 |
2D..DA11#,DB10# |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 90430-24096 |
2D..DA11#,DB10# |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 90430-24096 |
2D..DA11#,DB10# |
1 | ||
| 15115B - PIN, OIL PUMP VALVE SPRING SETTING | ||||
| 95381-04040 |
2D..DA11# |
1 | ||
| 15119 - GASKET, OIL PUMP COVER | ||||
| 15119-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-88111 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15121-60011 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15121-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-79410 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15122-76030 |
2D..DA11#,DB10# |
1 | ||
| 15122-60010 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15122-77010 |
2D..DA11# |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15125-76030 |
2D..DA11#,DB10# |
1 | ||
| 15125-76031 |
2D..DA11#,DB105 |
1 | ||
| 15125-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
F..FA100,11#,FC100 |
1 | ||
| 15131-24010 |
2D..DA11# |
1 | ||
| 15131-40010 |
2D..DA11#,DB10# |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-76011 |
2D..DA11#,DB10# |
1 | ||
| 15132-40010 |
F..FA100,11#,FC100 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-77010 |
2D..DA11# |
1 | ||
| 15141 - STRAINER, OIL | ||||
| 15141-76010 |
2D..DA11#,DB10# |
1 | ||
| 15141-77020 |
2D..DA11# |
1 | ||
| 15144 - PLATE, OIL FILTER SUPPORTING | ||||
| 15144-77040 |
2D..DA11# |
1 | ||
| 15144-76021 |
2D..DA11#,DB10# |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-76030 |
2D..DA11#,DB10# |
1 | ||
| 15181 - RING, OIL PUMP SHAFT SNAP | ||||
| 15181-76030 |
2D..DA11#,DB10# |
1 | ||
| 15187 - WASHER, CLAW(FOR OIL PUMP DRIVE SHAFT GEAR) | ||||
| 15187-76030 |
2D..DA11#,DB10# |
1 | ||
| 15403 - PIPE SUB-ASSY, OIL PUMP OUTLET | ||||
| 15403-77020 |
2D..DA11# |
1 | ||
| 15403-76030 |
2D..DA11#,DB10# |
1 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-28131 |
2D..DA11#,DB10# |
2 | ||
| 90401-18003 |
2D..DA11# |
2 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-28131 |
2D..DA11#,DB10# |
2 | ||
| 90401-18003 |
2D..DA11# |
2 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18002 |
2D..DA11# |
4 | ||
| 90430-18166 |
2D..DA11#,DB10# |
4 | ||
| 90430-18012 |
2D..DA11# |
4 | ||
| 15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL | ||||
| 15404-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15042-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 15042-76030 |
2D..DA11#,DB10# |
2 | ||
| 15042-77010 |
2D..DA11# |
2 | ||
| 15404-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404C - UNION, VALVE ROCKER SHAFT OIL PIPE | ||||
| 90404-10005 |
2D..DA11#,DB10# |
2 | ||
| 90404-10026 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-08001 |
2D..DA11# |
6 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15707-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 15707-77010 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15707-77020 |
2D..DA11# W/AIR COMPRESSOR |
1 | ||
| 15707-77010 |
2D..DA11#..GEN W/O AIR COMPRESSOR |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10006 |
2D..DA11# |
2 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10006 |
2D..DA11# |
2 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90430-10035 |
2D..DA11# |
4 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90430-10035 |
2D..DA11# |
4 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90430-10035 |
2D..DA11# |
4 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90430-10035 |
2D..DA11# |
4 | ||
| 15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET | ||||
| 15077-77011 |
2D..DA11# |
1 | ||
| 15077-77010 |
2D..DA11# |
1 | ||
| 15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET | ||||
| 15077-77011 |
2D..DA11# |
1 | ||
| 15077-77010 |
2D..DA11# |
1 | ||
| 15706A - UNION(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90401-16003 |
2D..DA11# |
1 | ||
| 15706A - UNION(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90401-16003 |
2D..DA11# |
1 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90430-16004 |
2D..DA11# |
2 | ||
| 90430-16242 |
2D..DA11# |
2 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90430-16004 |
2D..DA11# |
2 | ||
| 90430-16242 |
2D..DA11# |
2 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90430-16004 |
2D..DA11# |
2 | ||
| 90430-16242 |
2D..DA11# |
2 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90430-16004 |
2D..DA11# |
2 | ||
| 90430-16242 |
2D..DA11# |
2 | ||
| 15783 - BRACKET, OIL PIPE CLAMP(FOR INJECTION PUMP) | ||||
| 15783-77010 |
2D..DA11# |
1 | ||
| 15783A - CLAMP, OIL PIPE(FOR INJECTION PUMP) | ||||
| 90461-08534 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-61030 | ||||
| 91651-60855 | ||||
| 94110-41000 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||

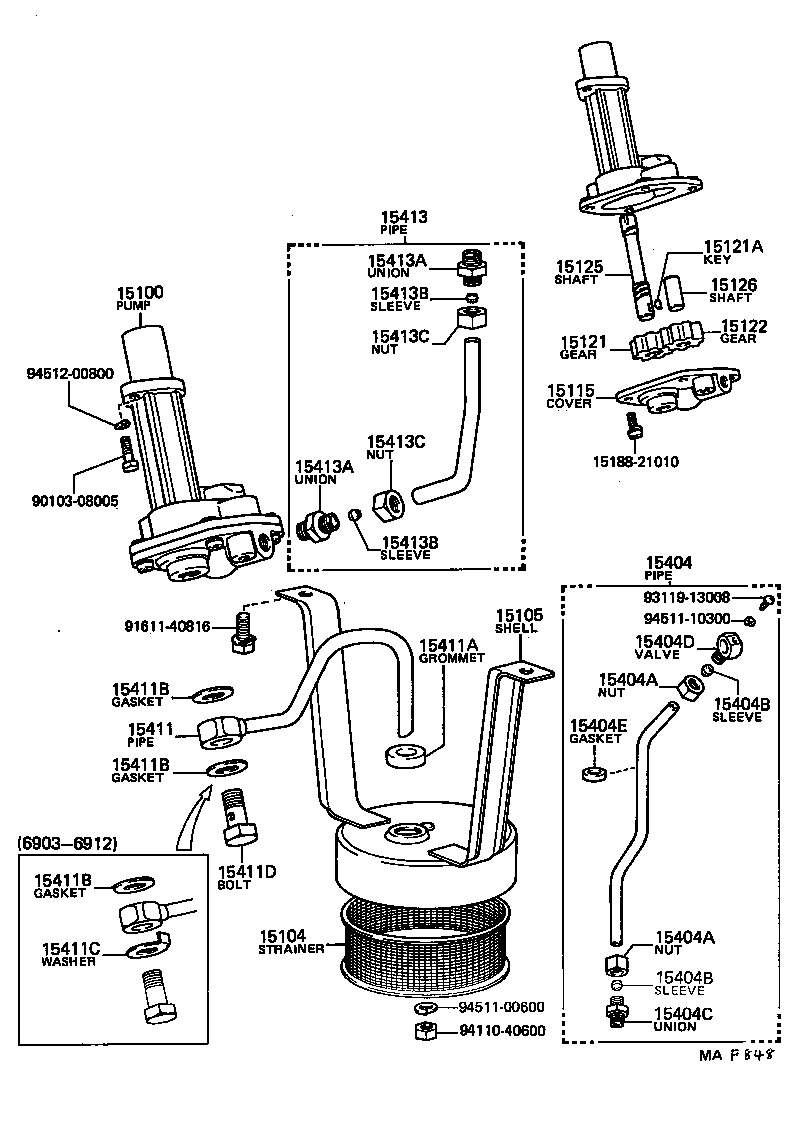

(6903-7309)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-77030 |
2D..DA11# |
1 | ||
| 15104-76011 |
2D..DA11#,DB10# |
1 | ||
| 15104-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15105 - SHELL SUB-ASSY, OIL STRAINER | ||||
| 15105-60022 |
F..FA100,11#,FC100 |
1 | ||
| 15105-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-88111 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15121-60011 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15121-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-79410 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15122-76030 |
2D..DA11#,DB10# |
1 | ||
| 15122-60010 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15122-77010 |
2D..DA11# |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15125-76030 |
2D..DA11#,DB10# |
1 | ||
| 15125-76031 |
2D..DA11#,DB105 |
1 | ||
| 15125-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15126 - SHAFT, OIL PUMP DRIVEN | ||||
| 15126-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15126-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL | ||||
| 15404-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15042-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 15042-76030 |
2D..DA11#,DB10# |
2 | ||
| 15042-77010 |
2D..DA11# |
2 | ||
| 15404-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404C - UNION, VALVE ROCKER SHAFT OIL PIPE | ||||
| 90404-10005 |
2D..DA11#,DB10# |
2 | ||
| 90404-10026 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-08001 |
2D..DA11# |
6 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15411 - PIPE, OIL PUMP INLET | ||||
| 15401-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15401-60022 |
F..FA100,11#,FC100 |
1 | ||
| 15411A - GROMMET(FOR OIL PUMP INLET PIPE) | ||||
| 90562-13021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90562-15138 |
F..FA100,11#,FC100 |
1 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411C - WASHER, LOCK(FOR OIL PUMP INLET PIPE) | ||||
| 90215-18011 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90215-18023 |
F..FA100,11#,FC100 |
1 | ||
| 15411D - BOLT, UNION(FOR OIL PUMP INLET PIPE) | ||||
| 90401-18094 |
F..FA100,11#,FC100 |
1 | ||
| 90401-18063 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-18008 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15403-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15403-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
F..FA100,11#,FB100,FC100 |
2 | ||
| Common parts | ||||
| 15188-21010 | ||||
| 90103-08005 | ||||
| 91611-40816 | ||||
| 93119-13008 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94511-10300 | ||||
| 94512-00800 | ||||
(7309-7606)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-76031 |
2D..DA11#,DB10# |
1 | ||
| 15100-76030 |
2D..DA11#,DB10# |
1 | ||
| 15100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15100-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15100-77010 |
2D..DA11# |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-77030 |
2D..DA11# |
1 | ||
| 15104-76011 |
2D..DA11#,DB10# |
1 | ||
| 15104-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15105 - SHELL SUB-ASSY, OIL STRAINER | ||||
| 15105-60022 |
F..FA100,11#,FC100 |
1 | ||
| 15105-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-88111 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15121-60011 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15121-76030 |
2D..DA11#,DB10# |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90280-04007 |
2D..DA11#,DB10# |
2 | ||
| 15186-77010 |
2D..DA11# |
2 | ||
| 90280-04007 |
2D..DA11# |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-79410 |
F..FA100,11#,FC100 N=7 |
1 | ||
| 15122-76030 |
2D..DA11#,DB10# |
1 | ||
| 15122-60010 |
F..FA100,11#,FB100,FC100 N=7 |
1 | ||
| 15122-77010 |
2D..DA11# |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15125-76030 |
2D..DA11#,DB10# |
1 | ||
| 15125-76031 |
2D..DA11#,DB105 |
1 | ||
| 15125-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15126 - SHAFT, OIL PUMP DRIVEN | ||||
| 15126-60013 |
F..FA100,11#,FC100 |
1 | ||
| 15126-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404 - PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL | ||||
| 15404-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15042-76021 |
2D..DA11#,DB10# W/DECOMPRESSION |
2 | ||
| 15042-76030 |
2D..DA11#,DB10# |
2 | ||
| 15042-77010 |
2D..DA11# |
2 | ||
| 15404-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404A - NUT, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90402-10013 |
2D..DA11#,DB10# |
4 | ||
| 90402-10013 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404B - SLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL | ||||
| 90410-05002 |
2D..DA11#,DB10# |
4 | ||
| 90410-05002 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15404C - UNION, VALVE ROCKER SHAFT OIL PIPE | ||||
| 90404-10005 |
2D..DA11#,DB10# |
2 | ||
| 90404-10026 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-08001 |
2D..DA11# |
6 | ||
| 15404D - VALVE, ROCKER SHAFT OIL PIPE UNION | ||||
| 90401-10010 |
2D..DA11#,DB10# |
4 | ||
| 90401-10082 |
2D..DA11#,DB10# |
4 | ||
| 90405-10102 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15404E - GASKET, VALVE ROCKER SHAFT OIL PIPE UNION | ||||
| 90430-10034 |
2D..DA11#,DB10# |
8 | ||
| 90202-03018 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15411 - PIPE, OIL PUMP INLET | ||||
| 15401-60021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15401-60022 |
F..FA100,11#,FC100 |
1 | ||
| 15411A - GROMMET(FOR OIL PUMP INLET PIPE) | ||||
| 90562-13021 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90562-15138 |
F..FA100,11#,FC100 |
1 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411B - GASKET OR RING, O(FOR OIL PUMP INLET PIPE) | ||||
| 90430-18012 |
F..FA100,11#,FB100,FC100 |
3 | ||
| 15411C - WASHER, LOCK(FOR OIL PUMP INLET PIPE) | ||||
| 90215-18011 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90215-18023 |
F..FA100,11#,FC100 |
1 | ||
| 15411D - BOLT, UNION(FOR OIL PUMP INLET PIPE) | ||||
| 90401-18094 |
F..FA100,11#,FC100 |
1 | ||
| 90401-18063 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90401-18008 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15403-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15403-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
F..FA100,11#,FB100,FC100 |
2 | ||
| Common parts | ||||
| 15188-21010 | ||||
| 90103-08005 | ||||
| 91611-40816 | ||||
| 93119-13008 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94511-10300 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
