Toyota Heavy duty truck DA116 FUEL TANK & TUBE

DA116L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

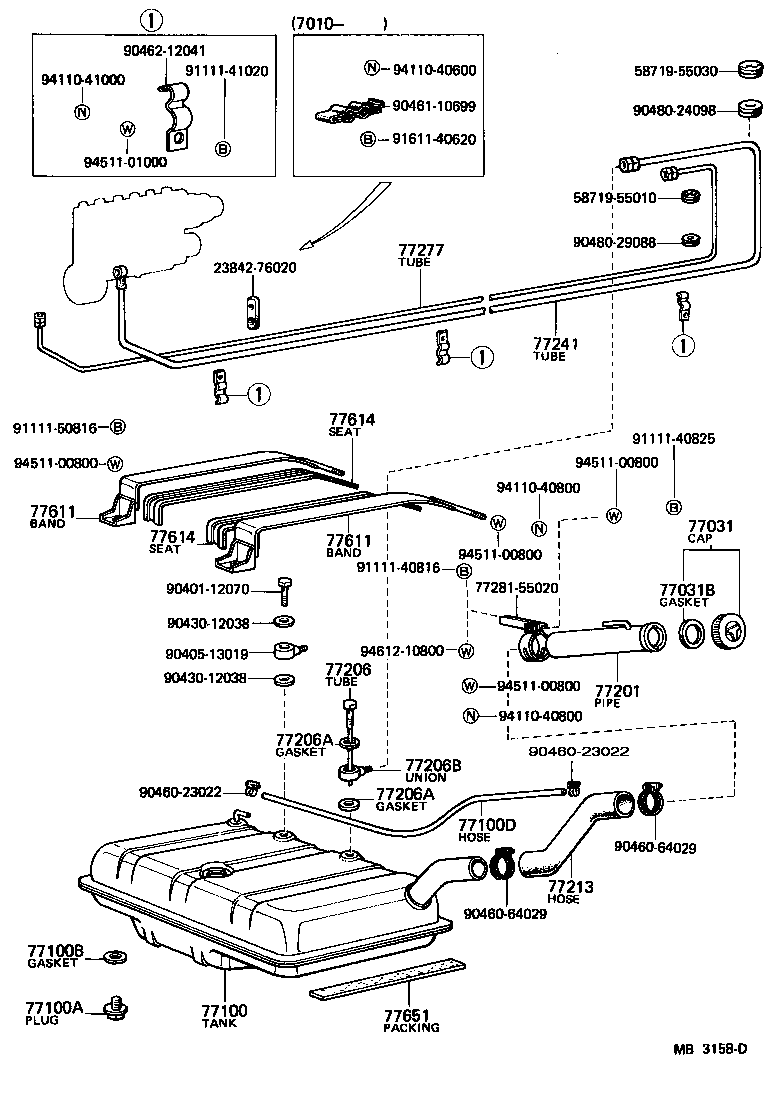

(6903-7205)DA11#

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-55031	DA11#	03/1969 - 02/1973	1
77310-60011	FA100,11#,FC100	02/1973 - 07/1982	1
77310-55021	FA100,11#,FC100	03/1969 - 02/1973	1
77031-95010	DA11# W/KEY	08/1978 - 12/2001	1
77310-55090	DA11#,DB10#	02/1973 - 12/2001	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77316-27010	DA11#,DB10#,FA100,11#,FC100	02/1973 - 12/2001	1
77100 - TANK ASSY, FUEL
77011-55012	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77011-55011	DA11#,FA100,11#,FC100 ISO	03/1969 - 05/1969	1
77001-55906	DA11#,FA100,115	01/1975 - 04/1977	1
77001-55063	DA11#	05/1972 - 02/1973	1
77001-55073	FA100,11#,FC100	05/1972 - 02/1973	1
77001-55120	DA11#	02/1973 - 10/1974	1
77001-55906	DA11#	10/1974 - 01/1975	1
77001-55110	FA100,11#,FC100	02/1973 - 01/1975	1
77001-55904	DA11# IV1,IV5	04/1977 - 10/1977	1
77001-55911	DA11# IV3	04/1977 - 10/1977	1
77001-55110	DA11# IV3	10/1977 - 12/2001	1
77001-55160	DA11# IV1,IV5	10/1977 - 12/2001	1
77100A - PLUG(FOR FUEL TANK)
90105-12005	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1969	1
90105-12018	DA11#,DB10#,FA100,11#,FC100	08/1969 - 12/2001	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	DA11#,FA100,115	08/1977 - 12/2001	1
90430-12038	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-24972	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
90446-21110	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-55030	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201-55060	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77206-55021	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77206-55020	DA11#,FA100,11#,FC100	03/1969 - 05/1969	1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
90430-12038	DA11#,FA100,11#,FC100	03/1969 - 05/1972	2
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
90430-12038	DA11#,FA100,11#,FC100	03/1969 - 05/1972	2
77206B - UNION (FOR FUEL TANK SUCTION TUBE)
90405-13019	DA11#,FA100,11#,FC100	03/1969 - 05/1972	1
77213 - HOSE, FUEL TANK SUB INLET
77217-55020	DA11#,FA100,11#,FC100	03/1969 - 09/1972	1
77217-55021	DA11#,FA100,11#,FC100	09/1972 - 12/2001	1
77241 - TUBE, FUEL MAIN, NO.1
90923-01047	FA100,11#,FC100	03/1969 - 05/1972	1
77251-55010	DA11#	05/1972 - 04/1977	1
90923-01048	DA11#	03/1969 - 05/1972	1
77251-55020	FA100,11#,FC100	05/1972 - 07/1982	1
77251-55040	DA11# W/O FUEL SEDIMENTER	04/1977 - 04/1981	1
77251-55080	DA11# W/AIR OVER BRAKE	02/1980 - 04/1981	1
77251-55070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77277 - TUBE, FUEL RETURN, NO.1
77252-55010	DA11#	05/1972 - 04/1977	1
90923-01049	DA11#	03/1969 - 05/1972	1
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77651 - PACKING, FUEL TANK BRACKET
77651-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
Common parts
23842-76020
58719-55010
58719-55030
77281-55020
90401-12070
90405-13019
90430-12038
90460-23022
90460-64029
90461-10699
90462-12041
90480-24098
90480-29088
91111-40816
91111-40825
91111-41020
91111-50816
91611-40620
94110-40600
94110-40800
94110-41000
94511-00800
94511-01000
94612-10800

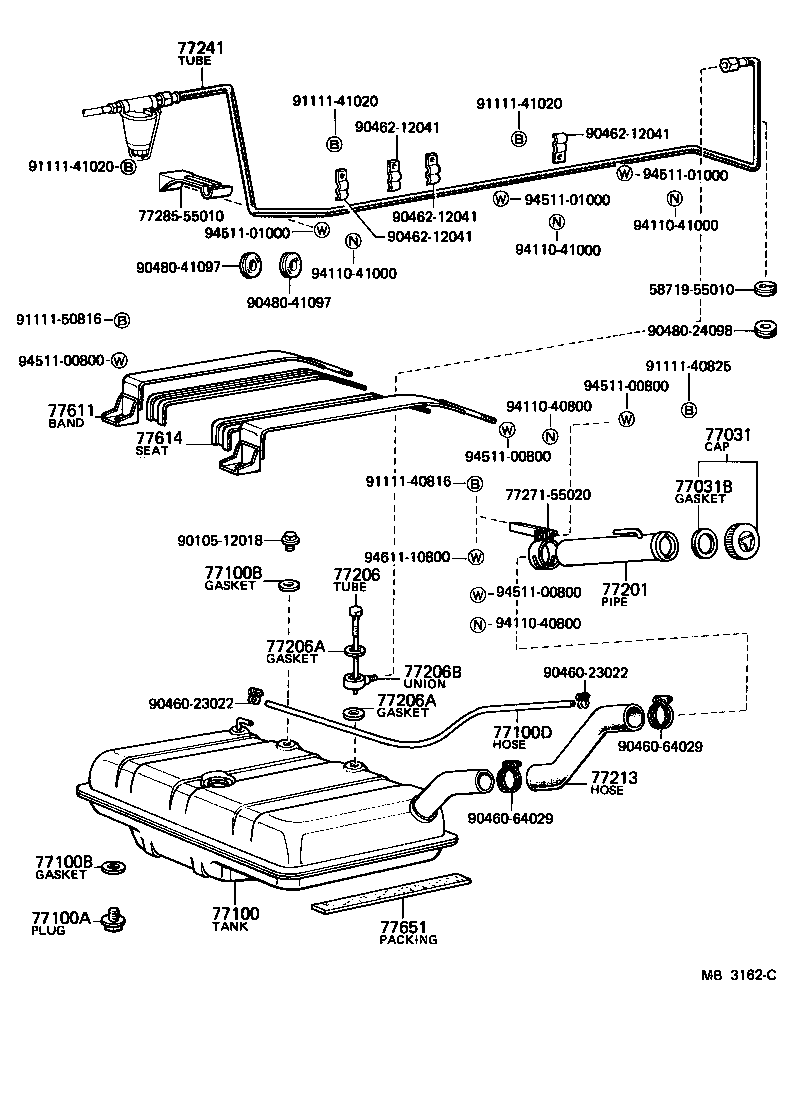

(6903-7205)FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-55031	DA11#	03/1969 - 02/1973	1
77310-60011	FA100,11#,FC100	02/1973 - 07/1982	1
77310-55021	FA100,11#,FC100	03/1969 - 02/1973	1
77031-95010	DA11# W/KEY	08/1978 - 12/2001	1
77310-55090	DA11#,DB10#	02/1973 - 12/2001	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77316-27010	DA11#,DB10#,FA100,11#,FC100	02/1973 - 12/2001	1
77100 - TANK ASSY, FUEL
77011-55012	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77011-55011	DA11#,FA100,11#,FC100 ISO	03/1969 - 05/1969	1
77001-55906	DA11#,FA100,115	01/1975 - 04/1977	1
77001-55063	DA11#	05/1972 - 02/1973	1
77001-55073	FA100,11#,FC100	05/1972 - 02/1973	1
77001-55120	DA11#	02/1973 - 10/1974	1
77001-55906	DA11#	10/1974 - 01/1975	1
77001-55110	FA100,11#,FC100	02/1973 - 01/1975	1
77001-55904	DA11# IV1,IV5	04/1977 - 10/1977	1
77001-55911	DA11# IV3	04/1977 - 10/1977	1
77001-55110	DA11# IV3	10/1977 - 12/2001	1
77001-55160	DA11# IV1,IV5	10/1977 - 12/2001	1
77100A - PLUG(FOR FUEL TANK)
90105-12005	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1969	1
90105-12018	DA11#,DB10#,FA100,11#,FC100	08/1969 - 12/2001	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	DA11#,FA100,115	08/1977 - 12/2001	1
90430-12038	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1977	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	DA11#,FA100,115	08/1977 - 12/2001	1
90430-12038	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-24972	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
90446-21110	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-55030	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201-55060	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77206-55021	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77206-55020	DA11#,FA100,11#,FC100	03/1969 - 05/1969	1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
90430-12038	DA11#,FA100,11#,FC100	03/1969 - 05/1972	2
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
90430-12038	DA11#,FA100,11#,FC100	03/1969 - 05/1972	2
77206B - UNION (FOR FUEL TANK SUCTION TUBE)
90405-13019	DA11#,FA100,11#,FC100	03/1969 - 05/1972	1
77213 - HOSE, FUEL TANK SUB INLET
77217-55021	DA11#,FA100,11#,FC100	09/1972 - 12/2001	1
77217-55020	DA11#,FA100,11#,FC100	03/1969 - 09/1972	1
77241 - TUBE, FUEL MAIN, NO.1
90923-01047	FA100,11#,FC100	03/1969 - 05/1972	1
77251-55010	DA11#	05/1972 - 04/1977	1
90923-01048	DA11#	03/1969 - 05/1972	1
77251-55020	FA100,11#,FC100	05/1972 - 07/1982	1
77251-55040	DA11# W/O FUEL SEDIMENTER	04/1977 - 04/1981	1
77251-55080	DA11# W/AIR OVER BRAKE	02/1980 - 04/1981	1
77251-55070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77651 - PACKING, FUEL TANK BRACKET
77651-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
Common parts
58719-55010
77271-55020
77285-55010
90105-12018
90460-23022
90460-64029
90462-12041
90480-24098
90480-41097
91111-40816
91111-40825
91111-41020
91111-50816
94110-40800
94110-41000
94511-00800
94511-01000
94611-10800

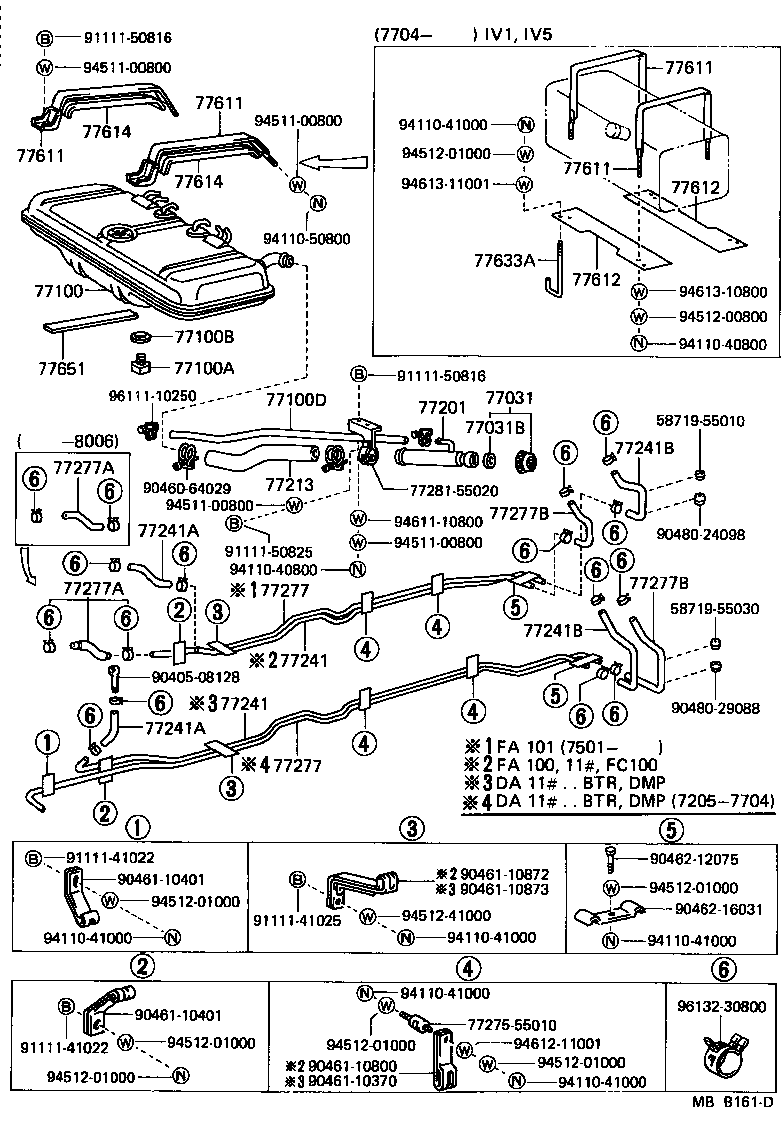

ILLUST NO. 1 OF 2(7205- )DA11#,FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-55031	DA11#	03/1969 - 02/1973	1
77310-60011	FA100,11#,FC100	02/1973 - 07/1982	1
77310-55021	FA100,11#,FC100	03/1969 - 02/1973	1
77031-95010	DA11# W/KEY	08/1978 - 12/2001	1
77310-55090	DA11#,DB10#	02/1973 - 12/2001	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77316-27010	DA11#,DB10#,FA100,11#,FC100	02/1973 - 12/2001	1
77100 - TANK ASSY, FUEL
77011-55012	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77011-55011	DA11#,FA100,11#,FC100 ISO	03/1969 - 05/1969	1
77001-55906	DA11#,FA100,115	01/1975 - 04/1977	1
77001-55063	DA11#	05/1972 - 02/1973	1
77001-55073	FA100,11#,FC100	05/1972 - 02/1973	1
77001-55120	DA11#	02/1973 - 10/1974	1
77001-55906	DA11#	10/1974 - 01/1975	1
77001-55110	FA100,11#,FC100	02/1973 - 01/1975	1
77001-55904	DA11# IV1,IV5	04/1977 - 10/1977	1
77001-55911	DA11# IV3	04/1977 - 10/1977	1
77001-55110	DA11# IV3	10/1977 - 12/2001	1
77001-55160	DA11# IV1,IV5	10/1977 - 12/2001	1
77100A - PLUG(FOR FUEL TANK)
90105-12005	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1969	1
90105-12018	DA11#,DB10#,FA100,11#,FC100	08/1969 - 12/2001	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	DA11#,FA100,115	08/1977 - 12/2001	1
90430-12038	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-24972	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
90446-21110	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-55030	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201-55060	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
77213 - HOSE, FUEL TANK SUB INLET
77217-55021	DA11#,FA100,11#,FC100	09/1972 - 12/2001	1
77217-55020	DA11#,FA100,11#,FC100	03/1969 - 09/1972	1
77241 - TUBE, FUEL MAIN, NO.1
90923-01047	FA100,11#,FC100	03/1969 - 05/1972	1
77251-55010	DA11#	05/1972 - 04/1977	1
90923-01048	DA11#	03/1969 - 05/1972	1
77251-55020	FA100,11#,FC100	05/1972 - 07/1982	1
77251-55040	DA11# W/O FUEL SEDIMENTER	04/1977 - 04/1981	1
77251-55080	DA11# W/AIR OVER BRAKE	02/1980 - 04/1981	1
77251-55070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77241 - TUBE, FUEL MAIN, NO.1
90923-01047	FA100,11#,FC100	03/1969 - 05/1972	1
77251-55010	DA11#	05/1972 - 04/1977	1
90923-01048	DA11#	03/1969 - 05/1972	1
77251-55020	FA100,11#,FC100	05/1972 - 07/1982	1
77251-55040	DA11# W/O FUEL SEDIMENTER	04/1977 - 04/1981	1
77251-55080	DA11# W/AIR OVER BRAKE	02/1980 - 04/1981	1
77251-55070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08016	DA11# *H,L=160	04/1977 - 08/1977	1
95331-08010	DA11# *H,L=100	05/1972 - 03/1974	1
95331-08020	DA11# *H,L=200	05/1972 - 04/1977	1
95331-08012	FA100,11#,FC100 *H,L=120	05/1972 - 04/1979	1
95332-08020	DA11# *H,L=160,ID=7.6	04/1979 - 12/2001	1
95332-08016	DA11# *H,L=160,ID=7.6	08/1977 - 04/1979	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08016	DA11# *H,L=160	04/1977 - 08/1977	1
95331-08010	DA11# *H,L=100	05/1972 - 03/1974	1
95331-08020	DA11# *H,L=200	05/1972 - 04/1977	1
95331-08012	FA100,11#,FC100 *H,L=120	05/1972 - 04/1979	1
95332-08020	DA11# *H,L=160,ID=7.6	04/1979 - 12/2001	1
95332-08016	DA11# *H,L=160,ID=7.6	08/1977 - 04/1979	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
95331-08038	DA11#,FA100,11#,FC100 *H,L=380	05/1972 - 04/1979	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 12/2001	1
95332-08040	DA11#,FA100,115 *H,L=380,ID=7.6,W/O FUEL SEDIMENTER	04/1979 - 12/2001	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
95331-08038	DA11#,FA100,11#,FC100 *H,L=380	05/1972 - 04/1979	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 12/2001	1
95332-08040	DA11#,FA100,115 *H,L=380,ID=7.6,W/O FUEL SEDIMENTER	04/1979 - 12/2001	1
77277 - TUBE, FUEL RETURN, NO.1
77252-55010	DA11#	05/1972 - 04/1977	1
90923-01049	DA11#	03/1969 - 05/1972	1
77277 - TUBE, FUEL RETURN, NO.1
77252-55010	DA11#	05/1972 - 04/1977	1
90923-01049	DA11#	03/1969 - 05/1972	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
90445-14929	DA11#,DB105,FA100,115 L=520	01/1975 - 04/1977	1
90445-14929	DA11#,DB10# L=520	05/1972 - 01/1975	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
90445-14929	DA11#,DB105,FA100,115 L=520	01/1975 - 04/1977	1
90445-14929	DA11#,DB10# L=520	05/1972 - 01/1975	1
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77612 - BRACKET SUB-ASSY, FUEL TANK
77616-55021	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77612 - BRACKET SUB-ASSY, FUEL TANK
77616-55021	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77633A - BOLT SUB-ASSY, FUEL TANK SET
77644-55010	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	4
77651 - PACKING, FUEL TANK BRACKET
77651-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
Common parts
58719-55010
58719-55030
77275-55010
77281-55020
90405-08128
90460-64029
90461-10370
90461-10401
90461-10800
90461-10872
90461-10873
90462-12075
90462-16031
90480-24098
90480-29088
91111-41022
91111-41025
91111-50816
91111-50825
94110-40800
94110-41000
94110-50800
94511-00800
94512-00800
94512-01000
94512-41000
94611-10800
94612-11001
94613-10800
94613-11001
96111-10250
96132-30800

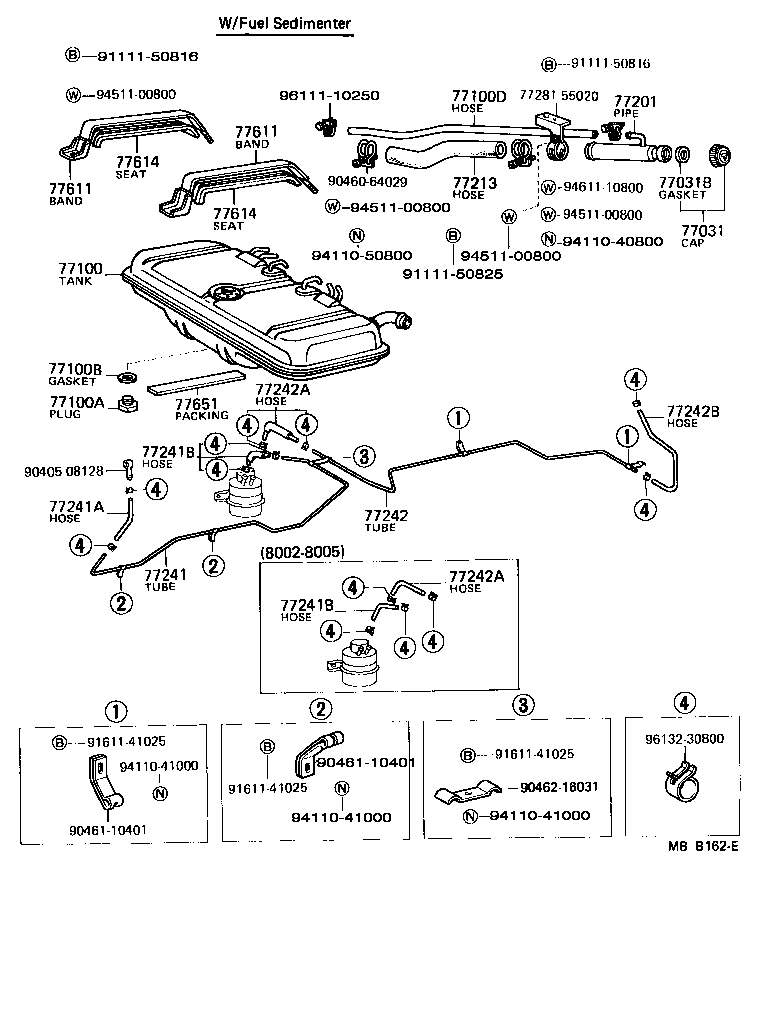

ILLUST NO. 2 OF 2(8002- )DA11#

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-55031	DA11#	03/1969 - 02/1973	1
77310-60011	FA100,11#,FC100	02/1973 - 07/1982	1
77310-55021	FA100,11#,FC100	03/1969 - 02/1973	1
77031-95010	DA11# W/KEY	08/1978 - 12/2001	1
77310-55090	DA11#,DB10#	02/1973 - 12/2001	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77316-27010	DA11#,DB10#,FA100,11#,FC100	02/1973 - 12/2001	1
77100 - TANK ASSY, FUEL
77011-55012	DA11#,FA100,11#,FC100	05/1969 - 05/1972	1
77011-55011	DA11#,FA100,11#,FC100 ISO	03/1969 - 05/1969	1
77001-55906	DA11#,FA100,115	01/1975 - 04/1977	1
77001-55063	DA11#	05/1972 - 02/1973	1
77001-55073	FA100,11#,FC100	05/1972 - 02/1973	1
77001-55120	DA11#	02/1973 - 10/1974	1
77001-55906	DA11#	10/1974 - 01/1975	1
77001-55110	FA100,11#,FC100	02/1973 - 01/1975	1
77001-55904	DA11# IV1,IV5	04/1977 - 10/1977	1
77001-55911	DA11# IV3	04/1977 - 10/1977	1
77001-55110	DA11# IV3	10/1977 - 12/2001	1
77001-55160	DA11# IV1,IV5	10/1977 - 12/2001	1
77100A - PLUG(FOR FUEL TANK)
90105-12005	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1969	1
90105-12018	DA11#,DB10#,FA100,11#,FC100	08/1969 - 12/2001	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	DA11#,FA100,115	08/1977 - 12/2001	1
90430-12038	DA11#,DB10#,FA100,11#,FC100	03/1969 - 08/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-24972	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
90446-21110	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-55030	DA11#,FA100,11#,FC100	03/1969 - 02/1973	1
77201-55060	DA11#,FA100,11#,FC100	02/1973 - 12/2001	1
77213 - HOSE, FUEL TANK SUB INLET
77217-55021	DA11#,FA100,11#,FC100	09/1972 - 12/2001	1
77217-55020	DA11#,FA100,11#,FC100	03/1969 - 09/1972	1
77241 - TUBE, FUEL MAIN, NO.1
90923-01047	FA100,11#,FC100	03/1969 - 05/1972	1
77251-55010	DA11#	05/1972 - 04/1977	1
90923-01048	DA11#	03/1969 - 05/1972	1
77251-55020	FA100,11#,FC100	05/1972 - 07/1982	1
77251-55040	DA11# W/O FUEL SEDIMENTER	04/1977 - 04/1981	1
77251-55080	DA11# W/AIR OVER BRAKE	02/1980 - 04/1981	1
77251-55070	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-08016	DA11# *H,L=160	04/1977 - 08/1977	1
95331-08010	DA11# *H,L=100	05/1972 - 03/1974	1
95331-08020	DA11# *H,L=200	05/1972 - 04/1977	1
95331-08012	FA100,11#,FC100 *H,L=120	05/1972 - 04/1979	1
95332-08020	DA11# *H,L=160,ID=7.6	04/1979 - 12/2001	1
95332-08016	DA11# *H,L=160,ID=7.6	08/1977 - 04/1979	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
95331-08038	DA11#,FA100,11#,FC100 *H,L=380	05/1972 - 04/1979	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 12/2001	1
95332-08040	DA11#,FA100,115 *H,L=380,ID=7.6,W/O FUEL SEDIMENTER	04/1979 - 12/2001	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
95331-08038	DA11#,FA100,11#,FC100 *H,L=380	05/1972 - 04/1979	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 12/2001	1
95332-08040	DA11#,FA100,115 *H,L=380,ID=7.6,W/O FUEL SEDIMENTER	04/1979 - 12/2001	1
77242 - TUBE, FUEL MAIN, NO.2
77252-55030	DA11# W/SEDIMENTER & AIR OVER BRAKE	02/1980 - 12/2001	1
77252-55050	DA11# W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 01/1983	1
77260-55020	DA11# W/FUEL SEDIMENTER	01/1983 - 12/2001	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08040	DA11# *H,L=340,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 05/1980	1
77260-55010	DA11# W/FUEL SEDIMENTER	05/1980 - 01/1983	1
77260-55020	DA11# W/FUEL SEDIMENTER	01/1983 - 12/2001	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08040	DA11# *H,L=380,ID=7.6,W/FUEL SEDIMENTER	02/1980 - 12/2001	1
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77611 - BAND, FUEL TANK
77601-57011	DA11#,FA100,115 IV1,IV5	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,115 IV3	04/1977 - 12/2001	2
77611-55020	DA11#,FA100,11#,FC100	03/1969 - 04/1977	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77614 - SEAT, FUEL TANK BAND
77614-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
77651 - PACKING, FUEL TANK BRACKET
77651-55010	DA11#,FA100,11#,FC100	03/1969 - 12/2001	2
Common parts
77281-55020
90405-08128
90460-64029
90461-10401
90462-16031
91111-50816
91111-50825
91611-41025
94110-40800
94110-41000
94110-50800
94511-00800
94611-10800
96111-10250
96132-30800

DA116L-H (1969)

(6903-7205)DA11#

(6903-7205)FA100,11#,FC100

ILLUST NO. 1 OF 2(7205- )DA11#,FA100,11#,FC100

ILLUST NO. 2 OF 2(8002- )DA11#

Part Price Details
